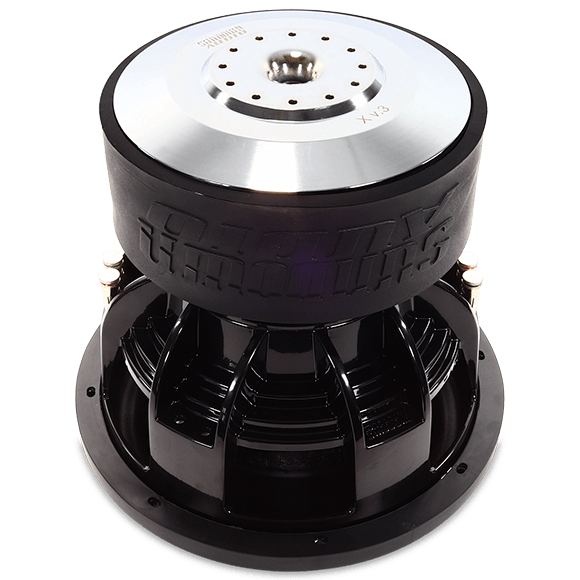

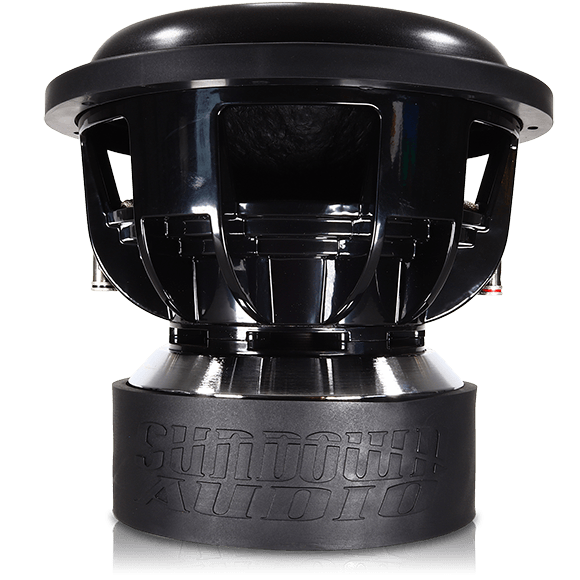

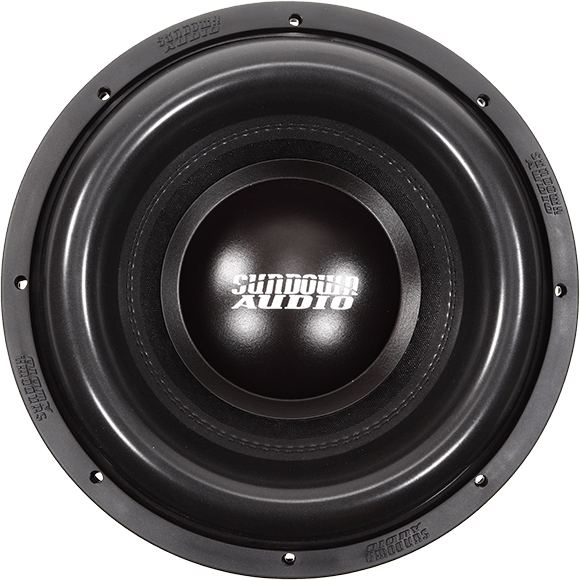

Sundown Audio X-Series v.3 12" Subwoofer

Sundown AudioSKU: SW-XV312D2

Price:
Sale price$759.99
Stock:
Sold out

Description

  • RMS 2000 watts
  • Dual 1 or 2 ohm voice coil
  • Made for extremely deep bass
  • Triple-stacked magnet
  • 3” voice coil
  • Hyper-extended pole
  • Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

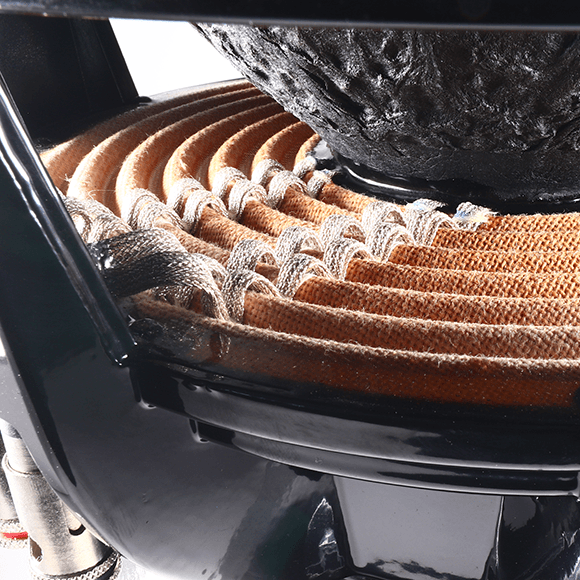

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Specifications

T/S SPECS X V.3 12″ D1 X V.3 12″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 37.098 37.235
VAS (L) 12.986 17.077
Qes 0.486 0.543
Qms 2.597 2.779
Qts 0.409 0.454
Le (mH)
BL (NA) 15.943 19.857
Mms (Grams) 378.626 285.817
Cms (uM/N) 48.611 63.922
Sens (dB @ 1w/1m) 83.2dB

84.0dB

Xmax 30mm

30mm

Enclosure Specifications

  X v.3 12
Sealed Enclosure N/A
Ported Enclosure 2.5 cu ft
Recommended Tuning 32hz
Recommended Port Area 40 sq in
Displacement 0.2 cu ft
Depth 10.4"
Outside Diam. 12.68"
Cutout 11.09"
Physical Dimensions Download

Enclosure Designs

A design plan for a speaker enclosure from Bassahaulic Designs contains dimensions and specifications specifically tailored for the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer. It provides details on enclosure size, port size, tuning frequency, and emphasizes checking cut sheets for accuracy to ensure compatibility with the Z v.6 subwoofer. 3D illustration of a wooden subwoofer box design featuring a circular cutout specifically for the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer. The box, inspired by Sundown Audio's distinguished series, incorporates a vented partition to boost sound quality. A logo can be seen in the bottom left corner. A detailed 3D design of a wooden enclosure specifically made for the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer features dimensions clearly marked. This rectangular box includes a circular opening on its front face, with blue labels indicating width, height, and depth. A Sundown Audio series logo is positioned at the bottom left corner. The Sundown Audio X-Series 12" 2000W X-12 v.3 Subwoofer is represented with a detailed 3D model of a rectangular box featuring internal compartments, where dimensions in inches are marked along the edges. The model includes a circular cutout on the bottom, perfect for integrating motor structures, with the Sundown Audio logo stylishly positioned in the bottom left corner.
Blueprint of a rectangular wooden panel with dimensions labeled, featuring the Sundown Audio Z-Series logo. Includes two smaller panels stacked above, each showing detailed measurements in inches. The design elements incorporate Basshaulio Productions at the bottom left corner, tailored specifically for the ultra-high excursion Sundown Audio Z-Series ZV6 12" 2500W Subwoofer. Set against a beige background. Diagram of a rectangular wooden panel with a circular cutout in the center, ideal for showcasing the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer. The panel dimensions are noted as 13 x 23 3/4, with the circle diameter labeled as 6 1/2. Measurements indicate distances from the circle to the edges. A 3D diagram of a wooden joint illustrates precise measurements, with the front view highlighting a section labeled with dimensions of 6 inches and 2.125 inches. The Bassaholic Productions logo is prominently displayed in the bottom left corner, embodying the precision characteristic of Sundown Audio's Z-Series ZV6 12" 2500W Subwoofer designs. 3D diagram of a wooden speaker enclosure designed for the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer, featuring specific measurements labeled. The design includes a cutout for the subwoofer, internal partitions, and dimensions in inches. Sundown Audio logos are present at the bottom left corner as part of the series.
A detailed diagram showcases the labeled components for constructing a speaker box specifically designed for the Sundown Audio X-Series 12" 2000W X-12 v.3 Subwoofer. It features dimensions for the Port Wall (13 x 21), Front (13 x 23 3/4), Sides (13 x 21), Back (13 x 26 1/2), and Top & Bottom (21 x 29 1/2), ensuring compatibility with ultra-high excursion capabilities of the subwoofer. A blueprint diagram showcases the design of a rectangular box, ideal for incorporating the Sundown Audio Z-Series ZV6 12" 2500W Subwoofer, featuring labeled sections: Top & Bottom (29 1/2 x 21), Back (26 1/2 x 13), and two Port Wall #2 (13 x 13). The box includes blue and orange areas for aesthetic differentiation.
.Zip File

Specifications

Product Brand Sundown Audio
Coil Dual 1 Ohm (D1)   Dual 2 Ohm (D2)
RMS Power 2000W
Diameter 12"
