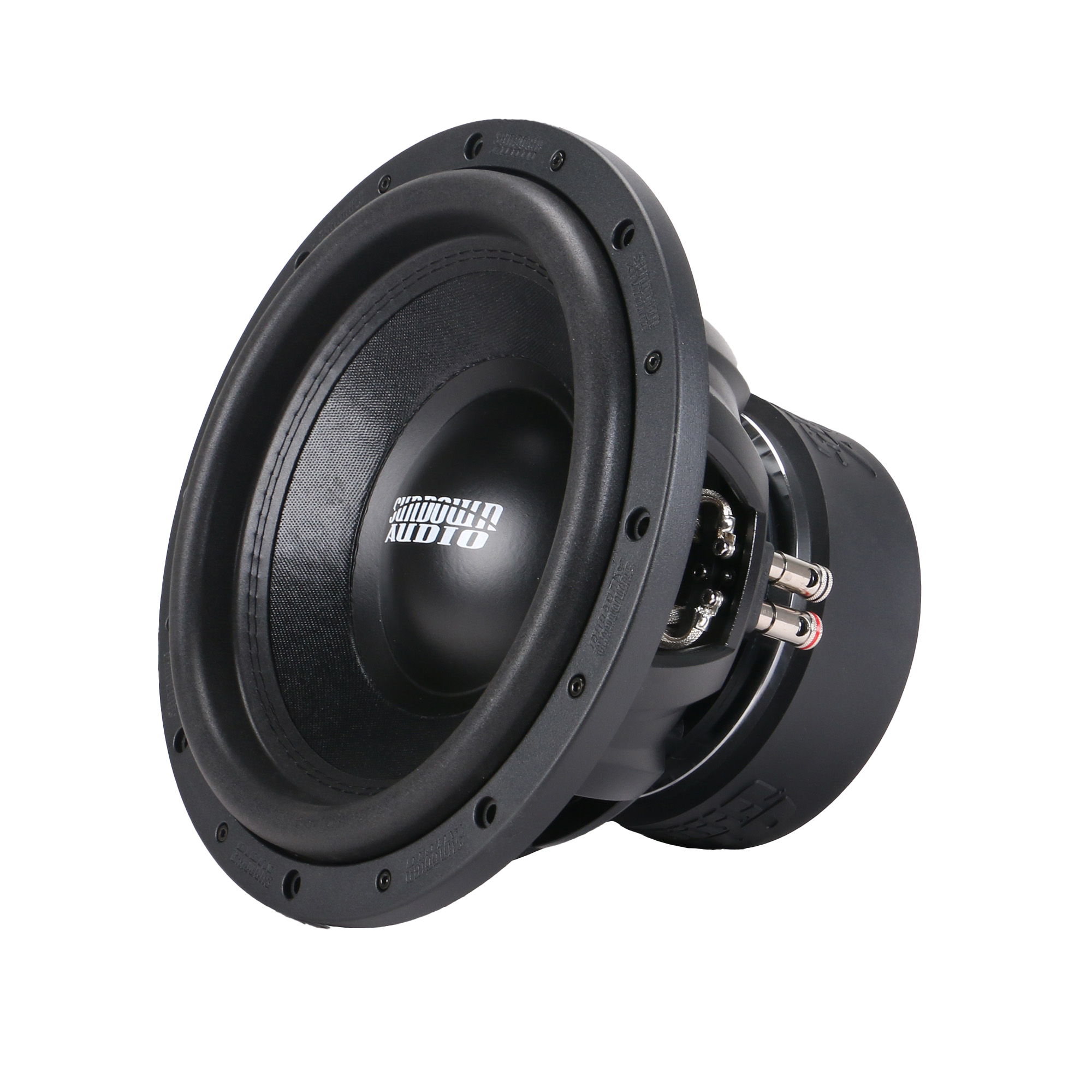

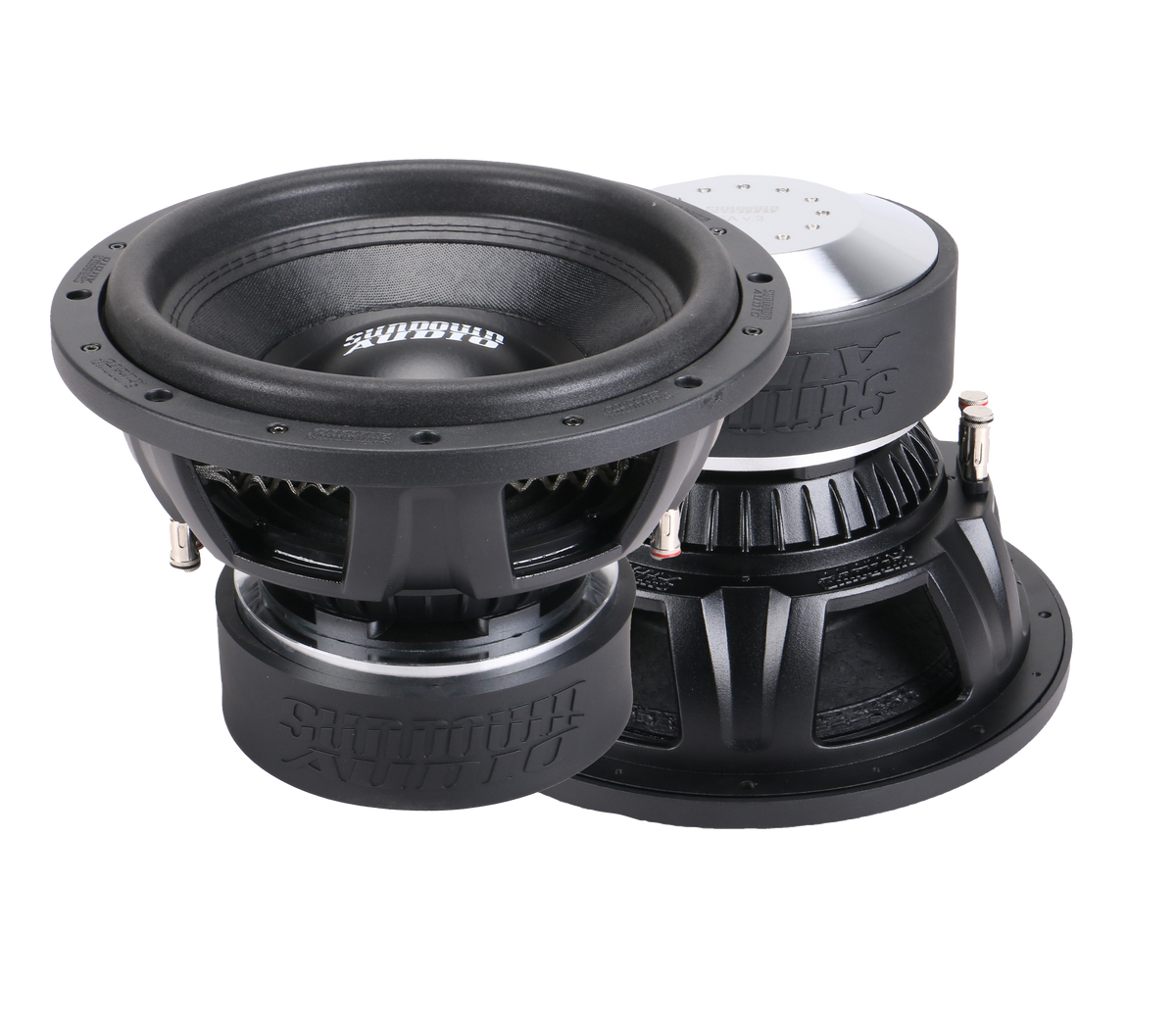

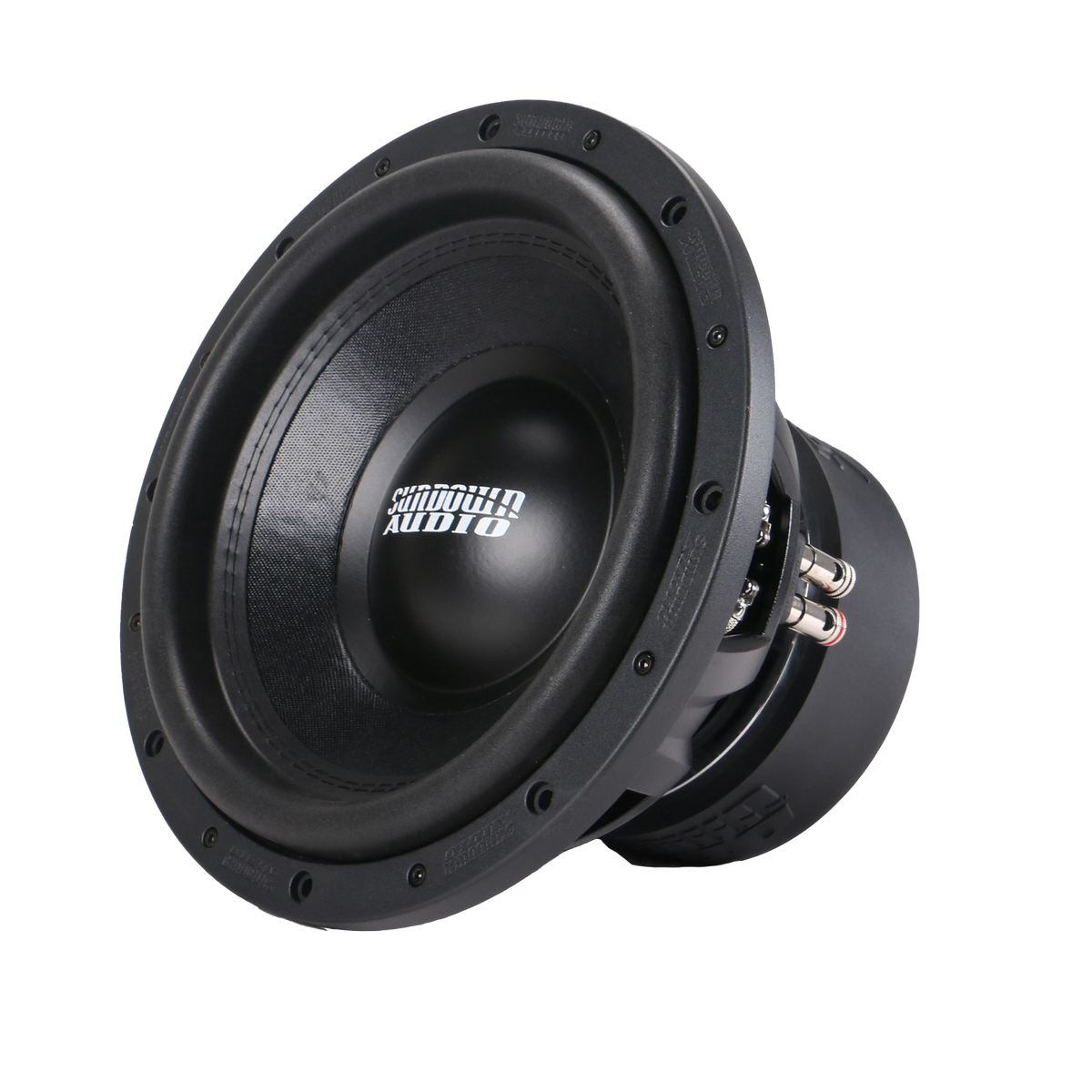

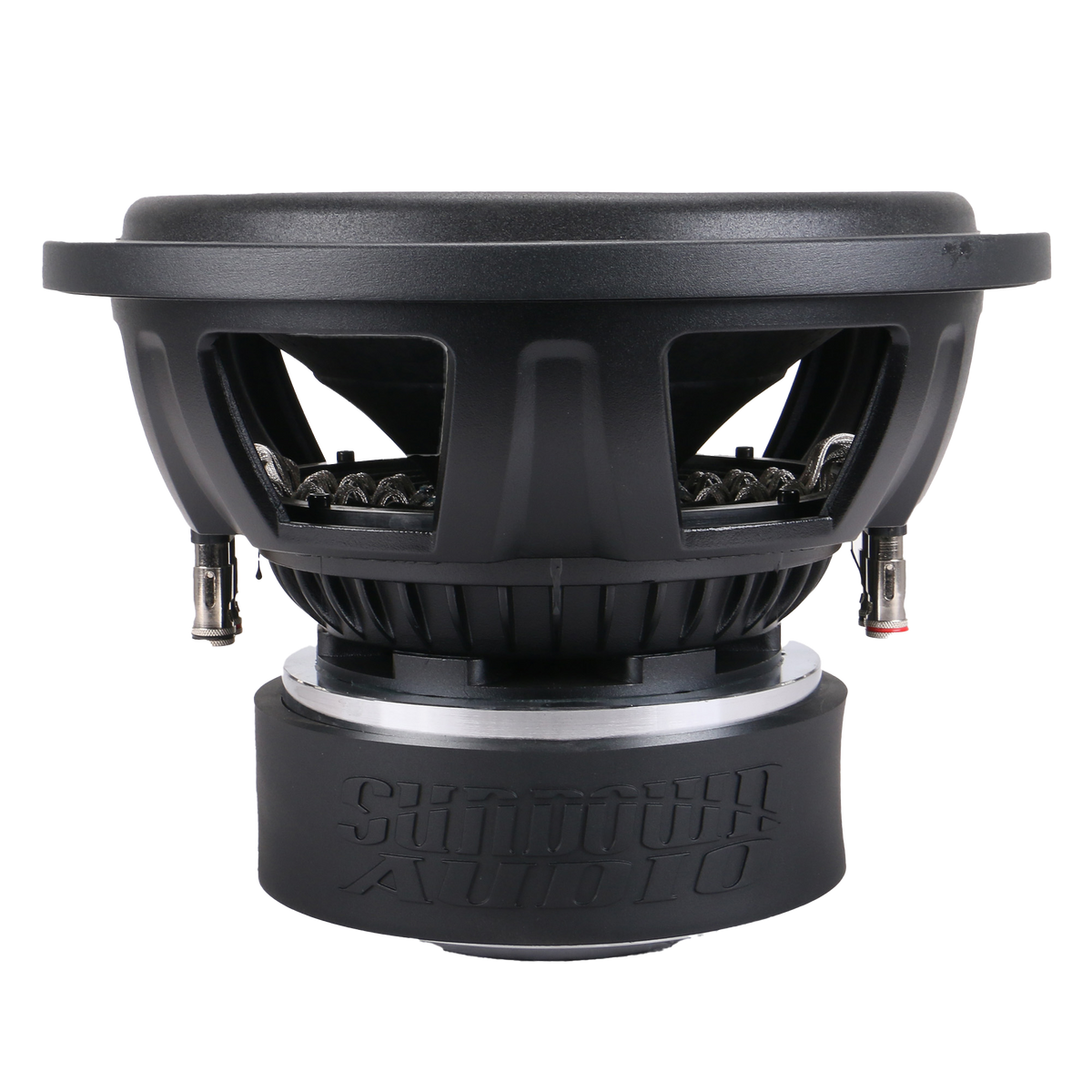

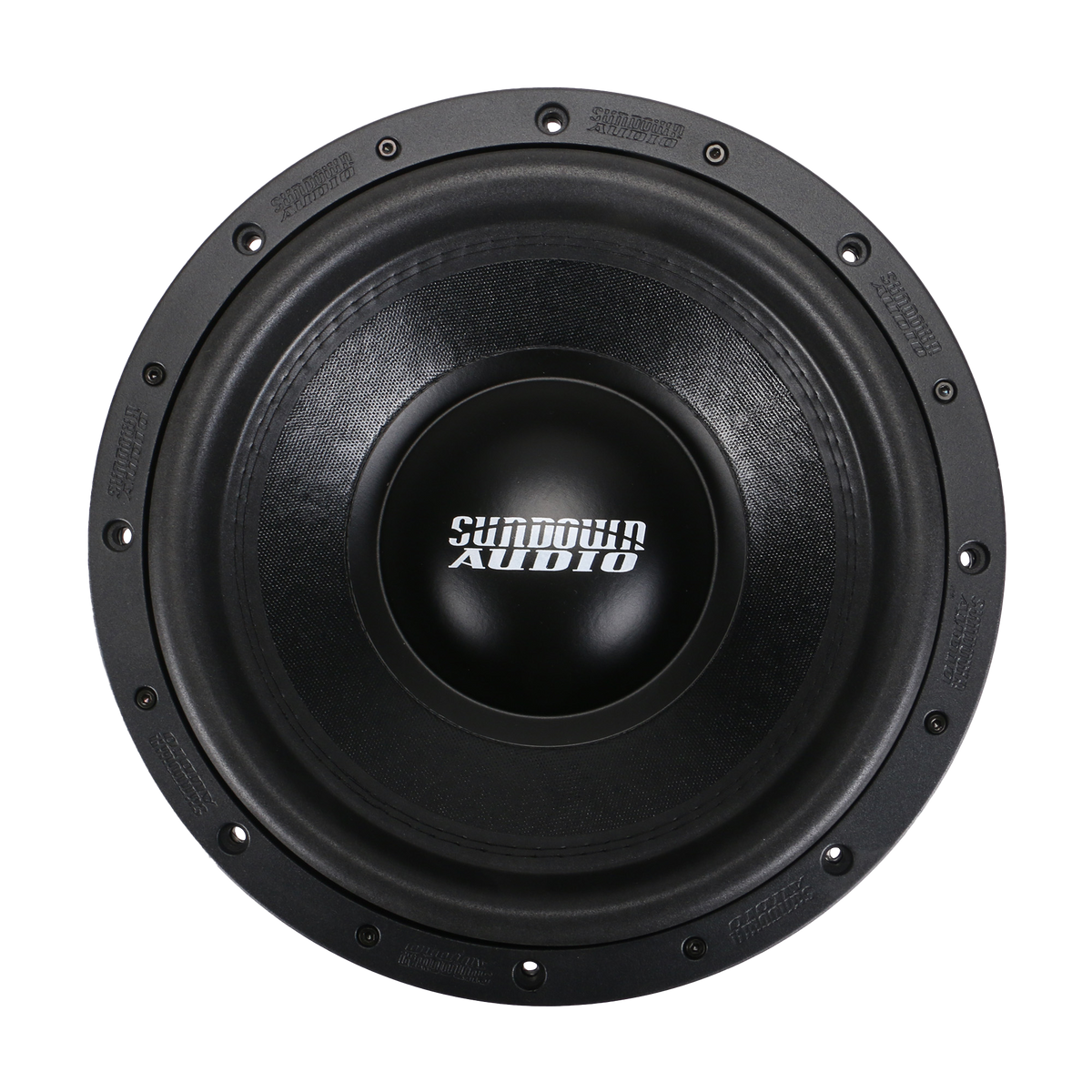

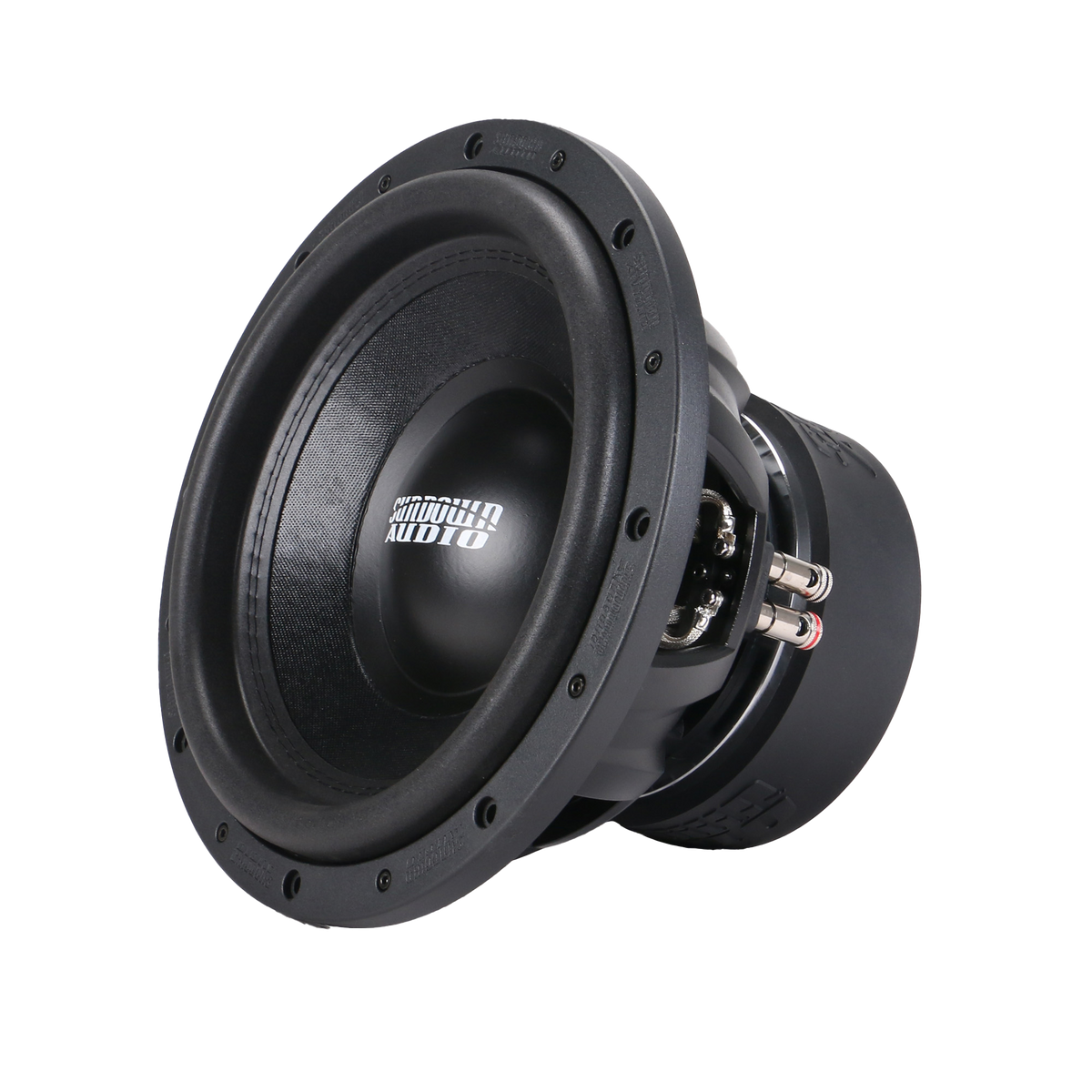

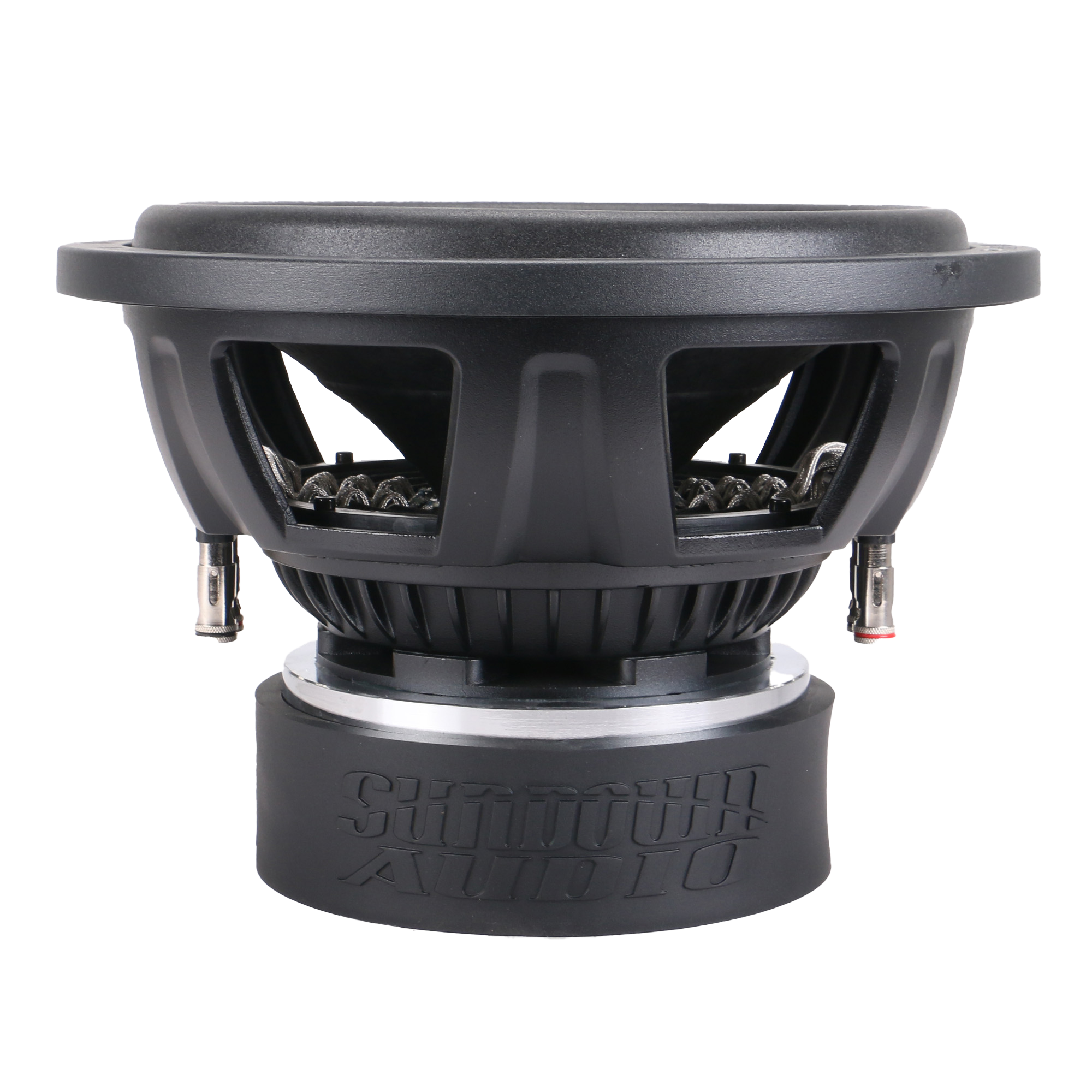

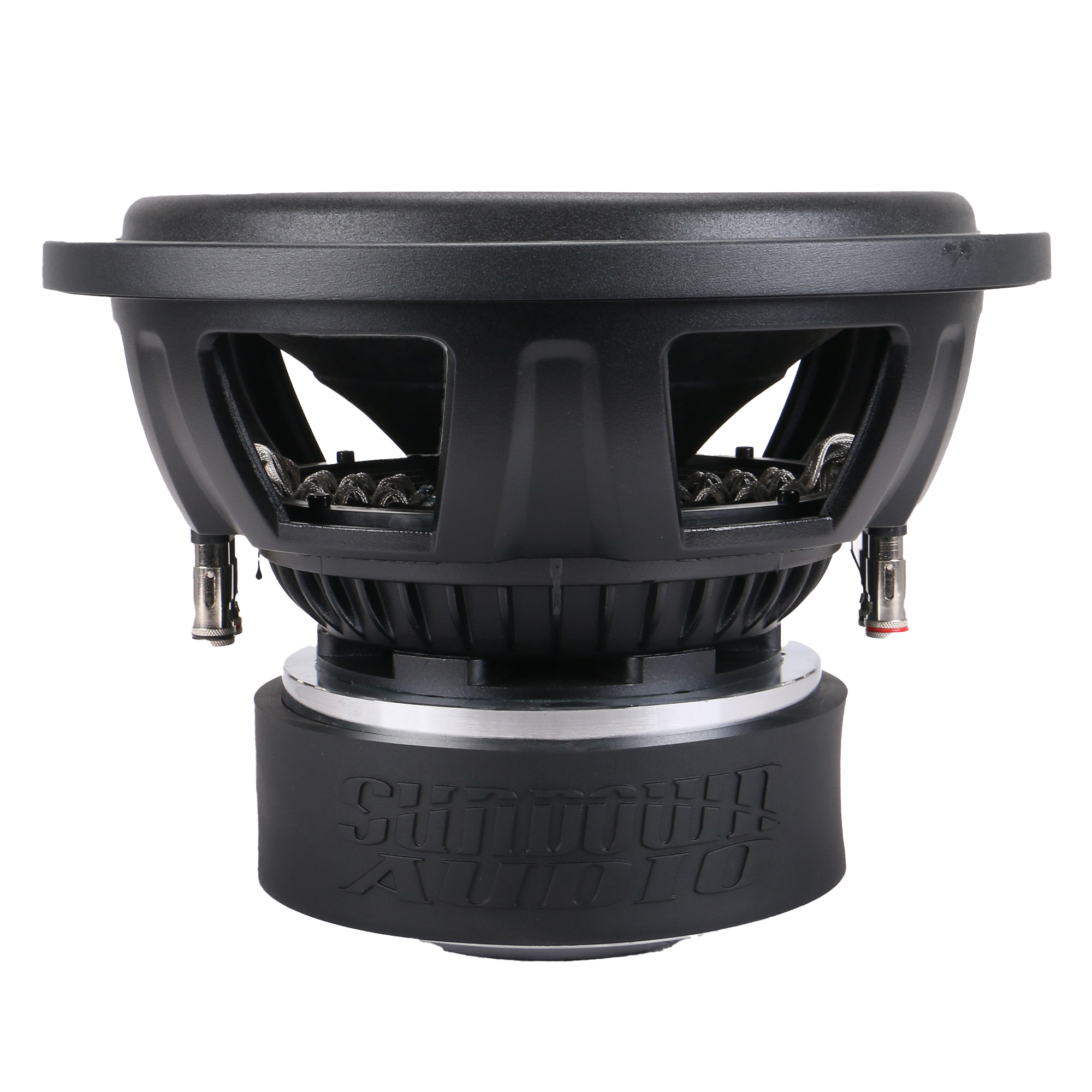

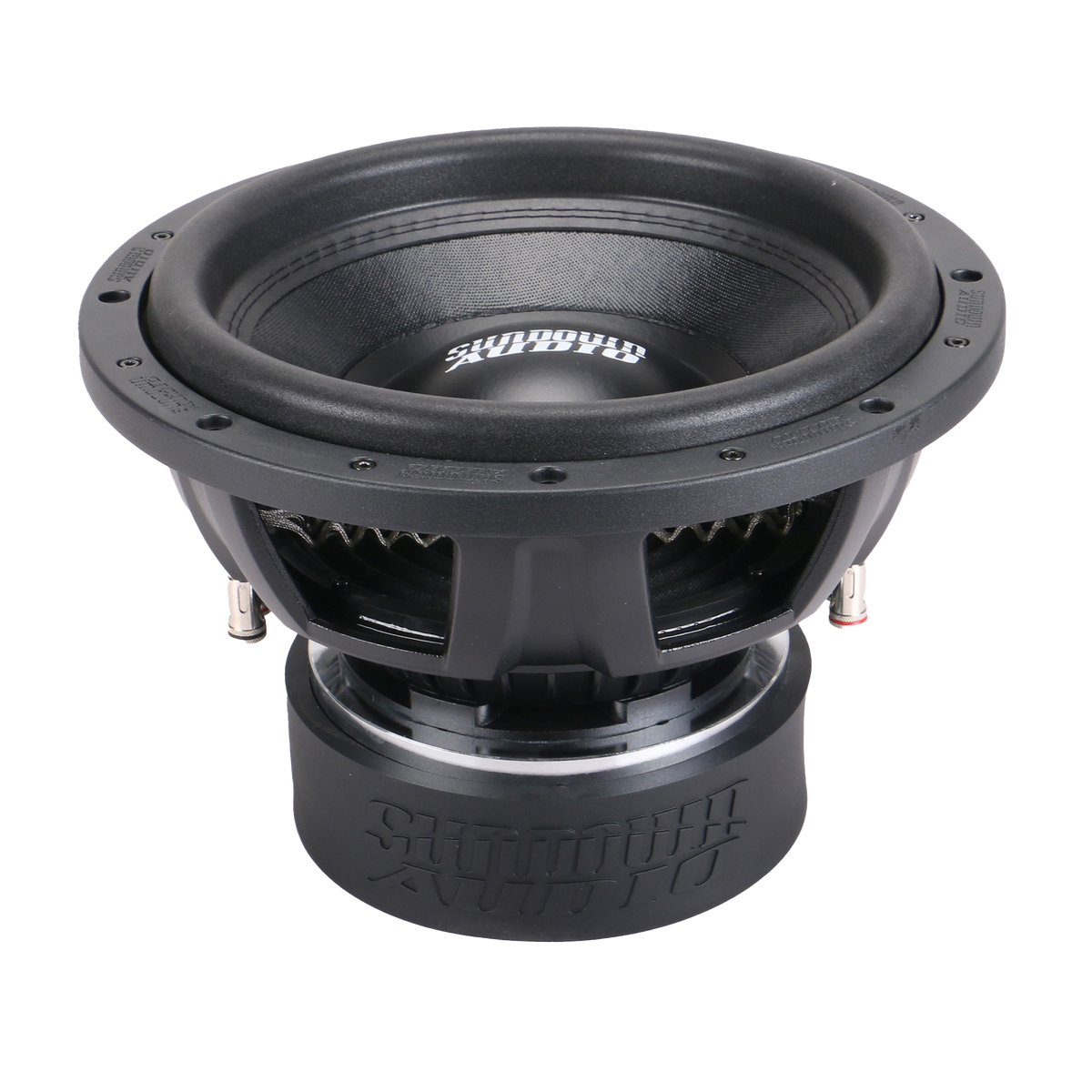

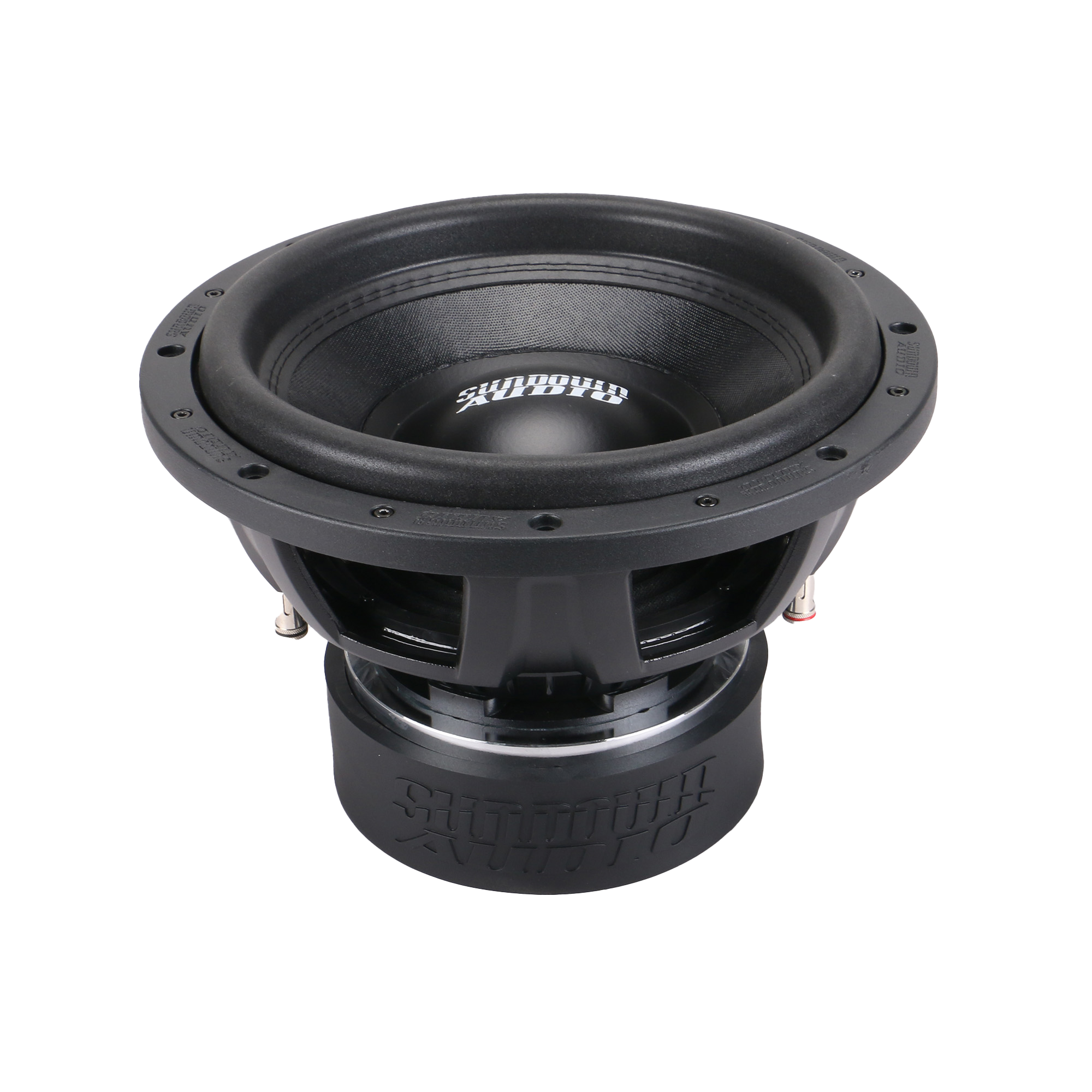

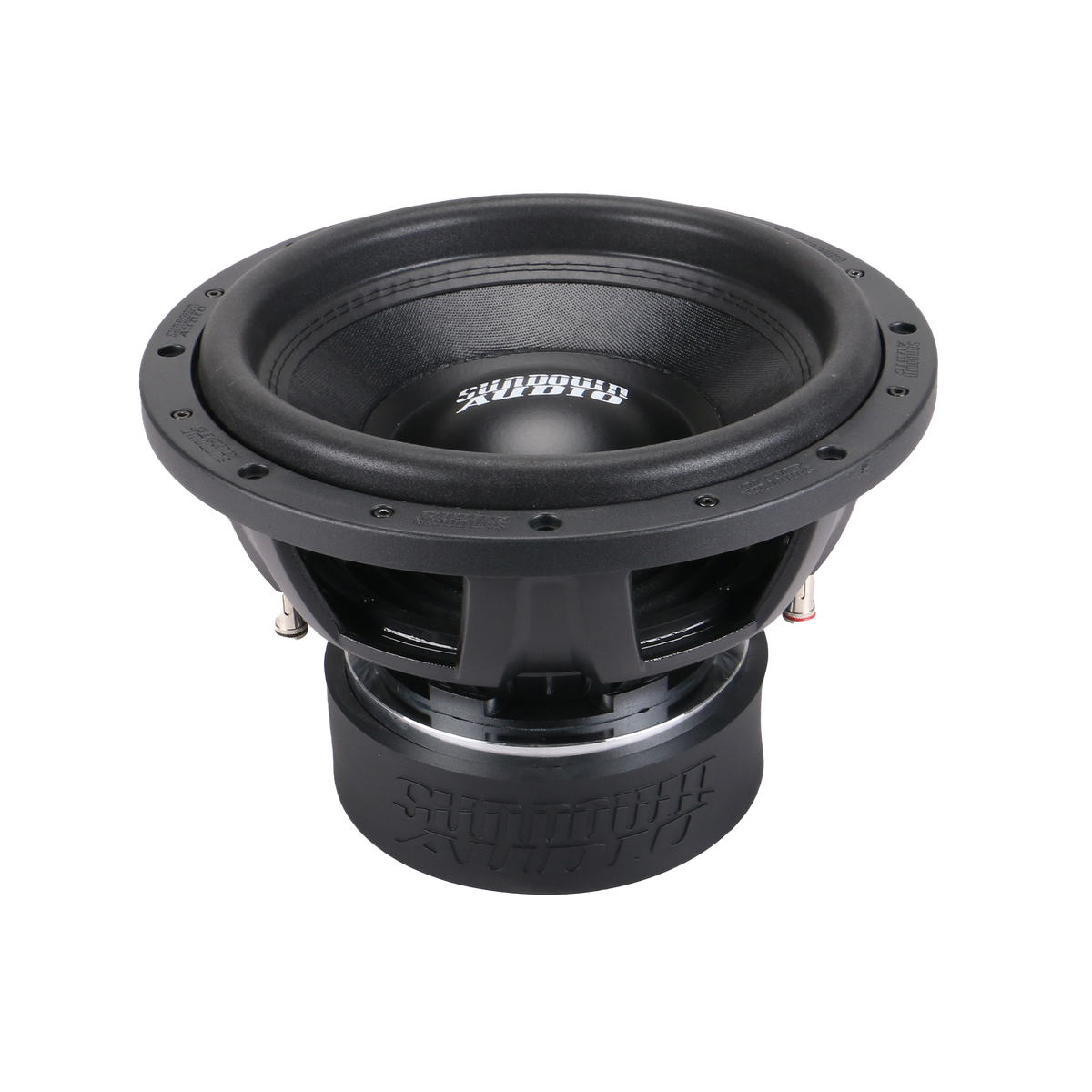

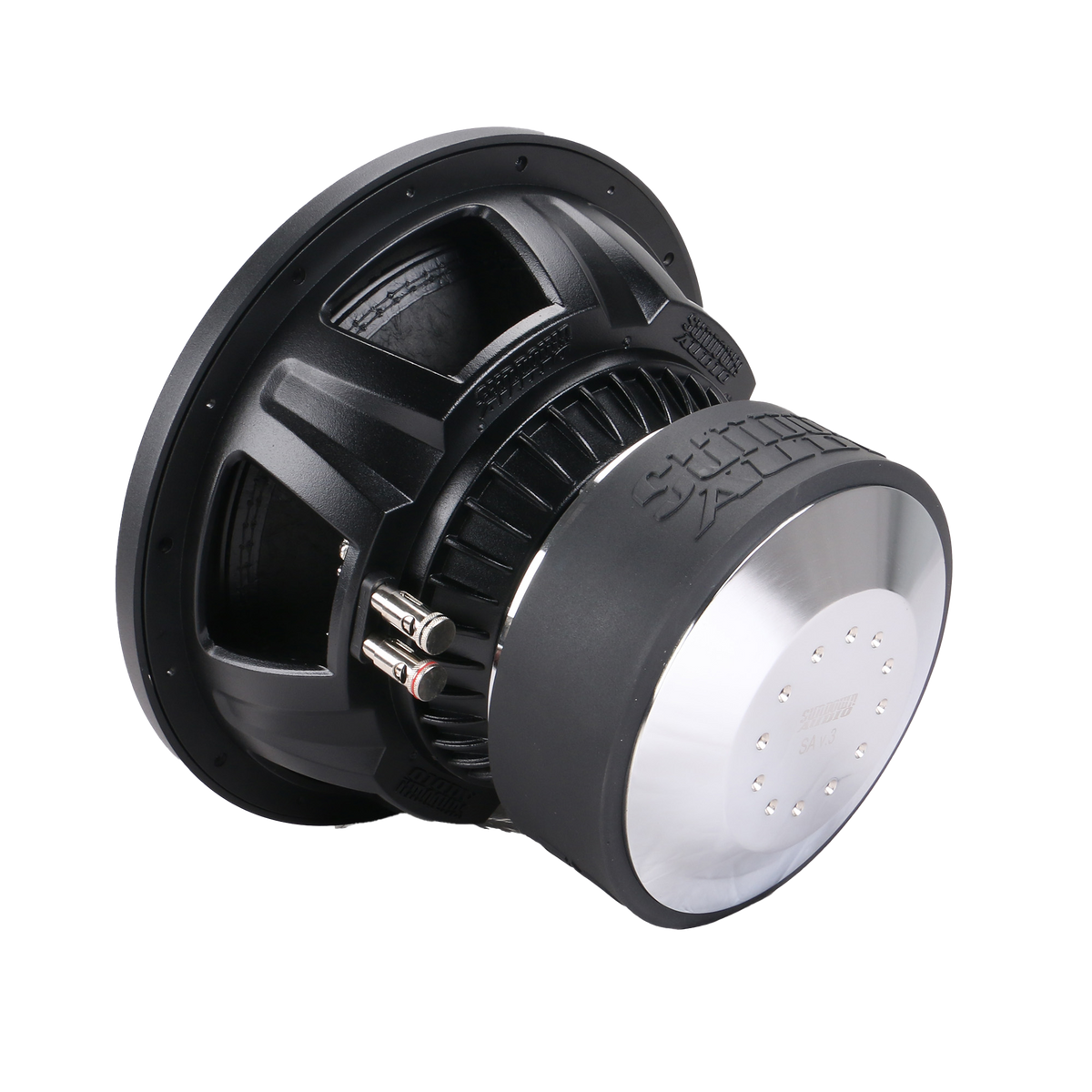

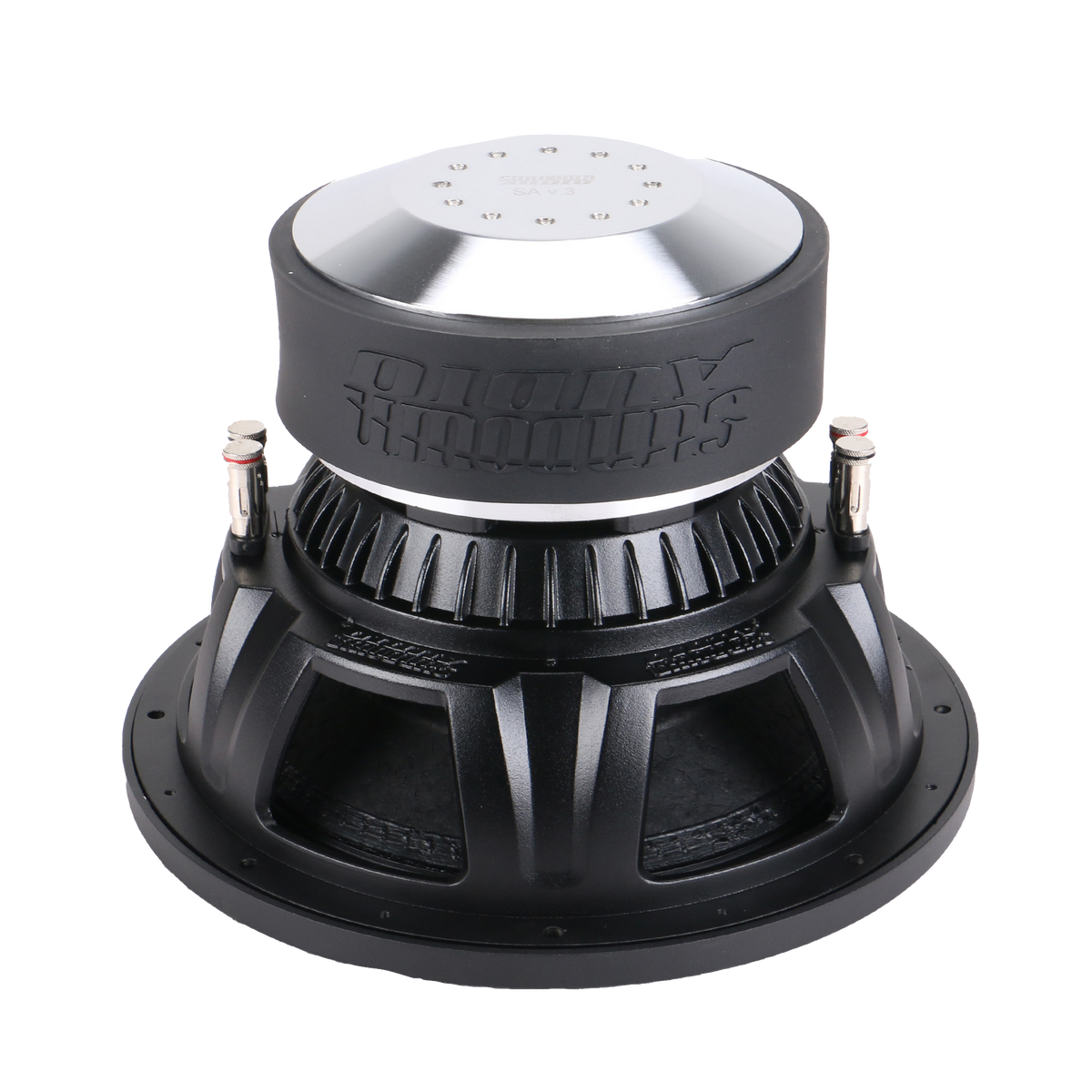

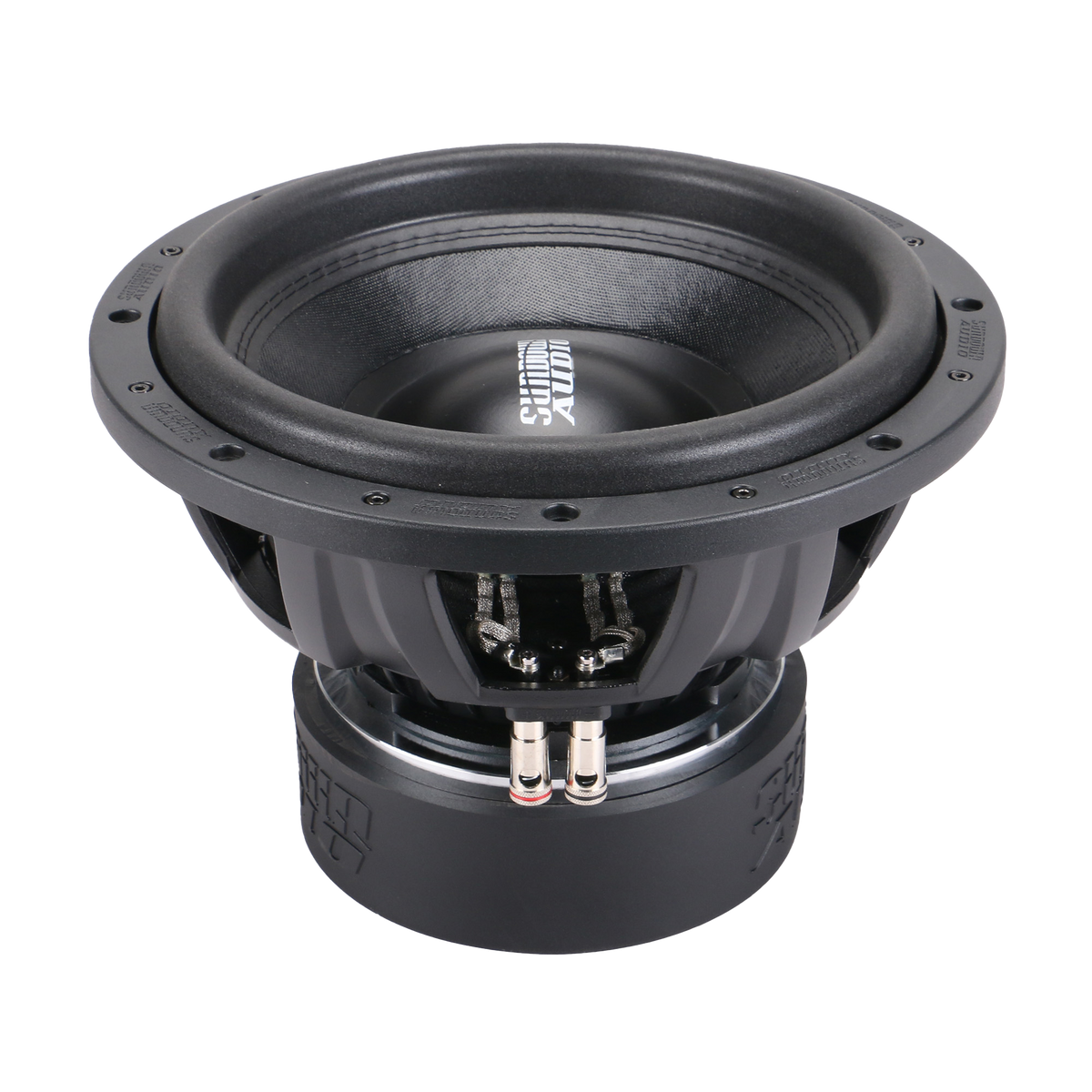

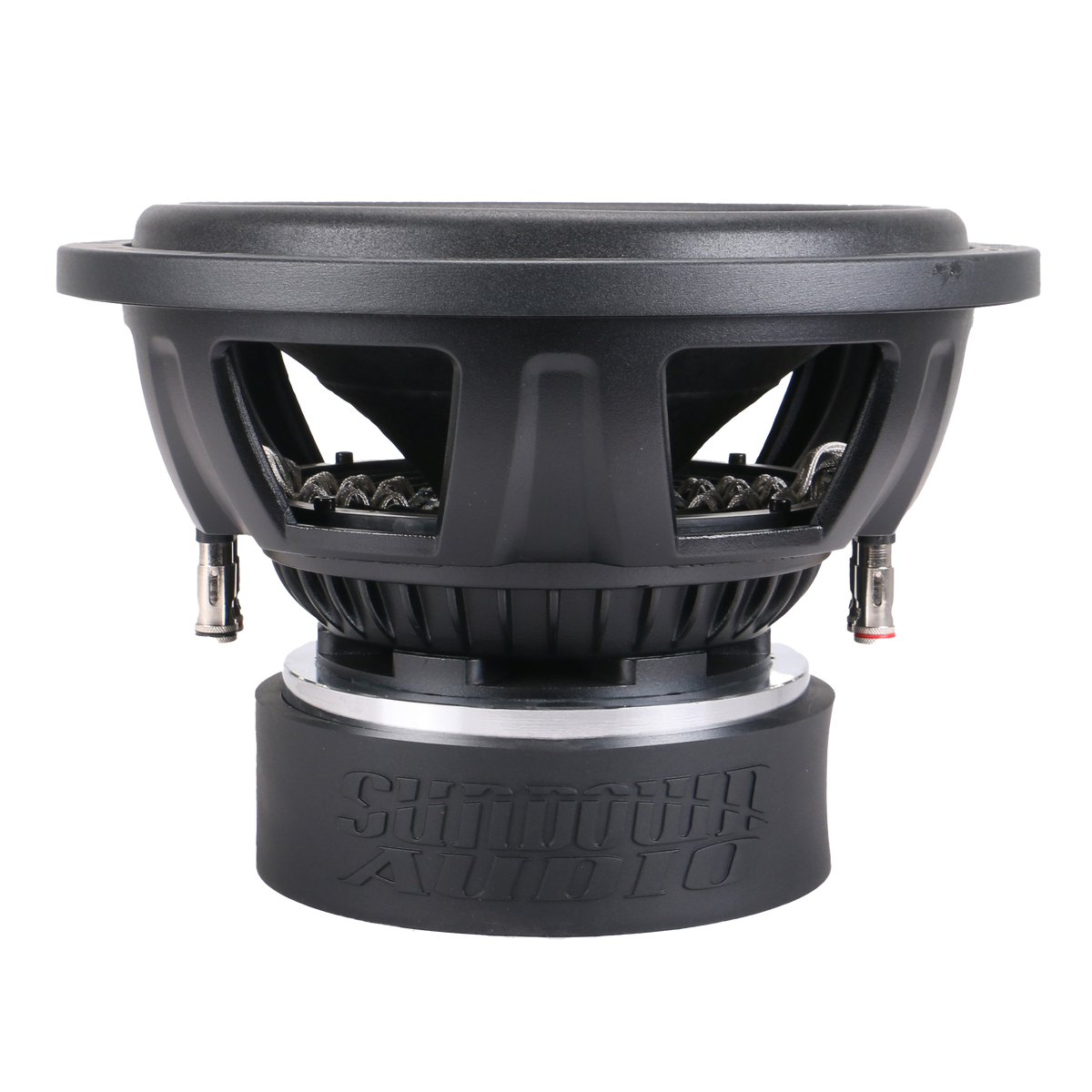

SA-Series v.3 12" Subwoofer

Sundown AudioSKU: SW-SAV312D4

Price:
Sale price$429.99
Stock:
Sold out

Description

  • RMS 1250 watts
  • Dual 2 or 4 ohm voice coils

Specifications

RE (Ohms) 3.04 6.06
FS (Hz) 35 35
VAS (L) 22.188 19.22
Qes 0.525 0.516
Qms 2.308 2.396
Qts 0.428 0.424
Le (mH) 3.1785 4.6357
BL (NA) 22.99 32.182
Mms (Grams) 369.747 372.752
Cms (uM/N) 55.431 48.017
Sens (dB @ 1w/1m) 84.05 84.9
Xmax 22mm 22mm
T/S SPECS SAV3 12″ D2 SAV3 12″ D4

Enclosure Specifications

Sealed Enclosure 1.0 cu ft
Ported Enclosure 1.75 cu ft
Recommended Tuning 35Hz
Recommended Port Area 26 sq in
Displacement .18 cu ft
Depth 8.4"
Outside Diameter 12.84″
Cut-Out 11.2″
Physical Dimensions Download

Enclosure Designs

This image features a design specification for a subwoofer enclosure created by Bassahaulic Designs, customized for the Sundown Audio SA-Series v.2 12" 1000W Subwoofer. It includes details on dimensions, port size, and tuning frequency, with a caution to double-check cut paths for possible inaccuracies. Ideal for efficiently managing up to 1000 watts RMS power. A 3D rendering of a wooden subwoofer enclosure specifically designed for the Sundown Audio SA-Series v.2 12" 1000W Subwoofer showcases a large circular opening on the front and an interior partition. The enclosure's light wood finish enhances its rectangular design, while the ASSAHAULTO DESIGN logo is elegantly presented in the corner, perfectly matching its optimized motor efficiency with FEA technology and a power output of 1000 watts RMS. A 3D model of a wooden speaker box, featuring a front circular cutout designed to accommodate the robust Sundown Audio SA-Series v.2 12" 1000W Subwoofer. The box dimensions are marked as 23 inches wide, 14.5 inches high, and 14 inches deep. The design showcases minimalist lines and a light wood finish to enhance sound performance. The Sundown Audio SA-Series v.2 12" subwoofer panel is a rectangular wooden board featuring a large circular cutout to perfectly accommodate your Sundown Audio SA-Series v.2 Subwoofer. Its dimensions are 11.5 inches in width, 7.5 inches in height, with a circle diameter of 6.5 inches, and it showcases the Assahaulto Design logo in the bottom left corner, combining style and performance for up to 1000 watts RMS power handling.
The 3D design of a wooden enclosure features precise measurements and an internal structure tailored for the Sundown Audio SA-Series v.2 12" 1000W Subwoofer. It includes annotated width, height, and depth dimensions, making it perfect for a 1000-watts RMS configuration. A logo is positioned in the bottom left corner. A blueprint diagram illustrates a series of interconnected orange rectangles representing sections of the Sundown Audio SA-Series v.2 Subwoofer cabinet, with labeled measurements for sections such as Top & Bottom, Sides, Back, Port Wall #1, Front, and Port Wall #2 on a blue background. This design supports up to 1000 watts RMS for optimal performance.
.Zip File
