DESCRIPTION
MSRP: $379.99

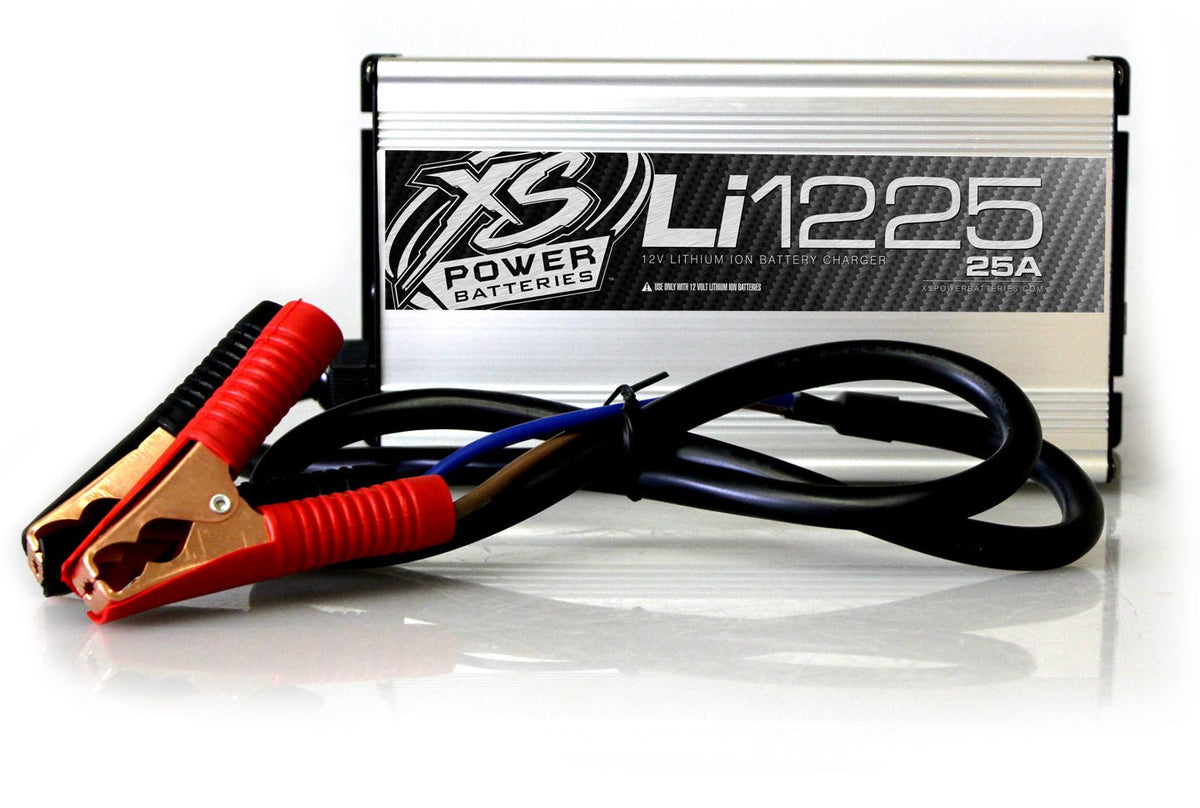

12V High Frequency Lithium Ion IntelliCHARGER, 25A
Physical Specifications
Dimensions (W x H x D) : 9.125” x 2.875” x 4.75” (231.8mm x 73mm x 120.7mm)
Weight: 5 lbs (2.27 kg)
AC Input Connections : 5.0’ (1.5 m) AWG 16
DC Output Connections : 3.9’ (1.19 m) AWG 8
AC Input Specifications
AC Input Voltage : 100-120 VAC, 47-63 Hz
AC Input Current : 10A RMS fuse protected
Download Manual
Voltage Monitoring
The vehicle battery’s terminal voltage is measured every five minutes by the on-board microprocessors and this information is analyzed in addition to the elapsed time to dynamically control the vehicle battery charger for optimum charging performance.
Automatic Computer Analysis/Auto Shutdown
The microprocessors will analyze the vehicle battery when connected. If the vehicle battery’s voltage is below 4V the charger may not recognize the vehicle battery is connected and will not begin charging. Likewise, if the vehicle battery will not come up to the correct voltage in a ten-hour period the microprocessor control board will automatically shut the charger off.
UL Approved vehicle battery Cables
Six feet of durable vehicle battery cables are provided that are resistant to cuts and abrasion. The copper plated vehicle battery clamps are compact and custom designed easy connections. All clamp connections are soldered for maximum current flow.
Internal Cooling Fan
A cooling fan automatically operates during charging to keep the circuit and other internal components at a constant safe temperature.
PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
