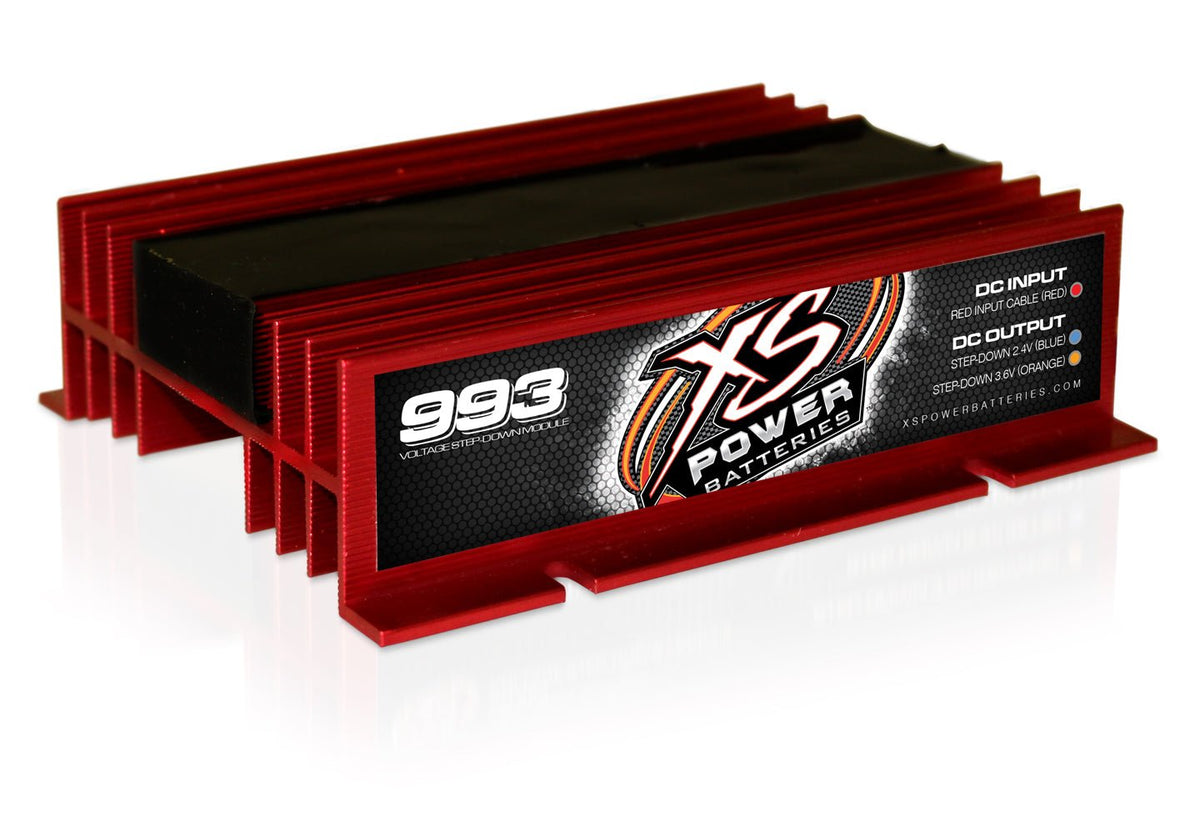

XS Power 993 Voltage Step-Down Module

XS PowerSKU: 993

Price:
Sale price$169.99
Stock:
In stock

Description

The XS Power 993 Voltage Step-Down Module is designed to work with automotive 16V, DC electrical systems with or without alternators. Many electrical components benefit from higher voltage, but some more sensitive components cannot tolerate the higher than normal voltage found in 16V systems. These components should be connected to the 993 module.

The 993 module is rated at 25A continuous with 50A surge capacity. Loads should not exceed 25A for more than one minute and should never exceed 50A. The module is fused at 50A

993 Step-Down

DESCRIPTION

MSRP: $172.99

Voltage Step-Down Module: 25AMP Continuous, 50AMP Max

Wiring:

INPUT (Red Wire)-
Route an 8AWG wire from the positive(+) terminal on the 16V battery to the red input wire on the module.

OUTPUT (Blue & Orange Wires)-

  • When not using an alternator- Connect sensitive components to the blue wire. This will drop the voltage 2.4V and will yield around 14.5 volts on a typical application with a fully charged battery.
  • When using an alternator- Connect sensitive components to the orange wire. This will drop voltage 3.6V and will yield around 14.9V on a typical application.

Both output wires can be used simultaneously for advanced applications, but the total load should not exceed the rated limits.

The module heat sink is electrically isolated and does not require grounding.

- When using an alternator- Connect sensitive components to the orange wire. This will drop voltage 3.6V and will yield around 14.9V on a typical application.



DIMENSIONS

5.5 x 4 x 1.5in



You can view or download the installation instructions here.

.

exclamation

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.

For more information, visit www.P65Warnings.ca.gov

Specifications

Product Brand XS Power
GTIN12 692209011453
