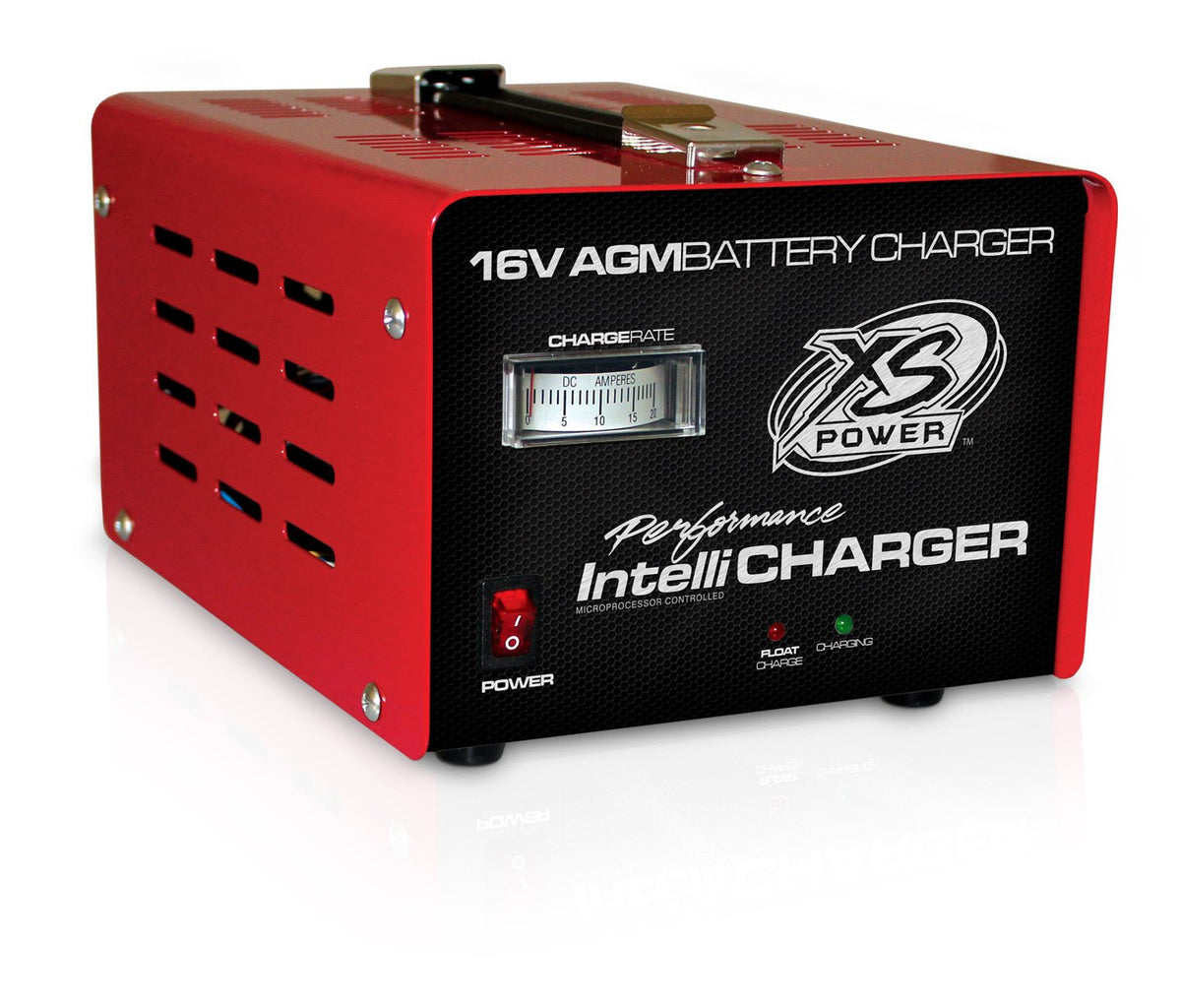

The 1004 IntelliCHARGER is an advanced battery charger designed specifically for high performance lead-acid batteries. This charger combines the reliability of a transformer and MOSFET rectifier assembly with an advanced microprocessor control board to create a battery charger that can rapidly and safely recharge 16V gel-cell, and AGM (Absorbed Glass Mat) batteries in several sizes. The front panel switches, LED indicators, and charge meter make the 1004 IntelliCHARGER very easy to use.
16V Battery IntelliCharger, 20A Max
You can view or download the 1004 charger manual here.
At the heart of the technology in the XS Power IntelliCHARGER are the three distinct charging stages. During the first stage, called “Bulk” charging, the current is fixed according to the charge rate switch on the front panel, and the voltage is allowed to float. During this stage, 80% of the battery’s capacity is restored.
When the battery’s cell voltage comes up to the correct level, the second stage called “Absorption” charging is engaged. During this stage, the voltage is fixed according to the battery type and voltage switches on the front panel, and the current is allowed to float. The battery is brought to 100% during this stage and the cells are equalized.
The third stage is float charging. During this stage, the voltage and current are reduced to a level that will maintain the battery indefinitely.
Several microprocessors are used to tightly control the entire process. This is the same technique that battery manufacturers recommend and use in the production of new batteries and it is the fastest and safest technique for battery charging.
Compatible With All 16V AGM and Gel-Cell Batteries
Lead-acid batteries have different charging requirements basedon their specific design.Overcharging anAGM or gel-cell battery will cause permanent damage. If in doubt, contact the manufacturer of the battery being charged.
Charge Rate Ammeter
The Battery Charger features an ammeter allowing the user to monitor the charging progress.
The battery’s terminal voltage is measured every five minutes by the on-board microprocessors and this information is analyzed in addition to the elapsed time to dynamically control the Battery Charger for optimum charging performance.
Automatic Computer Analysis/Auto Shutdown
The microprocessors will analyze the battery when connected. If the battery’s voltage is below 4V or the battery will not come up to the correct voltage in a ten-hour period the charger will automatically shut off.
UL Approved Battery Cables
Six feet of durable battery cables are provided that are resistant to cuts and abrasion. The copper plated battery clamps are compact and custom designed easy connections. All clamp connections are soldered for maximum current flow.
Internal Cooling Fan
A cooling fan automatically operates during charging to keep the transformer and other internal components at a constant safe temperature
