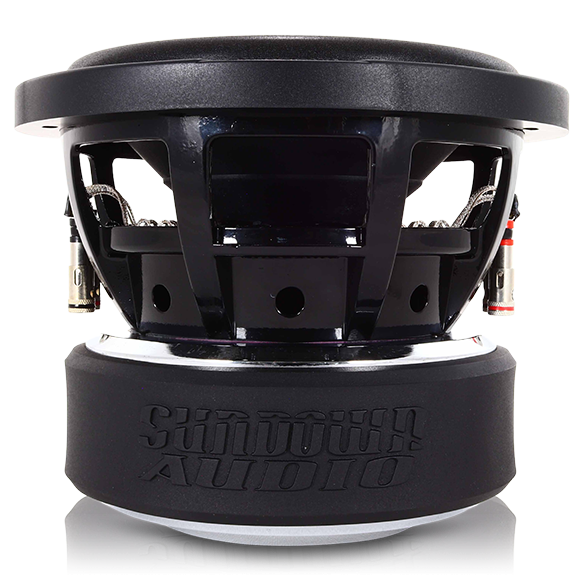

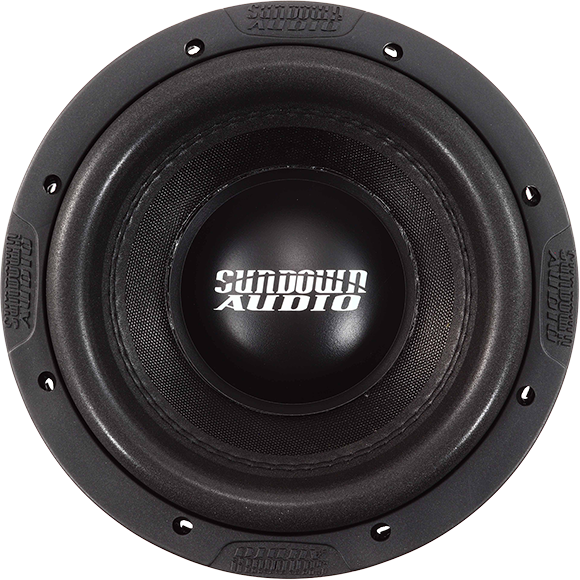

Sundown Audio U-Series 8" 600W v.1 Subwoofer

Sundown AudioSKU: SW-UV18D4

Price:
Sale price$299.99
Stock:
Available

Description


The U-8 can be thought of as an SA-8 v3 on performance boosters. Everything there is to love about the SA-8 v3 just with more power handling, more x-max, and more output potential.
The specially designed motor is mated to a custom tooled and patented (US Patent D691595) frame which allows for a larger spider and superior clearances to nearly any other 8" woofer on the market today. The U-8 features a full 18mm of one-way linear excursion and mechanical capacity in excess of double the linear limits (around 2.5” peak-to-peak) to ensure that mechanical failures are nearly impossible. As with the SA-8 v.3 it features a surround that mimics the geometry of our large Mega-Roll v.2 surrounds for incredible linearity.

Physical Dimensions

Features (U-8)

  • Xmax = 18mm one-way by 70% BL
  • RMS Power = 600-watts

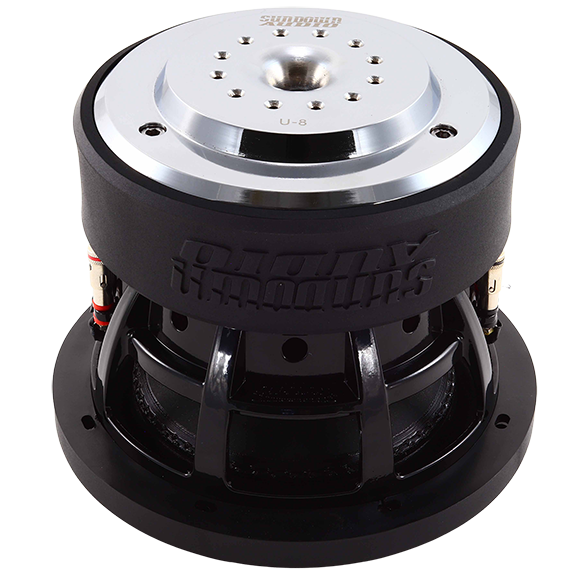

  • Vented magnetic gap featuring 12 chamfered gap vents
  • Vented pole-piece with chamfered edges
  • High velocity under-spider frame vents
  • Black Aluminum 2.25” voice coil former for superior heat dissipation
  • High Temperature copper voice coil wire
  • Large Magnet ID aluminum faraday ring
  • Spring Loaded Terminals
  • Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
  • High strength & patented cast aluminum frame
  • Optimized for small, ported enclosures
  • Bolt-Through Motor Design for enhanced longevity

Specifications

T/S SPECS U 8" D2 U 8" D4
RE (Ohms) 3.8 6.34
FS (Hz) 39.387 41.288
VAS (L) 6.345 6.970
Qes 0.412 0.519
Qms 2.474 2.542
Qts 0.353 0.431
BL (NA) 20.00 21.45
Mms (Grams) 175.340 145.239
Cms (mm/N) 93.125 102.308
Sens (dB @ 1w/1m) 81.6db

81.6db

Enclosure Specs

  • Ported Enclosure
    • Size: .65-.75 cuft net
    • Port Area: 9-12 sqin
    • Port Tuning: 35hz
  • Sealed Enclosure
    • Size: .3 cuft net
    • Displacement:  .09 cu. ft.
  • Depth:  6.02"
  • Outside Diameter: 8.70"
  • Cutout: 7.3"
  • Physical Dimensions

Specifications

Product Brand Sundown Audio
Coil Dual 4 Ohm (D4)   Dual 2 Ohm (D2)
RMS Power 600W
Diameter 8"
