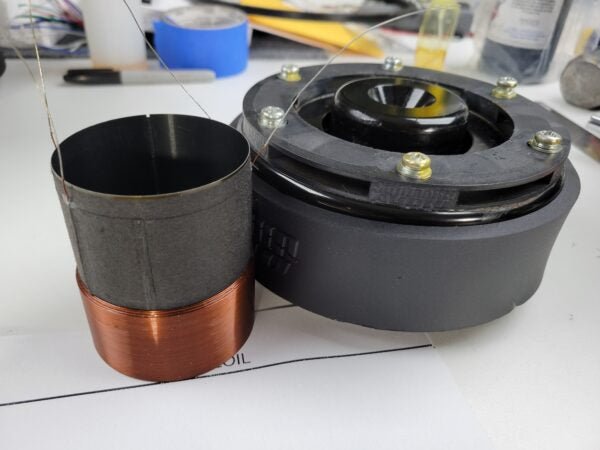

A close-up shot of the Sundown Audio Motor Voice Coil Combo reveals the intricately wrapped 4-layer 2.5″ copper coil next to the V4 Ferrite Double Stack motor assembly. These components, designed for 500w RMS and featuring a vented gap, sit on a white surface with tools and materials gently out of focus in the background.
The Sundown Motor Voice Coil Combo by Sundown Audio is shown in close-up, revealing a cylindrical design with a black base surrounded by six screws. Within the base, a white coil with wire loops can be seen. This elaborate part features what resembles a vented basket ring and is likely an electronic or mechanical component positioned on a white surface.

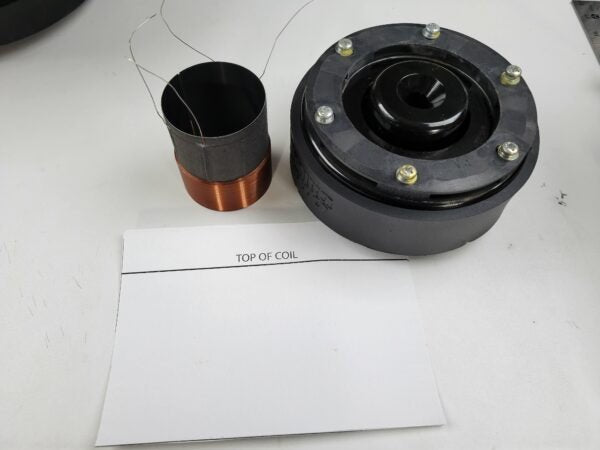

The Sundown Audio Motor Voice Coil Combo featuring a 4-layer 2.5″ copper coil and a ferrite double stack vented gap, disassembled into components, is displayed on a white surface. A document labeled "TOP OF COIL" is positioned nearby. The exposed copper wire of the voice coil complements the adjacent black magnet assembly.
Roll over image to zoom in Click on image to zoom
A close-up shot of the Sundown Audio Motor Voice Coil Combo reveals the intricately wrapped 4-layer 2.5″ copper coil next to the V4 Ferrite Double Stack motor assembly. These components, designed for 500w RMS and featuring a vented gap, sit on a white surface with tools and materials gently out of focus in the background.The Sundown Motor Voice Coil Combo by Sundown Audio is shown in close-up, revealing a cylindrical design with a black base surrounded by six screws. Within the base, a white coil with wire loops can be seen. This elaborate part features what resembles a vented basket ring and is likely an electronic or mechanical component positioned on a white surface.The Sundown Audio Motor Voice Coil Combo featuring a 4-layer 2.5″ copper coil and a ferrite double stack vented gap, disassembled into components, is displayed on a white surface. A document labeled "TOP OF COIL" is positioned nearby. The exposed copper wire of the voice coil complements the adjacent black magnet assembly.

Sundown Motor Voice Coil Combo 4-Layer 2.5″ Copper Coil 500w RMS E V4 Ferrite Double Stack Vented Gap

Sundown AudioSKU: C-D2-EV341015
Price:
$70.00
Stock:
Available

Description

Package info:
The motor includes basket mounting bolts, vented basket ring, and paper coil shims

Coil Info:
Winding Width = 35mm
Total Height = 79mm
I.D. = 63.4mm
O.D. = 67.4mm
Weight = 3.2 oz, D4 or D2

Motor Info:
15 lbs (240 oz)
Dia = 160mm (6.3″)
Height = 80mm (3.15″)
Gap I.D. = 62.25mm (2.45″)
Gap O.D. = 69.25mm (2.73″)
Top Plate thickness = 9mm (0.35″)

Specifications

Product Brand Sundown Audio
Coil Dual 4 Ohm (D4)   Dual 2 Ohm (D2)
RMS Power 500W
