Sundown Audio Z-Series ZV6 18" 2500W Subwoofer Z v.6

Save 24%
Sundown AudioSKU: SW-ZV618D2

Price:
Sale price$869.99 Regular price$1,149.99
Stock:
Available

Description

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).

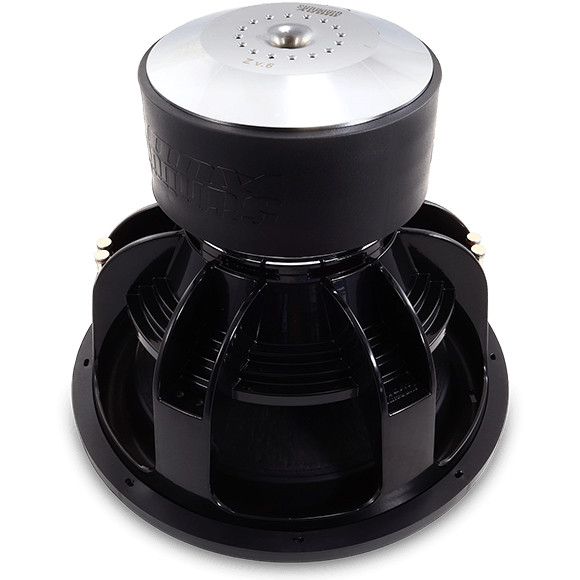

Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series!

This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that!

Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself.

The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension.

The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.

Features

  • Power Handling: 2500 Watts RMS
  • Xmax = 35mm one-way by 70% BL
  • Heavily vented magnetic gap
  • Spring Loaded Terminals
  • Optimized high-velocity pole vent
  • Innovative high-velocity cast-aluminum vented frame spacer ring
  • Black aluminum 3 inch 8-layer voice coil
  • Mega-Roll v.2 surround
  • Custom tooled basket
  • Large aluminum Faraday (shorting) Ring
  • Stitched-On XL Tinsel Leads to prevent fatigue and failure
  • Custom-tooled ultra-linear spider packs

Specifications

T/S SPECS Z V.6 18″D1 Z V.6 18″ D2
RE (Ohms) 1.7977 4.0
FS (Hz) 26.6353 24.1230
VAS (L) 97.0485 116.3911
Qes 0.4869 0.4265
Qms 5.7399 5.7355
Qts 0.4489 0.3970
Le (mH) 2.1512mH 4.3519mH
BL (NA) 20.4872 31.2785
Mms (Grams) 679.3307g 690.5587g
Cms (uM/N) 52.5587uM/N 63.0341uM/N
Sens (dB @ 1w/1m) 87.5064dB 87.5806dB

Enclosure Specifications

Sealed Enclosure Not Recommended
Ported Enclosure 7 cu.ft. net
Recommended Tuning 32Hz
Recommended Port Area 100 sq.in.
Displacement .27 cu. ft.
Depth 14.92"
Outside Diameter 18.46"
Cut-Out 16.68"
Physical Dimensions Download

Enclosure Designs

A design sheet for Bassahaulic Designs highlights the dimensions and specifics for an enclosure customized for the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer. It features exterior measurements, port dimensions, and tuning frequency, with a reminder to confirm these measurements to ensure ultra-high excursion performance. A Sundown Audio Z-Series ZV6 18" 2500W Subwoofer enclosure is expertly crafted with a circular cutout on top and a rectangular port on the side, providing an ideal fit for the Z v.6 subwoofer. The charming wood grain texture enhances its appeal, and the Sundown Audio logo proudly adorns the bottom left corner. A 3D rendering of a wooden subwoofer box tailored for the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer illustrates exact dimensions. This rectangular enclosure includes a circular cutout on the top, perfectly positioned for Sundown Audio's ultra-high excursion capabilities. The design is efficiently accented with precise measurements and a logo. A technical drawing of a rectangular box, designed for the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer from Sundown Audio, features interior sections and dimensions labeled in inches. The inner chamber is crafted to accommodate ultra-high excursion with precision, including a triangular section on the right side.
Technical drawing of a wooden structure with precise measurements for the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer Z v.6. Features include a rectangular base, smaller elevated section, and angled lines indicating edges. Dimensions are labeled, with some reading 25, 26 1/2, and 19 1/2. Sundown Audio logo in the bottom left corner. A technical drawing displays a rectangle with dimensions and includes smaller rectangles within, one featuring a right-angle cutout at the top right. Measurements specify various lengths and sections. The Sundown Audio logo is positioned at the bottom left on a beige background, embodying the ultra-high excursion design of the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer Z v.6. The 3D model of a wooden interior corner features precise measurements, ideal for incorporating the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer system. The base measures 4 11/16 inches, with one side labeled as 2 13/16 inches. It boasts a beige wood texture with blue text and is completed with the BASSAHAULIC PRODUCTIONS logo in the bottom left corner. The Sundown Audio Z-Series ZV6 18" 2500W Subwoofer features a rectangular beige design with a large circular cutout on the left side, ideal for an ultra-high excursion experience. The cutout is 11 inches by 11 inches, and the overall dimensions of the panel are 39 inches wide and 26 inches tall. A discreetly positioned logo can be found in the bottom left corner.
A blueprint-style diagram features six rectangular pieces for constructing a box, specifically designed for the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer. The pieces include two Port Walls, Front, Top & Bottom pairs, and Sides with precise measurements of 19 1/2x17, 30 1/2x17, 28x39, and 17x39 inches—perfect for ultra-high performance. The diagram shows the arrangement of multiple rectangular panels, such as Sides, Top & Bottom, Back, and Port Wall #2, with dimensions like 28x17 and 39x28. This layout is designed to perfectly fit the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer from Sundown Audio. A simple diagram illustrates a rectangular layout. The left section, featuring Port Wall #2 in brown, measures 36 inches by 17 inches. Meanwhile, the larger right section is blue and labeled "Back," ideal for accommodating a subwoofer with ultra-high excursion capabilities like the Sundown Audio Z-Series ZV6 18" 2500W Subwoofer.
.Zip File

Specifications

Product Brand Sundown Audio
Coil Dual 1 Ohm (D1)   Dual 2 Ohm (D2)
RMS Power 2500W
Diameter 18"
