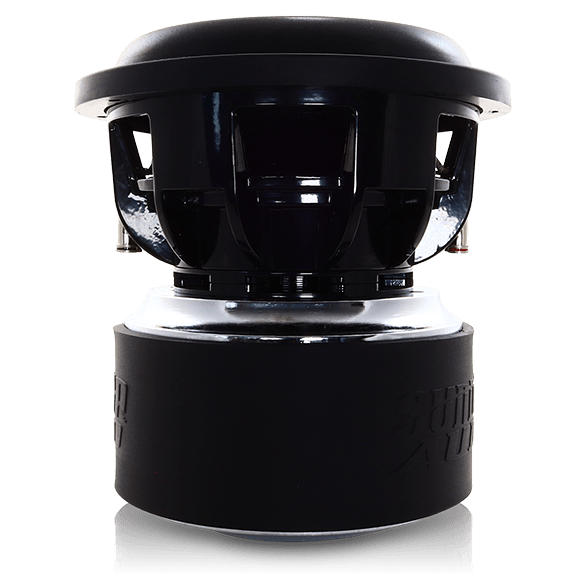

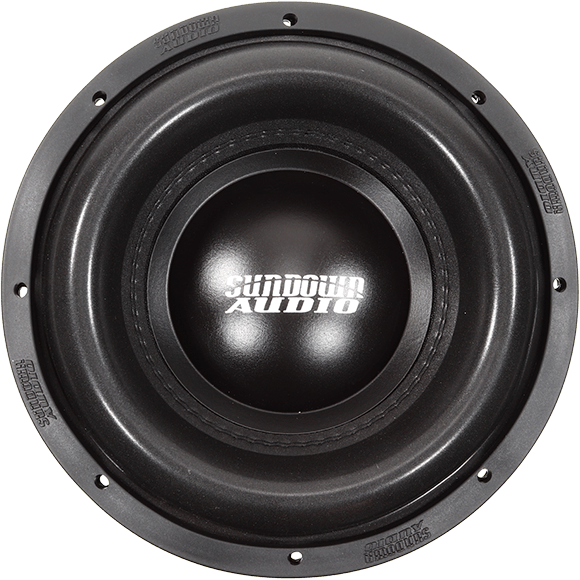

Sundown Audio Z-Series ZV6 10" 2500W Subwoofer Z v.6

Name: Sundown Audio Z-Series ZV6 10" 2500W Subwoofer Z v.6
Availability: InStock

Sundown AudioSKU: SW-ZV610D2

Impedance: D2

Variant

Price:

$899.99

Stock:

Available

Quantity:

{"id":7592645263453,"title":"Sundown Audio Z-Series ZV6 10\" 2500W Subwoofer Z v.6","handle":"sundown-audio-z-series-zv6-10-2500w-car-audio-subwoofer-sub-z-v-6","description":"\u003cdiv data-mce-fragment=\"1\" class=\"uk-panel uk-margin\"\u003e\u003c\/div\u003e\n\u003cp\u003eThe Z v.6 is the second step up in Sundown's \"ultra-high excursion\" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).\u003c\/p\u003e\n\u003cp\u003eSundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4\" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top \u0026amp; back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series!\u003c\/p\u003e\n\u003cp\u003eThis motor drives a 3\" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that!\u003c\/p\u003e\n\u003cp\u003eBased on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself.\u003c\/p\u003e\n\u003cp\u003eThe Z v.6 series was designed from the ground-up to become the new standard in the low-frequency \/ small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension.\u003c\/p\u003e\n\u003cp\u003eThe Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.\u003c\/p\u003e\n\u003cdiv class=\"cus-flex\"\u003e\n\u003cdiv class=\"box-1\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eFeatures\u003c\/h3\u003e\n\u003cdiv class=\"el-content uk-panel uk-margin-top\"\u003e\n\u003cul\u003e\n\u003cli\u003ePower Handling: 2500 Watts RMS\u003c\/li\u003e\n\u003cli\u003eXmax = 35mm one-way by 70% BL\u003c\/li\u003e\n\u003cli\u003eHeavily vented magnetic gap\u003c\/li\u003e\n\u003cli\u003eSpring Loaded Terminals\u003c\/li\u003e\n\u003cli\u003eOptimized high-velocity pole vent\u003c\/li\u003e\n\u003cli\u003eInnovative high-velocity cast-aluminum vented frame spacer ring\u003c\/li\u003e\n\u003cli\u003eBlack aluminum 3 inch 8-layer voice coil\u003c\/li\u003e\n\u003cli\u003eMega-Roll v.2 surround\u003c\/li\u003e\n\u003cli\u003eCustom tooled basket\u003c\/li\u003e\n\u003cli\u003eLarge aluminum Faraday (shorting) Ring\u003c\/li\u003e\n\u003cli\u003eStitched-On XL Tinsel Leads to prevent fatigue and failure\u003c\/li\u003e\n\u003cli\u003eCustom-tooled ultra-linear spider packs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-2\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eSpecifications\u003c\/h3\u003e\n\u003ctable class=\"uk-table uk-table-striped uk-table-small\"\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth class=\"uk-text-nowrap\"\u003eT\/S SPECS\u003c\/th\u003e\n\u003cth class=\"uk-text-nowrap\"\u003e\u003cstrong\u003eZ V.6 10″D1\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth class=\"uk-text-nowrap\"\u003e\u003cstrong\u003eZ V.6 10″ D2\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eRE (Ohms)\u003c\/td\u003e\n\u003ctd\u003e1.7\u003c\/td\u003e\n\u003ctd\u003e3.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFS (Hz)\u003c\/td\u003e\n\u003ctd\u003e38.47\u003c\/td\u003e\n\u003ctd\u003e40.46\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eVAS (L)\u003c\/td\u003e\n\u003ctd\u003e8.1305\u003c\/td\u003e\n\u003ctd\u003e7.3693\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQes\u003c\/td\u003e\n\u003ctd\u003e0.4472\u003c\/td\u003e\n\u003ctd\u003e0.4523\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQms\u003c\/td\u003e\n\u003ctd\u003e5.7890\u003c\/td\u003e\n\u003ctd\u003e5.6379\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQts\u003c\/td\u003e\n\u003ctd\u003e0.4151\u003c\/td\u003e\n\u003ctd\u003e0.4187\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLe (mH)\u003c\/td\u003e\n\u003ctd\u003e1.8883mH\u003c\/td\u003e\n\u003ctd\u003e4.3059mH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBL (NA)\u003c\/td\u003e\n\u003ctd\u003e19.1970\u003c\/td\u003e\n\u003ctd\u003e29.2091\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMms (Grams)\u003c\/td\u003e\n\u003ctd\u003e400.7235g\u003c\/td\u003e\n\u003ctd\u003e399.6832g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCms (uM\/N)\u003c\/td\u003e\n\u003ctd\u003e42.7032 uM\/N\u003c\/td\u003e\n\u003ctd\u003e38.7056 uM\/N\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSens (dB @ 1w\/1m)\u003c\/td\u003e\n\u003ctd\u003e81.8985dB\u003c\/td\u003e\n\u003ctd\u003e82.0801dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-3\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eEnclosure Specifications\u003c\/h3\u003e\n\u003ctable class=\"uk-table uk-table-striped uk-table-small\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eSealed Enclosure\u003c\/td\u003e\n\u003ctd\u003eNot Recommended\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePorted Enclosure\u003c\/td\u003e\n\u003ctd\u003e1.5 cu.ft. net\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRecommended Tuning\u003c\/td\u003e\n\u003ctd\u003e32Hz\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRecommended Port Area\u003c\/td\u003e\n\u003ctd\u003e22 sq.in.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDisplacement\u003c\/td\u003e\n\u003ctd\u003e.23 cu. ft.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDepth\u003c\/td\u003e\n\u003ctd\u003e10.96\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutside Diameter\u003c\/td\u003e\n\u003ctd\u003e11.65\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCut-Out\u003c\/td\u003e\n\u003ctd\u003e10.01\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePhysical Dimensions\u003c\/td\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/Zv6-10.pdf?v=1688803802\" target=\"_blank\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-4\"\u003e\n\u003ch3\u003eEnclosure Designs\u003cbr\u003e\n\u003c\/h3\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Information_0c12a2a1-109e-4af9-a8aa-e405091e9131.jpg?v=1688803803\" alt='Illustration of a speaker enclosure design by Bassaholic Designs for the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils. It includes specifications such as dimensions, net size, port size, tuning frequency, and detailed cut sheet information. Ideal for an ultra-high excursion subwoofer. A note highlights the importance of verifying the cut sheet for any errors.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-0_03577886-d20f-4c83-a932-0b635771dccb.jpg?v=1688803804\" alt='A digital rendering features a wooden enclosure specifically crafted for a Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils, showcasing a circular cutout in the front panel, an open top, and an internal compartment designed to accommodate ultra-high excursion subwoofers for optimal power handling.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-1_7121a551-0719-49e8-b6e6-84361726ea3d.jpg?v=1688803805\" alt='A 3D model of the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W subwoofer enclosure, showcasing its ultra-high excursion design with precise dimensions. The rectangular box includes a circular cutout on one side and measures 24 3\/4 inches in width, 15 1\/2 inches in depth, and 15 1\/2 inches in height. The image features the Sundown Audio logo in the bottom left corner.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-2_3d060be1-7bd9-4960-9f4f-628fb64c21eb.jpg?v=1688803805\" alt='A diagram of a rectangular wooden enclosure specifically designed to house the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils. The blueprint includes dimensions in inches, detailing the width, height, and internal depth, with a logo at the bottom left corner that reads Bassaholic Productions.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-3_4088de16-33db-48d8-ad07-8eb6ec3f2754.jpg?v=1688803805\" alt='A technical drawing of a refurbished rectangular wooden panel showcases dimensions labeled: 21 3\/4, 19, 15 1\/2, and 13 3\/4. The panel features inner rectangular markings that suggest a design for power handling. At the bottom left corner is a logo reading Blissahaudio Productions. This corresponds with the Sundown Audio Refurbished Z-Series ZV5 10\" Subwoofer featuring X v.4 Coils and a power capacity of 2000W by Sundown Audio.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-4_8ef050fa-491e-428c-9255-f37b4cf264c8.jpg?v=1688803804\" alt='A blueprint illustrating updated dimensions of nested rectangles in inches features the largest measuring 21 3\/4 by 18 1\/2 and the smallest at 18 by 13 3\/4, each clearly labeled to ensure precision. This setup is perfect for fine-tuning power handling in ultra-high excursion designs like the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-5_110afc44-5563-4522-818f-213672c9d464.jpg?v=1688803804\" alt='A 3D sketch depicting the top view of a refurbished wooden board with precise measurements features a central cut-out and markings at 1 1\/16 inches on the top and 1 1\/2 inches at the bottom, optimized for ideal power handling during installation of a Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-6_2145c3de-2b61-4a56-96a0-8dbf73ab4d1d.jpg?v=1688803804\" alt='A refurbished rectangular wooden panel from Sundown Audio features a large circular cutout in the center, measuring 20 inches wide and 12.5 inches tall, with a circle diameter of 12.5 inches. Ideal for the ultra-high excursion Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils, it includes a brand logo in the bottom left corner.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-cut-sheet-1_f92f0c72-31b0-4956-a70c-82329515c3bb.png?v=1688803804\" alt='Updated diagram displaying the arrangement of wooden pieces for a box tailored to enhance power handling, specifically for the Sundown Audio Refurbished Z-Series ZV5 10\" Subwoofer with X v.4 Coils. The pieces are labeled with dimensions and titles: Front, Sides, Top \u0026amp; Bottom, Port Wall #1 and #2, and Back. Measurements vary from 12 1\/2 to 18 1\/2 inches.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-cut-sheet-2_5f23348f-9326-407d-a4f8-dbae80e1db7c.png?v=1688803803\" alt='A blueprint design showcases a substantial blue rectangle labeled Port Wall #1, featuring dimensions of 12.5 units, alongside a smaller orange box on the left side marked Top \u0026amp; Bottom with dimensions 24.75 by 18.5 units. This arrangement is perfect for integrating an ultra-high excursion Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-Z-NS-18in-Single.zip?v=1688803027\"\u003e.Zip File\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-06-19T17:11:29-04:00","created_at":"2024-06-19T17:11:35-04:00","vendor":"Sundown Audio","type":"10\" Subwoofer","tags":["10 inch","10\"","10\" Subwoofer","2500W","D1","D2","STRY","Sub","Subs","Subwoofer","Subwoofers","Z-Series","Zv6"],"price":89999,"price_min":89999,"price_max":89999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42341801558109,"title":"D2","option1":"D2","option2":null,"option3":null,"sku":"SW-ZV610D2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sundown Audio Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - D2","public_title":"D2","options":["D2"],"price":89999,"weight":40823,"compare_at_price":null,"inventory_management":null,"barcode":"810111131384","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42341801590877,"title":"D1","option1":"D1","option2":null,"option3":null,"sku":"SW-ZV610D1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Sundown Audio Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - D1","public_title":"D1","options":["D1"],"price":89999,"weight":40823,"compare_at_price":null,"inventory_management":null,"barcode":"810111131377","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-162245_63f6c8e6-3fd8-43b4-a5ef-0da90784ca7e.png?v=1718831495","\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-701235_0ba93e76-e7f5-4cf3-86d3-b3658aeff9d2.png?v=1718831495","\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-321762_934e3542-e007-4116-8894-ce3ec3a2b526.png?v=1718831495","\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-245355_070301cc-e0bf-409b-b6d4-2b4adc24be7a.png?v=1718831495"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-162245_63f6c8e6-3fd8-43b4-a5ef-0da90784ca7e.png?v=1718831495","options":["Impedance"],"media":[{"alt":"Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - Sundown Audio","id":27524525621341,"position":1,"preview_image":{"aspect_ratio":1.0,"height":580,"width":580,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-162245_63f6c8e6-3fd8-43b4-a5ef-0da90784ca7e.png?v=1718831495"},"aspect_ratio":1.0,"height":580,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-162245_63f6c8e6-3fd8-43b4-a5ef-0da90784ca7e.png?v=1718831495","width":580},{"alt":"Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - Sundown Audio","id":27524525654109,"position":2,"preview_image":{"aspect_ratio":1.0,"height":580,"width":580,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-701235_0ba93e76-e7f5-4cf3-86d3-b3658aeff9d2.png?v=1718831495"},"aspect_ratio":1.0,"height":580,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-701235_0ba93e76-e7f5-4cf3-86d3-b3658aeff9d2.png?v=1718831495","width":580},{"alt":"Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - Sundown Audio","id":27524525686877,"position":3,"preview_image":{"aspect_ratio":1.0,"height":580,"width":580,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-321762_934e3542-e007-4116-8894-ce3ec3a2b526.png?v=1718831495"},"aspect_ratio":1.0,"height":580,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-321762_934e3542-e007-4116-8894-ce3ec3a2b526.png?v=1718831495","width":580},{"alt":"Z-Series ZV6 10\" 2500W Subwoofer Z v.6 - Sundown Audio","id":27524525719645,"position":4,"preview_image":{"aspect_ratio":1.0,"height":580,"width":580,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-245355_070301cc-e0bf-409b-b6d4-2b4adc24be7a.png?v=1718831495"},"aspect_ratio":1.0,"height":580,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/z-series-zv6-10-2500w-subwoofer-z-v6-245355_070301cc-e0bf-409b-b6d4-2b4adc24be7a.png?v=1718831495","width":580}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv data-mce-fragment=\"1\" class=\"uk-panel uk-margin\"\u003e\u003c\/div\u003e\n\u003cp\u003eThe Z v.6 is the second step up in Sundown's \"ultra-high excursion\" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).\u003c\/p\u003e\n\u003cp\u003eSundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4\" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top \u0026amp; back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series!\u003c\/p\u003e\n\u003cp\u003eThis motor drives a 3\" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that!\u003c\/p\u003e\n\u003cp\u003eBased on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself.\u003c\/p\u003e\n\u003cp\u003eThe Z v.6 series was designed from the ground-up to become the new standard in the low-frequency \/ small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension.\u003c\/p\u003e\n\u003cp\u003eThe Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.\u003c\/p\u003e\n\u003cdiv class=\"cus-flex\"\u003e\n\u003cdiv class=\"box-1\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eFeatures\u003c\/h3\u003e\n\u003cdiv class=\"el-content uk-panel uk-margin-top\"\u003e\n\u003cul\u003e\n\u003cli\u003ePower Handling: 2500 Watts RMS\u003c\/li\u003e\n\u003cli\u003eXmax = 35mm one-way by 70% BL\u003c\/li\u003e\n\u003cli\u003eHeavily vented magnetic gap\u003c\/li\u003e\n\u003cli\u003eSpring Loaded Terminals\u003c\/li\u003e\n\u003cli\u003eOptimized high-velocity pole vent\u003c\/li\u003e\n\u003cli\u003eInnovative high-velocity cast-aluminum vented frame spacer ring\u003c\/li\u003e\n\u003cli\u003eBlack aluminum 3 inch 8-layer voice coil\u003c\/li\u003e\n\u003cli\u003eMega-Roll v.2 surround\u003c\/li\u003e\n\u003cli\u003eCustom tooled basket\u003c\/li\u003e\n\u003cli\u003eLarge aluminum Faraday (shorting) Ring\u003c\/li\u003e\n\u003cli\u003eStitched-On XL Tinsel Leads to prevent fatigue and failure\u003c\/li\u003e\n\u003cli\u003eCustom-tooled ultra-linear spider packs\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-2\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eSpecifications\u003c\/h3\u003e\n\u003ctable class=\"uk-table uk-table-striped uk-table-small\"\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth class=\"uk-text-nowrap\"\u003eT\/S SPECS\u003c\/th\u003e\n\u003cth class=\"uk-text-nowrap\"\u003e\u003cstrong\u003eZ V.6 10″D1\u003c\/strong\u003e\u003c\/th\u003e\n\u003cth class=\"uk-text-nowrap\"\u003e\u003cstrong\u003eZ V.6 10″ D2\u003c\/strong\u003e\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eRE (Ohms)\u003c\/td\u003e\n\u003ctd\u003e1.7\u003c\/td\u003e\n\u003ctd\u003e3.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFS (Hz)\u003c\/td\u003e\n\u003ctd\u003e38.47\u003c\/td\u003e\n\u003ctd\u003e40.46\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eVAS (L)\u003c\/td\u003e\n\u003ctd\u003e8.1305\u003c\/td\u003e\n\u003ctd\u003e7.3693\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQes\u003c\/td\u003e\n\u003ctd\u003e0.4472\u003c\/td\u003e\n\u003ctd\u003e0.4523\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQms\u003c\/td\u003e\n\u003ctd\u003e5.7890\u003c\/td\u003e\n\u003ctd\u003e5.6379\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eQts\u003c\/td\u003e\n\u003ctd\u003e0.4151\u003c\/td\u003e\n\u003ctd\u003e0.4187\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eLe (mH)\u003c\/td\u003e\n\u003ctd\u003e1.8883mH\u003c\/td\u003e\n\u003ctd\u003e4.3059mH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eBL (NA)\u003c\/td\u003e\n\u003ctd\u003e19.1970\u003c\/td\u003e\n\u003ctd\u003e29.2091\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMms (Grams)\u003c\/td\u003e\n\u003ctd\u003e400.7235g\u003c\/td\u003e\n\u003ctd\u003e399.6832g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCms (uM\/N)\u003c\/td\u003e\n\u003ctd\u003e42.7032 uM\/N\u003c\/td\u003e\n\u003ctd\u003e38.7056 uM\/N\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSens (dB @ 1w\/1m)\u003c\/td\u003e\n\u003ctd\u003e81.8985dB\u003c\/td\u003e\n\u003ctd\u003e82.0801dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-3\"\u003e\n\u003ch3 class=\"el-title uk-text-danger uk-margin-top uk-margin-remove-bottom\"\u003eEnclosure Specifications\u003c\/h3\u003e\n\u003ctable class=\"uk-table uk-table-striped uk-table-small\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eSealed Enclosure\u003c\/td\u003e\n\u003ctd\u003eNot Recommended\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePorted Enclosure\u003c\/td\u003e\n\u003ctd\u003e1.5 cu.ft. net\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRecommended Tuning\u003c\/td\u003e\n\u003ctd\u003e32Hz\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRecommended Port Area\u003c\/td\u003e\n\u003ctd\u003e22 sq.in.\u003cbr\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDisplacement\u003c\/td\u003e\n\u003ctd\u003e.23 cu. ft.\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDepth\u003c\/td\u003e\n\u003ctd\u003e10.96\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutside Diameter\u003c\/td\u003e\n\u003ctd\u003e11.65\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCut-Out\u003c\/td\u003e\n\u003ctd\u003e10.01\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePhysical Dimensions\u003c\/td\u003e\n\u003ctd\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/Zv6-10.pdf?v=1688803802\" target=\"_blank\"\u003eDownload\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"box-4\"\u003e\n\u003ch3\u003eEnclosure Designs\u003cbr\u003e\n\u003c\/h3\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Information_0c12a2a1-109e-4af9-a8aa-e405091e9131.jpg?v=1688803803\" alt='Illustration of a speaker enclosure design by Bassaholic Designs for the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils. It includes specifications such as dimensions, net size, port size, tuning frequency, and detailed cut sheet information. Ideal for an ultra-high excursion subwoofer. A note highlights the importance of verifying the cut sheet for any errors.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-0_03577886-d20f-4c83-a932-0b635771dccb.jpg?v=1688803804\" alt='A digital rendering features a wooden enclosure specifically crafted for a Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils, showcasing a circular cutout in the front panel, an open top, and an internal compartment designed to accommodate ultra-high excursion subwoofers for optimal power handling.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-1_7121a551-0719-49e8-b6e6-84361726ea3d.jpg?v=1688803805\" alt='A 3D model of the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W subwoofer enclosure, showcasing its ultra-high excursion design with precise dimensions. The rectangular box includes a circular cutout on one side and measures 24 3\/4 inches in width, 15 1\/2 inches in depth, and 15 1\/2 inches in height. The image features the Sundown Audio logo in the bottom left corner.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-2_3d060be1-7bd9-4960-9f4f-628fb64c21eb.jpg?v=1688803805\" alt='A diagram of a rectangular wooden enclosure specifically designed to house the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils. The blueprint includes dimensions in inches, detailing the width, height, and internal depth, with a logo at the bottom left corner that reads Bassaholic Productions.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-3_4088de16-33db-48d8-ad07-8eb6ec3f2754.jpg?v=1688803805\" alt='A technical drawing of a refurbished rectangular wooden panel showcases dimensions labeled: 21 3\/4, 19, 15 1\/2, and 13 3\/4. The panel features inner rectangular markings that suggest a design for power handling. At the bottom left corner is a logo reading Blissahaudio Productions. This corresponds with the Sundown Audio Refurbished Z-Series ZV5 10\" Subwoofer featuring X v.4 Coils and a power capacity of 2000W by Sundown Audio.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-4_8ef050fa-491e-428c-9255-f37b4cf264c8.jpg?v=1688803804\" alt='A blueprint illustrating updated dimensions of nested rectangles in inches features the largest measuring 21 3\/4 by 18 1\/2 and the smallest at 18 by 13 3\/4, each clearly labeled to ensure precision. This setup is perfect for fine-tuning power handling in ultra-high excursion designs like the Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer with X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-5_110afc44-5563-4522-818f-213672c9d464.jpg?v=1688803804\" alt='A 3D sketch depicting the top view of a refurbished wooden board with precise measurements features a central cut-out and markings at 1 1\/16 inches on the top and 1 1\/2 inches at the bottom, optimized for ideal power handling during installation of a Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-6_2145c3de-2b61-4a56-96a0-8dbf73ab4d1d.jpg?v=1688803804\" alt='A refurbished rectangular wooden panel from Sundown Audio features a large circular cutout in the center, measuring 20 inches wide and 12.5 inches tall, with a circle diameter of 12.5 inches. Ideal for the ultra-high excursion Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils, it includes a brand logo in the bottom left corner.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-cut-sheet-1_f92f0c72-31b0-4956-a70c-82329515c3bb.png?v=1688803804\" alt='Updated diagram displaying the arrangement of wooden pieces for a box tailored to enhance power handling, specifically for the Sundown Audio Refurbished Z-Series ZV5 10\" Subwoofer with X v.4 Coils. The pieces are labeled with dimensions and titles: Front, Sides, Top \u0026amp; Bottom, Port Wall #1 and #2, and Back. Measurements vary from 12 1\/2 to 18 1\/2 inches.'\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-_Z-NS-Single-10-Rendering-cut-sheet-2_5f23348f-9326-407d-a4f8-dbae80e1db7c.png?v=1688803803\" alt='A blueprint design showcases a substantial blue rectangle labeled Port Wall #1, featuring dimensions of 12.5 units, alongside a smaller orange box on the left side marked Top \u0026amp; Bottom with dimensions 24.75 by 18.5 units. This arrangement is perfect for integrating an ultra-high excursion Sundown Audio Refurbished Z-Series ZV5 10\" 2000W Subwoofer With X v.4 Coils.'\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0770\/6669\/9062\/files\/X-Z-NS-18in-Single.zip?v=1688803027\"\u003e.Zip File\u003c\/a\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Share this product

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).

Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series!

This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that!

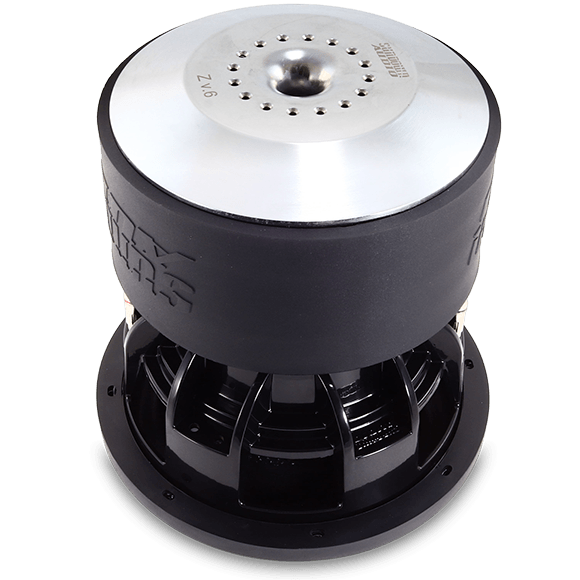

Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself.

The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension.

The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.

Features

Power Handling: 2500 Watts RMS
Xmax = 35mm one-way by 70% BL
Heavily vented magnetic gap
Spring Loaded Terminals
Optimized high-velocity pole vent
Innovative high-velocity cast-aluminum vented frame spacer ring
Black aluminum 3 inch 8-layer voice coil
Mega-Roll v.2 surround
Custom tooled basket
Large aluminum Faraday (shorting) Ring
Stitched-On XL Tinsel Leads to prevent fatigue and failure
Custom-tooled ultra-linear spider packs

Specifications

T/S SPECS	Z V.6 10″D1	Z V.6 10″ D2
RE (Ohms)	1.7	3.7
FS (Hz)	38.47	40.46
VAS (L)	8.1305	7.3693
Qes	0.4472	0.4523
Qms	5.7890	5.6379
Qts	0.4151	0.4187
Le (mH)	1.8883mH	4.3059mH
BL (NA)	19.1970	29.2091
Mms (Grams)	400.7235g	399.6832g
Cms (uM/N)	42.7032 uM/N	38.7056 uM/N
Sens (dB @ 1w/1m)	81.8985dB	82.0801dB

Enclosure Specifications

Sealed Enclosure	Not Recommended
Ported Enclosure	1.5 cu.ft. net
Recommended Tuning	32Hz
Recommended Port Area	22 sq.in.
Displacement	.23 cu. ft.
Depth	10.96"
Outside Diameter	11.65"
Cut-Out	10.01"
Physical Dimensions	Download
