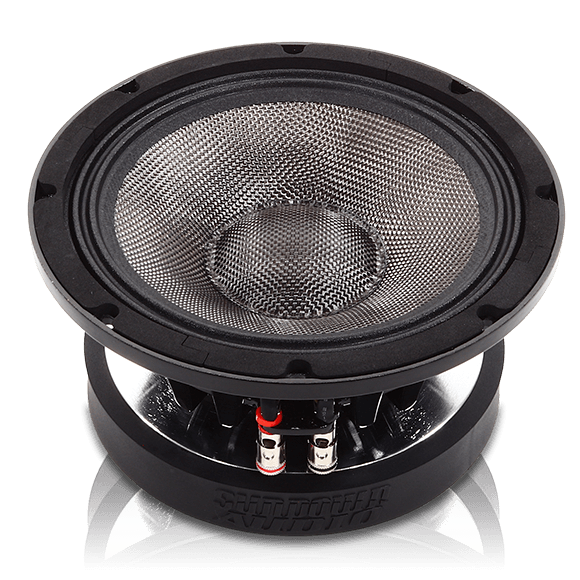

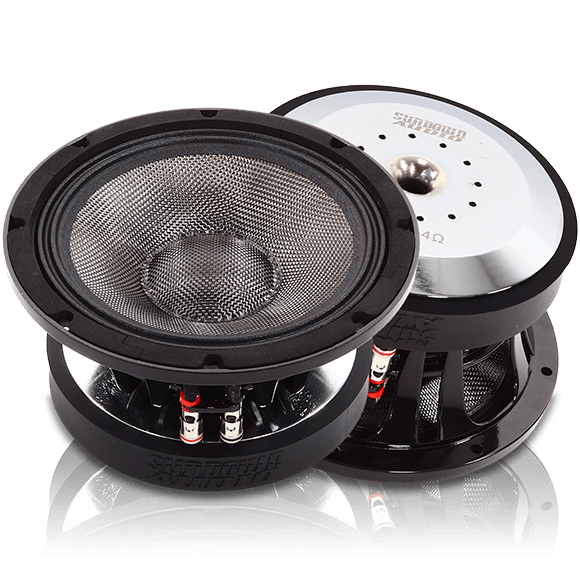

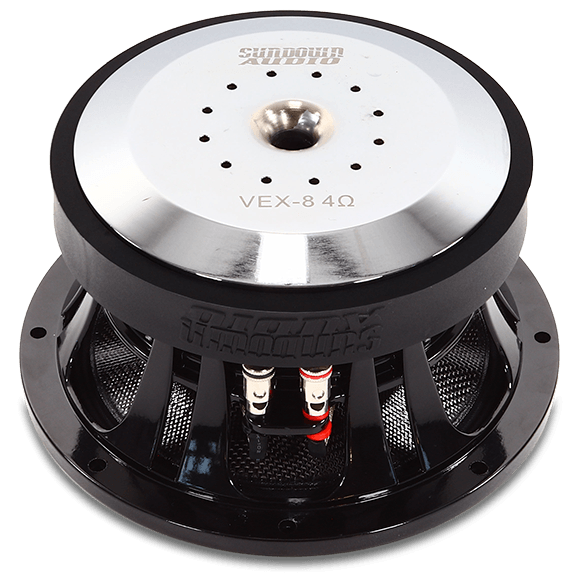

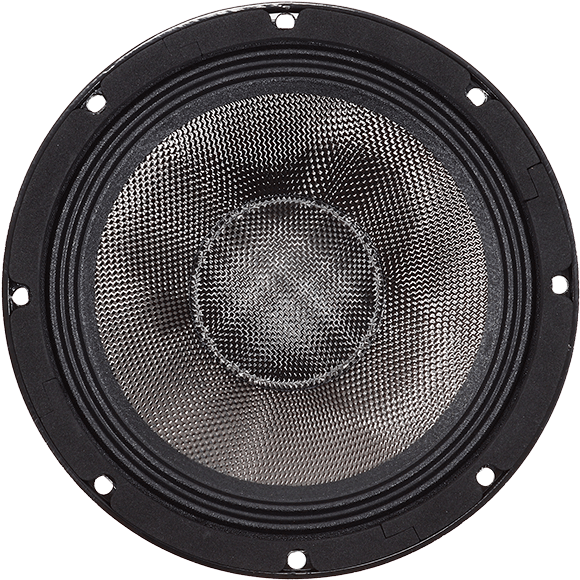

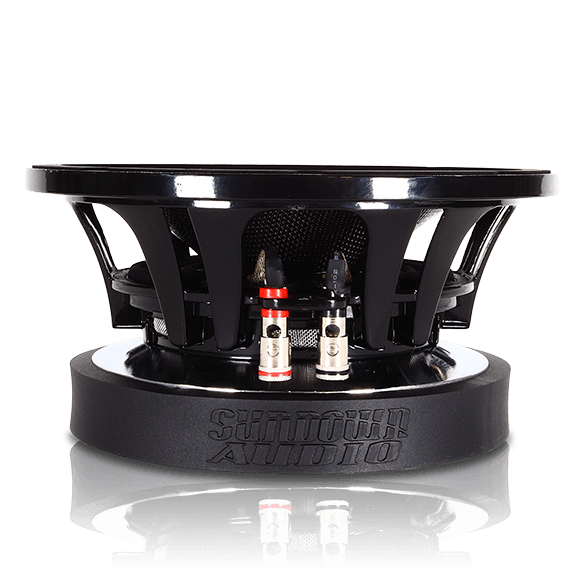

Sundown Audio VEX-8 300 Watt Pro Audio Midrange Speaker

Sundown AudioSKU: S-VEX84

Price:
Sale price$229.99
Stock:
Available

Description

The Sundown Audio VEX series is our top-of-the-line high efficiency mid-range series. The VEX-8 was designed to handle an enormous 300-watts RMS thanks to its generous 2.5” coil (with a full 20mm winding length) and highly efficient airflow system consisting of twelve gaps vents and a chamfered, large-diameter pole vent. The long coil also affords the VEX-8 a full 9mm of linear x-max one-way so it can play lower than many other high-efficiency drivers without distortion. The inductance is kept in check by a dual shorting-ring system (magnet ID & pole cap) which drops the LE spec to less than 25% of the RE value. This allows the high-frequency extension to reach all the way up to 5,000 Hz where it then falls of naturally and smoothly on its own thanks to the extremely strong and non-resonant carbon-fiber cone & dust-cap assembly. Most high-efficiency drivers utilize very light-weight paper which is great for sensitivity but not so great in terms of breakup modes and strength (to withstand torture in bass-heavy vehicles). We went with real carbon-fiber to address these issues at the expense of more mass. But we still achieved a 94.3dB sensitivity by combining a large diameter, high-strength ferrite motor with a neodymium pole-cap magnet! The whole package is held together with a sturdy cast-aluminum frame that features extensive spider cavity venting to further increase thermal power handling. Quite simply – if you are looking for one of the loudest and best-sounding high efficiency mid-range drivers to hit the car-audio market the VEX-8 is exactly what you need!

Features

  • Power Handling: 300 Watts RMS
  • Impedance: 4/8-ohm SVC
  • Vented cast frame
  • 3 inch voice coil
  • X-Max 9mm
  • Excellent for Mid-bass
  • Mounting Depth : Aproximately  4 inches
  • Rear Vented

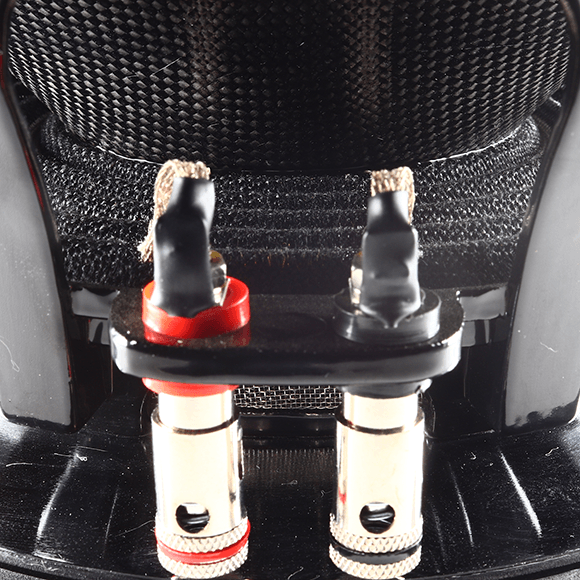

  • Spring Loaded Terminals

Specifications

T/S SPECS VEX-8 S8 OHM
RE (Ohms) 6.000
FS (Hz) 90.592
VAS (L) 5.861
Qes 0.249
Qms 3.539
Qts 0.232
BL (NA) 22.995
Mms (Grams) 38.524
Cms (uM/N) 80.119
Sens (dB @ 1w/1m)

94.3dB

Frequency Response

Graph titled SPL vs Freq displaying a line plot with frequency on the x-axis (10Hz to 20kHz) and sound pressure level (0 to 120 dB SPL) on the y-axis. Demonstrating peaks and valleys throughout its range, this graph highlights the performance of the Sundown Audio VEX-8 300 Watt Pro Audio Midrange Speaker featuring a high-efficiency carbon-fiber cone.
Technical diagram of the Sundown Audio VEX-8 300 Watt Pro Audio Midrange Speaker, illustrating dimensions and structural details. The features include labeled measurements of height and diameter, with outlines of the carbon-fiber cone, surround, and basket. The diagram is displayed in white on a black background.

Specifications

Product Brand Sundown Audio
