Sundown Audio SIA 1750D is Sundown Audio's latest and greatest intelligent full bridge amplifier, the sundown SIA 1750's power supply is built stronger, heatsink is heavier, and the SIA 1750's feature intelligent low voltage technology protecting the amplifier from typical full bridge malfunction. The SIA 1750 also runs cooler because of Sundown Audio's latest fan upgrades.

Smart Cooler (Fan powered by temperature or audio, with 3 speeds)

Product Manual

Features

Digital Class-D Mono Block Amplifier
Dual MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave – Variable Low Pass Filter
0 to 12dB – Variable Bass Boost
4 Way Protection Circuit (Thermal Voltage Speaker short and DC Offset)

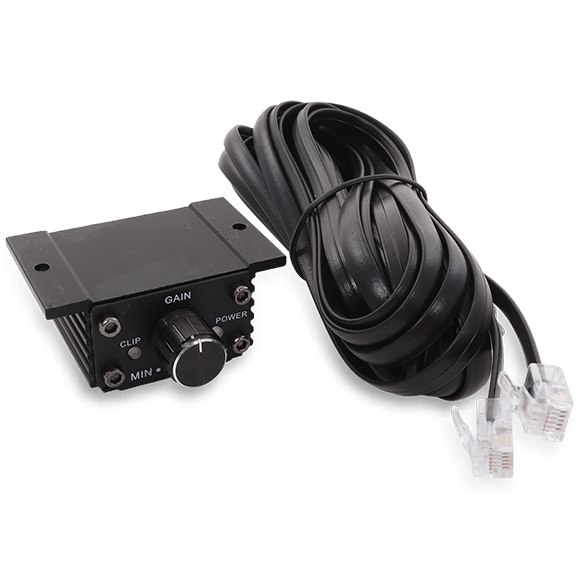

Wired Remote Control with Clipping Indicator

Specifications

Tested at 14.4 Volts
1Ohm Mono: 1750W RMS
2Ohm Mono: 1750W RMS
4Ohm Mono: 1250W RMS
Recommended Fuse Rating: 150A
Low Pass Filter: 40Hz – 20kHz
High Pass Filter: 10Hz – 1kHz
Level (Bass Boost): 0 – 12dB (50Hz)
Input Sensitivity: 5V Max
Single Noise Ratio: 108dB
Working Voltage: 10.5V – 15.5V DC
Dimensions (Inches): 6.50” x 7.28” x 2.44”
