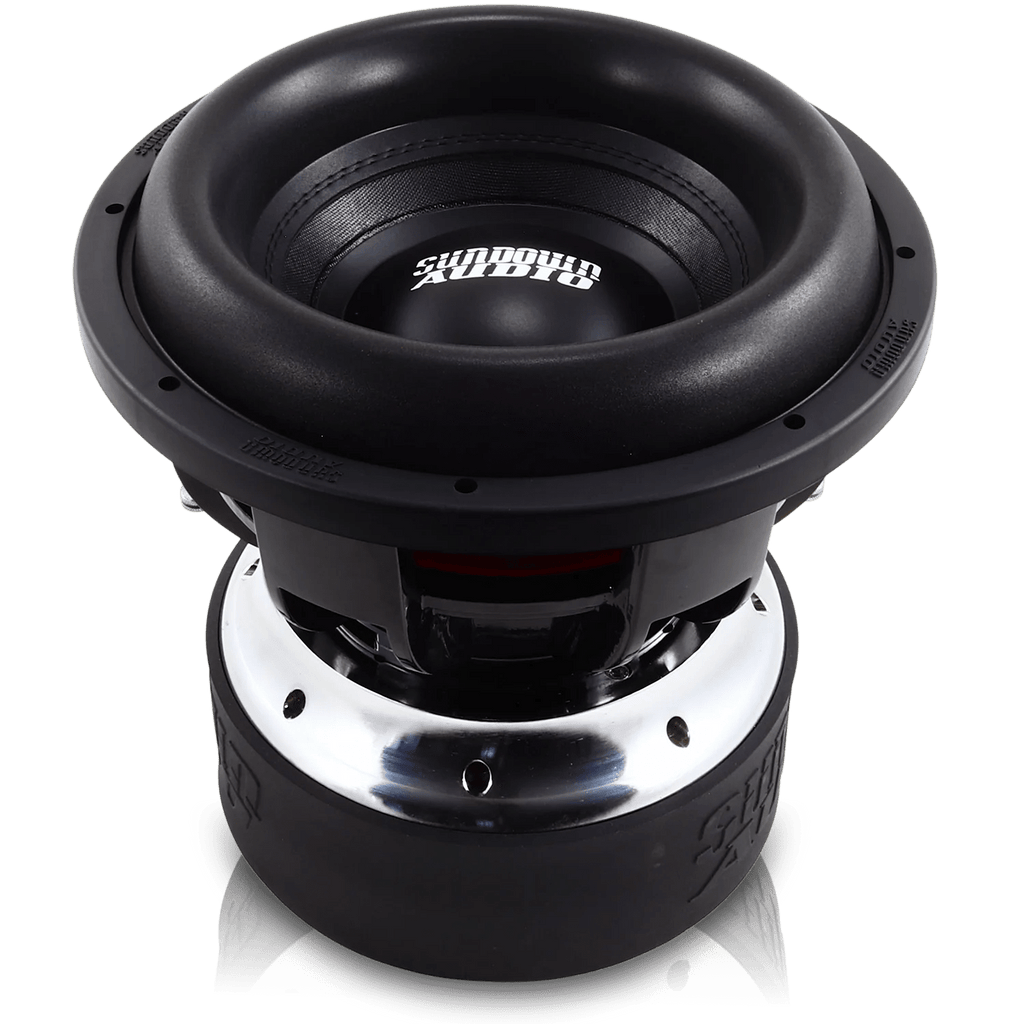

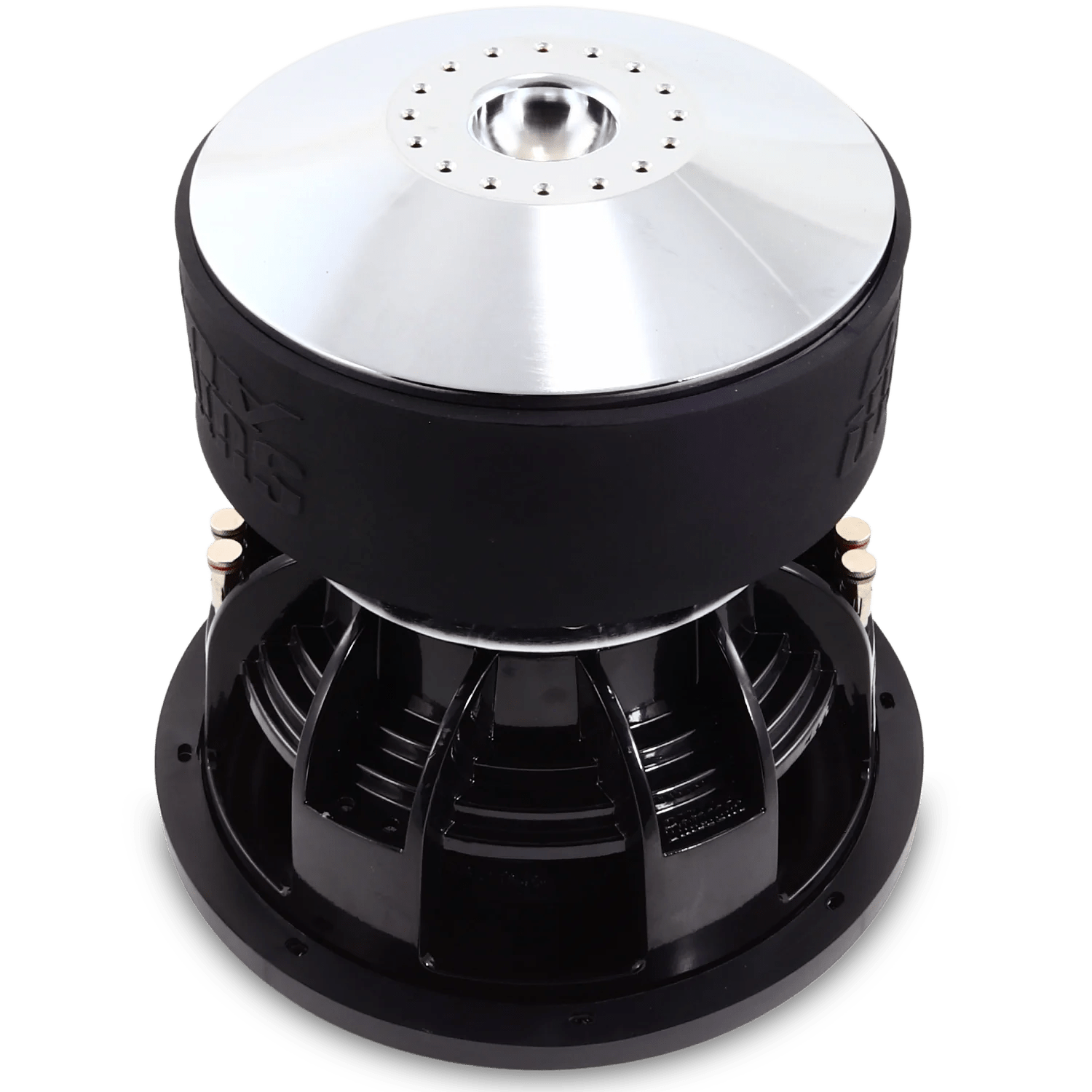

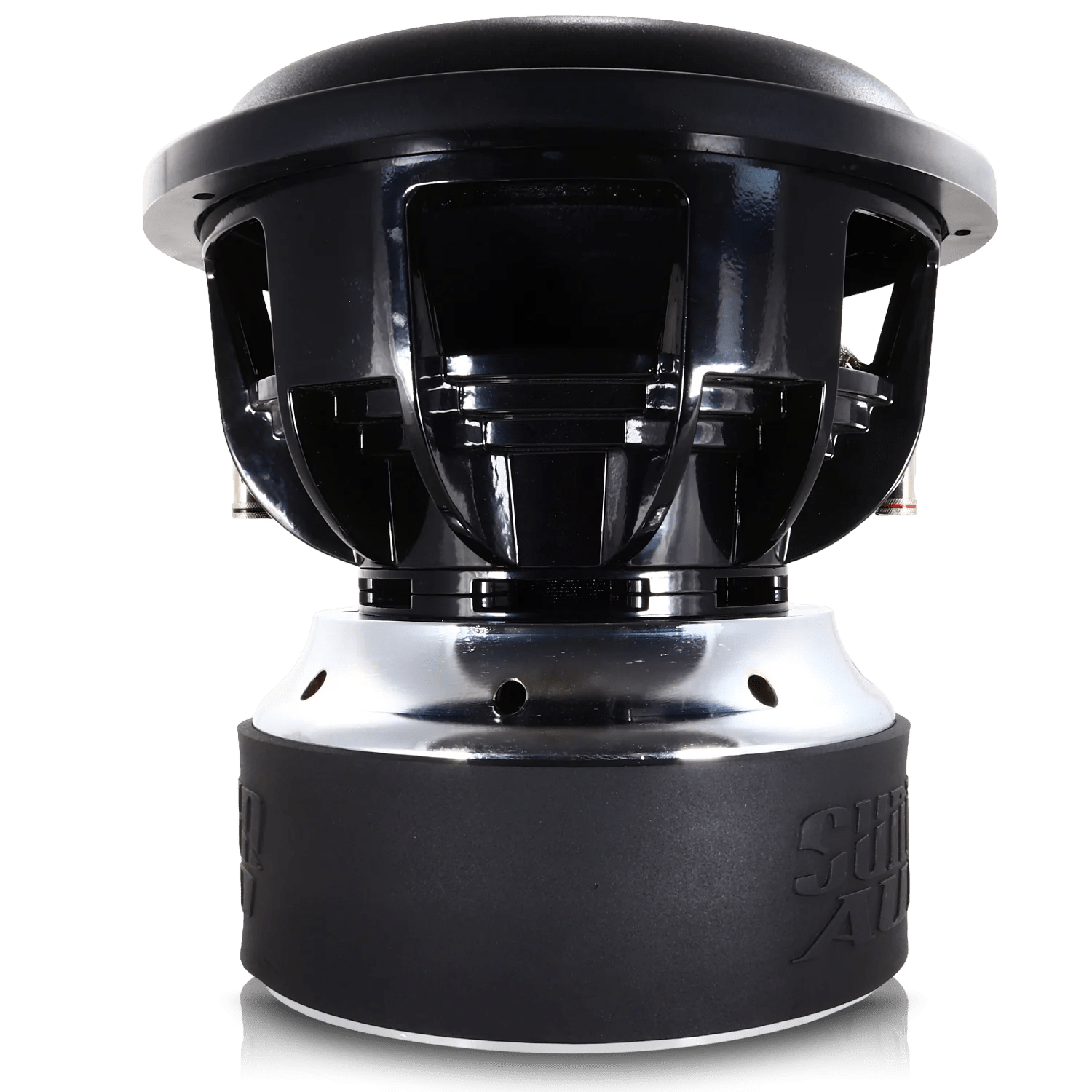

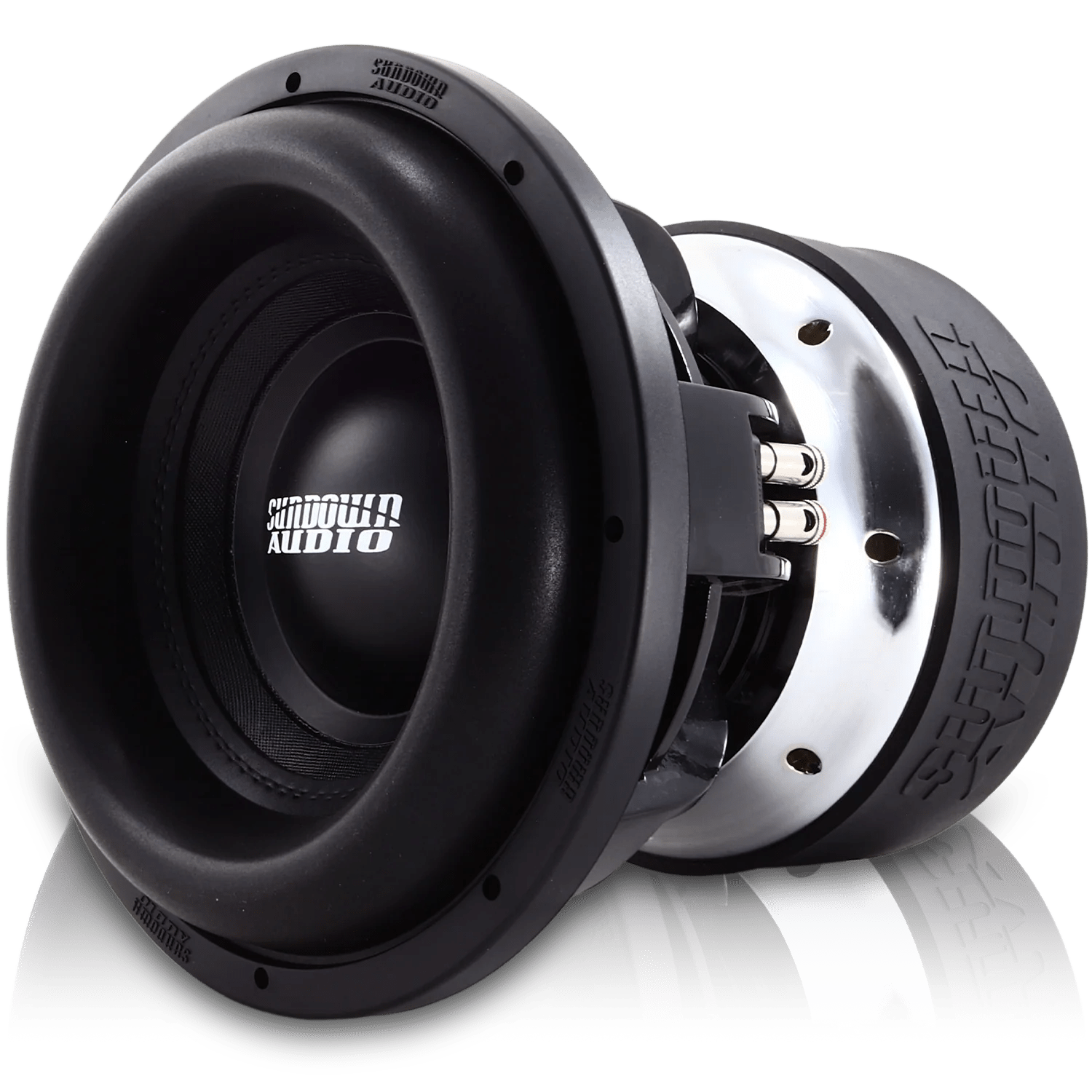

Sundown Audio SDDN 12" Limited Edition Competition Subwoofer D1 3500W

Sundown AudioSKU: SW-SDDN12D1

Price:
Sale price$1,349.99
Stock:
Available

Description

  • 3,500 watts RMS
  • Available in 10 through 18-inch versions
  • Dual 1 ohm coils
  • Mega V2 Cone
  • Aluminum 3.3” x  80mm coil
  • Dual 8 AWG terminals with dual-layer tinsel leads
  • Custom cross-cut pole piece with Neodymium cap for increased output and thermal control
  • 5-layer spider
  • 1,336 oz (83.5 lbs) magnet with integrated thermal ventilation
  • Optimized for Ported & 6th order enclosures
  • Carbon cone upgrade available

Designed in-house by Sundown Founder Jacob Fuller, the 3,500-watt RMS SDDN is available in 10, 12, 15, and 18-inch models. Each unit boasts a massive 83-pound motor with integrated thermal ventilation, featuring a custom cross-cut pole piece with a Neodymium cap for increased output and thermal control. Sundown’s signature Mega V2 cone is paired with a five-layer spider, a 3.3” x 80mm aluminum voice coil (dual 1-ohm), and dual tinsel leads per eight-gauge terminal.

SPECIFICATIONS

Re = 1.9304
Fs = 33.2047
Zmax = 42.5300
Qes = 0.2230
Qms = 4.6903
Qts = 0.2129
Le = 3.9838
Diam =241.3000
Sd = 45730.3524
Vas = 14.6269
BL = 29.0291
Mms = 466.6183
Cms = 49.2355
Sensitivity 1w/1m = 85.5519 dB
Xmax = 35mm

The technical diagram of the Sundown Audio SDDN 12" Limited Edition Competition Subwoofer D1 3500W highlights its precise measurements, including diameter and depth. Equipped with a Mega V2 cone and capable of handling 500 watts RMS power, it features an 11.1-inch cutout diameter, a 12.68-inch outer diameter, and a 12-inch depth to ensure optimal performance.
