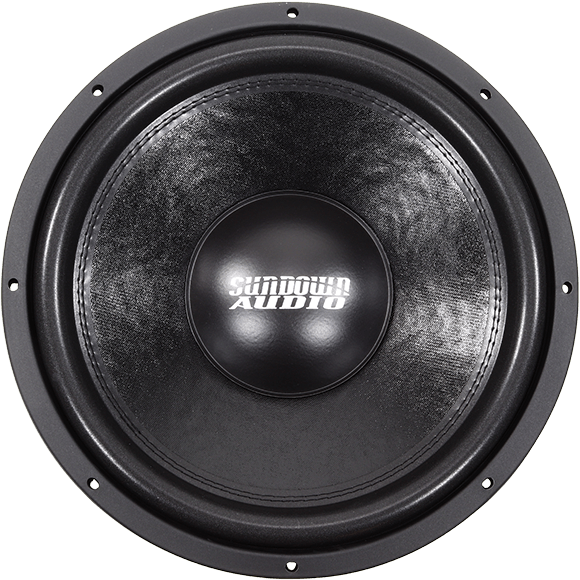

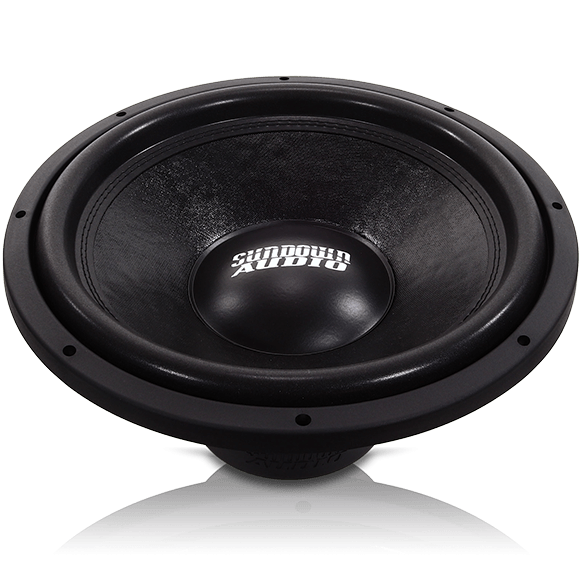

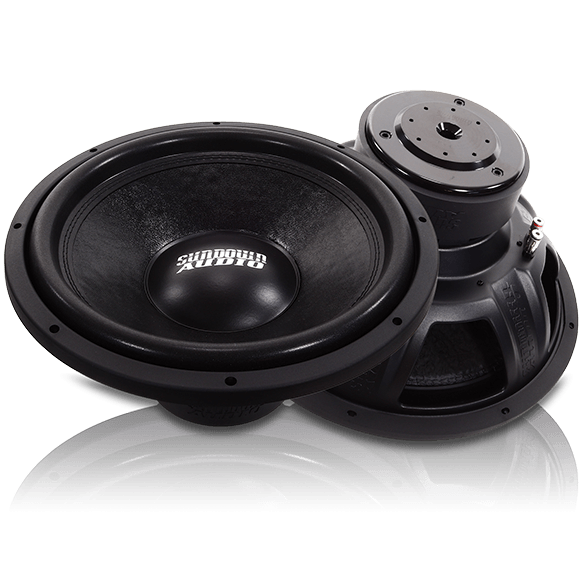

Sundown Audio E-Series v.4 15" 500W Subwoofer

Sundown AudioSKU: SW-EV415D2

Price:
Sale price$219.99
Stock:
Available

Description

E v.4 Series 500W DVC Subwoofer

The fourth version of our acclaimed E series has been refreshed for 2020. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – all of these bars have been raised once again for our fourth generation E series. The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.

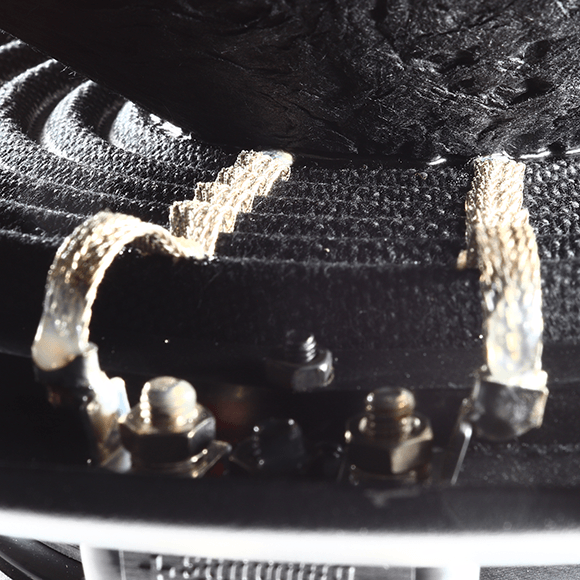

A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak before physical coil bottom). The E v.4 series has been upgraded to a full 2.5” diameter coil (this started with the v.3) compared to the 2” coil of previous generations (v.1 and v.2). The tinsel leads have been upgraded to a new “Mini-XL” lead containing 63-strands of conductor (a full XL is 84-strands and previous leads contained 42-strands) to help prevent potential failure due to amplifier clipping. The spider itself is a high-strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame.

Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date. They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.

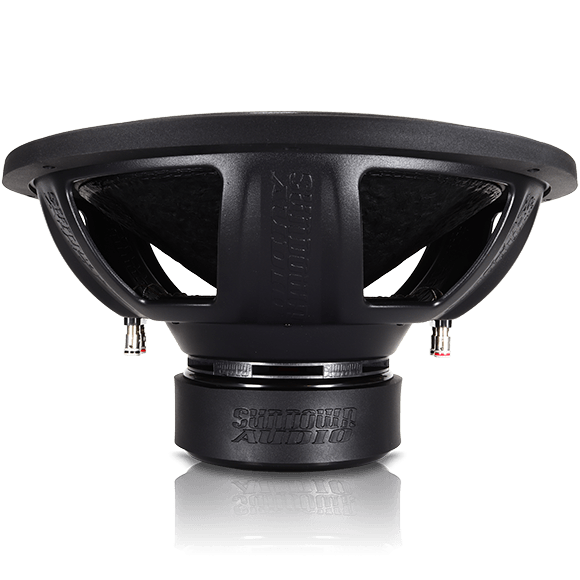

Physical Dimensions

Features

  • Xmax = 14mm one-way by 70% BL
  • RMS Power = 500-watts (300-watts 8”)
  • Vented magnetic gap
  • Vented pole piece with optimized geometry (solid pole for 8”)
  • Black Aluminum 2.5” voice coil former for superior heat dissipation (2” coil for 8”)
  • High Temperature 4-Layer copper voice coil wire
  • Spring Loaded Terminals
  • Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
  • Bolted-on Spider Pack

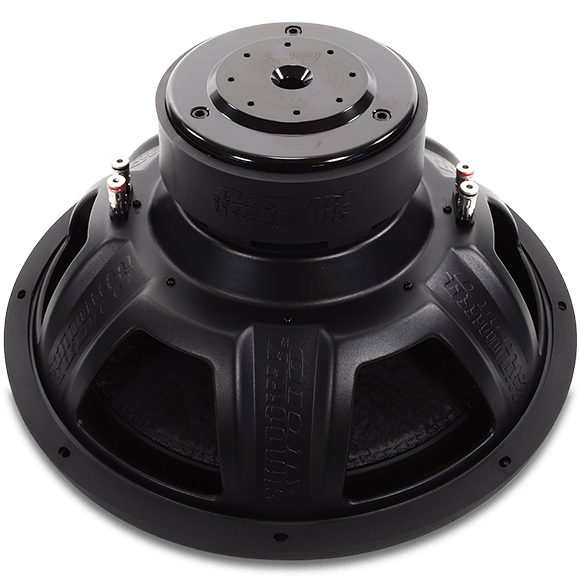

  • Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
  • High strength stamped steel frame
  • Optimized for ported enclosures

Specifications

T/S Specs E v.4 15" D2 E v.4 15" D4
RE (Ohms) 4.030 6.130
FS (Hz) 30.535 30.539
VAS (L) 101.063 103.031
Qes 0.759 0.818
Qms 4.101 3.750
Qts 0.641 0.671
BL (NA) 15.880 19.247
Mms (Grams) 262.699 257.621
Cms (mm/N) 103.416 105.429
Sens (dB @ 1w/1m) 87.7 87.4


Enclosure Specs

  • Ported Enclosure
    • Size: 3.0 cuft net
    • Port Area: 44 sqin
    • Port Tuning: 35hz
  • Sealed Enclosure
    • Not Recommended
  • Displacement: 0.14 cuft.
  • Depth:  7.25"
  • Outside Diameter: 15.125"
  • Cutout: 13.875"
  • Physical Dimensions

Specifications

Product Brand Sundown Audio
Coil Dual 4 Ohm (D4)   Dual 2 Ohm (D2)
RMS Power 500W
Diameter 15"
