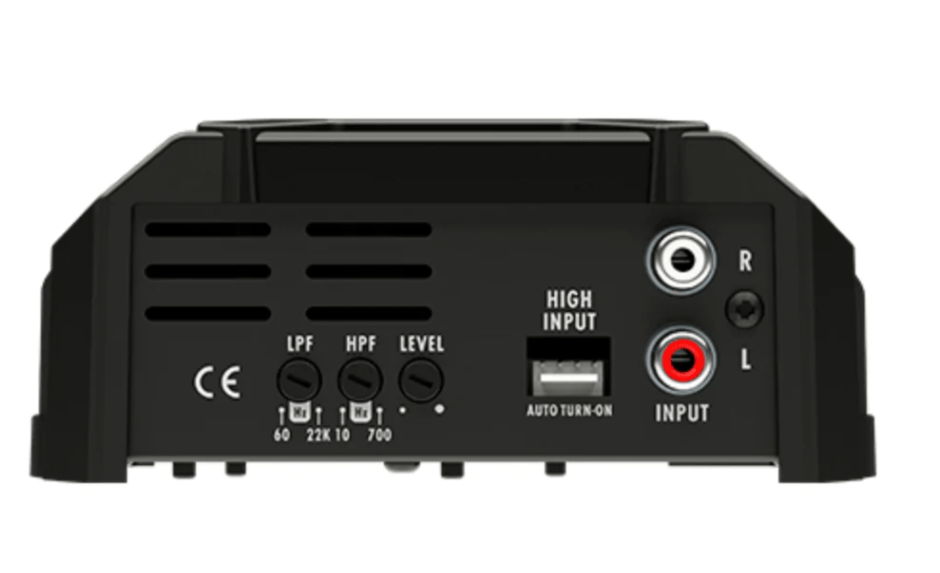

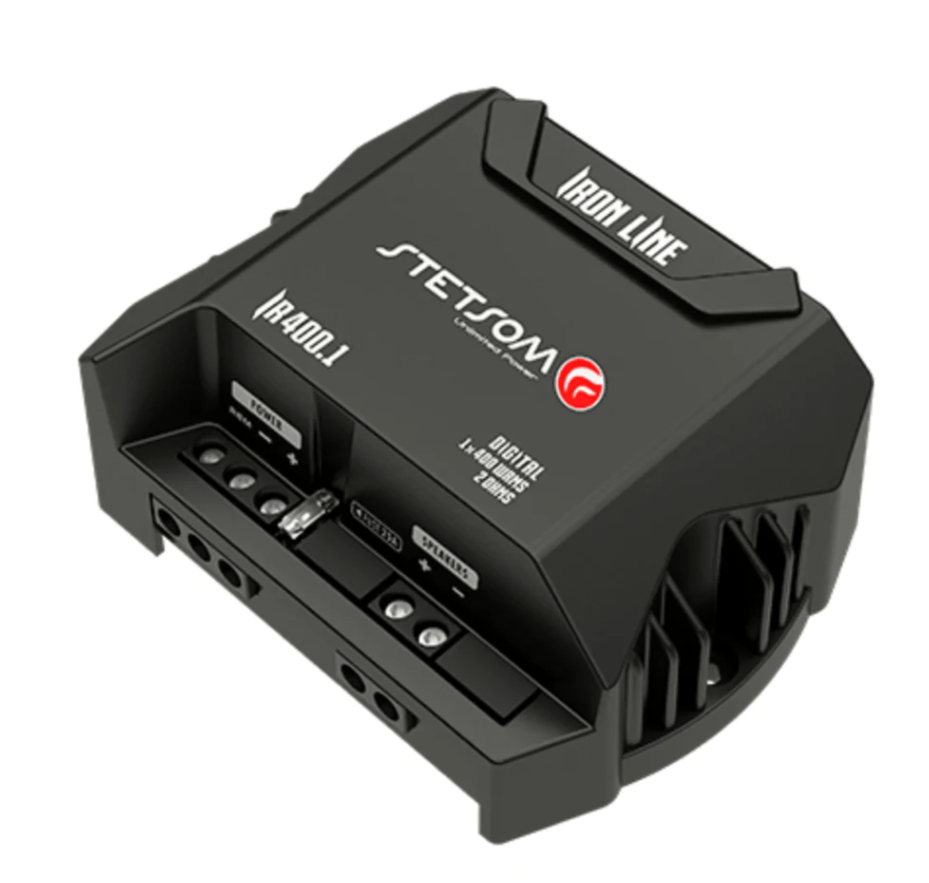

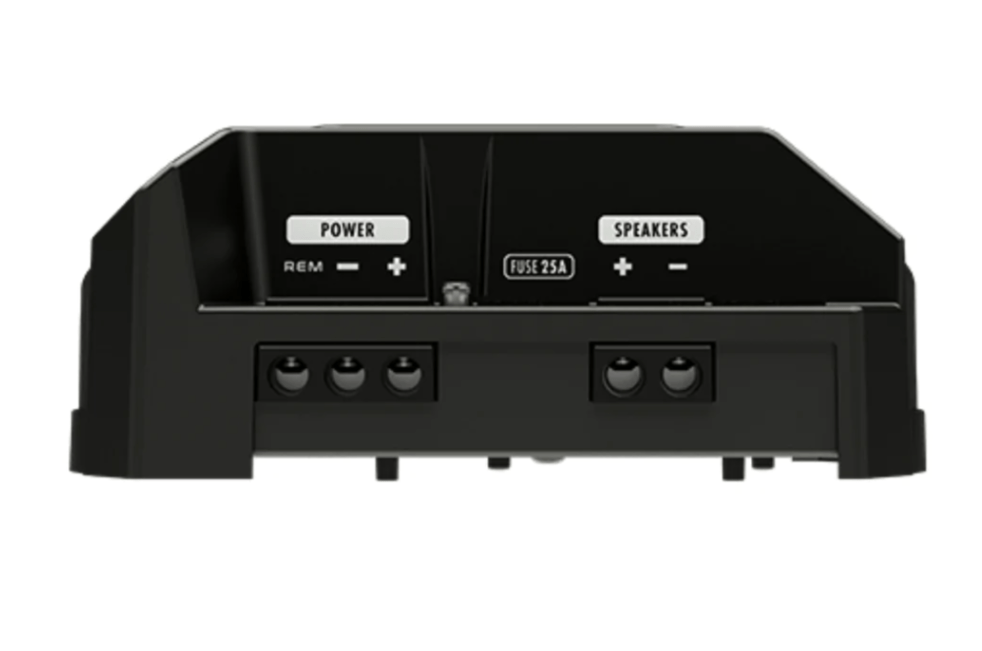

Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm

Roll over image to zoom in Click on image to zoom

Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm

Name: Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm
Availability: InStock

StetsomSKU: IR-400.1-2OHM

Price:

$89.99

Stock:

Available

Quantity:

{"id":7768678269021,"title":"Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm","handle":"stetsom-iron-line-ir-400-1-mono-one-channel-400-w-amplifier-full-range-compact-2-ohm","description":"\u003cp\u003eTECHNICAL SPECIFICATIONS\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eIR400.1\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e400W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e160W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e430W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e250W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~ 15V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 22KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e60Hz ~ 22KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 700Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt; 90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHarmonic Distortion\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 0,01%\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ FIO: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 38K Ohms \/ FIO: 10K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e18A (13.8V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e36A (13.8V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e52,5 x 99,8 x 127,5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e508 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-11-04T18:55:38-05:00","created_at":"2024-11-04T18:55:43-05:00","vendor":"Stetsom","type":"","tags":["1-Channel","2 Ohm","Amplifier","Amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","Iron Line","Mono Amplifier","Monoblock"],"price":8999,"price_min":8999,"price_max":8999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42847761989725,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"IR-400.1-2OHM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm","public_title":null,"options":["Default Title"],"price":8999,"weight":907,"compare_at_price":null,"inventory_management":null,"barcode":"7897748704597","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X1.png?v=1730764543","\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X11.png?v=1730764543","\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X111.png?v=1730764543"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X1.png?v=1730764543","options":["Title"],"media":[{"alt":null,"id":28450971779165,"position":1,"preview_image":{"aspect_ratio":1.052,"height":883,"width":929,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X1.png?v=1730764543"},"aspect_ratio":1.052,"height":883,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X1.png?v=1730764543","width":929},{"alt":null,"id":28450971811933,"position":2,"preview_image":{"aspect_ratio":1.64,"height":573,"width":940,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X11.png?v=1730764543"},"aspect_ratio":1.64,"height":573,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X11.png?v=1730764543","width":940},{"alt":null,"id":28450971844701,"position":3,"preview_image":{"aspect_ratio":1.508,"height":651,"width":982,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X111.png?v=1730764543"},"aspect_ratio":1.508,"height":651,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/IRON400X111.png?v=1730764543","width":982}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eTECHNICAL SPECIFICATIONS\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eIR400.1\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e400W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e160W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e430W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e250W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~ 15V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 22KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e60Hz ~ 22KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 700Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt; 90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHarmonic Distortion\u003c\/td\u003e\n\u003ctd\u003e\u0026lt; 0,01%\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ FIO: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 38K Ohms \/ FIO: 10K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e18A (13.8V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e36A (13.8V)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e52,5 x 99,8 x 127,5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e508 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Share this product

TECHNICAL SPECIFICATIONS

CHARACTERISTICS	IR400.1
Number of Channels	1
RMS Power at 2 Ohm 13.8V	400W
RMS Power at 4 Ohm 13.8V	160W
RMS Power at 2 Ohm 14.4V	430W
RMS Power at 4 Ohm 14.4V	250W
Supply Voltage	9V ~ 15V
Frequency Response	10Hz ~ 22KHz
Crossover Low Pass	60Hz ~ 22KHz
Crossover High Pass	10Hz ~ 700Hz
Signal to Noise	> 90dB
Harmonic Distortion	< 0,01%
Input Sensitivity	RCA: 200mV / FIO: 1.5V
Input Impedance	RCA: 38K Ohms / FIO: 10K Ohms
Impedance Output	2 OHMS
Consumption with Signal Musical	18A (13.8V)
Consumption with Signal Bass	36A (13.8V)
Dimensions (H x W x D) mm	52,5 x 99,8 x 127,5
Weight Kg	508 g

Stetsom Iron Line IR-400.1 Mono One-Channel 400 W Amplifier Full Range Compact 2 Ohm

Description

Specifications
