Description

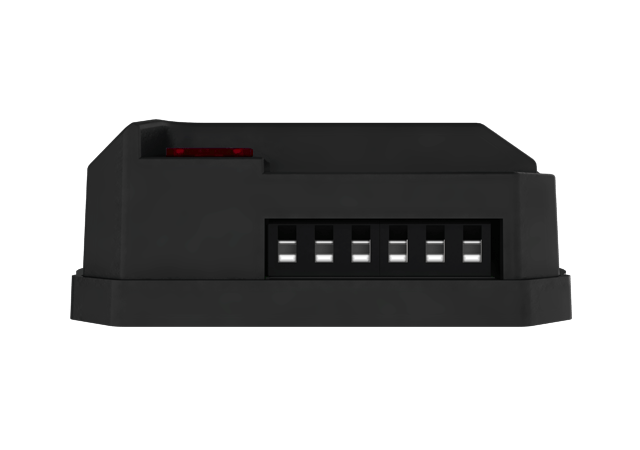

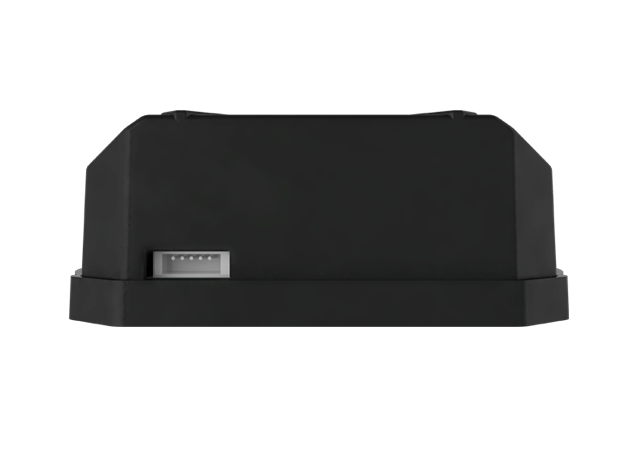

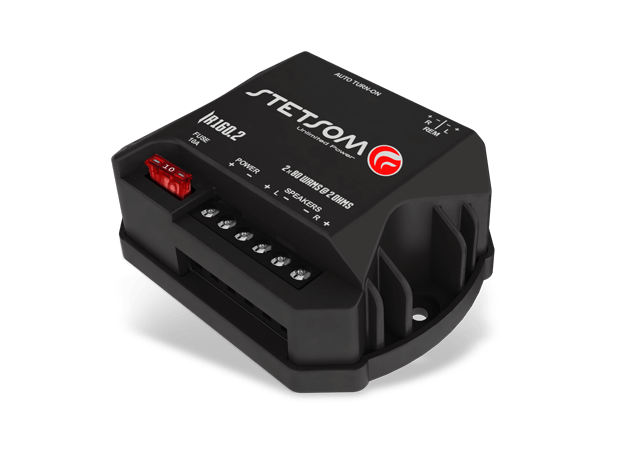

The IR160.2 is a Digital Amplifier with 2 channel of 80W RMS each in 2 Ohms.
Features Auto-turn On: Provides Automatic Remote Start via the audio connector.
With bass, mid and treble well defined with incomparable sound this amplifier is ideal for internal sound.
Amazing design. Robustness is unmatched since it is developed in high performance aluminum.
High fidelity sound in the bass, mid and treble.
Safety Energy Technology: providing extremely high efficiency and low power consumption.
Does not interfere with FM:
We suggest distributing the speaker cables as far as possible from the radio antenna cable if you use an internal antenna,
It must be grounded to the chassis of the vehicle.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS | IR 160.2 |
---|---|
Number of Channels | 2 |
RMS Power at 2 Ohm 13.8V | 2 x 80W RMS (Stereo) |
RMS Power at 4 Ohm 13.8V | 2 x 45W RMS (Stereo) |
Supply Voltage | 9 ~ 15V |
Frequency Response | 50Hz ~ 23 KHz |
Signal to Noise | > 90 dB |
Harmonic Distortion | > 0,03 % THD |
Input Sensitivity | 2 V |
Input Impedance | 2,4K Ohms |
Impedance Output | 2 Ohms |
Consumption with Signal Musical | 6,4 A |
Consumption with Signal Bass | 12,8 A |
Dimensions (H x W x D) mm | 29 x 58 x 77 |
Weight Kg | 0,115 Kg |
