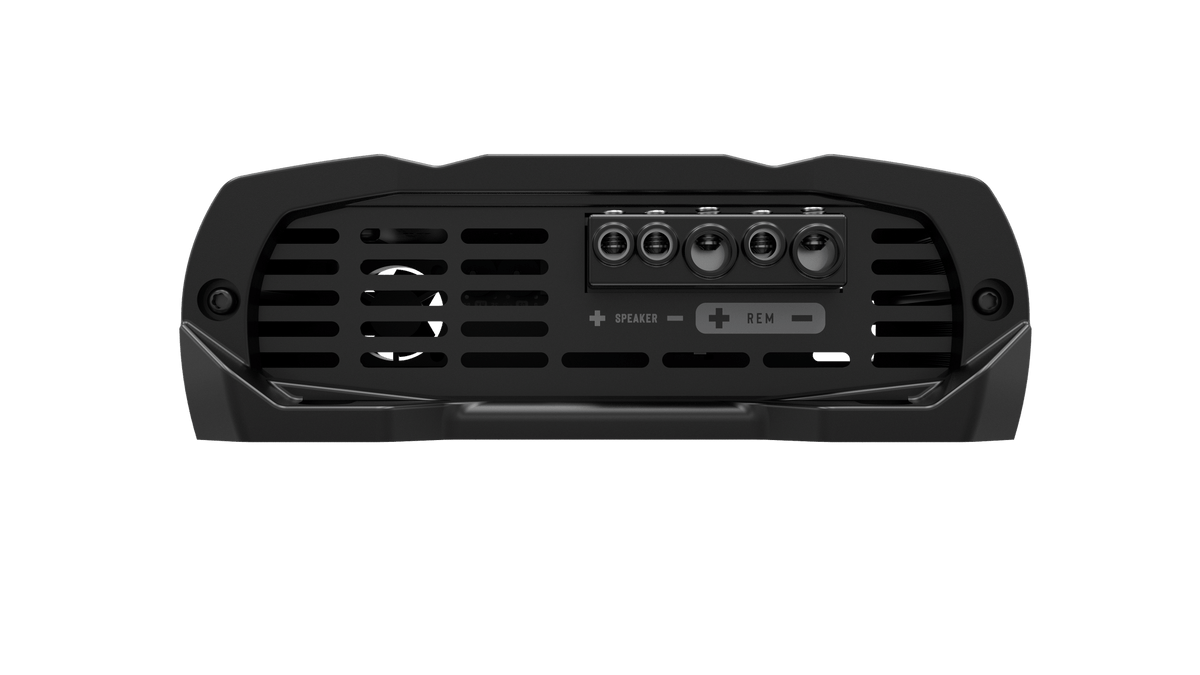

Close-up of the back panel of a Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier displaying connections and vents, including speaker and remote wiring terminals. The components are encased in a black, angular casing. The DB500.1 is designed to deliver optimized RMS power performance at 2 Ohms, enhancing audio quality noticeably.

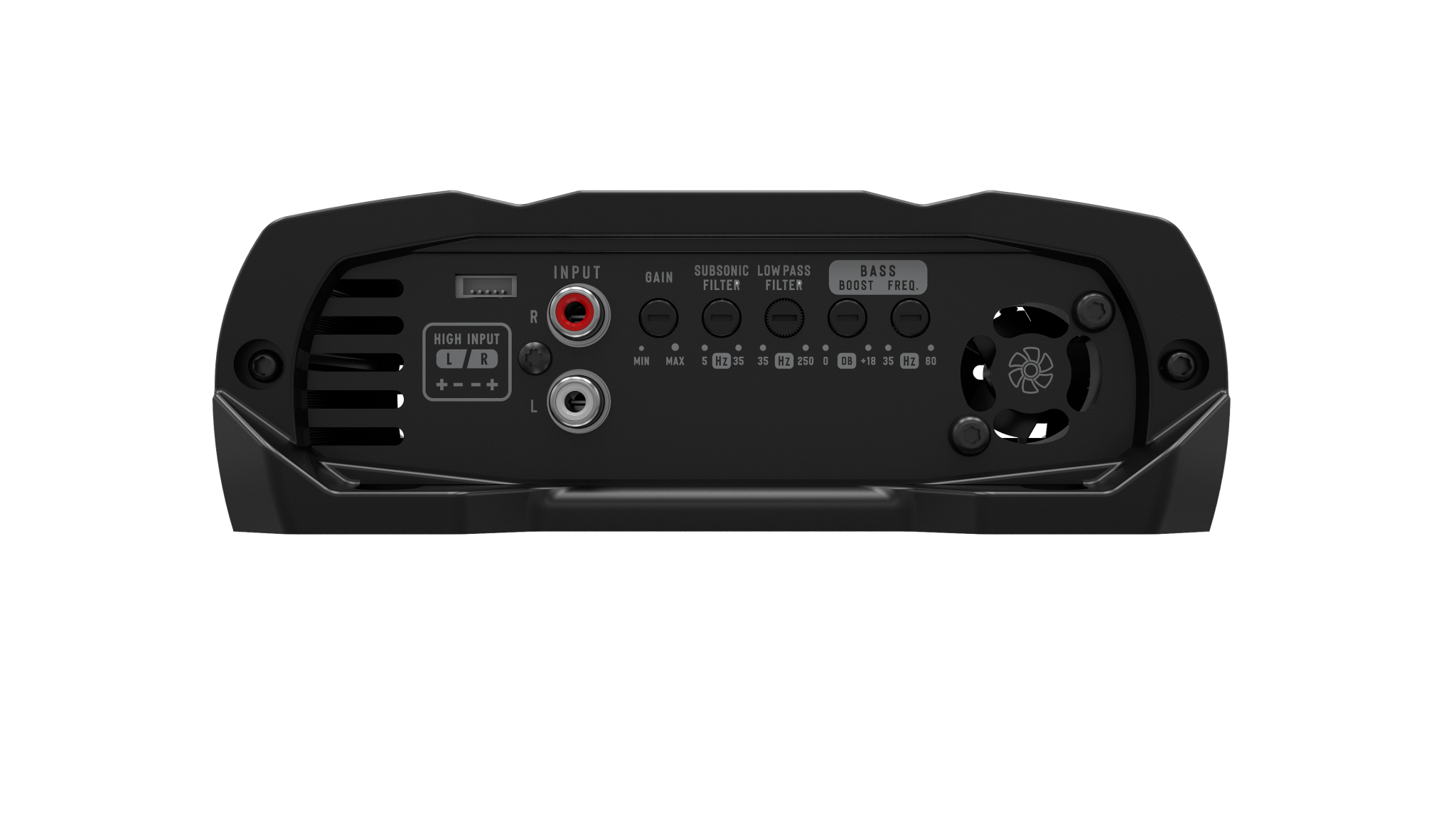

The image depicts the rear panel of the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm car audio amplifier, showcasing a range of inputs and controls such as a high-input section, RCA inputs, a bass boost knob, and various filter options. The panel is black with white labels, designed to support 2 Ohms for optimal RMS power performance.

Roll over image to zoom in Click on image to zoom

Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm

Name: Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm
Availability: InStock

StetsomSKU: DB-500.1-4OHM

Price:

$127.99

Stock:

Available

Quantity:

{"id":7768679219293,"title":"Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm","handle":"stetsom-digital-bass-mono-one-channel-amplifier-spl-db-500-1-4-ohm","description":"\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eDB500.1 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e500W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e430W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e260W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e515W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e310W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e560W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e340W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15.5V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e35Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~35Hz (Subsonic)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ HIGH INPUT: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 14K Ohms \/ HIGH INPUT: 1K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e21,5A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e43A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e55 x 162 x 125.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e0.75 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-11-04T18:56:58-05:00","created_at":"2024-11-04T18:57:07-05:00","vendor":"Stetsom","type":"","tags":["1-Channel","4 Ohm","alt text generated","Amplifier","Amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","DIGITAL BASS","Mono Amplifier","Monoblock"],"price":12799,"price_min":12799,"price_max":12799,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42847763038301,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DB-500.1-4OHM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm","public_title":null,"options":["Default Title"],"price":12799,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_4OHMS.png?v=1730764627","\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER_cd1c594e-a0c3-4639-925b-a48336b9853c.png?v=1730764627","\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA_4d999f26-ea9d-4e3c-affd-e64c74840c9c.png?v=1730764627"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_4OHMS.png?v=1730764627","options":["Title"],"media":[{"alt":"Introducing the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm, a sleek black amplifier featuring a vibrant green and purple label with the Stetsom logo. This compact amp offers multiple input and output ports, making it ideal for 4 Ohm setups.","id":28450975252573,"position":1,"preview_image":{"aspect_ratio":1.778,"height":2160,"width":3840,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_4OHMS.png?v=1730764627"},"aspect_ratio":1.778,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_4OHMS.png?v=1730764627","width":3840},{"alt":"Close-up of the back panel of a Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier displaying connections and vents, including speaker and remote wiring terminals. The components are encased in a black, angular casing. The DB500.1 is designed to deliver optimized RMS power performance at 2 Ohms, enhancing audio quality noticeably.","id":28450975285341,"position":2,"preview_image":{"aspect_ratio":1.778,"height":2160,"width":3840,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER_cd1c594e-a0c3-4639-925b-a48336b9853c.png?v=1730764627"},"aspect_ratio":1.778,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER_cd1c594e-a0c3-4639-925b-a48336b9853c.png?v=1730764627","width":3840},{"alt":"The image depicts the rear panel of the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 4 Ohm car audio amplifier, showcasing a range of inputs and controls such as a high-input section, RCA inputs, a bass boost knob, and various filter options. The panel is black with white labels, designed to support 2 Ohms for optimal RMS power performance.","id":28450975318109,"position":3,"preview_image":{"aspect_ratio":1.778,"height":2160,"width":3840,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA_4d999f26-ea9d-4e3c-affd-e64c74840c9c.png?v=1730764627"},"aspect_ratio":1.778,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA_4d999f26-ea9d-4e3c-affd-e64c74840c9c.png?v=1730764627","width":3840}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eDB500.1 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e500W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e430W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e260W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e515W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e310W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e560W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e340W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15.5V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e35Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~35Hz (Subsonic)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ HIGH INPUT: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 14K Ohms \/ HIGH INPUT: 1K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e21,5A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e43A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e55 x 162 x 125.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e0.75 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Share this product

CHARACTERISTICS	DB500.1 – 2 OHMS
Number of Channels	1
RMS Power	500W RMS
RMS Power at 2 Ohm 12.6V	430W RMS
RMS Power at 4 Ohm 12.6V	260W RMS
RMS Power at 2 Ohm 13.8V	515W RMS
RMS Power at 4 Ohm 13.8V	310W RMS
RMS Power at 2 Ohm 14.4V	560W RMS
RMS Power at 4 Ohm 14.4V	340W RMS
Supply Voltage	9V ~15.5V DC
Frequency Response	5Hz ~250Hz
Crossover Low Pass	35Hz ~250Hz
Crossover High Pass	5Hz ~35Hz (Subsonic)
Signal to Noise	>90dB
Input Sensitivity	RCA: 200mV / HIGH INPUT: 1.5V
Input Impedance	RCA: 14K Ohms / HIGH INPUT: 1K Ohms
Impedance Output	2 OHMS
Consumption with Signal Musical	21,5A
Consumption with Signal Bass	43A
Dimensions (H x W x D) mm	55 x 162 x 125.5 mm
Weight Kg	0.75 Kg
