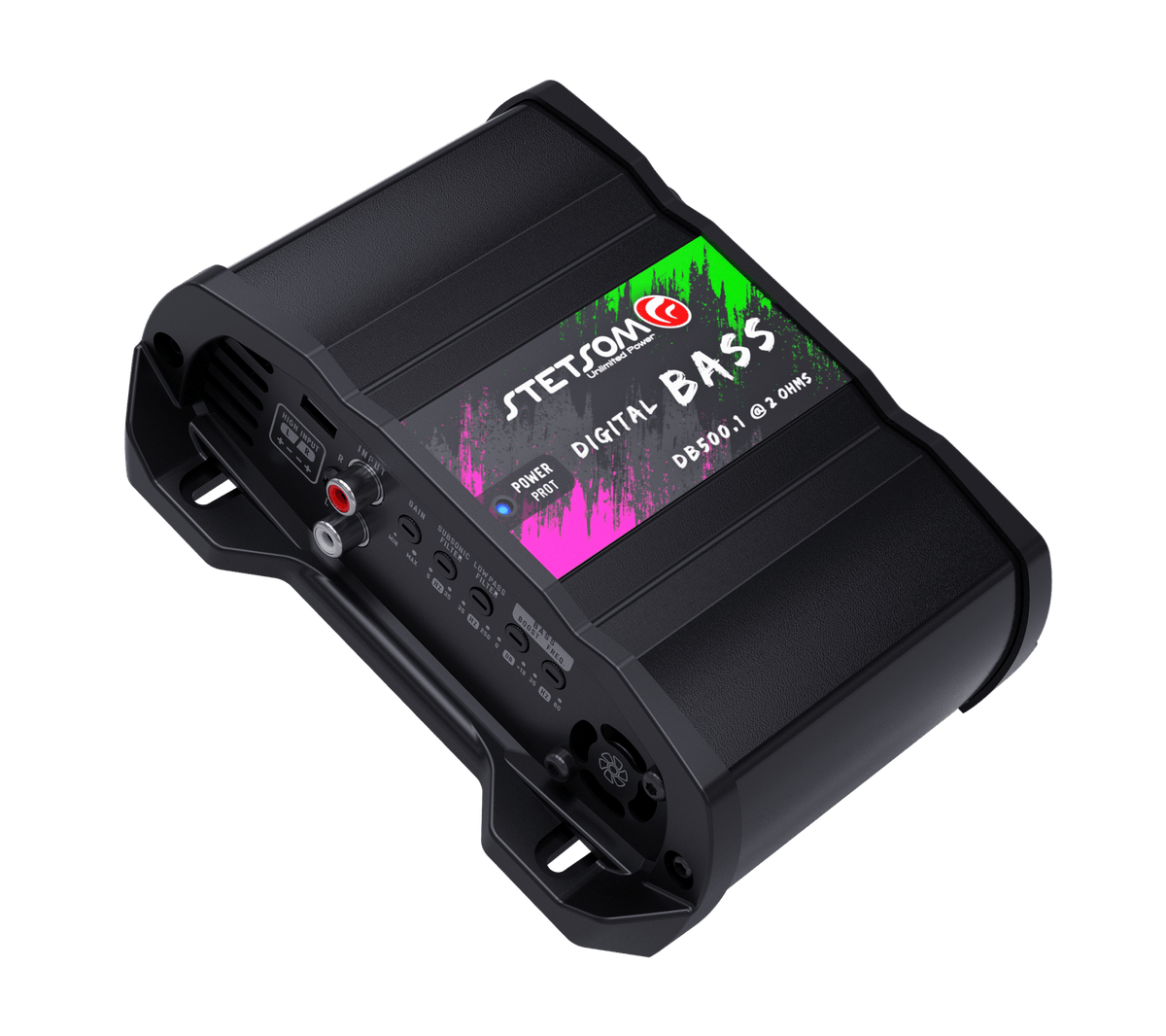

The Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm, in black, features colorful digital bass graphics to highlight its RMS Power capabilities. A variety of input and output ports are visible on one side, providing versatile frequency response options.

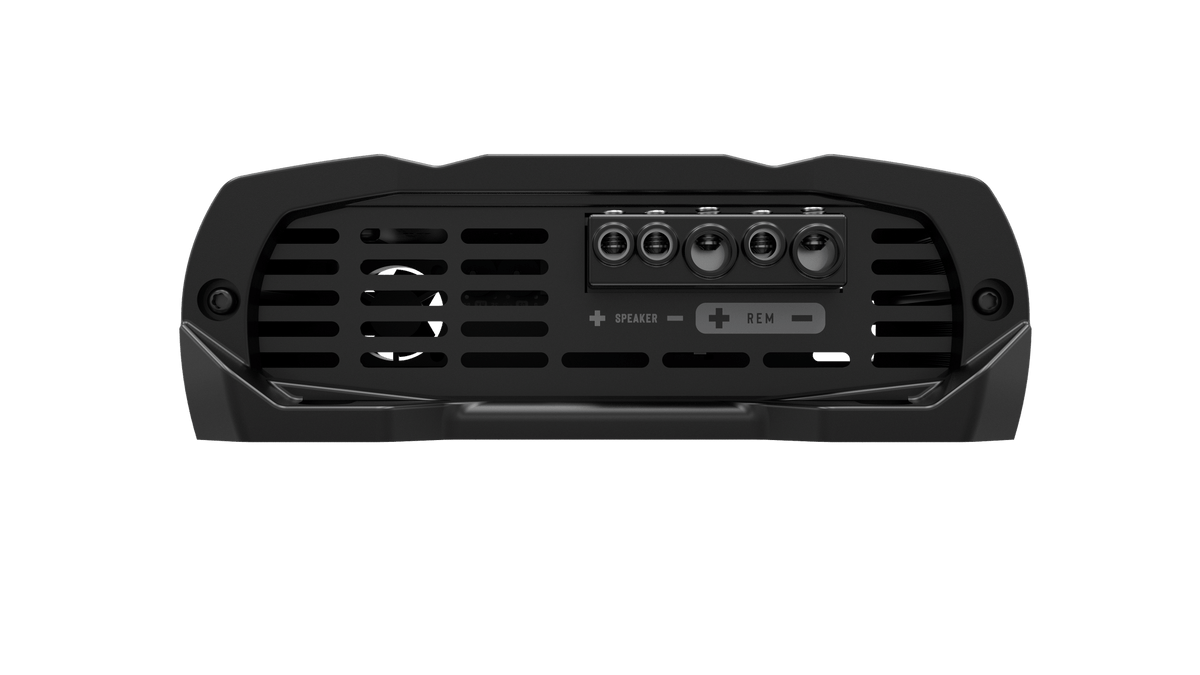

The image shows the rear view of the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm, highlighting its multiple connection ports labeled Speaker and Rem. The amplifier features a black, vented design with a sturdy casing that ensures optimal RMS power distribution.

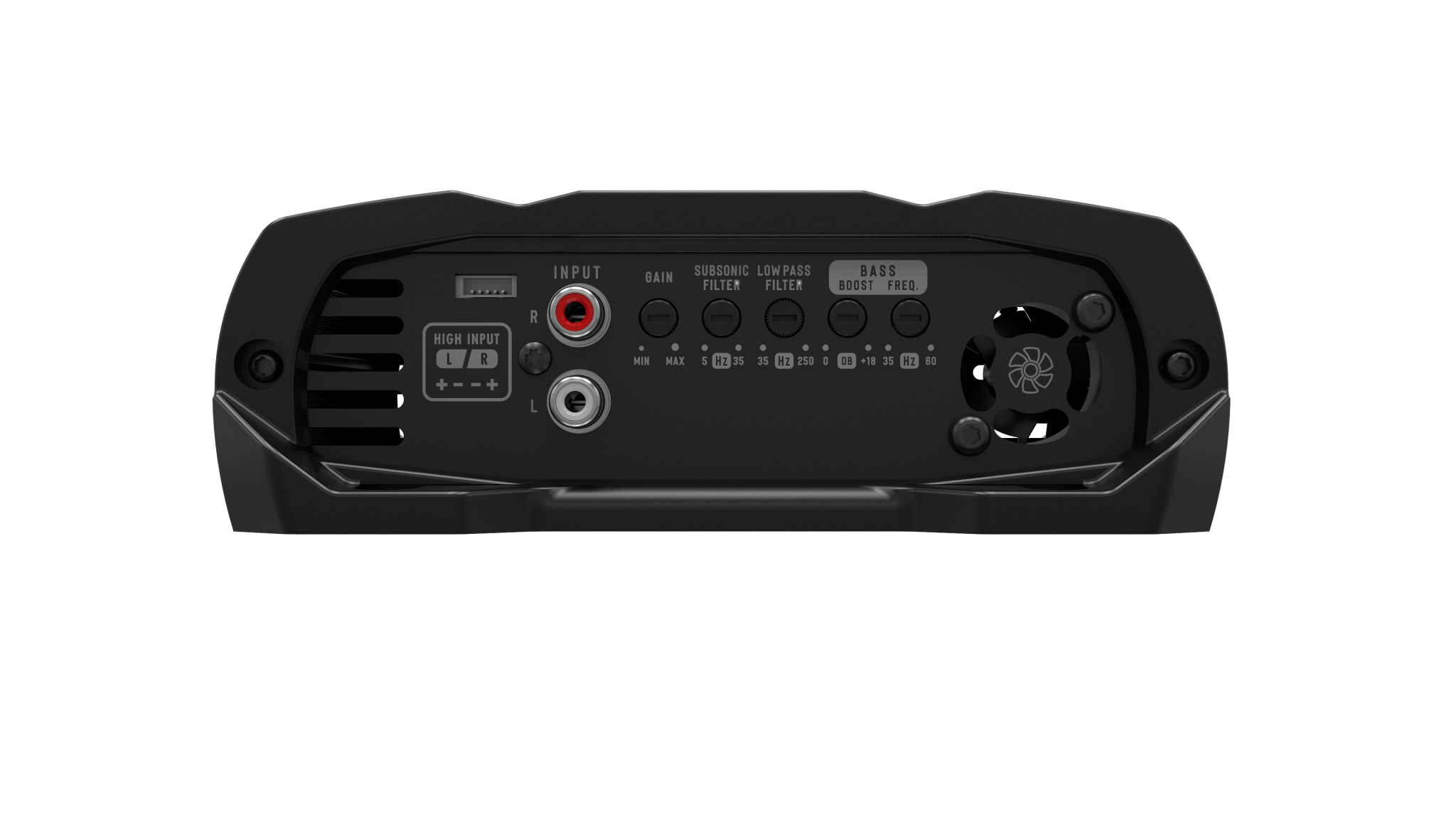

Close-up of the back panel of a black audio amplifier, the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm model, showcasing input ports such as RCA connectors, switches, and a fan grille on the right. Labels like INPUT and HIGH INPUT are visible along with details such as RMS Power and Frequency Response.

Roll over image to zoom in Click on image to zoom

Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm

Name: Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm
Availability: InStock

StetsomSKU: DB-500.1-2OHM

Price:

$127.99

Stock:

Available

Quantity:

{"id":7768679153757,"title":"Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm","handle":"stetsom-digital-bass-mono-one-channel-amplifier-spl-db-500-1-2-ohm","description":"\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eDB500.1 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e500W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e430W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e260W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e515W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e310W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e560W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e340W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15.5V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e35Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~35Hz (Subsonic)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ HIGH INPUT: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 14K Ohms \/ HIGH INPUT: 1K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e21,5A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e43A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e55 x 162 x 125.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e0.75 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-11-04T18:56:48-05:00","created_at":"2024-11-04T18:56:57-05:00","vendor":"Stetsom","type":"","tags":["1-Channel","2 Ohm","alt text generated","Amplifier","Amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","DIGITAL BASS","Mono Amplifier","Monoblock"],"price":12799,"price_min":12799,"price_max":12799,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42847762972765,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DB-500.1-2OHM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm","public_title":null,"options":["Default Title"],"price":12799,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_2OHMS.png?v=1730764617","\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER.png?v=1730764617","\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA.png?v=1730764617"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_2OHMS.png?v=1730764617","options":["Title"],"media":[{"alt":"The Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm, in black, features colorful digital bass graphics to highlight its RMS Power capabilities. A variety of input and output ports are visible on one side, providing versatile frequency response options.","id":28450974892125,"position":1,"preview_image":{"aspect_ratio":1.125,"height":2160,"width":2430,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_2OHMS.png?v=1730764617"},"aspect_ratio":1.125,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_PERSPECTIVA_I_2OHMS.png?v=1730764617","width":2430},{"alt":"The image shows the rear view of the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm, highlighting its multiple connection ports labeled Speaker and Rem. The amplifier features a black, vented design with a sturdy casing that ensures optimal RMS power distribution.","id":28450974924893,"position":2,"preview_image":{"aspect_ratio":1.778,"height":2160,"width":3840,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER.png?v=1730764617"},"aspect_ratio":1.778,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_POWER.png?v=1730764617","width":3840},{"alt":"Close-up of the back panel of a black audio amplifier, the Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm model, showcasing input ports such as RCA connectors, switches, and a fan grille on the right. Labels like INPUT and HIGH INPUT are visible along with details such as RMS Power and Frequency Response.","id":28450974957661,"position":3,"preview_image":{"aspect_ratio":1.778,"height":2160,"width":3840,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA.png?v=1730764617"},"aspect_ratio":1.778,"height":2160,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/DB500-1_RCA.png?v=1730764617","width":3840}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eDB500.1 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e500W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e430W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e260W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e515W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 13.8V\u003c\/td\u003e\n\u003ctd\u003e310W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e560W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 4 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e340W RMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15.5V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e35Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~35Hz (Subsonic)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003eRCA: 200mV \/ HIGH INPUT: 1.5V\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003eRCA: 14K Ohms \/ HIGH INPUT: 1K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e21,5A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e43A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e55 x 162 x 125.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e0.75 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Share this product

CHARACTERISTICS	DB500.1 – 2 OHMS
Number of Channels	1
RMS Power	500W RMS
RMS Power at 2 Ohm 12.6V	430W RMS
RMS Power at 4 Ohm 12.6V	260W RMS
RMS Power at 2 Ohm 13.8V	515W RMS
RMS Power at 4 Ohm 13.8V	310W RMS
RMS Power at 2 Ohm 14.4V	560W RMS
RMS Power at 4 Ohm 14.4V	340W RMS
Supply Voltage	9V ~15.5V DC
Frequency Response	5Hz ~250Hz
Crossover Low Pass	35Hz ~250Hz
Crossover High Pass	5Hz ~35Hz (Subsonic)
Signal to Noise	>90dB
Input Sensitivity	RCA: 200mV / HIGH INPUT: 1.5V
Input Impedance	RCA: 14K Ohms / HIGH INPUT: 1K Ohms
Impedance Output	2 OHMS
Consumption with Signal Musical	21,5A
Consumption with Signal Bass	43A
Dimensions (H x W x D) mm	55 x 162 x 125.5 mm
Weight Kg	0.75 Kg

Stetsom Digital Bass DB-500.1 Mono One-Channel Amplifier SPL 2 Ohm

Description

Specifications
