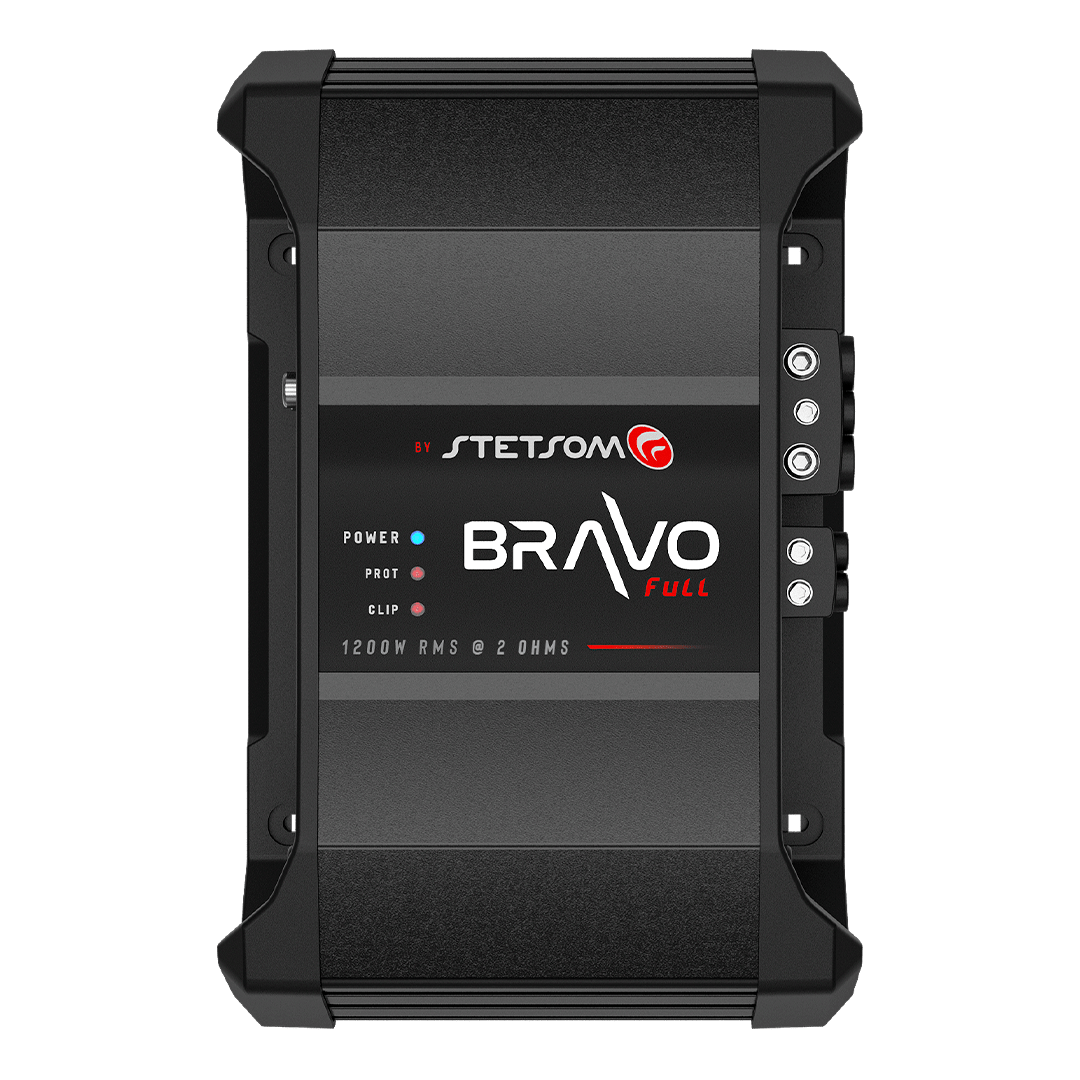

Image of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier, designed for car audio enthusiasts. This mono one-channel Class D amplifier delivers 1200W at 2 OHMS, featuring a sleek and modern design with multiple connectors on the side.

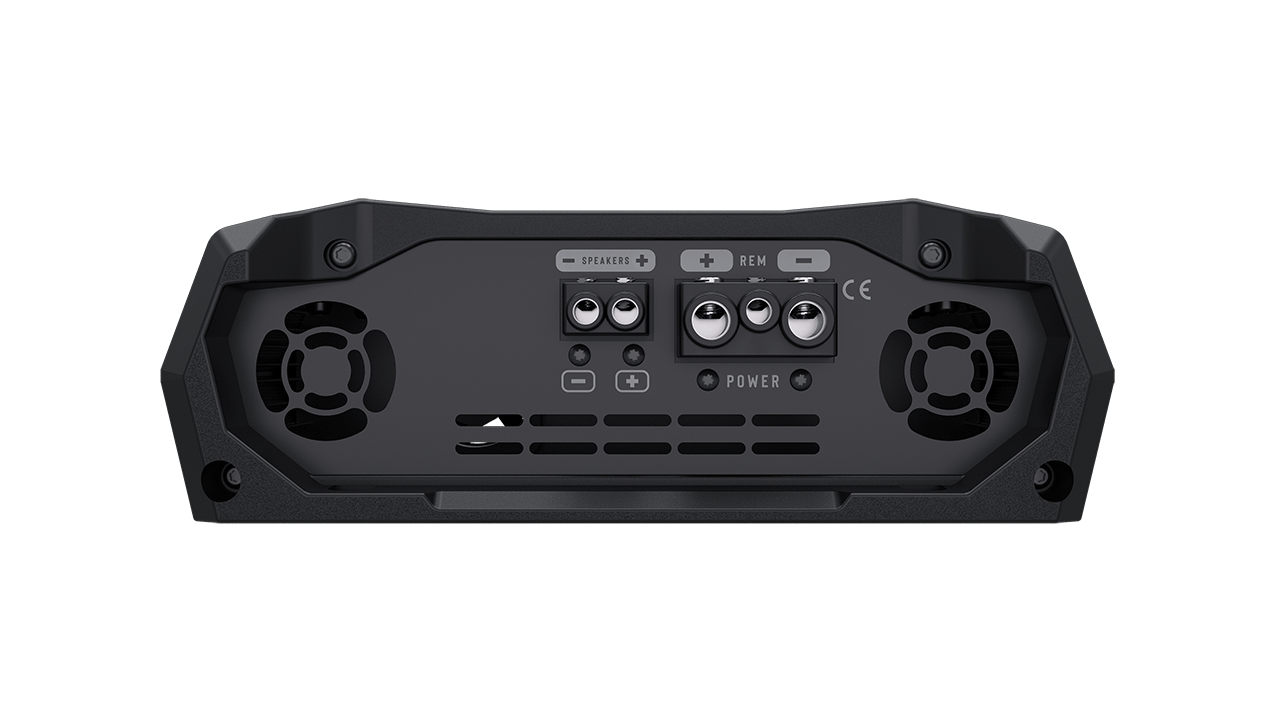

The image showcases the back panel of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm, which resembles high-end car audio amplifiers. It features various ports and connectors, including speaker outputs, remote control input, and power connectors, all neatly labeled with ventilation grills on each side.

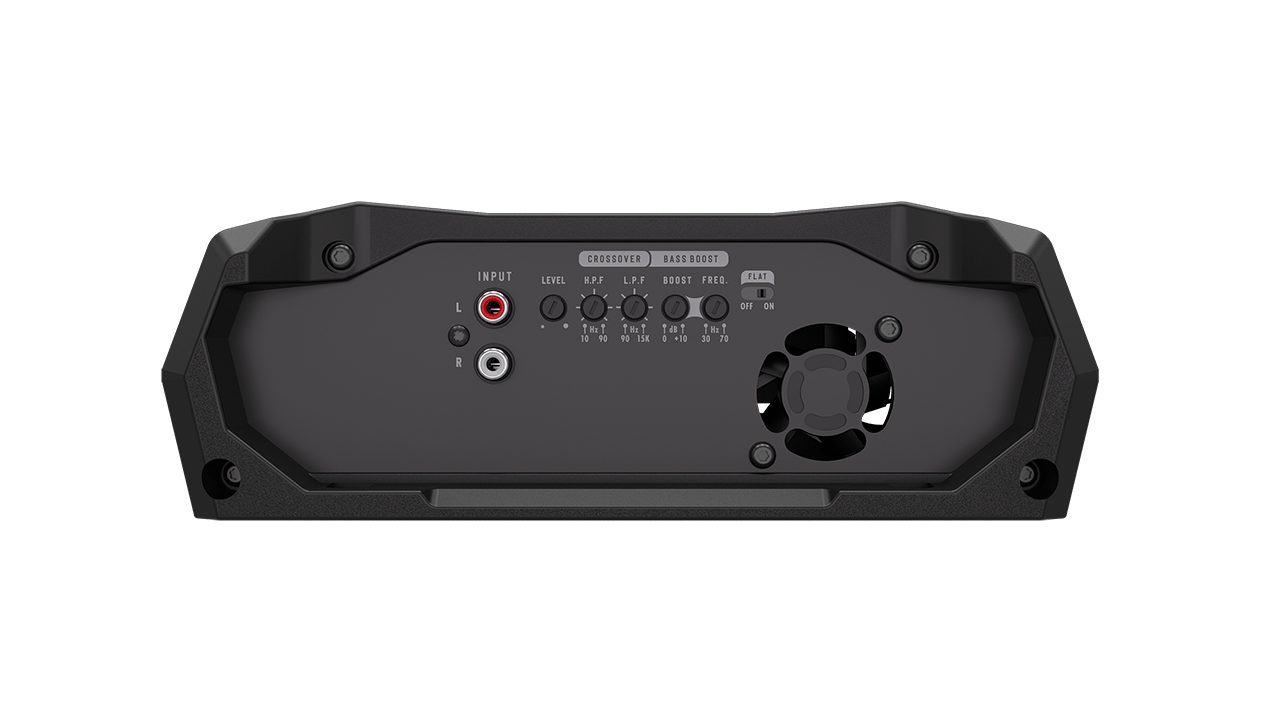

The image shows the back panel of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D device, similar to full-range amplifiers used in car audio systems. It includes RCA input jacks, multiple adjustment knobs and buttons, and a fan or cooling vent on an elegant black surface.

Roll over image to zoom in Click on image to zoom

Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm

Name: Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm
Availability: InStock

StetsomSKU: BRAVO-FULL-1.2K-2OHM

Price:

$179.99

Stock:

Available

Quantity:

{"id":7768679579741,"title":"Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm","handle":"stetsom-bravo-full-1-2k-digital-full-range-amplifier-mono-one-channel-class-d-1200-w-2-ohm","description":"\u003cp data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eThe \u003cstrong data-mce-fragment=\"1\"\u003eBRAVO FULL\u003c\/strong\u003e line was developed for car audio enthusiasts seeking maximum performance and quality in \u003cstrong data-mce-fragment=\"1\"\u003eFULL-RANGE\u003c\/strong\u003e amplifiers.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eIts frequency response of \u003cstrong data-mce-fragment=\"1\"\u003e10Hz to 15kHz\u003c\/strong\u003e offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch3 class=\"titulo titulo-ms mb-4\"\u003eTECHNICAL SPECIFICATIONS\u003c\/h3\u003e\n\u003cdiv class=\"tr\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv class=\"table-wrapper\"\u003e\n\u003ctable class=\"table\"\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth class=\"text-uppercase\"\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eBRAVO FULL 1200 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e1.200W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e1.240W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e700W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e1.600W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e900W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 15KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e90Hz ~ 15KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 90Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003e200mV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003e12K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e60A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e120A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e80 x 231,5 x 147 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e1,65 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e","published_at":"2024-11-04T18:57:23-05:00","created_at":"2024-11-04T18:57:28-05:00","vendor":"Stetsom","type":"AMPLIFIER","tags":["1-Channel","2 Ohm","alt text generated","Amplifier","Amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","BRAVO FULL","Mono Amplifier","Monoblock"],"price":17999,"price_min":17999,"price_max":17999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42847764086877,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"BRAVO-FULL-1.2K-2OHM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm","public_title":null,"options":["Default Title"],"price":17999,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/tbravo-full-1200-2-ohms-exclusivo-exportacaoenbravo-full-1200-2-ohmsesbravo-full-1200-2-ohms-bravo-full-1200-2ohms.png?v=1730764648","\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-power.png?v=1730764648","\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-rca.png?v=1730764648"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/tbravo-full-1200-2-ohms-exclusivo-exportacaoenbravo-full-1200-2-ohmsesbravo-full-1200-2-ohms-bravo-full-1200-2ohms.png?v=1730764648","options":["Title"],"media":[{"alt":"Image of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier, designed for car audio enthusiasts. This mono one-channel Class D amplifier delivers 1200W at 2 OHMS, featuring a sleek and modern design with multiple connectors on the side.","id":28450975842397,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/tbravo-full-1200-2-ohms-exclusivo-exportacaoenbravo-full-1200-2-ohmsesbravo-full-1200-2-ohms-bravo-full-1200-2ohms.png?v=1730764648"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/tbravo-full-1200-2-ohms-exclusivo-exportacaoenbravo-full-1200-2-ohmsesbravo-full-1200-2-ohms-bravo-full-1200-2ohms.png?v=1730764648","width":1080},{"alt":"The image showcases the back panel of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D 1200 W 2 Ohm, which resembles high-end car audio amplifiers. It features various ports and connectors, including speaker outputs, remote control input, and power connectors, all neatly labeled with ventilation grills on each side.","id":28450975875165,"position":2,"preview_image":{"aspect_ratio":1.778,"height":720,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-power.png?v=1730764648"},"aspect_ratio":1.778,"height":720,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-power.png?v=1730764648","width":1280},{"alt":"The image shows the back panel of a Stetsom BRAVO FULL 1.2k Digital Full-Range Amplifier Mono One-Channel Class D device, similar to full-range amplifiers used in car audio systems. It includes RCA input jacks, multiple adjustment knobs and buttons, and a fan or cooling vent on an elegant black surface.","id":28450975907933,"position":3,"preview_image":{"aspect_ratio":1.778,"height":720,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-rca.png?v=1730764648"},"aspect_ratio":1.778,"height":720,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo-full-1200-1-ohm-exclusivo-exportacaoenbravo-full-1200-1-ohmesbravo-full-1200-1-ohm-bravo-full-1200-rca.png?v=1730764648","width":1280}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eThe \u003cstrong data-mce-fragment=\"1\"\u003eBRAVO FULL\u003c\/strong\u003e line was developed for car audio enthusiasts seeking maximum performance and quality in \u003cstrong data-mce-fragment=\"1\"\u003eFULL-RANGE\u003c\/strong\u003e amplifiers.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp data-mce-fragment=\"1\"\u003e\u003cspan data-mce-fragment=\"1\"\u003eIts frequency response of \u003cstrong data-mce-fragment=\"1\"\u003e10Hz to 15kHz\u003c\/strong\u003e offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch3 class=\"titulo titulo-ms mb-4\"\u003eTECHNICAL SPECIFICATIONS\u003c\/h3\u003e\n\u003cdiv class=\"tr\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003cdiv class=\"table-wrapper\"\u003e\n\u003ctable class=\"table\"\u003e\n\u003cthead\u003e\n\u003ctr\u003e\n\u003cth class=\"text-uppercase\"\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eBRAVO FULL 1200 – 2 OHMS\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003c\/thead\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e1.200W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e1.240W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 12.6V\u003c\/td\u003e\n\u003ctd\u003e700W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e1.600W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e900W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~15V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 15KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e90Hz ~ 15KHz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e10Hz ~ 90Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003e200mV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003e12K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e2 OHMS\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e60A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e120A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e80 x 231,5 x 147 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e1,65 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003c\/div\u003e"}

Share this product

The BRAVO FULL line was developed for car audio enthusiasts seeking maximum performance and quality in FULL-RANGE amplifiers.

Its frequency response of 10Hz to 15kHz offers audio quality and definition, allowing it to be used with subwoofers, woofers, drivers, and tweeters.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS	BRAVO FULL 1200 – 2 OHMS
Number of Channels	1
RMS Power	1.200W
RMS Power at 1 Ohm 12.6V	1.240W
RMS Power at 2 Ohm 12.6V	700W
RMS Power at 1 Ohm 14.4V	1.600W
RMS Power at 2 Ohm 14.4V	900W
Supply Voltage	9V ~15V DC
Frequency Response	10Hz ~ 15KHz
Crossover Low Pass	90Hz ~ 15KHz
Crossover High Pass	10Hz ~ 90Hz
Signal to Noise	>90dB
Input Sensitivity	200mV
Input Impedance	12K Ohms
Impedance Output	2 OHMS
Consumption with Signal Musical	60A
Consumption with Signal Bass	120A
Dimensions (H x W x D) mm	80 x 231,5 x 147 mm
Weight Kg	1,65 Kg
