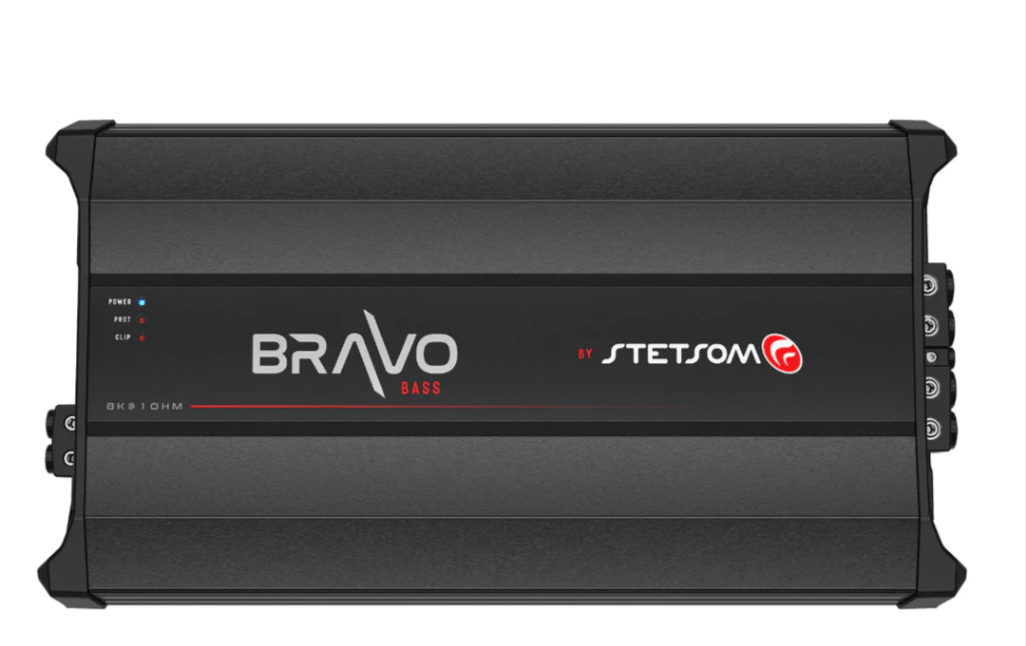

Picture of a sleek black Stetsom BRAVO BASS 8K digital full-range amplifier, engineered for ultimate performance. The prominent Bravo and Stetsom logos adorn its front panel, enhancing its powerful connection to subwoofers for delivering profound bass against a dark backdrop.

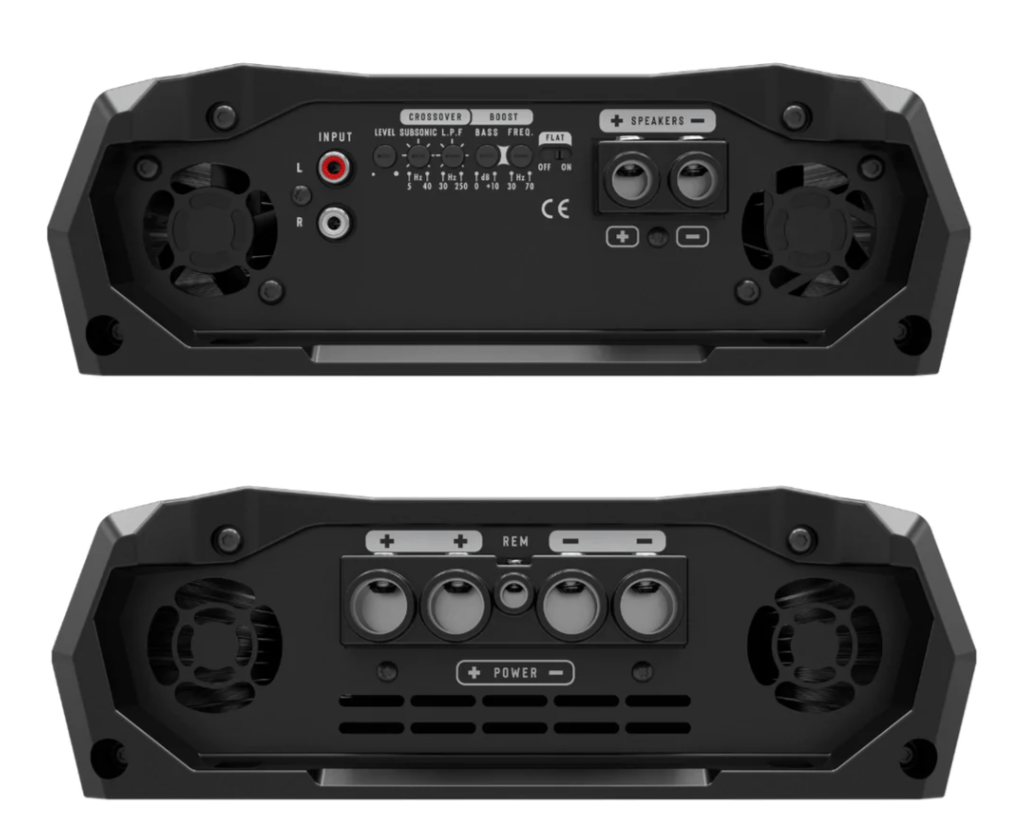

The top and bottom views of the Stetsom BRAVO BASS 8K Digital Full-Range Amplifier display a variety of input/output ports, dials, and cooling fans. Labels identify crossover settings, speaker connections for woofers, and power input. The design is rugged with a modern aesthetic.

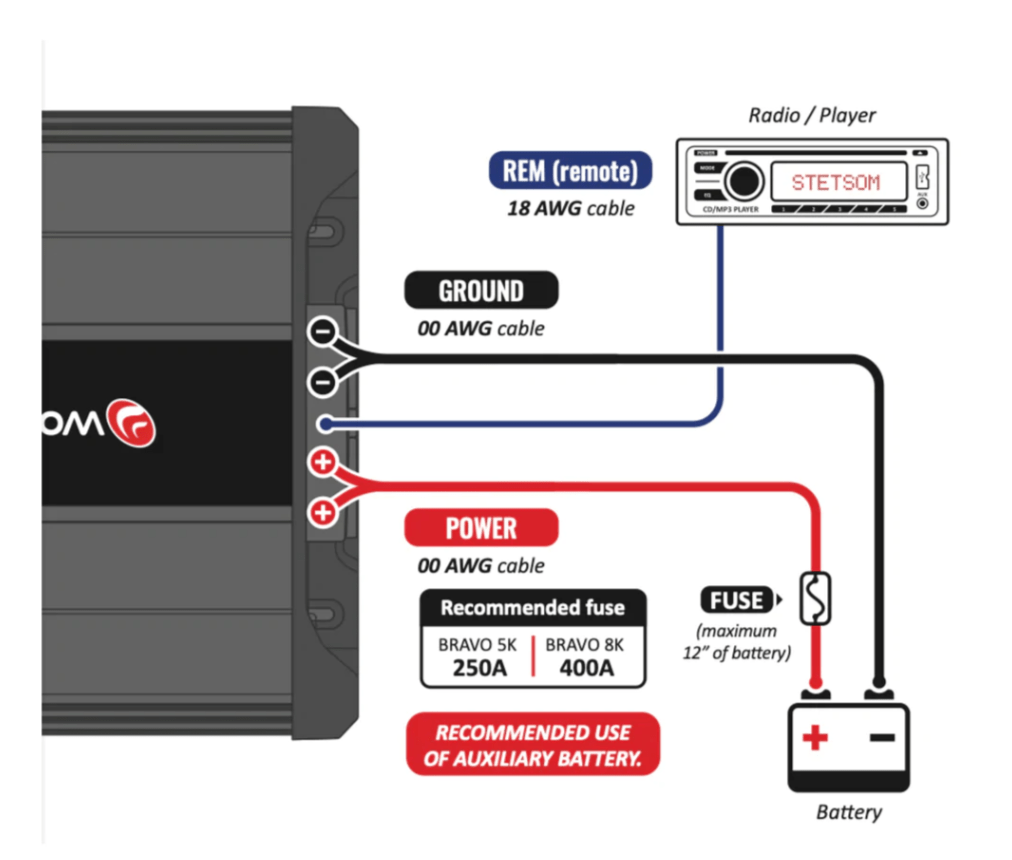

Explore a diagram showcasing the wiring setup for an amplifier, specifically designed for Stetsom BRAVO BASS systems. The setup features REM (remote), Ground, and Power cables, with recommended fuse sizes: 250A for Bravo 5K and 400A for the Stetsom BRAVO BASS 8K Digital Full-Range Amplifier. It also includes connections for radio/player, battery hookup, and options for woofers or subwoofers.

Roll over image to zoom in Click on image to zoom

Stetsom BRAVO BASS 8K Digital Full-Range Amplifier Mono One-Channel Class D 8000 W 1 Ohm

Name: Stetsom BRAVO BASS 8K Digital Full-Range Amplifier Mono One-Channel Class D 8000 W 1 Ohm
Availability: InStock

StetsomSKU: BRAVO-BASS-8K-1OHM

Price:

$640.99

Stock:

Available

Quantity:

{"id":7768676270173,"title":"Stetsom BRAVO BASS 8K Digital Full-Range Amplifier Mono One-Channel Class D 8000 W 1 Ohm","handle":"stetsom-bravo-bass-8k-digital-full-range-amplifier-mono-one-channel-class-d-8000-w-1-ohm","description":"\u003cp\u003eThe \u003cstrong\u003eBRAVO\u003c\/strong\u003e line was developed for automotive sound lovers who are looking for maximum performance in \u003cstrong\u003eBASS and SUB BASS\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cp\u003eIts  \u003cstrong\u003e5Hz to 600Hz\u003c\/strong\u003e  frequency response delivers powerful bass with quality and definition, for use with subwoofers and woofers.\u003c\/p\u003e\n\u003cp\u003eTECHNICAL SPECIFICATIONS\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eBRAVO BASS 8K\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e8000W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e8200W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e4900W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~ 17V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~ 600Hz (Flat ON)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e30Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~40Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003e200mV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003e4.8K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e1 Ohm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e365A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e730A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e80 x 231.5 x 419 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e6.0 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e","published_at":"2024-11-04T18:52:32-05:00","created_at":"2024-11-04T18:52:36-05:00","vendor":"Stetsom","type":"AMPLIFIER","tags":["1 Ohm","1-Channel","alt text generated","Amplifier","Amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","BRAVO BASS","Mono Amplifier","Monoblock"],"price":64099,"price_min":64099,"price_max":64099,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42847758680157,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"BRAVO-BASS-8K-1OHM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Stetsom BRAVO BASS 8K Digital Full-Range Amplifier Mono One-Channel Class D 8000 W 1 Ohm","public_title":null,"options":["Default Title"],"price":64099,"weight":5443,"compare_at_price":null,"inventory_management":null,"barcode":"7897748704580","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k.png?v=1730764356","\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k1.png?v=1730764356","\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k2.png?v=1730764356"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k.png?v=1730764356","options":["Title"],"media":[{"alt":"Picture of a sleek black Stetsom BRAVO BASS 8K digital full-range amplifier, engineered for ultimate performance. The prominent Bravo and Stetsom logos adorn its front panel, enhancing its powerful connection to subwoofers for delivering profound bass against a dark backdrop.","id":28450964766813,"position":1,"preview_image":{"aspect_ratio":1.588,"height":646,"width":1026,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k.png?v=1730764356"},"aspect_ratio":1.588,"height":646,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k.png?v=1730764356","width":1026},{"alt":"The top and bottom views of the Stetsom BRAVO BASS 8K Digital Full-Range Amplifier display a variety of input\/output ports, dials, and cooling fans. Labels identify crossover settings, speaker connections for woofers, and power input. The design is rugged with a modern aesthetic.","id":28450964799581,"position":2,"preview_image":{"aspect_ratio":1.233,"height":837,"width":1032,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k1.png?v=1730764356"},"aspect_ratio":1.233,"height":837,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k1.png?v=1730764356","width":1032},{"alt":"Explore a diagram showcasing the wiring setup for an amplifier, specifically designed for Stetsom BRAVO BASS systems. The setup features REM (remote), Ground, and Power cables, with recommended fuse sizes: 250A for Bravo 5K and 400A for the Stetsom BRAVO BASS 8K Digital Full-Range Amplifier. It also includes connections for radio\/player, battery hookup, and options for woofers or subwoofers.","id":28450964832349,"position":3,"preview_image":{"aspect_ratio":1.177,"height":860,"width":1012,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k2.png?v=1730764356"},"aspect_ratio":1.177,"height":860,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/bravo8k2.png?v=1730764356","width":1012}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe \u003cstrong\u003eBRAVO\u003c\/strong\u003e line was developed for automotive sound lovers who are looking for maximum performance in \u003cstrong\u003eBASS and SUB BASS\u003c\/strong\u003e.\u003c\/p\u003e\n\u003cp\u003eIts  \u003cstrong\u003e5Hz to 600Hz\u003c\/strong\u003e  frequency response delivers powerful bass with quality and definition, for use with subwoofers and woofers.\u003c\/p\u003e\n\u003cp\u003eTECHNICAL SPECIFICATIONS\u003c\/p\u003e\n\u003ctable\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth\u003eCHARACTERISTICS\u003c\/th\u003e\n\u003cth\u003eBRAVO BASS 8K\u003c\/th\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNumber of Channels\u003c\/td\u003e\n\u003ctd\u003e1\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power\u003c\/td\u003e\n\u003ctd\u003e8000W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 1 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e8200W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRMS Power at 2 Ohm 14.4V\u003c\/td\u003e\n\u003ctd\u003e4900W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSupply Voltage\u003c\/td\u003e\n\u003ctd\u003e9V ~ 17V DC\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eFrequency Response\u003c\/td\u003e\n\u003ctd\u003e5Hz ~ 600Hz (Flat ON)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover Low Pass\u003c\/td\u003e\n\u003ctd\u003e30Hz ~250Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCrossover High Pass\u003c\/td\u003e\n\u003ctd\u003e5Hz ~40Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSignal to Noise\u003c\/td\u003e\n\u003ctd\u003e\u0026gt;90dB\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Sensitivity\u003c\/td\u003e\n\u003ctd\u003e200mV\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eInput Impedance\u003c\/td\u003e\n\u003ctd\u003e4.8K Ohms\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eImpedance Output\u003c\/td\u003e\n\u003ctd\u003e1 Ohm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Musical\u003c\/td\u003e\n\u003ctd\u003e365A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eConsumption with Signal Bass\u003c\/td\u003e\n\u003ctd\u003e730A\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eDimensions (H x W x D) mm\u003c\/td\u003e\n\u003ctd\u003e80 x 231.5 x 419 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eWeight Kg\u003c\/td\u003e\n\u003ctd\u003e6.0 Kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e"}

Share this product

The BRAVO line was developed for automotive sound lovers who are looking for maximum performance in BASS and SUB BASS.

Its 5Hz to 600Hz frequency response delivers powerful bass with quality and definition, for use with subwoofers and woofers.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS	BRAVO BASS 8K
Number of Channels	1
RMS Power	8000W
RMS Power at 1 Ohm 14.4V	8200W
RMS Power at 2 Ohm 14.4V	4900W
Supply Voltage	9V ~ 17V DC
Frequency Response	5Hz ~ 600Hz (Flat ON)
Crossover Low Pass	30Hz ~250Hz
Crossover High Pass	5Hz ~40Hz
Signal to Noise	>90dB
Input Sensitivity	200mV
Input Impedance	4.8K Ohms
Impedance Output	1 Ohm
Consumption with Signal Musical	365A
Consumption with Signal Bass	730A
Dimensions (H x W x D) mm	80 x 231.5 x 419 mm
Weight Kg	6.0 Kg
