Description

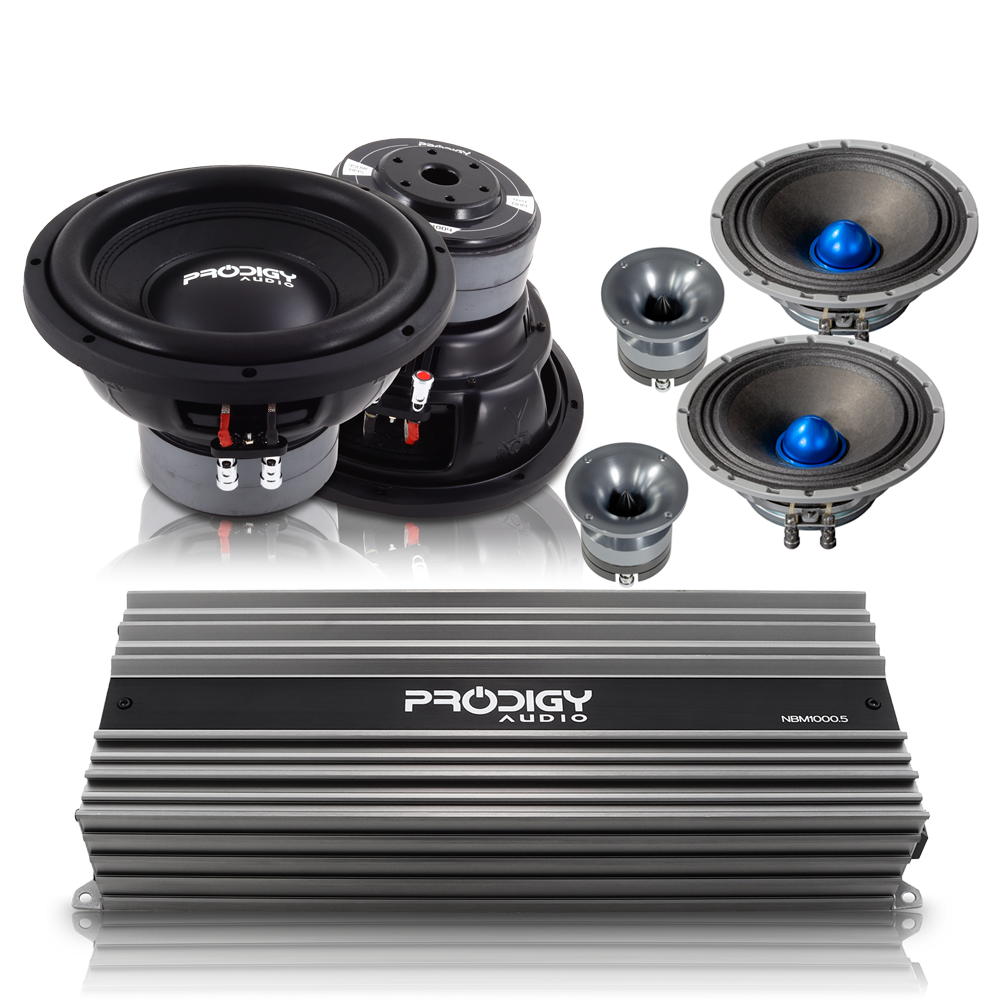

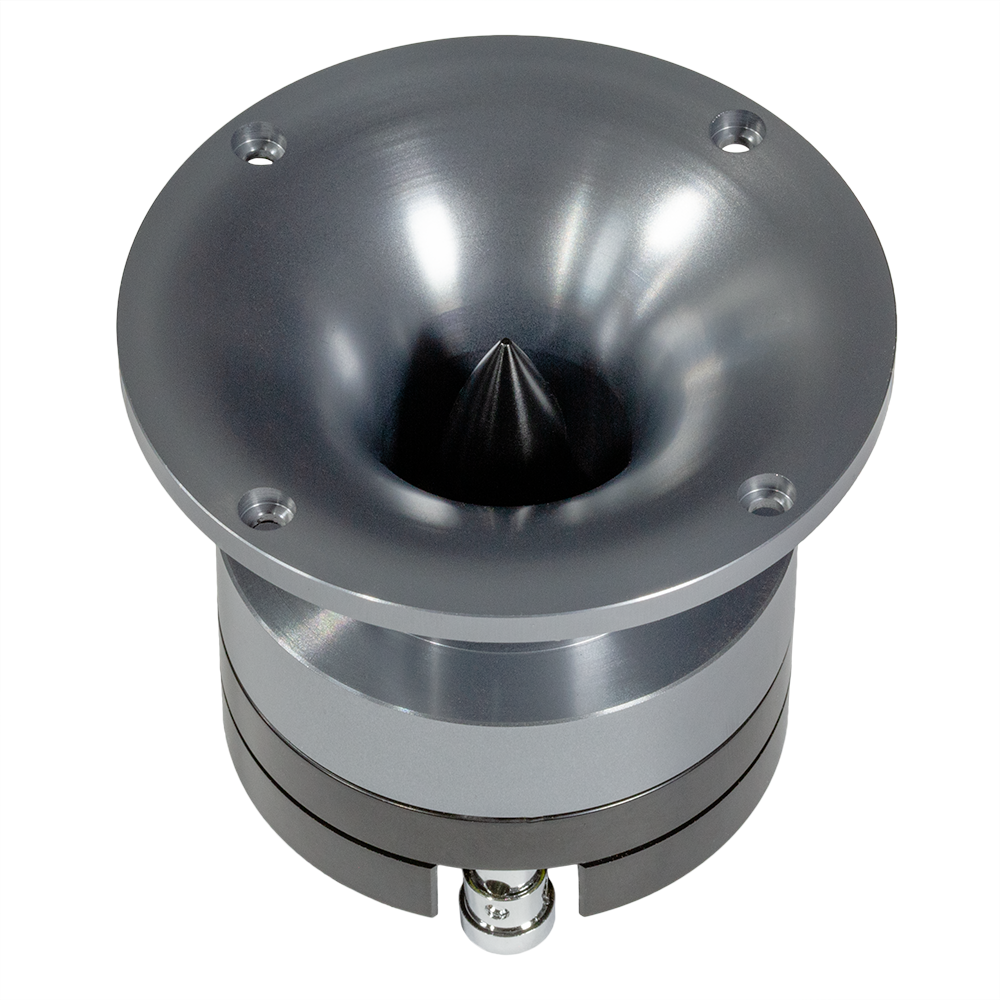

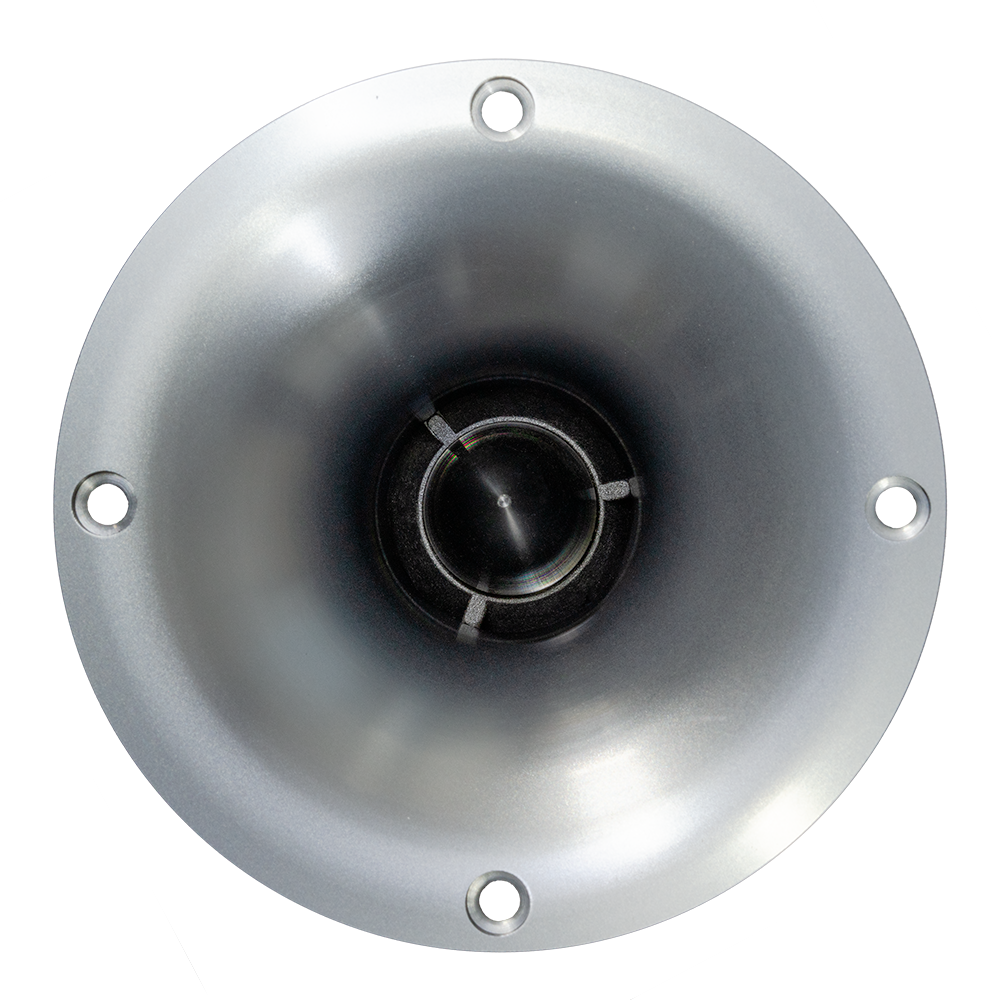

This combo consists of a Prodigy Audio NBM1000.5 Amplifier, Two Prodigy Audio NB2 10" Subwoofers, and huge cost savings on Two Sparked Innovations VB6.5 mids and Two TTB tweeters.
SPEAKER DETAILS

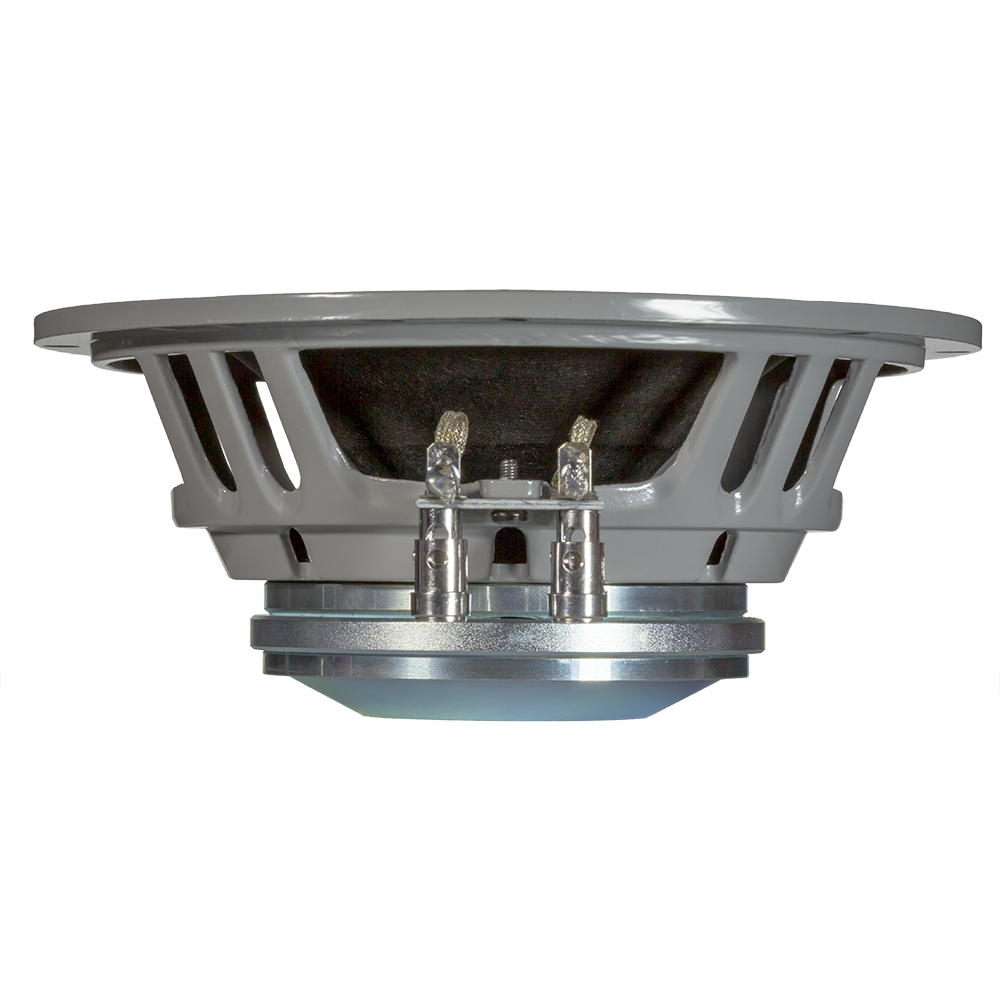

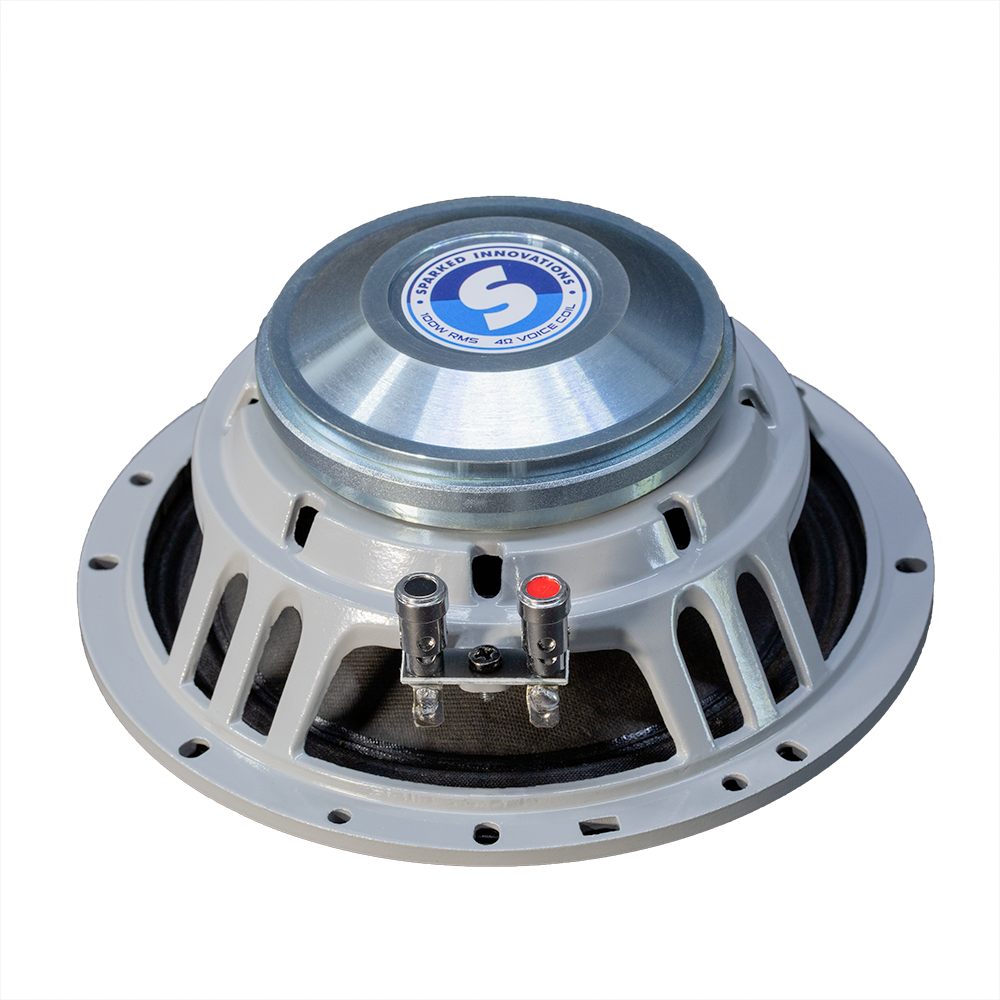

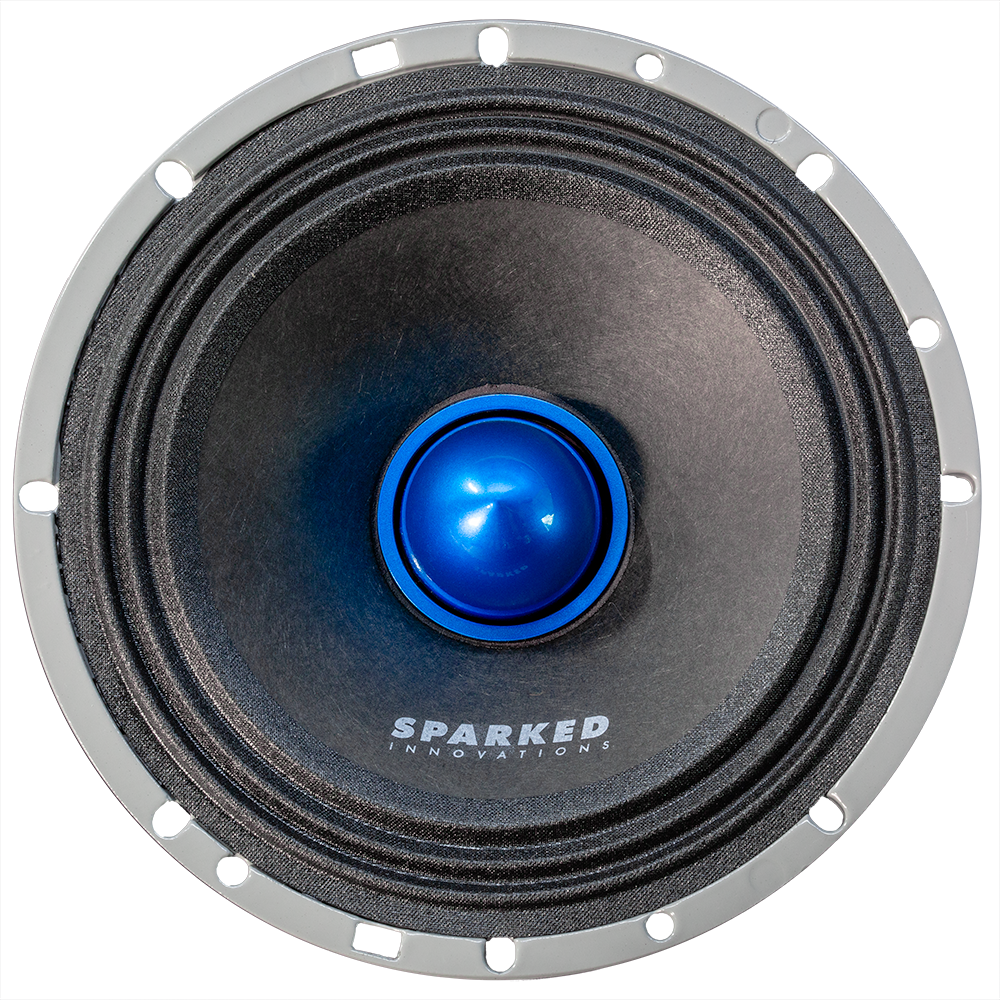

The Sparked Innovations Voice Blaster is a neo-driven midrange speaker designed to deliver crisp, low-distortion sound at high output levels.
We developed our midrange speakers for most audio setups where space and power are at a premium. The neodymium motor structure, coupled with a lightweight voice coil former and paper cone, helps create a high-efficiency speaker that can deliver loud music on low power, even in tight spaces.
The aluminum phase plug reduces unwanted distortion in the center of the speaker cone. This results in a wider dispersion pattern, suitable for loud and clear listening, even with off-axis positioning, such as when the speaker is mounted in door panels or kick-pods.
6.5" Speaker
| Feature | Specification |
|---|---|
| Frequency Response | 80Hz - 6,000Hz |
| Sensitivity | 98dB |
| RMS Power Handling | 100W |
| Voice Coil Diameter | 1.5” |
| Xmax | 10mm |
| Motor Material | Neodymium |
| Basket Material | Cast Aluminum |
| Voice Coil Former | Kapton |
| Voice Coil | CCAW |

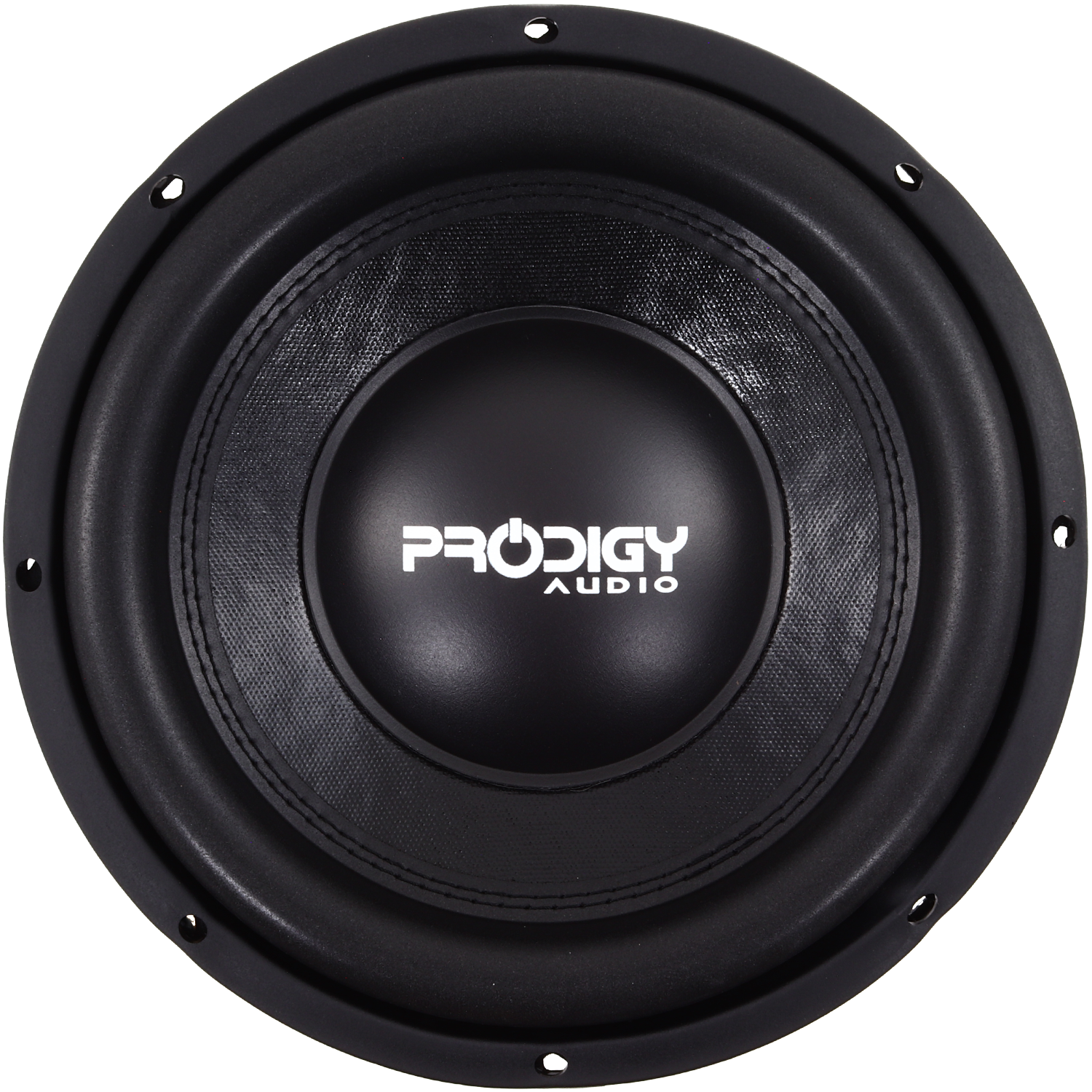

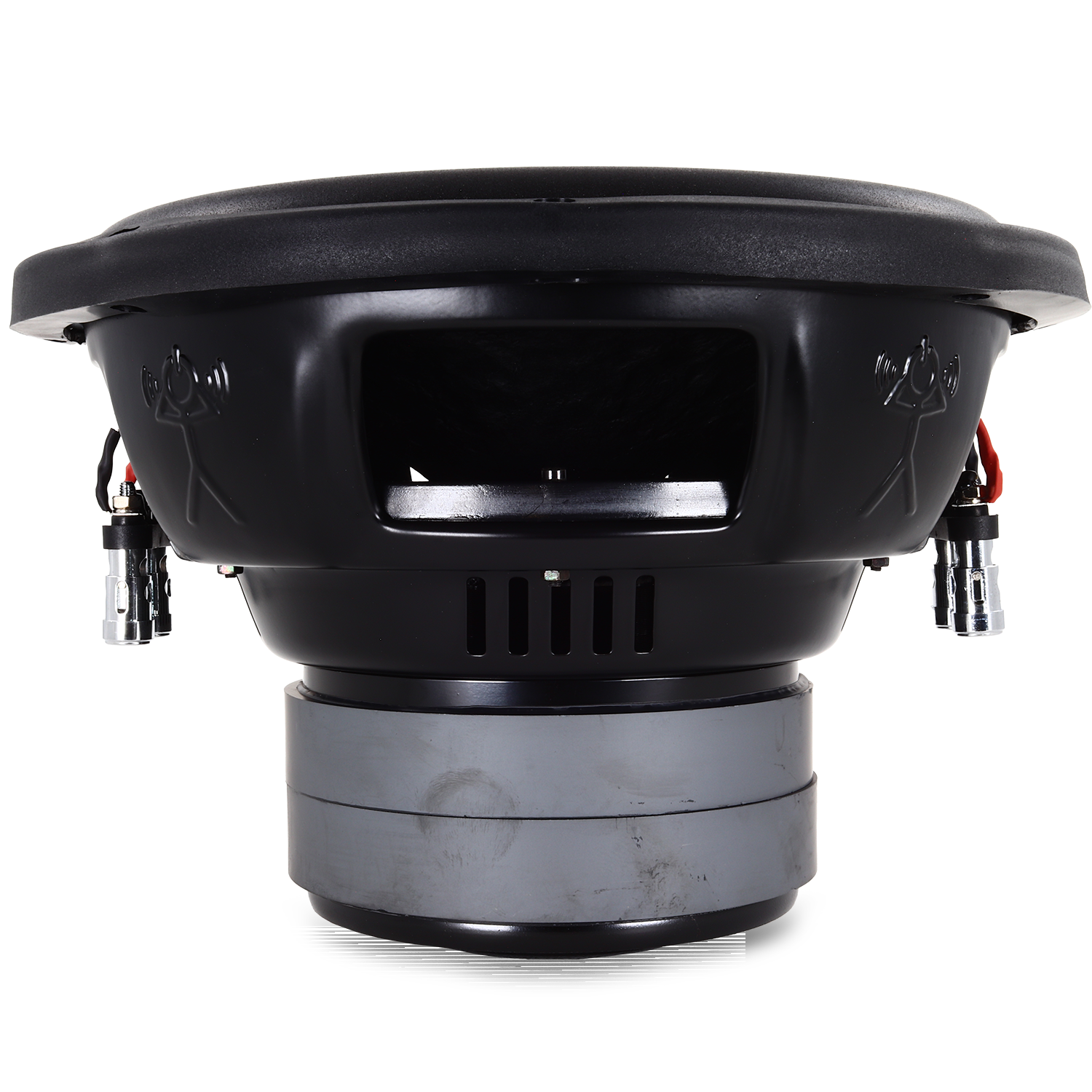

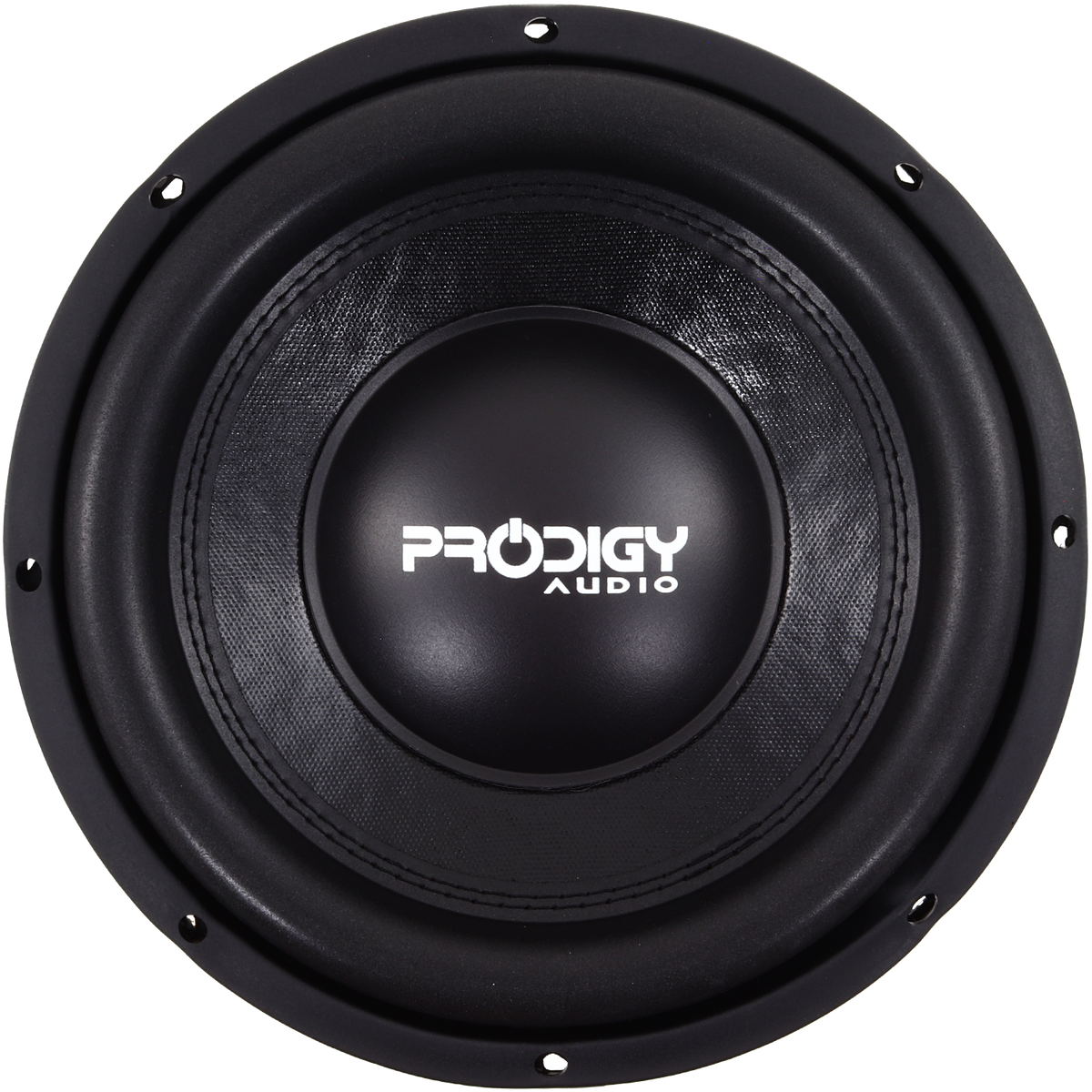

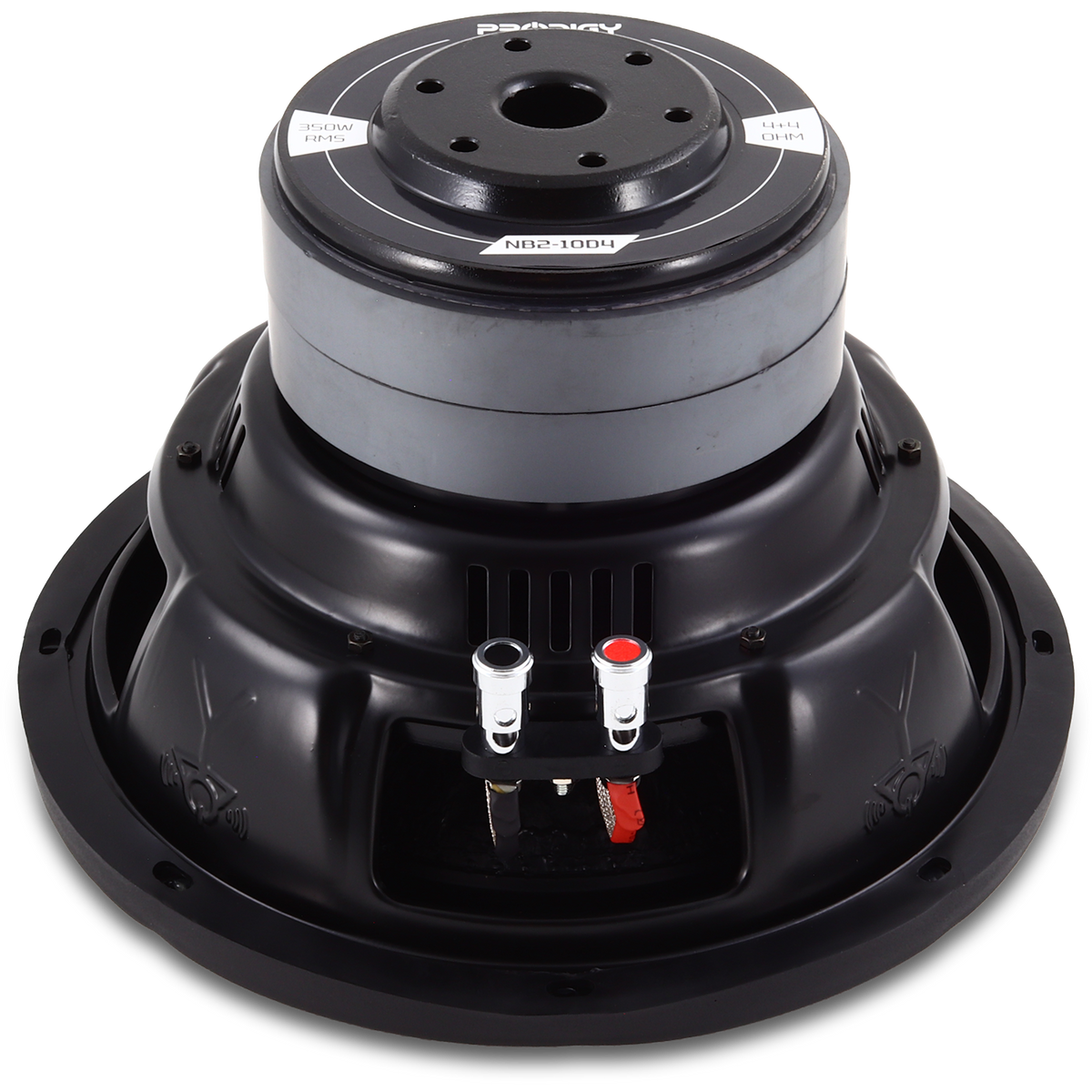

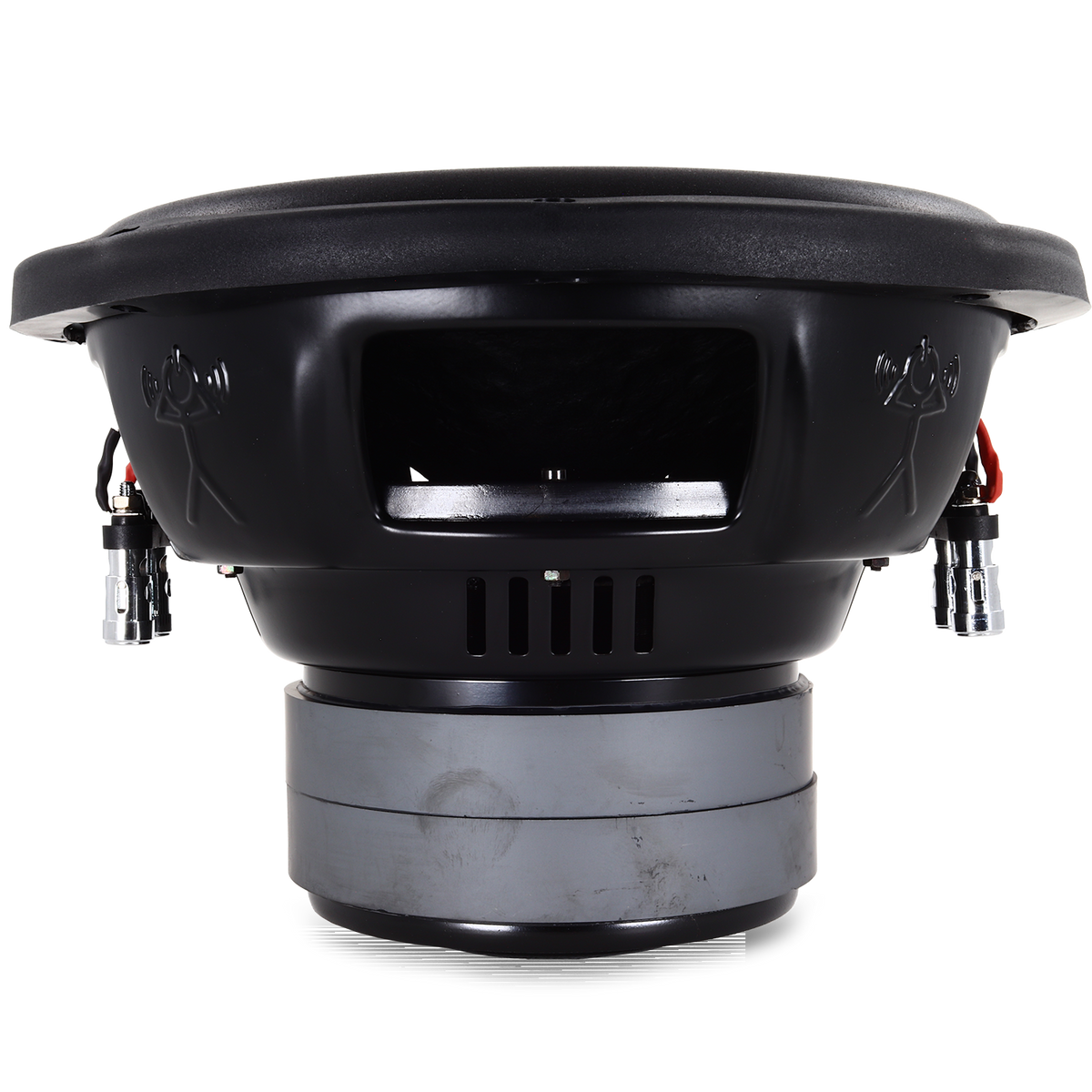

SUBWOOFER DETAILS
The NB2 Series of subs are class leading entry level subwoofers, with many features normally found only in higher end products. Starting with a double stacked magnet structure paired with a very long voice coil, the NB2 has an advantage. Reaching up to14mm of linear Xmax One Way and 2” of mechanical movement clearance peak to peak, it assures a durable subwoofer. Cooling is optimized through computer simulations at first and then offering center pole Vent as well as Radial back plate holes for moving BTU’s out of the coil gap. To increase the power handling, we chose to use 500f degree coil adhesive and glue joints throughout the subwoofer. We chose a durable foam surround with a strong paper cone to move the sound pressures reliably. A rubber gasket, chrome push terminals, quality Cotton blend spider with stitched tinsel leads all round out the quality choices toward offering one of the very best entry level subwoofers on the market.
Features:
- RMS Power 400 Watts
- 8”, 10” and 12” Sizes
- Xmax of up to 14mm one way at 70% BL
- High temperature 4 Layer copper voice coil
- Black aluminum 2” voice coil former
- Dual 4 ohm coil
- Rear radial coil gap cooling holes
- Center pole vent optimized for moving BTU’s
- Strong stamped steel frame with logo
- Quality chrome push terminals
- Flat stitched tinsel leads
Specifications:
| NB2-10d4 | |
| RE | 6.1 |
| FS | 34.295 |
| VAS | 21.054 |
| Qes | 0.611 |
| Qms | 3.24 |
| Qts | 0.514 |
| BL | 20.11 |
| Mms (g) | 165.223 |
| Cms | 139.032 |
| Sens | 84.2 |
| Xmax | 14 |
Cut Outs & Sizes
| Model | NB2-10d4 |
| Depth | 5.625" |
| Cutout | 9.250" |
| Overall Dia. | 10.375" |
| Displacement | 0.11 ft3 |
AMPLIFIER DETAILS
Designed to deliver excellent sound quality and performance, the NBM1000.5 is a mini chassis amplifier that is ready to power your system with dynamic sound and performance.
Technical Highlights
- FULL RANGE & DIGITAL 5 CHANNEL AMPLIFIER
- CH1-CH4 STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
- CH5 STABLE INTO 1OHM MONO
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE HIGH PASS FILTER
- VARIABLE HIGH PASS FILTER X10 FOR CH3 & CH4
- LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4
- BAND PASS FILTER CAPABLE FOR CH3 & CH4
- VARIABLE SUBSONIC FILTER
- 4 WAY PROTECTION CIRCUITS ( HIGH & LOW VOLTAGE, TEMPERATURE DISPLAY, CLIPPING LIGHT)
- REMOTE BASS KNOB WITH VOLTMETER, TEMPERATURE AND CLIPPING
- HIGH PURITY COPPER PRINTED CIRCUIT BOARD
- 4 GAUGE POWER / GROUND TERMINALS
Specifications:
- RMS power, 1ohm for CH5: 500W x 1
- RMS power, 2ohm: 130W x 4 + 400W x 1
- RMS power, 4ohm: 100W x 4 + 250W x 1
- RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
- Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5
- High Pass Filter (CH1 & CH2): 20Hz - 5KHz
- High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
- Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
- BANDPASS FILTER: YES
- Subsonic Filter (CH5): 10Hz - 50Hz
- Low Pass Filter (CH5): 35Hz - 250Hz
- Remote Bass Knob: Voltmeter & Temperature display remote control included
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB <
- Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
- Fuse Rating: 80A
- Length (inches): 12.20"
- Width x Height (inches): 4.87" W x 2.13" H
