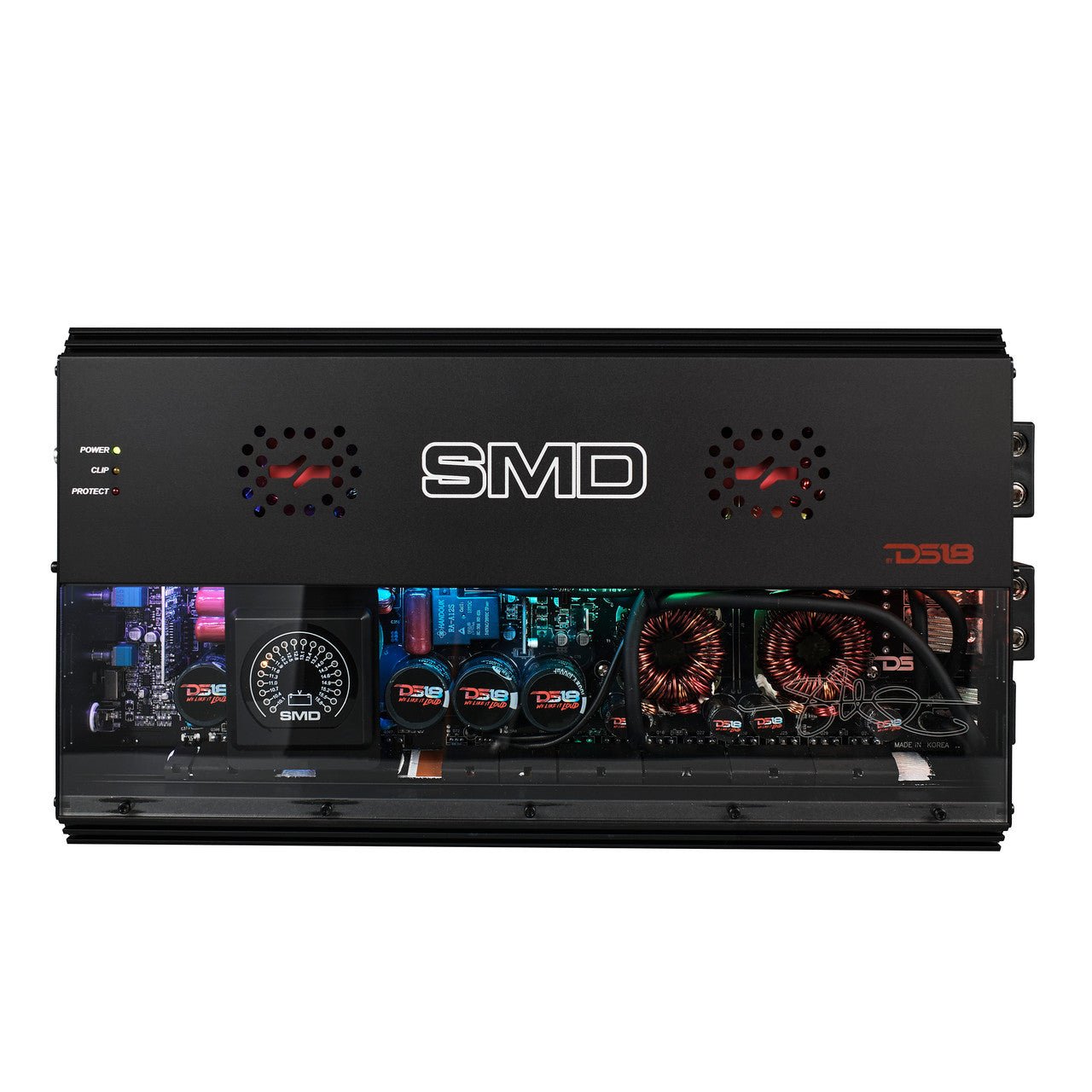

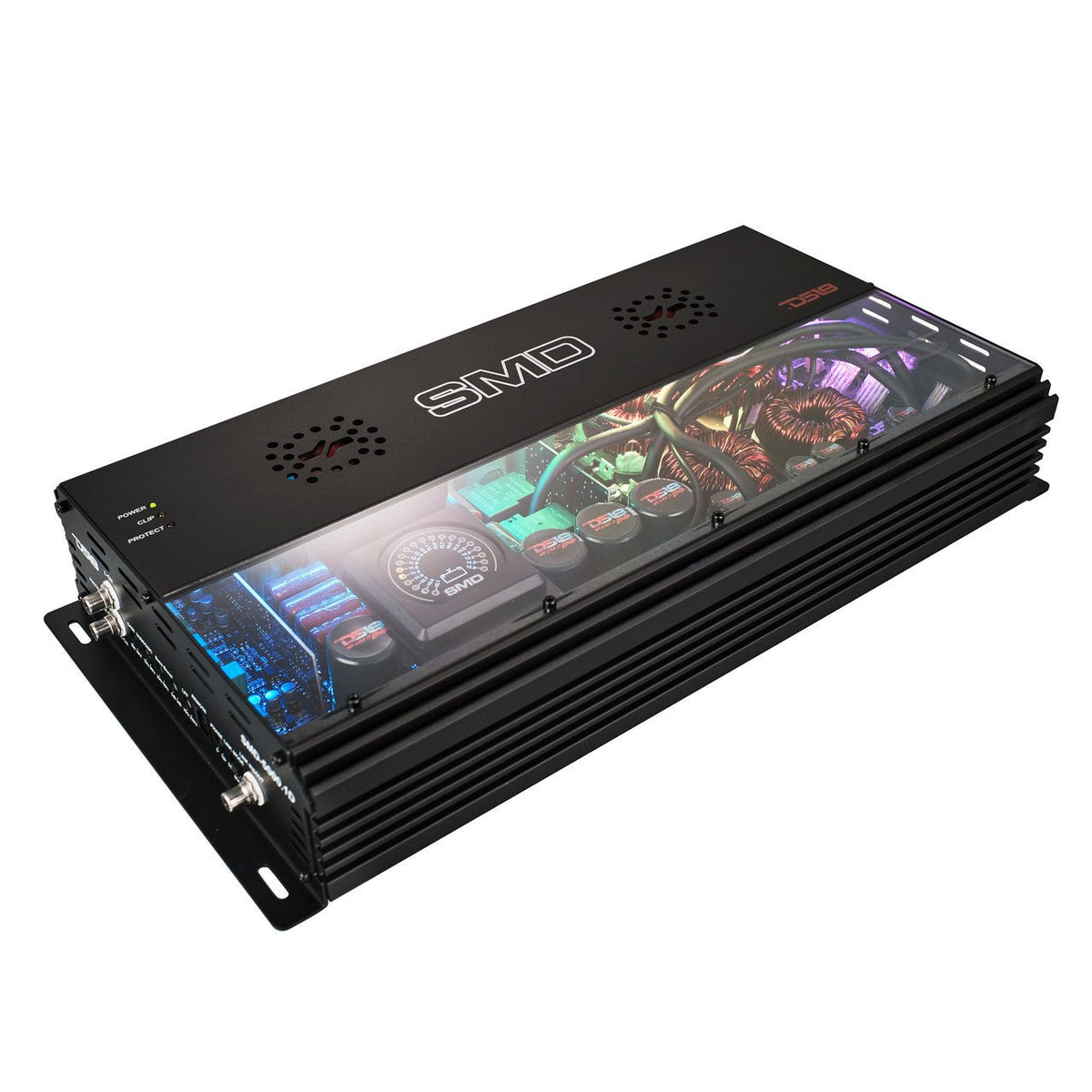

The SMD Monoblock Amplifier from Steve Meade Designs features a partially transparent black casing that showcases its vibrant internal components, such as coils and circuits with the SMD label. The amplifier boasts grooved sides, front-mounted connectors, and is equipped with a VM-1 voltmeter and digital LED lights for enhanced functionality. It delivers 5000W RMS at 1-ohm.

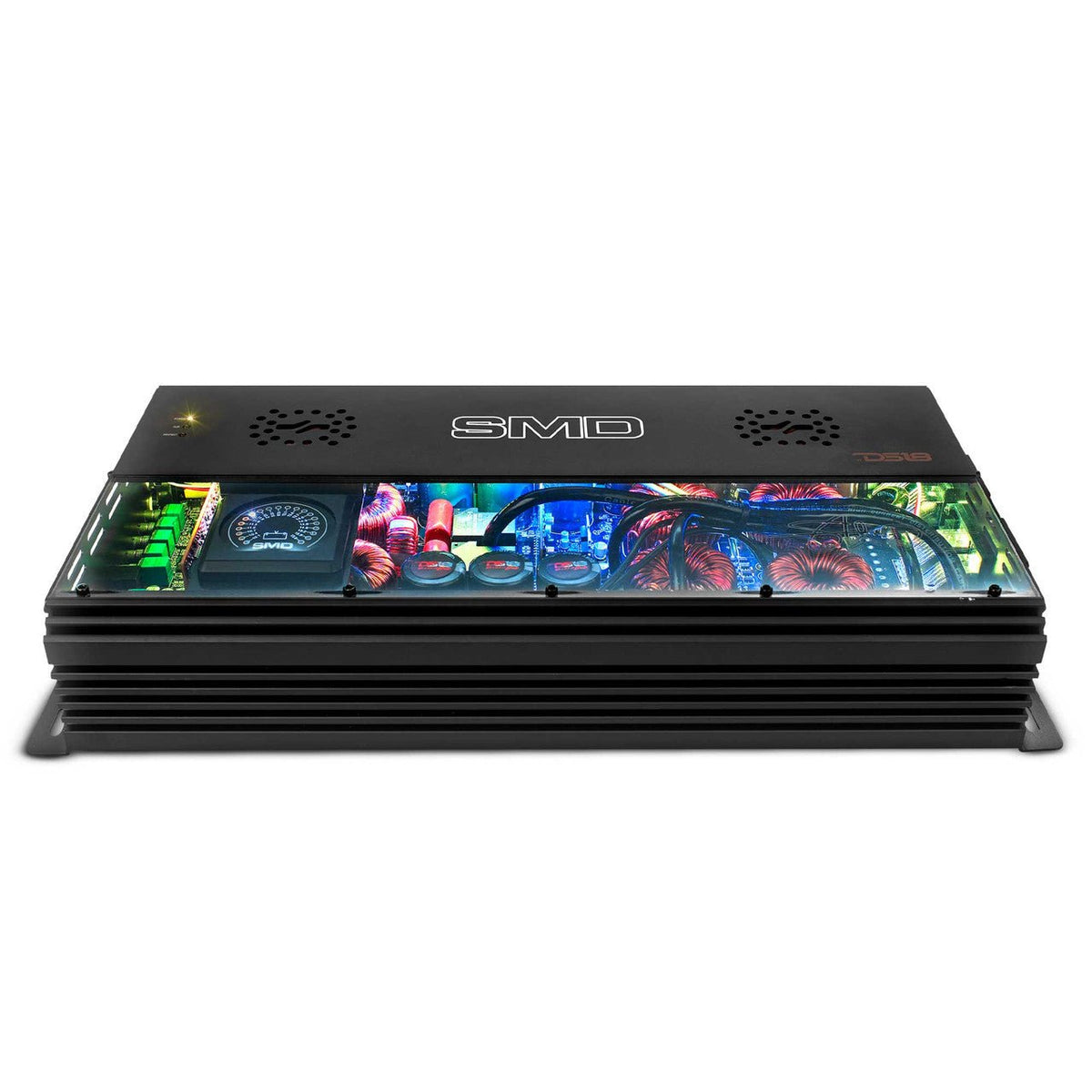

The black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights by Steve Meade Designs showcases a transparent panel, unveiling colorful internal components such as wires, coils, and circuit boards. The digital LED lights illuminate the interior with vibrant shades of blue, green, and red.

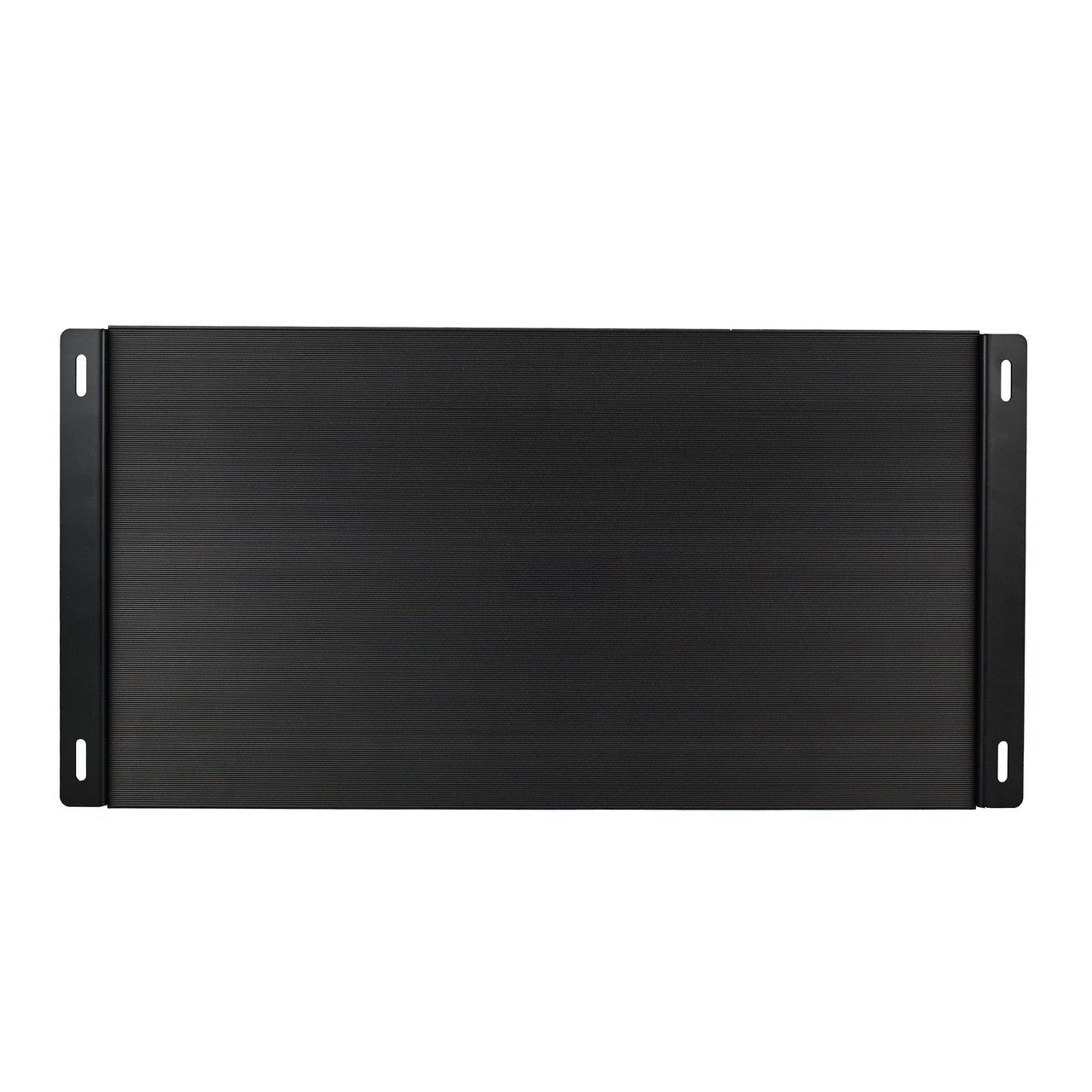

Introducing the SMD Monoblock Amplifier with VM-1 Voltmeter, a black rectangular metal panel designed for rackmount installations. With its sleek and smooth surface, this amplifier features four mounting holes, two on each side for easy installation. Its minimalist and utilitarian design integrates advanced Digital LED Lights, enhancing both its modern appearance and functional capabilities. Perfectly engineered to deliver 5000W RMS at 1-ohm by Steve Meade Designs.

The image showcases the SMD Monoblock Amplifier from Steve Meade Designs, featuring visible internal components such as capacitors and coils. The model number TD519 appears on the right side, with perforated sections for ventilation. Its sleek design perfectly complements devices like the VM-1 Voltmeter, creating a seamless audio setup.

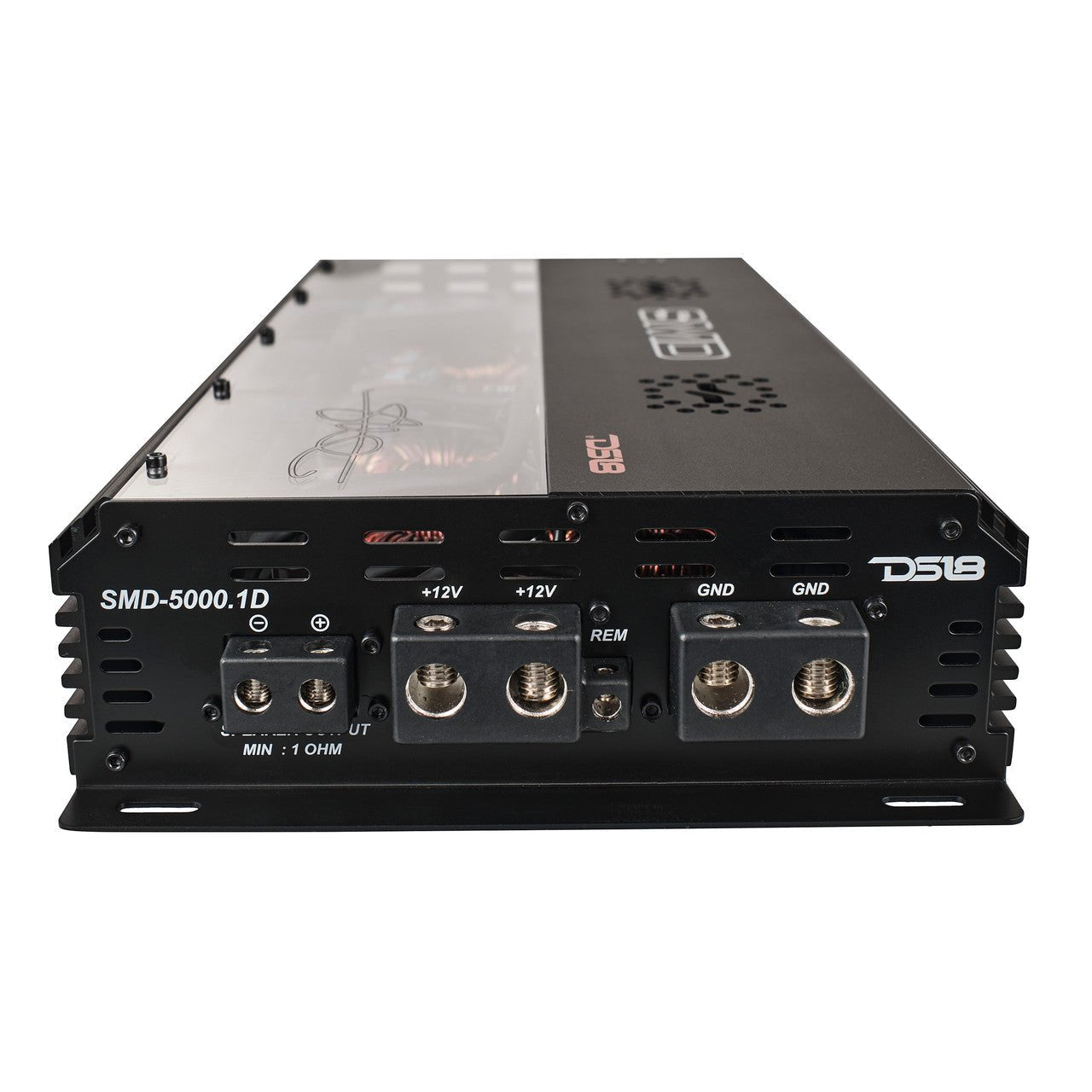

A side view of the black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights (5000W RMS at 1-ohm) by Steve Meade Designs displays connection ports labeled +12V, REM, and GND. The amplifier features a metallic casing with engraved branding and model details, highlighting both ground and power terminals that showcase precise craftsmanship.

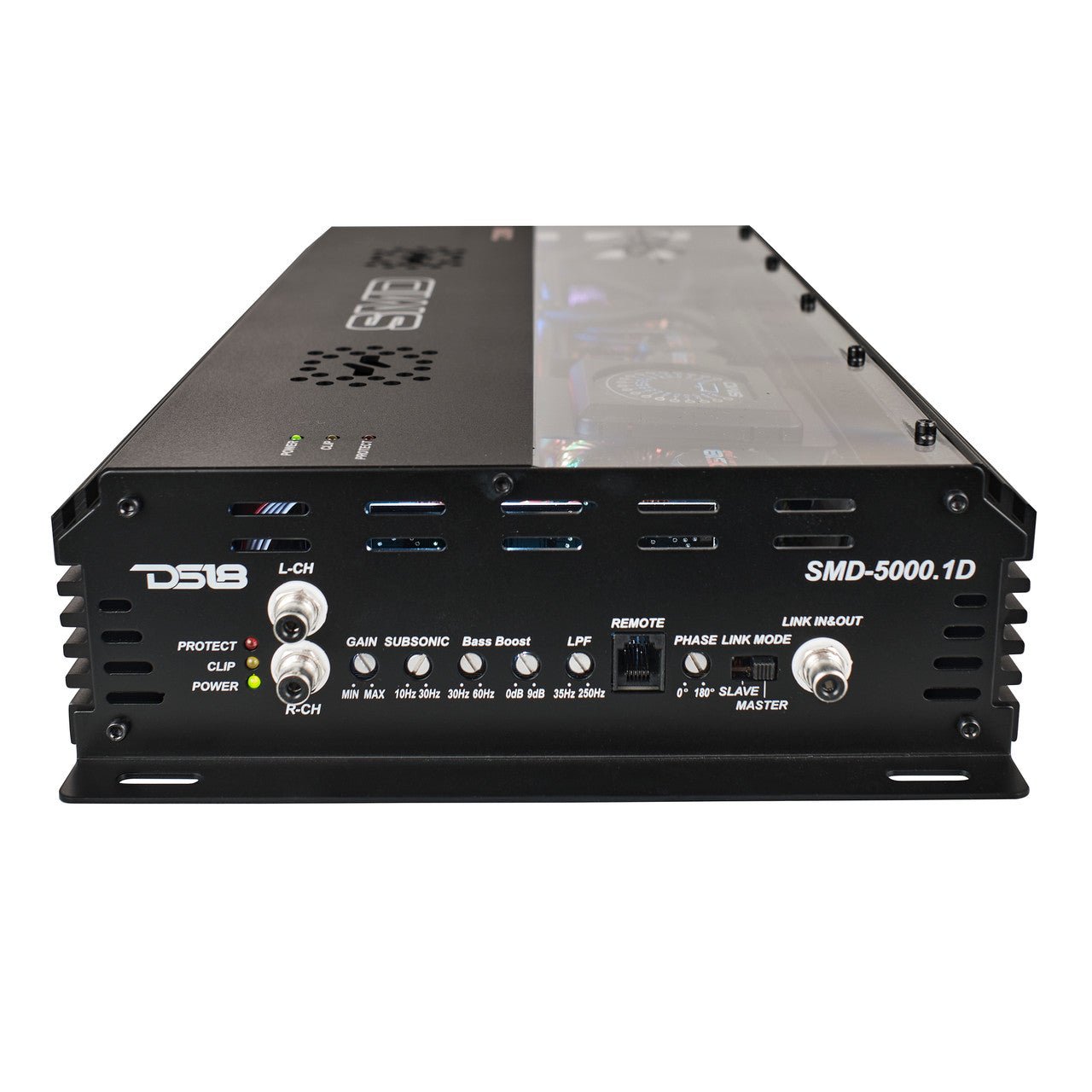

The black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights from Steve Meade Designs features a variety of controls and connection ports on its front panel, including options for gain, subsonic filter, bass boost, and phase link. It also incorporates sleek digital LED lights for a modern aesthetic.

A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.

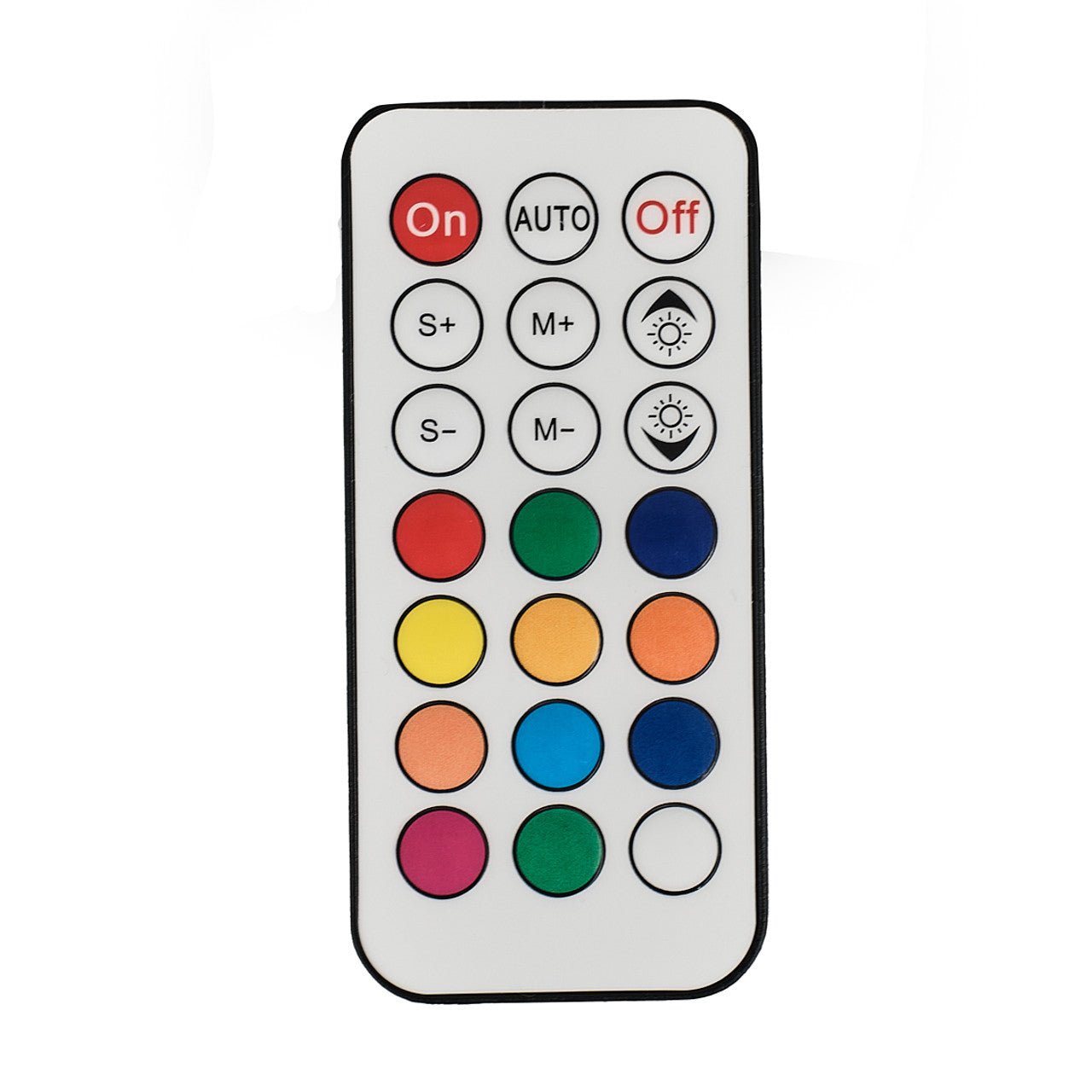

A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.

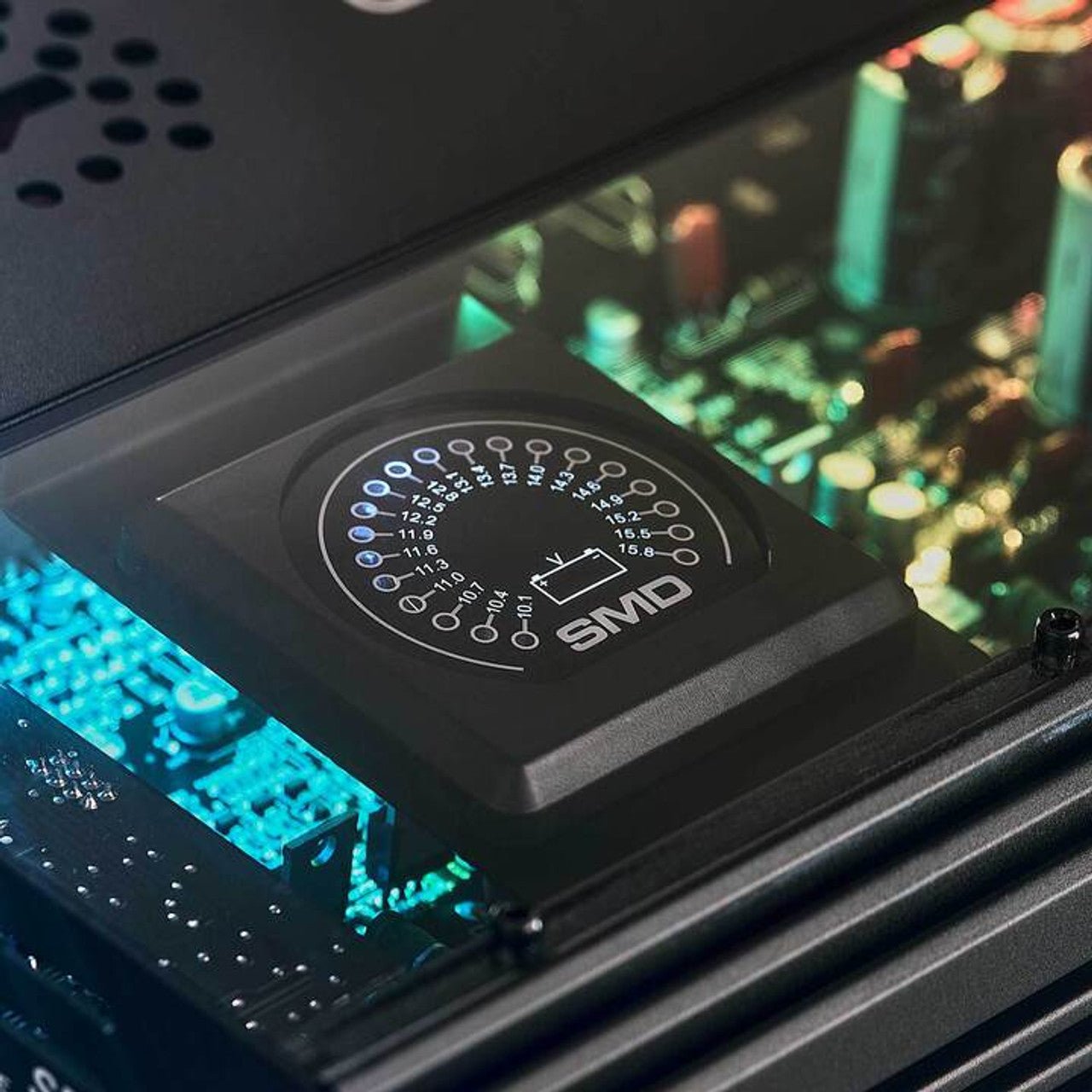

Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled "SMD 4-Channel Class AB Amplifier" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.

Roll over image to zoom in Click on image to zoom

SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs

Name: SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs
Availability: InStock

SMDSKU: SMD-5000.1D

Price:

$1,149.95

Stock:

Available

Quantity:

{"id":7780813406301,"title":"SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs","handle":"smd-monoblock-amplifier-with-vm-1-voltmeter-and-digital-led-lights-5000w-rms-at-1-ohm-steve-meade-designs","description":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e1 Channel Subwoofer Monoblock\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class D\u003c\/li\u003e\n\u003cli\u003e1 - 4 Ohm Stable ~ 5000 Watts @ 1 Ohm RMS\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Linkable\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-5000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest,\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-5000.1D, we achieved that and more. What sets the SMD-5000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-5000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 2000W RMS at 4-ohm, 3500W RMS at 2-ohm, and 5000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-5000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a \u0026lt;0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 520A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-5000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-5000.1D’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-5000.1D\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2000W\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3500W\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e5000W\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e15Hz-250Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;86%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e300\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026lt;0.02%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eFixed LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e35Hz-250Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInfrasonic Filter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-30Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eDigital\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSubwoofer\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1 ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e520A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLinkable (Strap mode) Amplifier\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVery High Efficiency Digital Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e18.1\" \/ 462mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e16.5\" \/ 420mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e15Lb \/ 6.8kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e","published_at":"2024-11-20T15:38:45-05:00","created_at":"2024-11-20T15:38:45-05:00","vendor":"SMD","type":"","tags":["alt text generated","Amplifier","amplifiers","Amplifiers\/Monoblock (1-Channel) Amps","car audio amplifier","Mono Amplifier"],"price":114995,"price_min":114995,"price_max":114995,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42885139169373,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SMD-5000.1D","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs","public_title":null,"options":["Default Title"],"price":114995,"weight":6804,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier1.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier2.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier3.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier4.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier5.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier6.jpg?v=1732135053","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier1.jpg?v=1732135053","options":["Title"],"media":[{"alt":"The SMD Monoblock Amplifier from Steve Meade Designs features a partially transparent black casing that showcases its vibrant internal components, such as coils and circuits with the SMD label. The amplifier boasts grooved sides, front-mounted connectors, and is equipped with a VM-1 voltmeter and digital LED lights for enhanced functionality. It delivers 5000W RMS at 1-ohm.","id":28565770305629,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier1.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier1.jpg?v=1732135053","width":1280},{"alt":"The black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights by Steve Meade Designs showcases a transparent panel, unveiling colorful internal components such as wires, coils, and circuit boards. The digital LED lights illuminate the interior with vibrant shades of blue, green, and red.","id":28565770338397,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier2.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier2.jpg?v=1732135053","width":1280},{"alt":"Introducing the SMD Monoblock Amplifier with VM-1 Voltmeter, a black rectangular metal panel designed for rackmount installations. With its sleek and smooth surface, this amplifier features four mounting holes, two on each side for easy installation. Its minimalist and utilitarian design integrates advanced Digital LED Lights, enhancing both its modern appearance and functional capabilities. Perfectly engineered to deliver 5000W RMS at 1-ohm by Steve Meade Designs.","id":28565770371165,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier3.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier3.jpg?v=1732135053","width":1280},{"alt":"The image showcases the SMD Monoblock Amplifier from Steve Meade Designs, featuring visible internal components such as capacitors and coils. The model number TD519 appears on the right side, with perforated sections for ventilation. Its sleek design perfectly complements devices like the VM-1 Voltmeter, creating a seamless audio setup.","id":28565770403933,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier4.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier4.jpg?v=1732135053","width":1280},{"alt":"A side view of the black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights (5000W RMS at 1-ohm) by Steve Meade Designs displays connection ports labeled +12V, REM, and GND. The amplifier features a metallic casing with engraved branding and model details, highlighting both ground and power terminals that showcase precise craftsmanship.","id":28565770436701,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier5.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier5.jpg?v=1732135053","width":1280},{"alt":"The black SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights from Steve Meade Designs features a variety of controls and connection ports on its front panel, including options for gain, subsonic filter, bass boost, and phase link. It also incorporates sleek digital LED lights for a modern aesthetic.","id":28565770469469,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier6.jpg?v=1732135053"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-5000.1DDS18Amplifier6.jpg?v=1732135053","width":1280},{"alt":"A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.","id":28565548597341,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","width":1280},{"alt":"A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.","id":28565548564573,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","width":1280},{"alt":"Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled \"SMD 4-Channel Class AB Amplifier\" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.","id":28565625471069,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778","width":1280}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e1 Channel Subwoofer Monoblock\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class D\u003c\/li\u003e\n\u003cli\u003e1 - 4 Ohm Stable ~ 5000 Watts @ 1 Ohm RMS\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Linkable\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-5000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest,\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-5000.1D, we achieved that and more. What sets the SMD-5000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-5000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 2000W RMS at 4-ohm, 3500W RMS at 2-ohm, and 5000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-5000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a \u0026lt;0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 520A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-5000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-5000.1D’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-5000.1D\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2000W\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3500W\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm (14.4v)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e5000W\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e15Hz-250Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;86%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e300\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026lt;0.02%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eFixed LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e35Hz-250Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInfrasonic Filter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-30Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eDigital\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSubwoofer\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1 ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e520A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLinkable (Strap mode) Amplifier\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVery High Efficiency Digital Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e18.1\" \/ 462mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e16.5\" \/ 420mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e15Lb \/ 6.8kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e"}

Share this product

SMD Monoblock Amplifier with VM-1 Voltmeter and Digital LED Lights 5000W RMS at 1-ohm - Steve Meade Designs

1 Channel Subwoofer Monoblock
Exclusive SMD Design ~ Class D
1 - 4 Ohm Stable ~ 5000 Watts @ 1 Ohm RMS
VM-1 Voltmeter ~ Fans ~ Linkable
Acrylic Window ~ Digital LED Lighting w/ Remote
Bass Knob ~ LED Indicators ~ Made in Korea

Key Features

Exclusive SMD design with VM-1 voltmeter
Front acrylic window and digital RGB lighting
IR remote control for LED patterns and colors
Professional Tiffany RCA terminals
Dual cooling fans for Enhanced Performance
Korean components, OFC Internal Wiring

Product Overview

Introducing the SMD-5000.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest," says Steve Meade.

With the SMD-5000.1D, we achieved that and more. What sets the SMD-5000.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-5000.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 2000W RMS at 4-ohm, 3500W RMS at 2-ohm, and 5000W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.

The SMD-5000.1D is designed for audiophiles seeking superior bass output and power efficiency. As a Class D amplifier, it prioritizes efficiency and low heat production, delivering pristine audio performance with minimal distortion. Equipped with a precision attenuation knob for easy bass control, it maintains a <0.02% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 520A fusing requirement, it’s built for robust power delivery. Additional features include a Fixed LPF (Low-Pass Filter) and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-5000.1D is a monoblock amplifier capable of powering high-output subwoofers with deep, controlled bass. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with the SMD-5000.1D’s groundbreaking design and raw power!

Manual - Technical Data

Exclusive SMD design with VM-1 voltmeter

Front acrylic window and digital RGB lighting

IR remote control for LED patterns and colors

Professional Tiffany
RCA terminals

Dual cooling fans <br> For Enhanced Performance

Dual cooling fans
For Enhanced Performance

Korean components <br> OFC Internal Wiring

Korean components
OFC Internal Wiring

SPECS	AUDIO	FEATURES	MEASUREMENT
SKU SMD-5000.1D RMS Power @ 4 ohm (14.4v) 2000W RMS Power @ 2 ohm (14.4v) 3500W RMS Power @ 1 ohm (14.4v) 5000W	Frequency Response 15Hz-250Hz Signal to Noise Ratio >98dB Efficiency @ 4ohm >86% Damping Factor 300 Input Impedance 22K ohm Total Harmonic Distortion (THD) <0.02% Low Level Input Range 200mV-6V High Level Input NO Selectable X-Over Fixed LPF X-Over Filter Range 35Hz-250Hz Bass Boost Range 0~9dB Bass Boost Frequency 30Hz-60Hz Infrasonic Filter 10Hz-30Hz Phase Selector 0~180	Amplifier Class Digital Amplifier Type Subwoofer Number of Channels 1 Minimum Impedance 1 ohm Led Indicator Power / Protection / Clip Power Input Terminal Size 0 AWG Recommended Fuse Size (Not Included) 520A Cooling Fan Yes Thermal Protection Yes Over-Load Protection Yes DC Output Protection Yes Short Circuit Output Protection Yes Voltage Input Protection Yes Clipping Protection Yes Body Color / Finish Black Metal Adjustment Knobs with Click Position Yes Professional Tiffany RCA Connectors Yes Remote Level Knob with Clip indicator Yes (Metal Case) Linkable (Strap mode) Amplifier Yes Reliable Heavy Duty Korean Board Design Yes Very High Efficiency Digital Circuit Design Yes Exclusive SMD design with VM-1 Voltmeter Yes Front Acrylic Window and Digital RGB Lighting Yes IR Remote Control for LED patterns and colors Yes	Overall Length 18.1" / 462mm Overall Width 9.15" / 232mm Overall Height 3" / 76mm Heatsink Length 16.5" / 420mm Gross Single Unit Weight 15Lb / 6.8kg

* Manuals and/or specifications are subject to change without prior notice.
