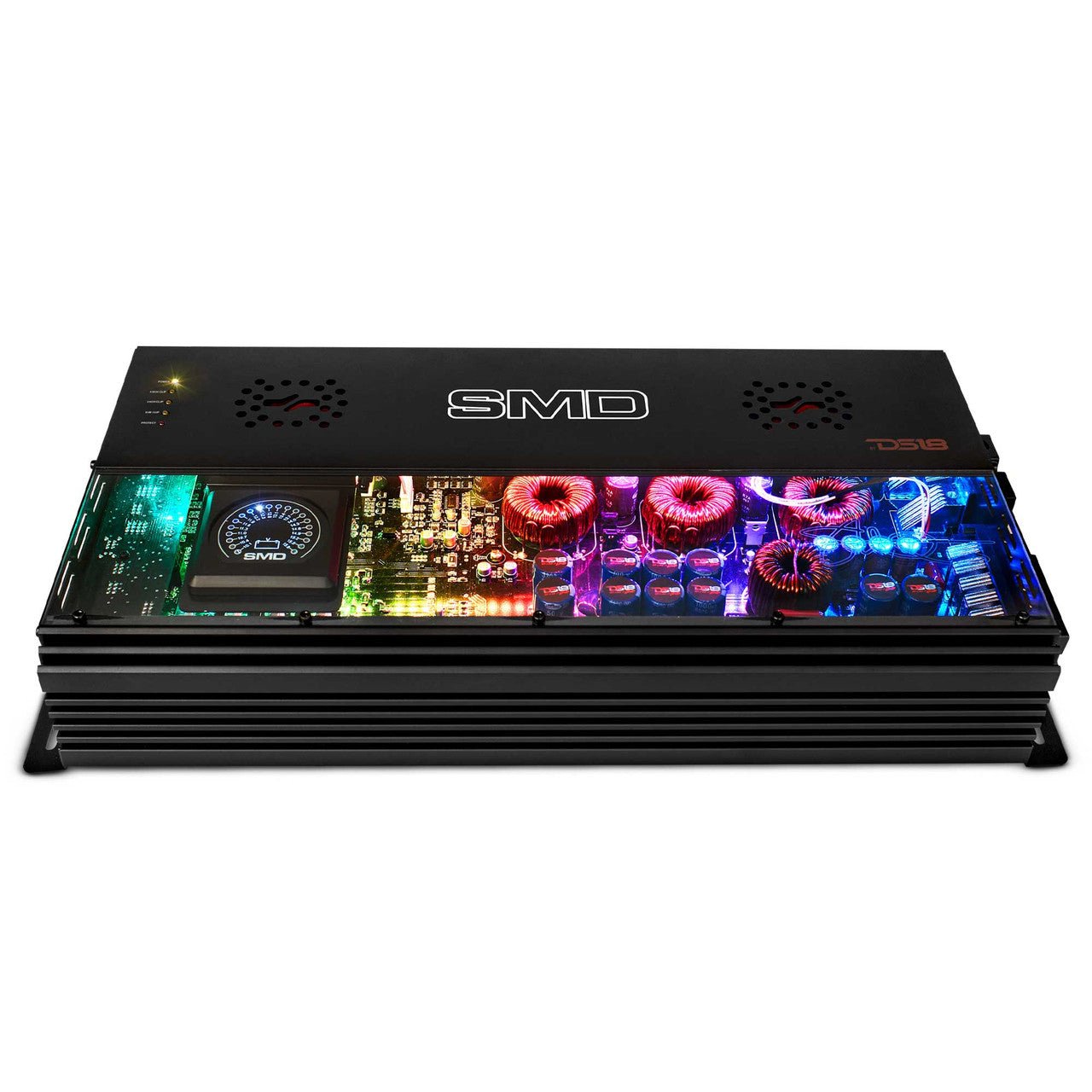

The SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights showcases vibrant internal circuitry through its transparent top. Its sleek, ribbed sides are crafted for excellent heat dissipation, while the inputs and outputs provide seamless connectivity.

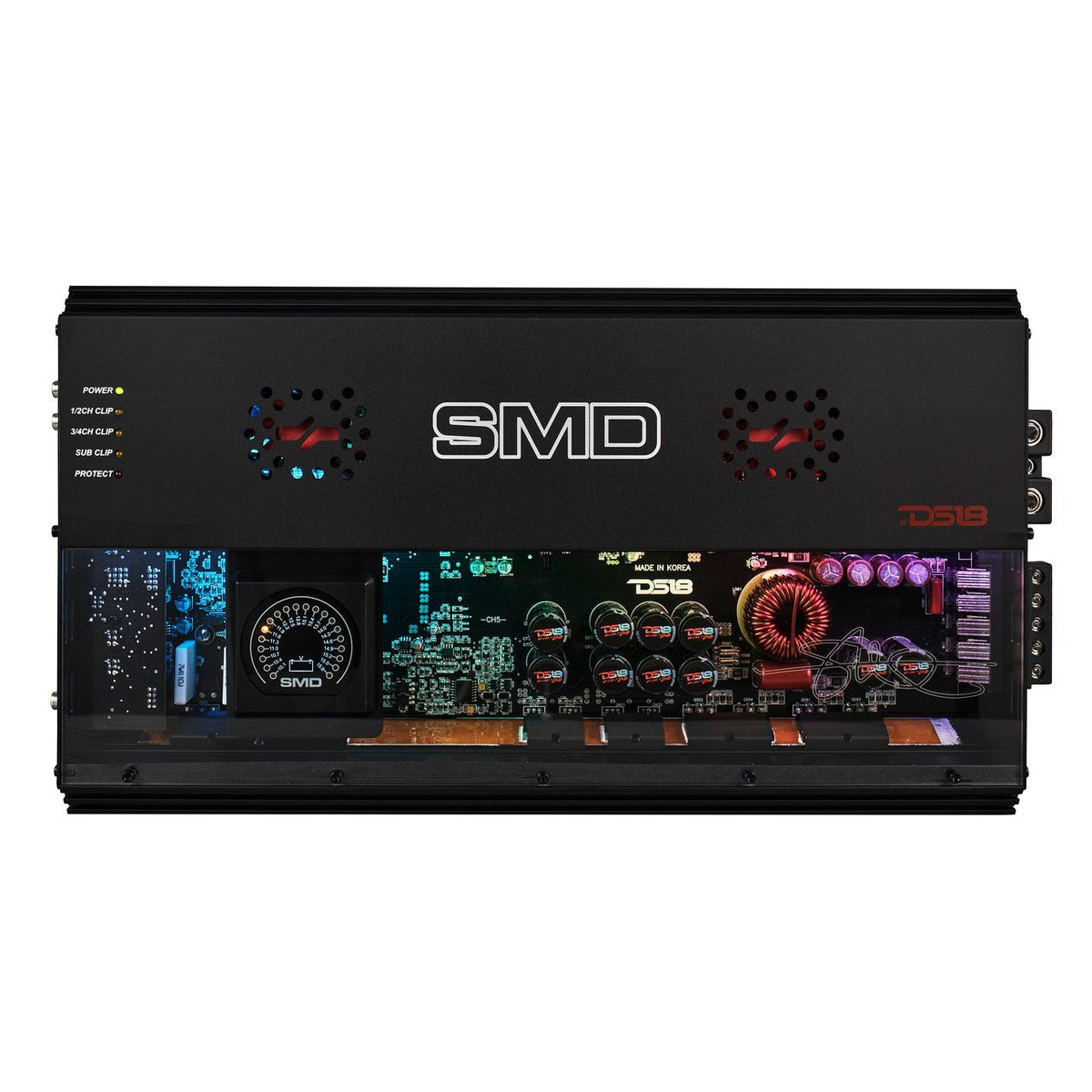

A sleek black SMD device reveals its internal components, prominently displaying circuit boards, coils, and lights. The design features the letters SMD on the front, highlighting sophisticated technology in a style reminiscent of a Steve Meade Designs masterpiece.

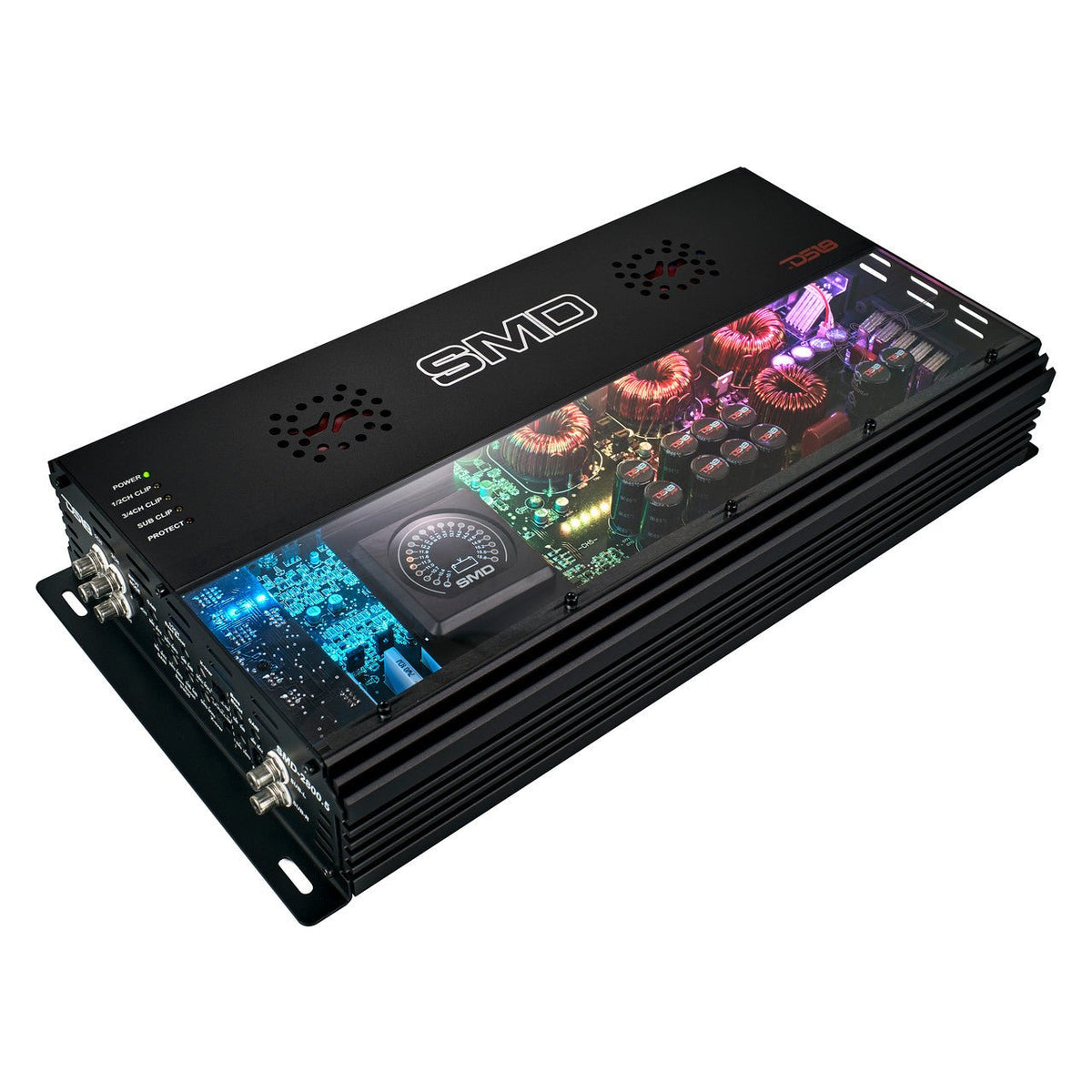

Image of a sleek black SMD 5-Channel Amplifier with a partially transparent lid, revealing its internal components. The VM-1 Voltmeter highlights circuits and coils with vibrant LED lights, encapsulating the innovative technology from Steve Meade Designs.

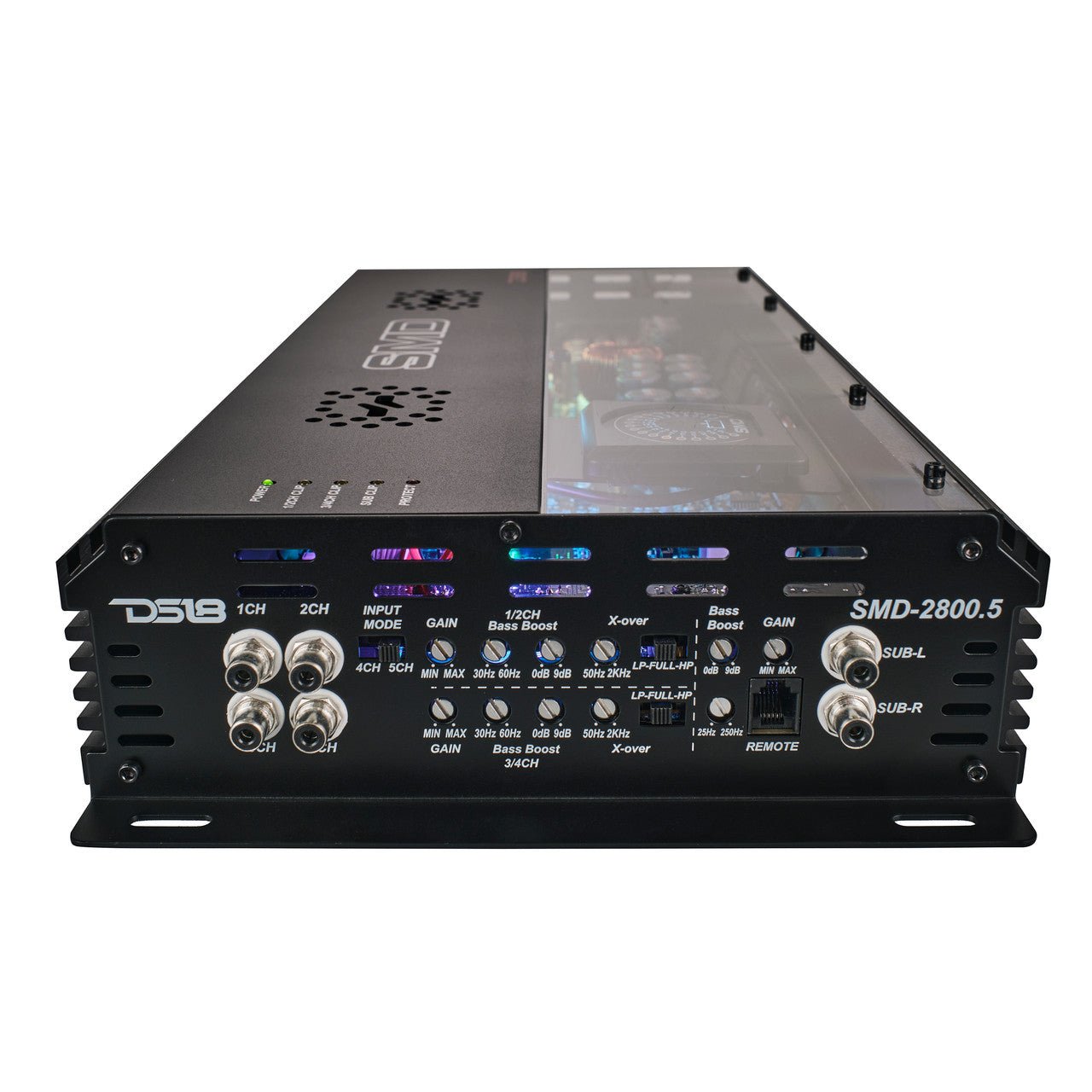

The image features the SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights—a Steve Meade Designs product. This car amplifier offers various control switches such as mode, gain, bass boost, and Xover. It includes five speaker connection ports and is encased in black metal with ventilation holes.

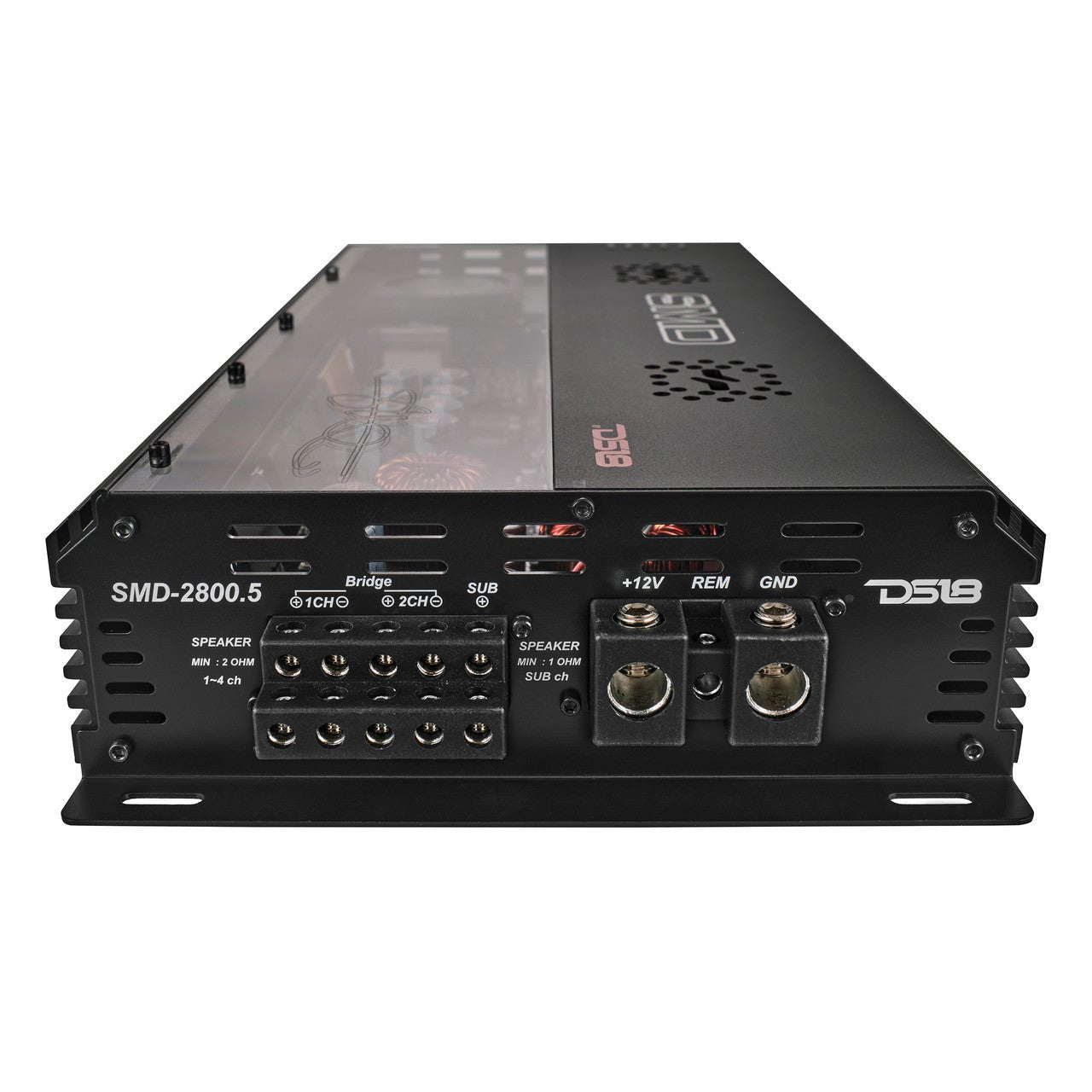

The image showcases a sleek black SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights by Steve Meade Designs. It highlights multiple input and output ports on the front panel, including speaker connections, RCA inputs, and power terminals labeled +12V, REM, and GND for enhanced visibility.

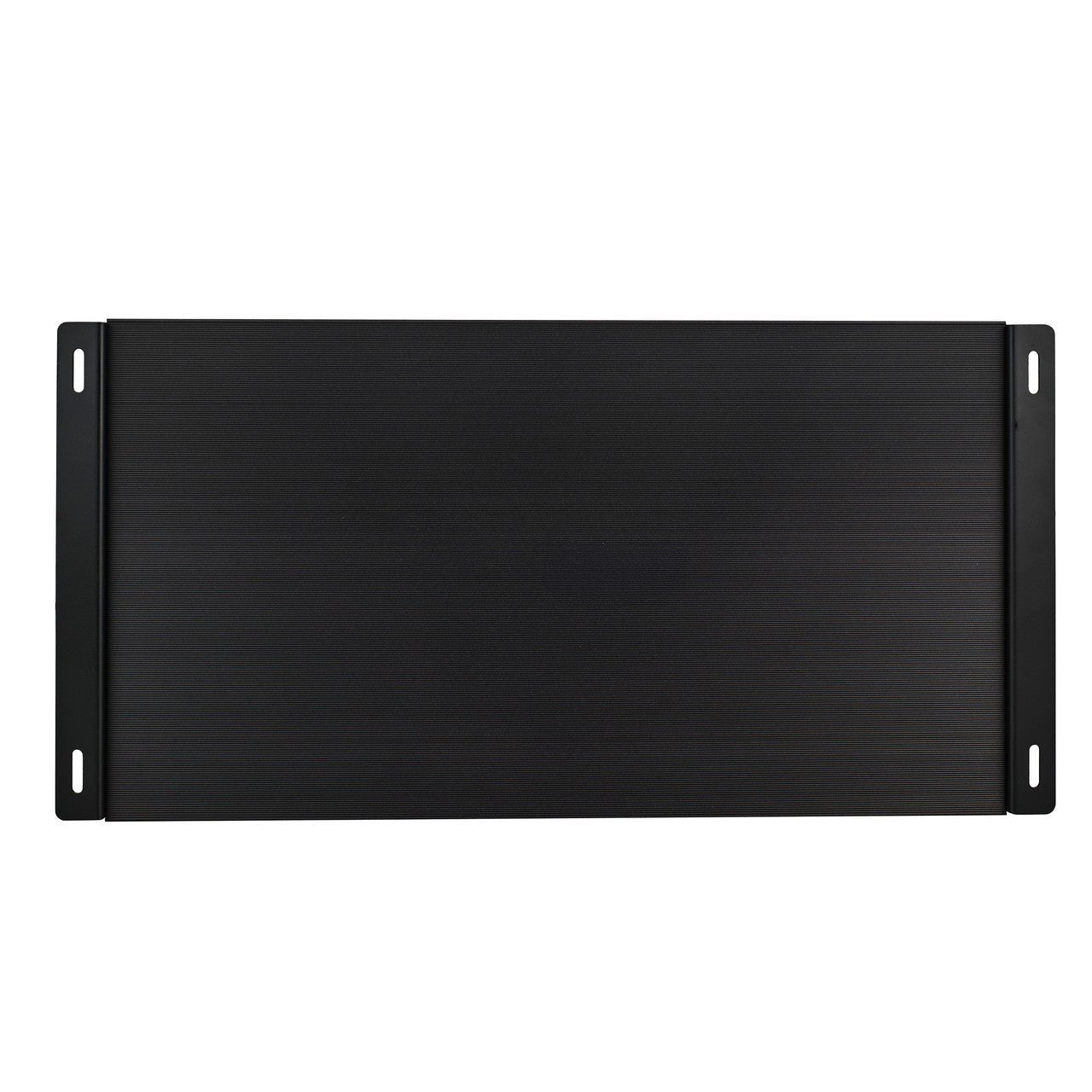

The SMD 5-Channel Amplifier by Steve Meade Designs features a black rectangular metal plate with ridges and four mounting holes at each corner for rack mounting. It seamlessly integrates with digital LED lights for enhanced visibility.

A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.

A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.

Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled "SMD 4-Channel Class AB Amplifier" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.

Roll over image to zoom in Click on image to zoom

SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs

Name: SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs
Availability: InStock

SMDSKU: SMD-2800.5

Price:

$849.95

Stock:

Available

Quantity:

{"id":7780812456029,"title":"SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs","handle":"smd-5-channel-amplifier-with-vm-1-voltmeter-and-digital-led-lights-4-x-250w-at-2-ohm-class-ab-1-x-1800w-at-1-ohm-class-d-steve-meade-designs","description":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e5 Channel Stereo Full Range \u0026amp; Subwoofer Monoblock\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class AB \u0026amp; D(SUB)\u003c\/li\u003e\n\u003cli\u003e1 - 4 Ohm Stable ~ 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Input Selector\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-2800.5— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest,\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-2800.5, we achieved that and more. What sets the SMD-2800.5 apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-2800.5 is not only visually striking but also engineered for top-tier performance. It delivers an impressive 180W x 4 + 700W (SUB) RMS at 4-ohm, 250W x 4 + 1100W (SUB) RMS at 2-ohm, and a powerful 1800W RMS (SUB) at 1-ohm. Bridging the channels offers 500W x 2 RMS for CH1~CH4, driving even the most demanding setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-2800.5 is designed for audiophiles seeking superior sound quality across a variety of channels. As a Class AB + D amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 300A fusing requirement, it’s built for robust power delivery. Additional features include selectable 4\/5 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-2800.5 is a full-range and subwoofer amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front, rear, and subwoofer combination of speakers. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-2800.5’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-2800.5\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e180W x 4 + 700W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e250W x 4 + 1100W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1800W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm Bridge\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e500W x 2 (CH1~CH4)\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-24KHz(CH1~CH4) \/ 35Hz-250Hz(SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;60%(4CH) \/ \u0026gt;82%(SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e250\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eChannel Separation\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;50dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0.10%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eHPF\/FULL\/LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e50Hz-2KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eAnalog AB + Digital (Sub Ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eStereo Full-Range + Subwoofer\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e5\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2 Ohm Stereo \/ 4 Ohm Bridge + 1 ohms (Sub)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e300A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Mode Selectable\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (4\/5ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh-Power Class AB Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e18.2\" \/ 462mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e16.5\" \/ 420mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e13Lb \/ 5.89kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e","published_at":"2024-11-20T15:36:06-05:00","created_at":"2024-11-20T15:36:06-05:00","vendor":"SMD","type":"","tags":["5-Channel Amplifier","5-Channel Amplifiers","alt text generated","Amplifier","amplifiers","car audio amplifier"],"price":84995,"price_min":84995,"price_max":84995,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42885137301597,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SMD-2800.5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs","public_title":null,"options":["Default Title"],"price":84995,"weight":5897,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier1.jpg?v=1732134888","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier2.jpg?v=1732134887","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier3.jpg?v=1732134887","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier4.jpg?v=1732134888","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier5.jpg?v=1732134887","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier6.jpg?v=1732134888","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier1.jpg?v=1732134888","options":["Title"],"media":[{"alt":"The SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights showcases vibrant internal circuitry through its transparent top. Its sleek, ribbed sides are crafted for excellent heat dissipation, while the inputs and outputs provide seamless connectivity.","id":28565752741981,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier1.jpg?v=1732134888"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier1.jpg?v=1732134888","width":1280},{"alt":"A sleek black SMD device reveals its internal components, prominently displaying circuit boards, coils, and lights. The design features the letters SMD on the front, highlighting sophisticated technology in a style reminiscent of a Steve Meade Designs masterpiece.","id":28565752774749,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier2.jpg?v=1732134887"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier2.jpg?v=1732134887","width":1280},{"alt":"Image of a sleek black SMD 5-Channel Amplifier with a partially transparent lid, revealing its internal components. The VM-1 Voltmeter highlights circuits and coils with vibrant LED lights, encapsulating the innovative technology from Steve Meade Designs.","id":28565752807517,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier3.jpg?v=1732134887"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier3.jpg?v=1732134887","width":1280},{"alt":"The image features the SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights—a Steve Meade Designs product. This car amplifier offers various control switches such as mode, gain, bass boost, and Xover. It includes five speaker connection ports and is encased in black metal with ventilation holes.","id":28565752840285,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier4.jpg?v=1732134888"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier4.jpg?v=1732134888","width":1280},{"alt":"The image showcases a sleek black SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights by Steve Meade Designs. It highlights multiple input and output ports on the front panel, including speaker connections, RCA inputs, and power terminals labeled +12V, REM, and GND for enhanced visibility.","id":28565752873053,"position":11,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier5.jpg?v=1732134887"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier5.jpg?v=1732134887","width":1280},{"alt":"The SMD 5-Channel Amplifier by Steve Meade Designs features a black rectangular metal plate with ridges and four mounting holes at each corner for rack mounting. It seamlessly integrates with digital LED lights for enhanced visibility.","id":28565752905821,"position":12,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier6.jpg?v=1732134888"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-2800.5DS18Amplifier6.jpg?v=1732134888","width":1280},{"alt":"A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.","id":28565548564573,"position":13,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","width":1280},{"alt":"A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.","id":28565548597341,"position":14,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","width":1280},{"alt":"Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled \"SMD 4-Channel Class AB Amplifier\" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.","id":28565625471069,"position":15,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier.jpg?v=1732133778","width":1280}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e5 Channel Stereo Full Range \u0026amp; Subwoofer Monoblock\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class AB \u0026amp; D(SUB)\u003c\/li\u003e\n\u003cli\u003e1 - 4 Ohm Stable ~ 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Input Selector\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-2800.5— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest,\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-2800.5, we achieved that and more. What sets the SMD-2800.5 apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-2800.5 is not only visually striking but also engineered for top-tier performance. It delivers an impressive 180W x 4 + 700W (SUB) RMS at 4-ohm, 250W x 4 + 1100W (SUB) RMS at 2-ohm, and a powerful 1800W RMS (SUB) at 1-ohm. Bridging the channels offers 500W x 2 RMS for CH1~CH4, driving even the most demanding setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-2800.5 is designed for audiophiles seeking superior sound quality across a variety of channels. As a Class AB + D amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 300A fusing requirement, it’s built for robust power delivery. Additional features include selectable 4\/5 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-2800.5 is a full-range and subwoofer amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front, rear, and subwoofer combination of speakers. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-2800.5’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-2800.5\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e180W x 4 + 700W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e250W x 4 + 1100W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e1800W (SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm Bridge\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e500W x 2 (CH1~CH4)\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-24KHz(CH1~CH4) \/ 35Hz-250Hz(SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;60%(4CH) \/ \u0026gt;82%(SUB)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e250\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eChannel Separation\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;50dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0.10%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eHPF\/FULL\/LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e50Hz-2KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eAnalog AB + Digital (Sub Ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eStereo Full-Range + Subwoofer\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e5\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2 Ohm Stereo \/ 4 Ohm Bridge + 1 ohms (Sub)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e300A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Mode Selectable\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (4\/5ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh-Power Class AB Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e18.2\" \/ 462mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e16.5\" \/ 420mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e13Lb \/ 5.89kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e"}

Share this product

SMD 5-Channel Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D - Steve Meade Designs

5 Channel Stereo Full Range & Subwoofer Monoblock
Exclusive SMD Design ~ Class AB & D(SUB)
1 - 4 Ohm Stable ~ 4 x 250W at 2-Ohm Class AB + 1 x 1800W at 1-Ohm Class D
VM-1 Voltmeter ~ Fans ~ Input Selector
Acrylic Window ~ Digital LED Lighting w/ Remote
Bass Knob ~ LED Indicators ~ Made in Korea

Key Features

Exclusive SMD design with VM-1 voltmeter
Front acrylic window and digital RGB lighting
IR remote control for LED patterns and colors
Professional Tiffany RCA terminals
Dual cooling fans for Enhanced Performance
Korean components, OFC Internal Wiring

Product Overview

Introducing the SMD-2800.5— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest," says Steve Meade.

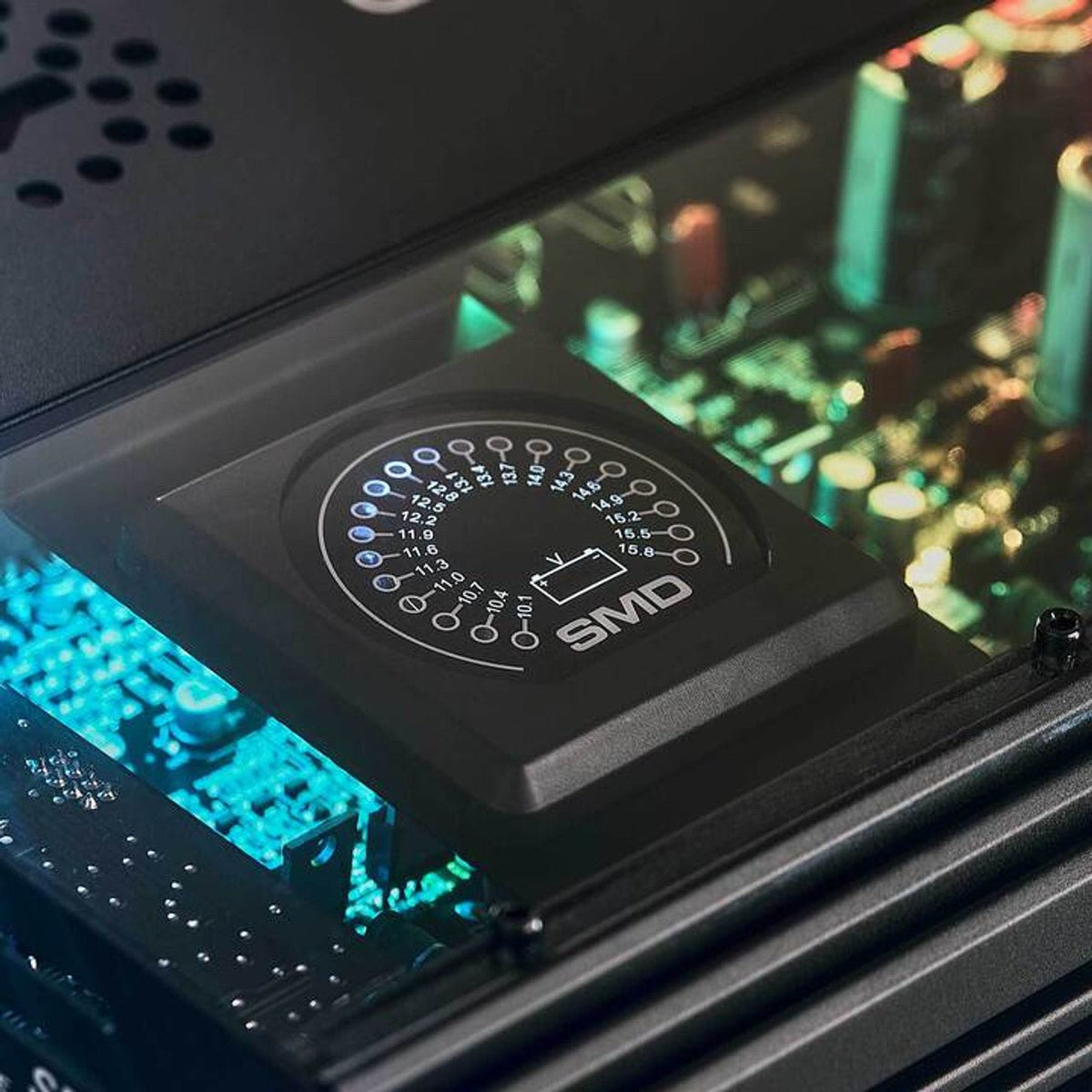

With the SMD-2800.5, we achieved that and more. What sets the SMD-2800.5 apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-2800.5 is not only visually striking but also engineered for top-tier performance. It delivers an impressive 180W x 4 + 700W (SUB) RMS at 4-ohm, 250W x 4 + 1100W (SUB) RMS at 2-ohm, and a powerful 1800W RMS (SUB) at 1-ohm. Bridging the channels offers 500W x 2 RMS for CH1~CH4, driving even the most demanding setups with ease.

The SMD-2800.5 is designed for audiophiles seeking superior sound quality across a variety of channels. As a Class AB + D amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 0 AWG power and ground inputs and a 300A fusing requirement, it’s built for robust power delivery. Additional features include selectable 4/5 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-2800.5 is a full-range and subwoofer amplifier capable of powering anything—from subs and tweeters to midbass vocals and any front, rear, and subwoofer combination of speakers. Its advanced protection suite includes thermal overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with the SMD-2800.5’s groundbreaking design and raw power!

Manual - Technical Data

Exclusive SMD design with VM-1 voltmeter

Front acrylic window and digital RGB lighting

IR remote control for LED patterns and colors

Professional Tiffany
RCA terminals

Dual cooling fans <br> For Enhanced Performance

Dual cooling fans
For Enhanced Performance

Korean components <br> OFC Internal Wiring

Korean components
OFC Internal Wiring

SPECS	AUDIO	FEATURES	MEASUREMENT
SKU SMD-2800.5 RMS Power @ 4 ohm 180W x 4 + 700W (SUB) RMS Power @ 2 ohm 250W x 4 + 1100W (SUB) RMS Power @ 1 ohm 1800W (SUB) RMS Power @ 4 ohm Bridge 500W x 2 (CH1~CH4)	Frequency Response 10Hz-24KHz(CH1~CH4) / 35Hz-250Hz(SUB) Signal to Noise Ratio >98dB Efficiency @ 4ohm >60%(4CH) / >82%(SUB) Damping Factor 250 Input Impedance 22K ohm Channel Separation >50dB Total Harmonic Distortion (THD) 0.10% Low Level Input Range 200mV-6V High Level Input NO Selectable X-Over HPF/FULL/LPF X-Over Filter Range 50Hz-2KHz Bass Boost Range 0~9dB Bass Boost Frequency 30Hz-60Hz Phase Selector 0~180	Amplifier Class Analog AB + Digital (Sub Ch) Amplifier Type Stereo Full-Range + Subwoofer Number of Channels 5 Minimum Impedance 2 Ohm Stereo / 4 Ohm Bridge + 1 ohms (Sub) Led Indicator Power / Protection / Clip Power Input Terminal Size 0 AWG Recommended Fuse Size (Not Included) 300A Cooling Fan Yes Thermal Protection Yes Over-Load Protection Yes DC Output Protection Yes Short Circuit Output Protection Yes Voltage Input Protection Yes Clipping Protection Yes Body Color / Finish Black Input Mode Selectable Yes (4/5ch) Metal Adjustment Knobs with Click Position Yes Professional Tiffany RCA Connectors Yes Remote Level Knob with Clip indicator Yes (Metal Case) Reliable Heavy Duty Korean Board Design Yes High-Power Class AB Circuit Design Yes Exclusive SMD design with VM-1 Voltmeter Yes Front Acrylic Window and Digital RGB Lighting Yes IR Remote Control for LED patterns and colors Yes	Overall Length 18.2" / 462mm Overall Width 9.15" / 232mm Overall Height 3" / 76mm Heatsink Length 16.5" / 420mm Gross Single Unit Weight 13Lb / 5.89kg

* Manuals and/or specifications are subject to change without prior notice.
