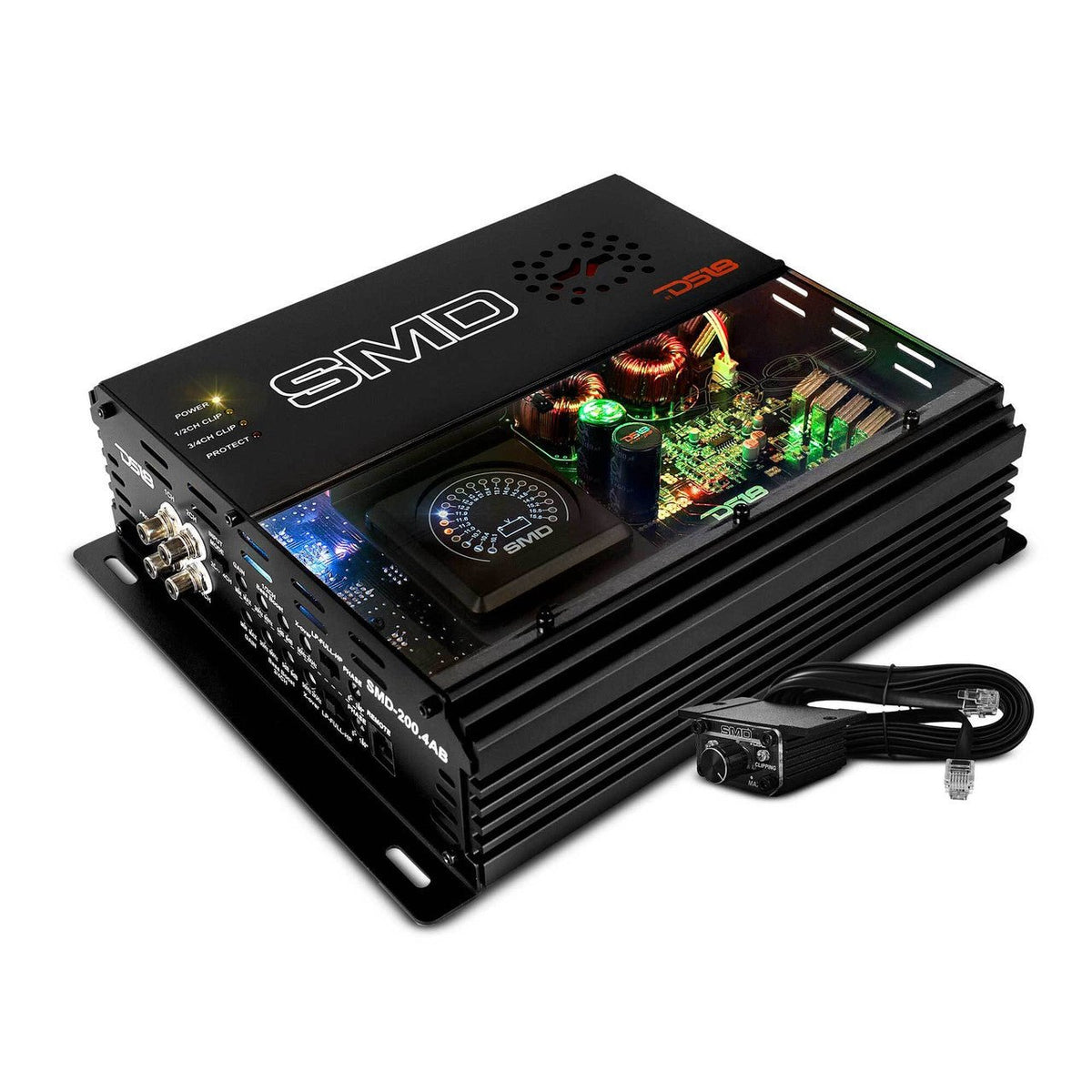

A SMD 4-Channel Class AB Amplifier with a transparent top showcasing its internal components, the Steve Meade Designs device includes a wired remote control and side ports for various connectivity options.

A state-of-the-art black SMD 4-Channel Class AB Amplifier featuring vibrant internal components visible through a transparent top. It includes illuminated circuit boards, coils, and a VM-1 voltmeter proudly labeled SMD. The model number DS18 is prominently displayed on the top, highlighting its connection to Steve Meade Designs.

A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.

A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.

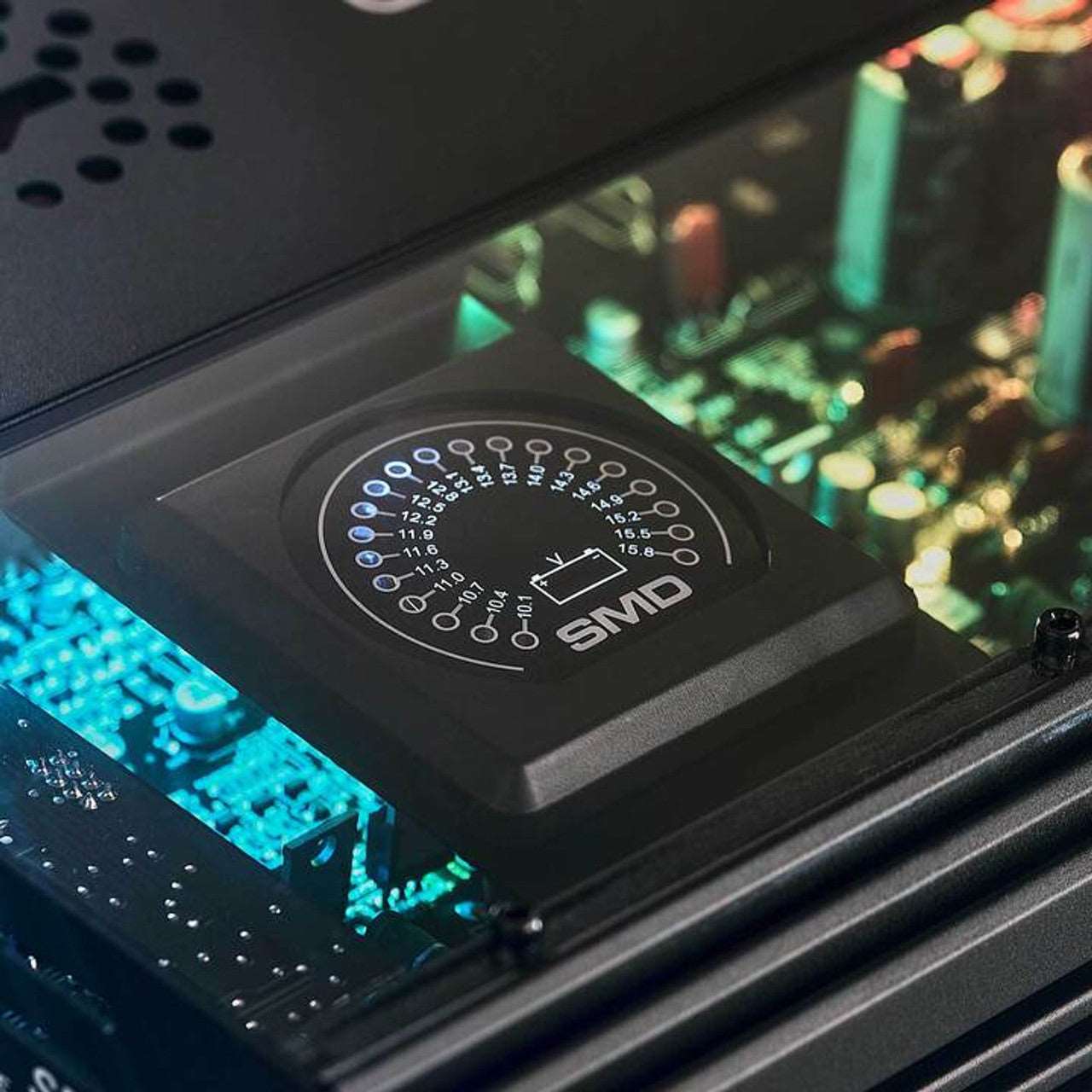

Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled "SMD 4-Channel Class AB Amplifier" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.

Roll over image to zoom in Click on image to zoom

SMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs

Name: SMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs
Availability: InStock

SMDSKU: SMD-200.4AB

Price:

$399.95

Stock:

Available

Quantity:

{"id":7780798627933,"title":"SMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs","handle":"smd-4-channel-class-ab-amplifier-with-vm-1-voltmeter-and-digital-led-lights-4-x-200w-at-2-ohm-steve-meade-designs","description":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e4 Channel Stereo Full Range\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class AB\u003c\/li\u003e\n\u003cli\u003e2 - 4 Ohm Stable ~ 4 X 200 Watts @ 2 Ohms RMS\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Input Selector\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-200.4AB— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest.\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-200.4AB, we achieved that and more. What sets the SMD-200.4AB apart is its unique clear half-top design, ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-200.4AB is not only visually striking but also engineered for top-tier performance. It delivers an impressive 150W x 4 RMS at 4-ohm, 200W x 4 RMS at 2-ohm, and 400W x 2 RMS bridged at 4-ohm: driving even the most demanding setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-200.4AB is designed for audiophiles seeking superior sound quality. As a Class AB amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 4 AWG power and ground inputs and a 120A fusing requirement, it’s built for robust power delivery. Additional features include selectable 2\/4 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-200.4AB is a full-range amplifier capable of powering anything—from subs and tweeters to midbass, vocals, and any front and rear combination of speakers. Its advanced protection suite includes thermal, overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-200.4AB’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-200.4AB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e150W x 4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200W x 4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eN\/A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm Bridge\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e400W x 2\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-24KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;62%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e140\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eChannel Separation\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;50dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0.10%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eHPF\/FULL\/LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e50Hz-2KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eAnalog AB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eStereo Full-Range\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2 Ohm Stereo \/ 4 Ohm Bridge\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e4 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e120A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Mode Selectable\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (2\/4ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh-Power Class AB Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e11\" \/ 282mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.4\" \/ 240mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e7.2Lb \/ 3.3Kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e","published_at":"2024-11-20T15:06:25-05:00","created_at":"2024-11-20T15:06:25-05:00","vendor":"SMD","type":"","tags":["4-Channel Amplifier","alt text generated","Amp Channels_4-Channel","Amplifier","amplifiers","Amplifiers\/4-Channel","car audio amplifier"],"price":39995,"price_min":39995,"price_max":39995,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42885104599133,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SMD-200.4AB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs","public_title":null,"options":["Default Title"],"price":39995,"weight":3266,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier1.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier2.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier_c88f3ca0-0965-4c25-b11c-8bc537ff1d86.jpg?v=1733948276"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier1.jpg?v=1732133080","options":["Title"],"media":[{"alt":"A SMD 4-Channel Class AB Amplifier with a transparent top showcasing its internal components, the Steve Meade Designs device includes a wired remote control and side ports for various connectivity options.","id":28565548499037,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier1.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier1.jpg?v=1732133080","width":1280},{"alt":"A state-of-the-art black SMD 4-Channel Class AB Amplifier featuring vibrant internal components visible through a transparent top. It includes illuminated circuit boards, coils, and a VM-1 voltmeter proudly labeled SMD. The model number DS18 is prominently displayed on the top, highlighting its connection to Steve Meade Designs.","id":28565548531805,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier2.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18Amplifier2.jpg?v=1732133080","width":1280},{"alt":"A remote control with a grid of small buttons similar to those used with the SMD 4-Channel Class AB Amplifier by Steve Meade Designs. The top row features red On, Auto, and Off buttons. Beneath them are letters and symbols, accompanied by various colorful circular buttons for versatile operation.","id":28565548564573,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierLEDcontroller.jpg?v=1732133080","width":1280},{"alt":"A black electronic device with a dial and connections, labeled SMD 4-Channel Class AB Amplifier, is displayed. It features a long black cable with an RJ45 connector, coiled neatly and secured with a tie.","id":28565548597341,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMD-200.4ABDS18AmplifierRemoteBassKnobControlandCable.jpg?v=1732133080","width":1280},{"alt":"Close-up of electronic equipment featuring an illuminated circuit board with various components. Above the board, there's a semi-circular gauge labeled \"SMD 4-Channel Class AB Amplifier\" with numerous markings and glowing colored LED lights from the VM-1 voltmeter by Steve Meade Designs, providing 4 x 300W at 2-Ohm.","id":28700662595677,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier_c88f3ca0-0965-4c25-b11c-8bc537ff1d86.jpg?v=1733948276"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/files\/SMDMetercloseuponamplifier_c88f3ca0-0965-4c25-b11c-8bc537ff1d86.jpg?v=1733948276","width":1280}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cp\u003e\u003cstrong\u003eSMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e4 Channel Stereo Full Range\u003c\/li\u003e\n\u003cli\u003eExclusive SMD Design ~ Class AB\u003c\/li\u003e\n\u003cli\u003e2 - 4 Ohm Stable ~ 4 X 200 Watts @ 2 Ohms RMS\u003c\/li\u003e\n\u003cli\u003eVM-1 Voltmeter ~ Fans ~ Input Selector\u003c\/li\u003e\n\u003cli\u003eAcrylic Window ~ Digital LED Lighting w\/ Remote\u003c\/li\u003e\n\u003cli\u003eBass Knob ~ LED Indicators ~ Made in Korea\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eKey Features\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003e\u003cspan\u003eExclusive SMD design with VM-1 voltmeter \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eFront acrylic window and digital RGB lighting \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eIR remote control for LED patterns and colors \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eProfessional Tiffany RCA terminals \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eDual cooling fans for Enhanced Performance \u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan\u003eKorean components, OFC Internal Wiring\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003e\u003cspan\u003eProduct Overview\u003c\/span\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eIntroducing the SMD-200.4AB— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cem\u003e\u003cspan\u003e“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest.\" says Steve Meade.\u003c\/span\u003e\u003c\/em\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith the SMD-200.4AB, we achieved that and more. What sets the SMD-200.4AB apart is its unique clear half-top design, ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital\/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eManufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-200.4AB is not only visually striking but also engineered for top-tier performance. It delivers an impressive 150W x 4 RMS at 4-ohm, 200W x 4 RMS at 2-ohm, and 400W x 2 RMS bridged at 4-ohm: driving even the most demanding setups with ease.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThe SMD-200.4AB is designed for audiophiles seeking superior sound quality. As a Class AB amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 4 AWG power and ground inputs and a 120A fusing requirement, it’s built for robust power delivery. Additional features include selectable 2\/4 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eCrafted with precision using only the best components, DS18’s SMD-200.4AB is a full-range amplifier capable of powering anything—from subs and tweeters to midbass, vocals, and any front and rear combination of speakers. Its advanced protection suite includes thermal, overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePush the limits of what’s possible with the SMD-200.4AB’s groundbreaking design and raw power!\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003e\u003ca href=\"https:\/\/wg5atmebjzqt1sru-1801420861.shopifypreview.com\/cdn\/shop\/files\/SMD_SPANGLISH_MANUAL_V1.pdf?v=15275841799032264855\"\u003eManual - Technical Data\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003ctable border=\"0\" style=\"width: 100%; border-collapse: collapse;\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 16.6667%;\"\u003e\n\u003cdiv style=\"text-align: center;\" class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Exclusive SMD design with VM-1 voltmeter\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ROTATING_CONTROL_copy.png?v=14593592973225881032\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eExclusive SMD design with VM-1 voltmeter\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Front acrylic window and digital RGB lighting\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/ACRYCLIC_WINDOW_RGB.png?v=15460374852514298618\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eFront acrylic window and digital RGB lighting\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"IR remote control for LED patterns and colors\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/REMOTE_CONTROLLER_cc1b9ea2-ea40-4b6b-9761-d403dc1b00c7.png?v=17955805226997106669\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eIR remote control for LED patterns and colors\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Professional Tiffany \u0026lt;br\u0026gt; RCA terminals\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/TIFFANY_RCA_TERMINAL_0796d19d-9e15-417c-8f43-5723bce992c6.png?v=13482445312826359538\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eProfessional Tiffany\u003cbr\u003eRCA terminals\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Dual cooling fans \u0026lt;br\u0026gt; For Enhanced Performance\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Built_in_Cooling_Fan.png?v=15364549675386941383\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eDual cooling fans\u003cbr\u003eFor Enhanced Performance\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 16.6667%; text-align: center;\"\u003e\n\u003cdiv class=\"text-with-icons__icon-wrapper\"\u003e\u003cimg height=\"150\" width=\"150\" alt=\"Korean components \u0026lt;br\u0026gt; OFC Internal Wiring\" src=\"https:\/\/ds18.com\/cdn\/shop\/files\/Made_in_Korea.png?v=6102298513205948046\" style=\"box-sizing: border-box; -webkit-font-smoothing: antialiased; height: auto; max-width: 95%; border-style: none; vertical-align: top; display: block; margin: 0px auto;\" class=\"text-with-icons__custom-icon\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp\u003e\u003cstrong\u003eKorean components\u003cbr\u003eOFC Internal Wiring\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ctable border=\"1\" style=\"border-collapse: collapse; width: 100%; vertical-align: top; height: 1091px;\"\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 18px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eAUDIO\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eFEATURES\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 18px;\"\u003e\u003cstrong\u003eMEASUREMENT\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 1073px;\"\u003e\n\u003ctd style=\"width: 25%; text-align: center; vertical-align: top; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eSKU\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eSMD-200.4AB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e150W x 4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 2 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200W x 4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 1 ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eN\/A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRMS Power @ 4 ohm Bridge\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e400W x 2\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; height: 1073px;\"\u003e\n\u003cp style=\"text-align: center;\"\u003e\u003cstrong\u003eFrequency Response\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e10Hz-24KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSignal to Noise Ratio\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;98dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eEfficiency @ 4ohm\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;62%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDamping Factor\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e140\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e22K ohm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eChannel Separation\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e\u0026gt;50dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eTotal Harmonic Distortion (THD)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0.10%\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLow Level Input Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e200mV-6V\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh Level Input\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eNO\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eSelectable X-Over\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eHPF\/FULL\/LPF\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eX-Over Filter Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e50Hz-2KHz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Range\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~9dB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBass Boost Frequency\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e30Hz-60Hz\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePhase Selector\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e0~180\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eAmplifier Class\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eAnalog AB\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eAmplifier Type\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eStereo Full-Range\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eNumber of Channels\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e4\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMinimum Impedance\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e2 Ohm Stereo \/ 4 Ohm Bridge\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eLed Indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003ePower \/ Protection \/ Clip\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003ePower Input Terminal Size\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e4 AWG\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRecommended Fuse Size (Not Included)\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e120A\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eCooling Fan\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eThermal Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOver-Load Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eDC Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eShort Circuit Output Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eVoltage Input Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eClipping Protection\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eBody Color \/ Finish\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eBlack\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eInput Mode Selectable\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (2\/4ch)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eMetal Adjustment Knobs with Click Position\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eProfessional Tiffany RCA Connectors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eRemote Level Knob with Clip indicator\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes (Metal Case)\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eReliable Heavy Duty Korean Board Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHigh-Power Class AB Circuit Design\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eExclusive SMD design with VM-1 Voltmeter\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eFront Acrylic Window and Digital RGB Lighting\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eIR Remote Control for LED patterns and colors\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003eYes\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003ctd style=\"width: 25%; vertical-align: top; text-align: center; height: 1073px;\"\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e11\" \/ 282mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Width\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.15\" \/ 232mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eOverall Height\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e3\" \/ 76mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eHeatsink Length\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e9.4\" \/ 240mm\u003c\/span\u003e\u003cbr\u003e\u003cstrong\u003eGross Single Unit Weight\u003cbr\u003e\u003c\/strong\u003e\u003cspan\u003e7.2Lb \/ 3.3Kg\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e* Manuals and\/or specifications are subject to change without prior notice.\u003c\/p\u003e\n\u003c!-- snippet location product_description --\u003e\n\u003c\/div\u003e"}

Share this product

SMD 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 200W at 2-ohm - Steve Meade Designs

4 Channel Stereo Full Range
Exclusive SMD Design ~ Class AB
2 - 4 Ohm Stable ~ 4 X 200 Watts @ 2 Ohms RMS
VM-1 Voltmeter ~ Fans ~ Input Selector
Acrylic Window ~ Digital LED Lighting w/ Remote
Bass Knob ~ LED Indicators ~ Made in Korea

Key Features

Exclusive SMD design with VM-1 voltmeter
Front acrylic window and digital RGB lighting
IR remote control for LED patterns and colors
Professional Tiffany RCA terminals
Dual cooling fans for Enhanced Performance
Korean components, OFC Internal Wiring

Product Overview

Introducing the SMD-200.4AB— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

“When we first started working on the SMD amplifiers with DS18, I made it clear that these amplifiers needed to stand out from the rest." says Steve Meade.

With the SMD-200.4AB, we achieved that and more. What sets the SMD-200.4AB apart is its unique clear half-top design, ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful sound quality that Steve Meade Designs is known for. The SMD-200.4AB is not only visually striking but also engineered for top-tier performance. It delivers an impressive 150W x 4 RMS at 4-ohm, 200W x 4 RMS at 2-ohm, and 400W x 2 RMS bridged at 4-ohm: driving even the most demanding setups with ease.

The SMD-200.4AB is designed for audiophiles seeking superior sound quality. As a Class AB amplifier, it prioritizes clarity and detail, delivering pristine audio performance. Equipped with a precision attenuation knob for easy bass control, it maintains a .10% THD, ensuring exceptional Total Harmonic Distortion levels. With 4 AWG power and ground inputs and a 120A fusing requirement, it’s built for robust power delivery. Additional features include selectable 2/4 channel inputs and Tiffany RCA connectors for the highest quality signal transfer in your setup.

Crafted with precision using only the best components, DS18’s SMD-200.4AB is a full-range amplifier capable of powering anything—from subs and tweeters to midbass, vocals, and any front and rear combination of speakers. Its advanced protection suite includes thermal, overload, DC output, short circuit, and voltage input protection, ensuring safe operation in any setup.

Push the limits of what’s possible with the SMD-200.4AB’s groundbreaking design and raw power!

Manual - Technical Data

Exclusive SMD design with VM-1 voltmeter

Front acrylic window and digital RGB lighting

IR remote control for LED patterns and colors

Professional Tiffany
RCA terminals

Dual cooling fans <br> For Enhanced Performance

Dual cooling fans
For Enhanced Performance

Korean components <br> OFC Internal Wiring

Korean components
OFC Internal Wiring

SPECS	AUDIO	FEATURES	MEASUREMENT
SKU SMD-200.4AB RMS Power @ 4 ohm 150W x 4 RMS Power @ 2 ohm 200W x 4 RMS Power @ 1 ohm N/A RMS Power @ 4 ohm Bridge 400W x 2	Frequency Response 10Hz-24KHz Signal to Noise Ratio >98dB Efficiency @ 4ohm >62% Damping Factor 140 Input Impedance 22K ohm Channel Separation >50dB Total Harmonic Distortion (THD) 0.10% Low Level Input Range 200mV-6V High Level Input NO Selectable X-Over HPF/FULL/LPF X-Over Filter Range 50Hz-2KHz Bass Boost Range 0~9dB Bass Boost Frequency 30Hz-60Hz Phase Selector 0~180	Amplifier Class Analog AB Amplifier Type Stereo Full-Range Number of Channels 4 Minimum Impedance 2 Ohm Stereo / 4 Ohm Bridge Led Indicator Power / Protection / Clip Power Input Terminal Size 4 AWG Recommended Fuse Size (Not Included) 120A Cooling Fan Yes Thermal Protection Yes Over-Load Protection Yes DC Output Protection Yes Short Circuit Output Protection Yes Voltage Input Protection Yes Clipping Protection Yes Body Color / Finish Black Input Mode Selectable Yes (2/4ch) Metal Adjustment Knobs with Click Position Yes Professional Tiffany RCA Connectors Yes Remote Level Knob with Clip indicator Yes (Metal Case) Reliable Heavy Duty Korean Board Design Yes High-Power Class AB Circuit Design Yes Exclusive SMD design with VM-1 Voltmeter Yes Front Acrylic Window and Digital RGB Lighting Yes IR Remote Control for LED patterns and colors Yes	Overall Length 11" / 282mm Overall Width 9.15" / 232mm Overall Height 3" / 76mm Heatsink Length 9.4" / 240mm Gross Single Unit Weight 7.2Lb / 3.3Kg

* Manuals and/or specifications are subject to change without prior notice.
