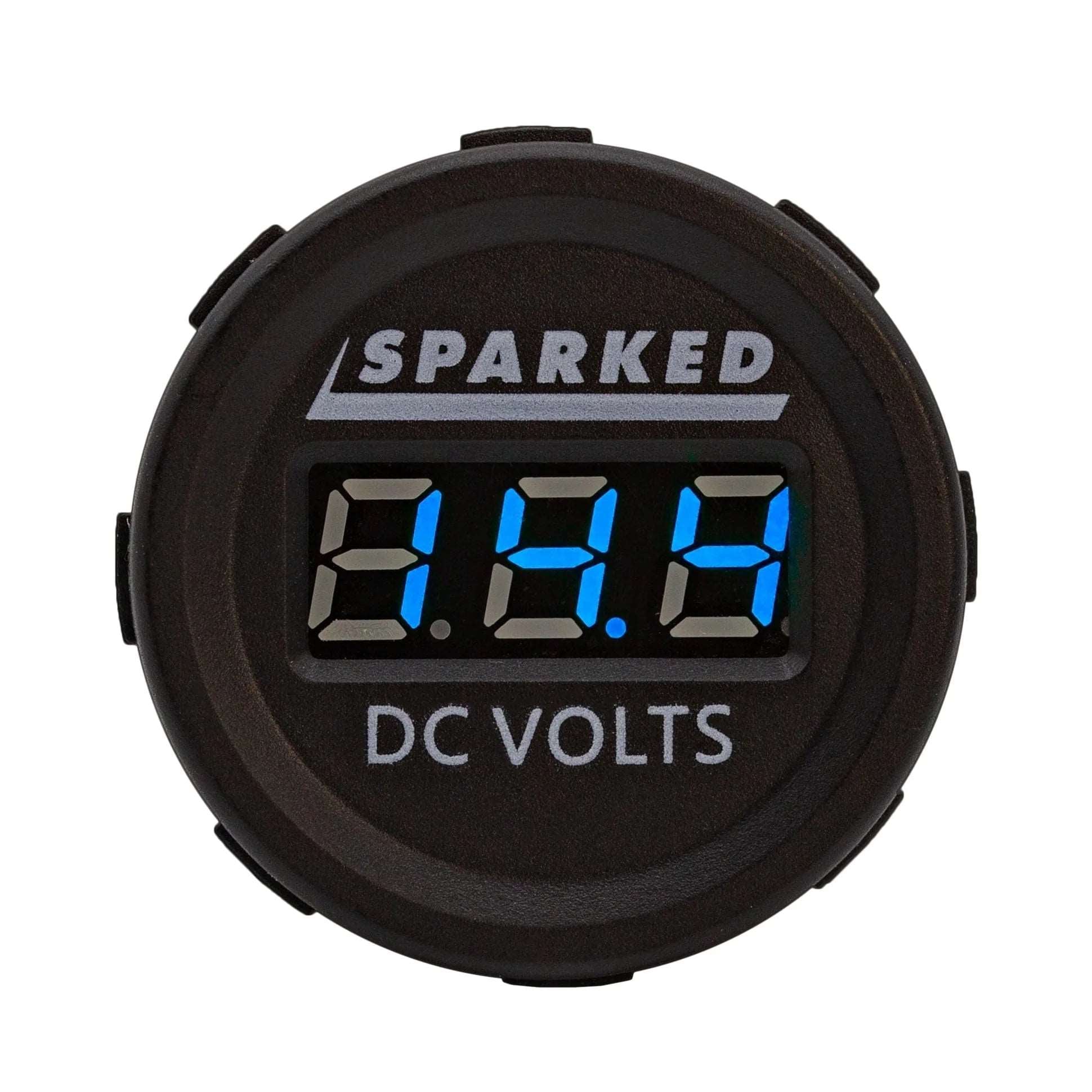

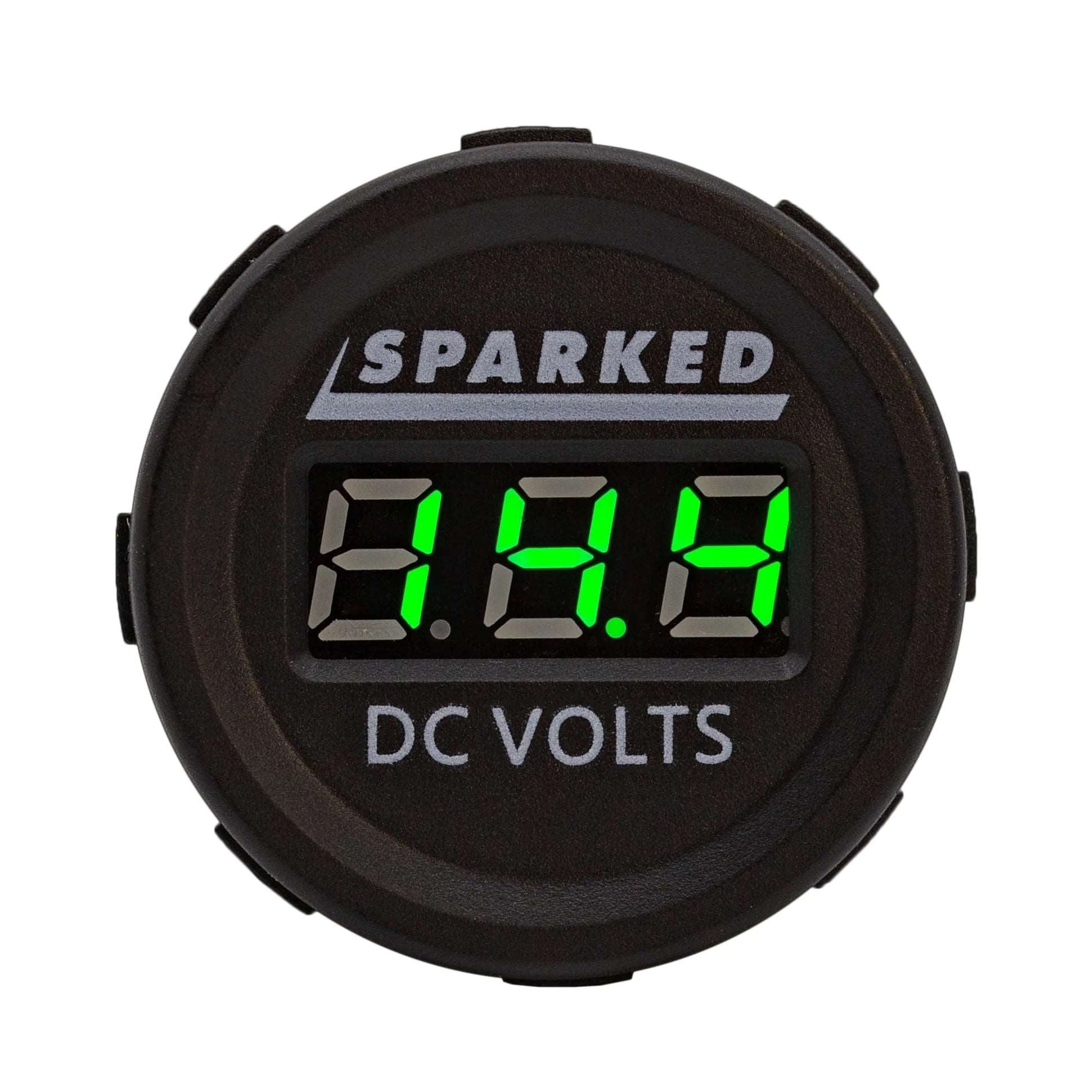

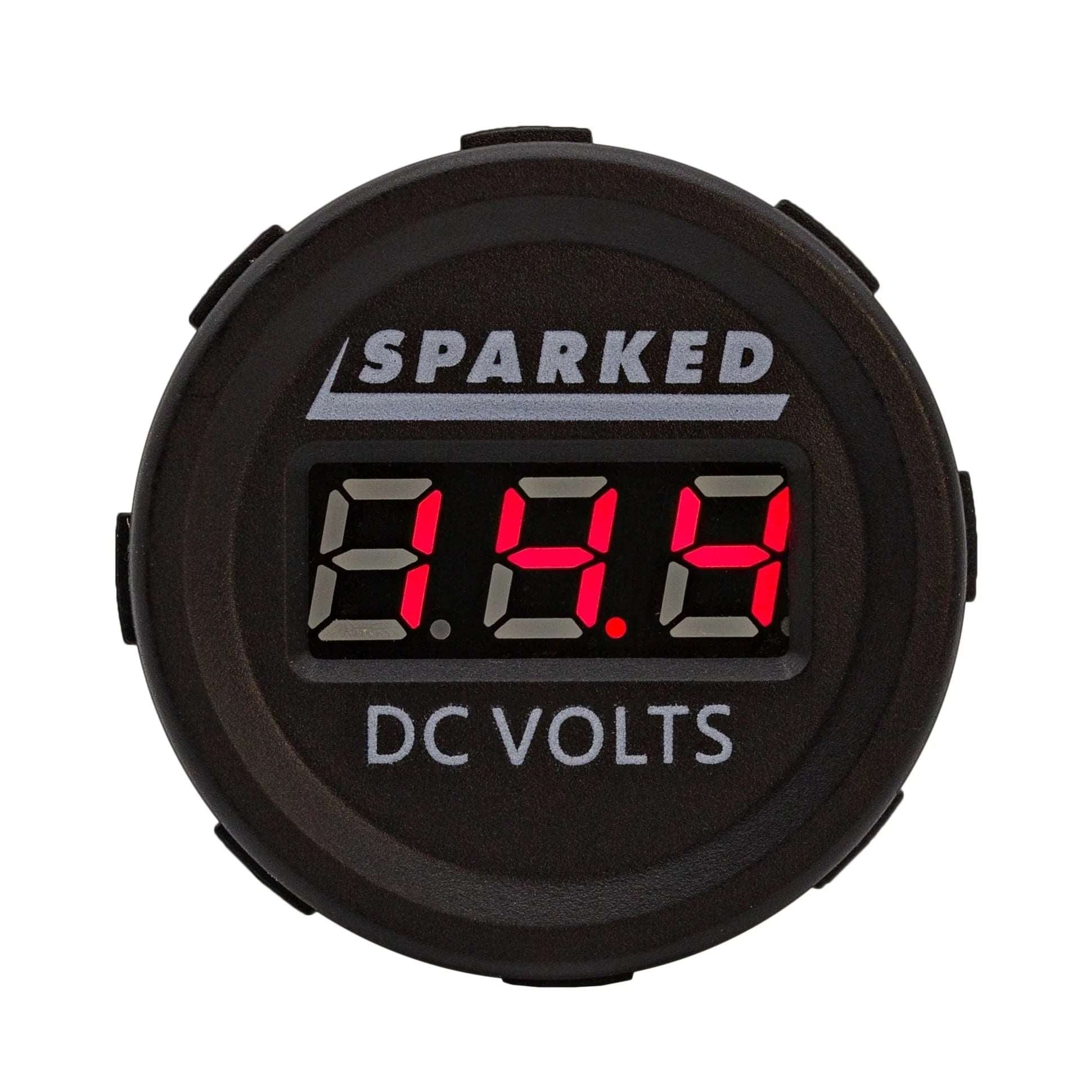

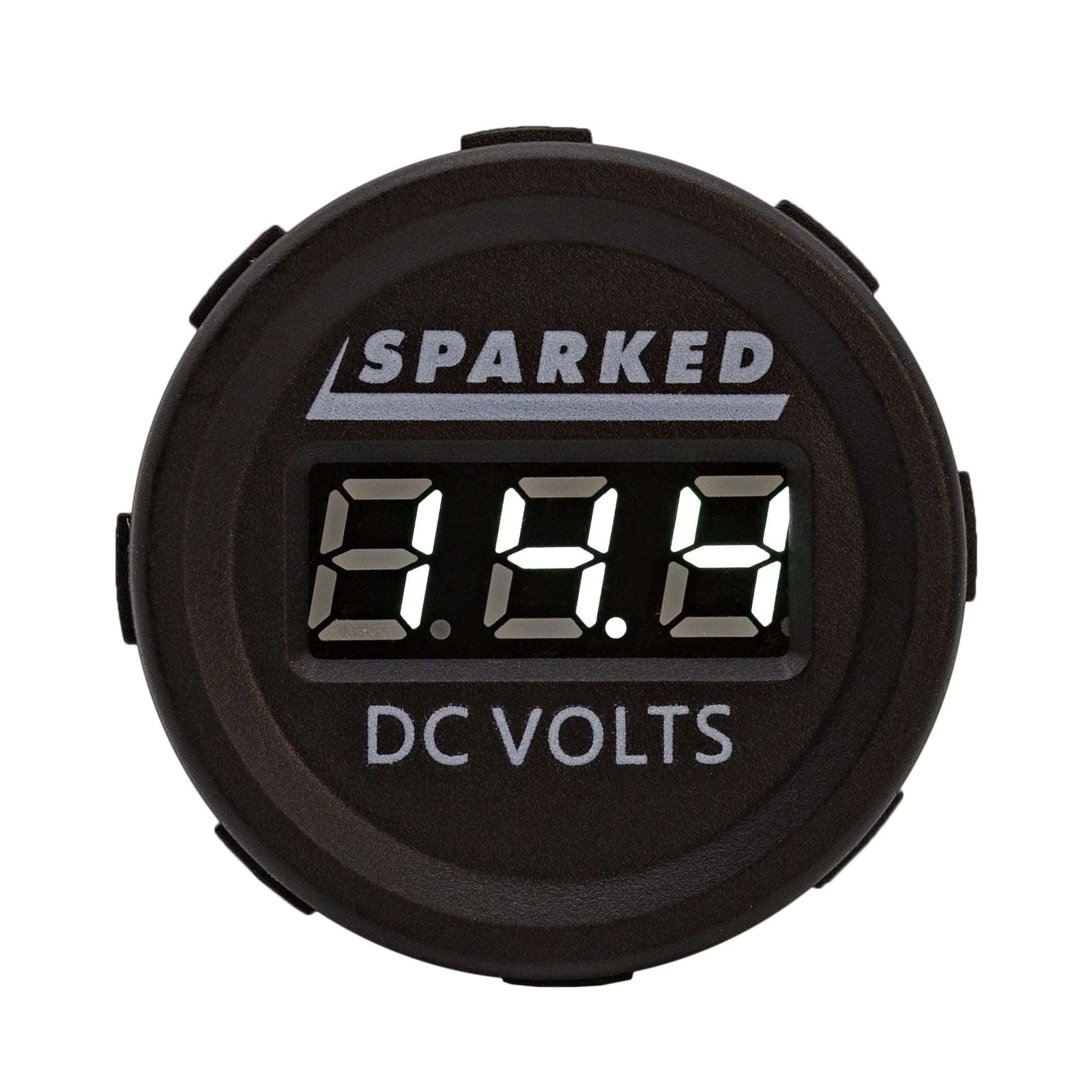

Single 12VDC Voltmeter Battery Voltage Monitor

Save $1.49
Sparked InnovationsSKU: YJ-DS4010-PR

Color: Purple
Price:
Sale price$9.00 USD Regular price$10.49 USD
Stock:
In stock

Description

Universally use this 12VDC Voltmeter with LED display to monitor any 12volt application from marine to automotive dash panels. It’s similar in size to an automotive cigarette lighter mounting hole. IP67 waterproof rating allows it to be used on motorcycles or boats to monitor battery voltage.  Circular housing makes it easy to mount.

12VDC Voltmeter with LED display.

Universal for any 12-volt project. Easily fits in automotive or marine dash panels. Similar in size to an automotive cigarette lighter mounting hole. IP67 waterproof rating allows it to be used on motorcycles or boats to monitor battery voltage.  Circular housing makes it easy to mount.

Specifications

  • 5-30v DC operation range
  • 3 digit digital display
  • Anti-reverse, anti-short circuit protection
  • ABS and nylon housing. Impact resistant and IP67 rated for water submersion up to 1 meter
  • Operating temp -25~80C
  • Accuracy class 0.1
  • Mounting hole diameter - 29.2mm
  • Overall diameter - 36.5mm
  • Mounting depth - 31.5mm including terminals
  • Digit height - 8mm

Specifications

Color Blue   Green   Purple   Red   White
Waterproof Rating IP67
Symbol Power   Ring
Product Brand Sparked Innovations
Overall Diameter 36.5mm
Operating Temperature >-11.2°F to 176°F, -25°C to 80°C
Mounting Hole Diameter 29.2mm
Mounting Depth 31.5mm (including terminals)
Digit Height 8mm
