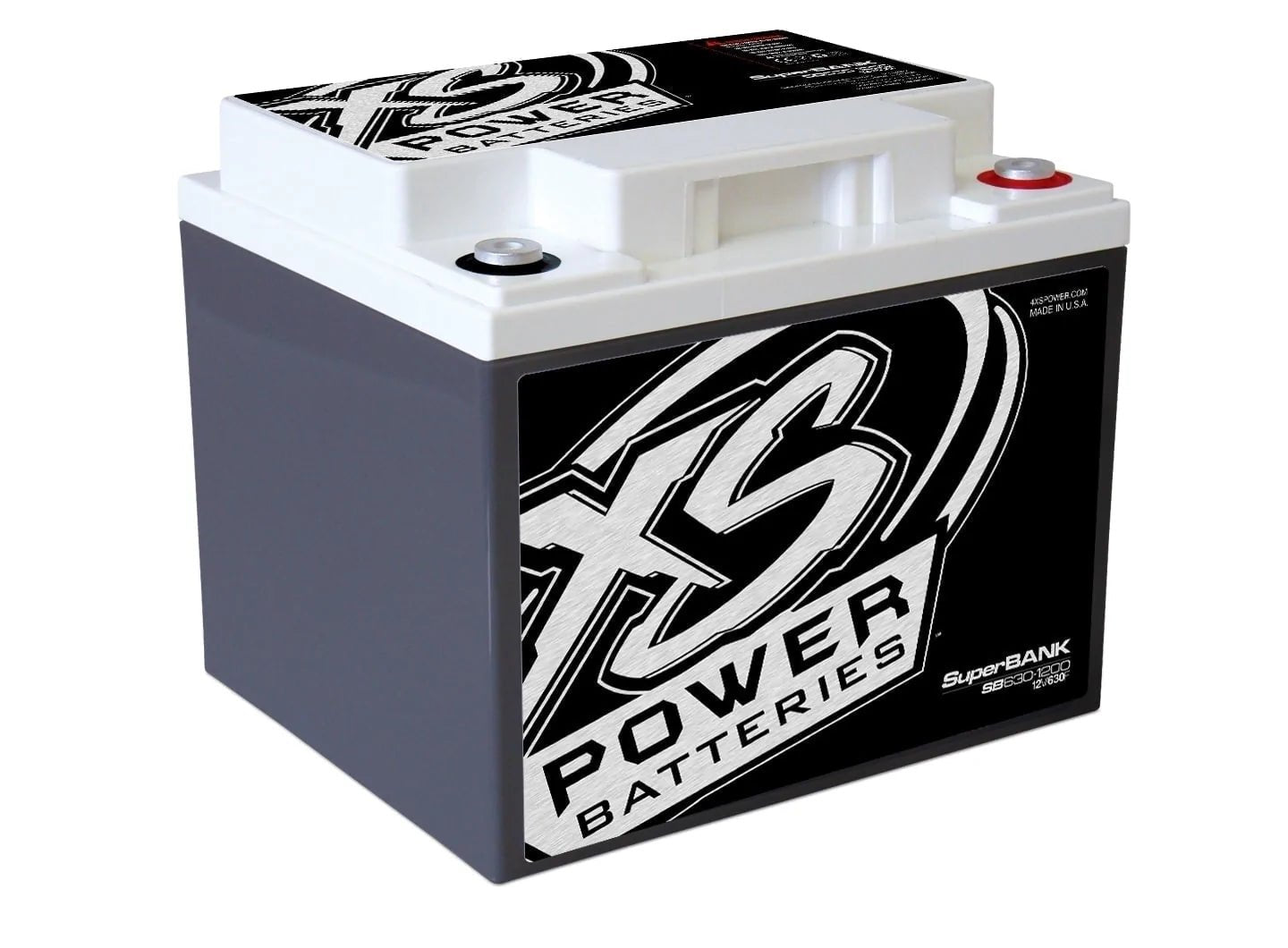

SB630-1200 XS Power 630F SuperBank 12V Ultracapacitors

XS PowerSKU: SB630-1200

Sale price$499.99
In stock


The SB630-1200 by XS Power is a 14.25 volt 12V SuperBank capacitor module made up of supercapacitors (aka supercaps, goldcaps, or ultracaps) with a maximum current capacity of 15500A. Watt hours are rated at 16Wh, total capacitance is 630F, and rated wattage is 4000W. This battery’s polarity orientation is R.

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.

For more information, visit

NOTE: If using a stator or alternator to charge, 12 volt models must be charged between 13.8 and 14.0 volts. 16 volt models must be charged between 17.25 and 17.5 volts.


Capacitance 630F
Watt-Hours 17.75Wh
SuperBank Voltage 14.25VDC
Rated Watts 5000W
Product Brand XS Power
Polarity Orientation Right
Operating Voltage 12.0VDC - 14.25VDC
Operating Temperature >-40°F - 150°F
Maximum Amps 15500A
GTIN12 692209053125
Dimensions 6.54"W, 6.69"H, 7.80"L
