Description

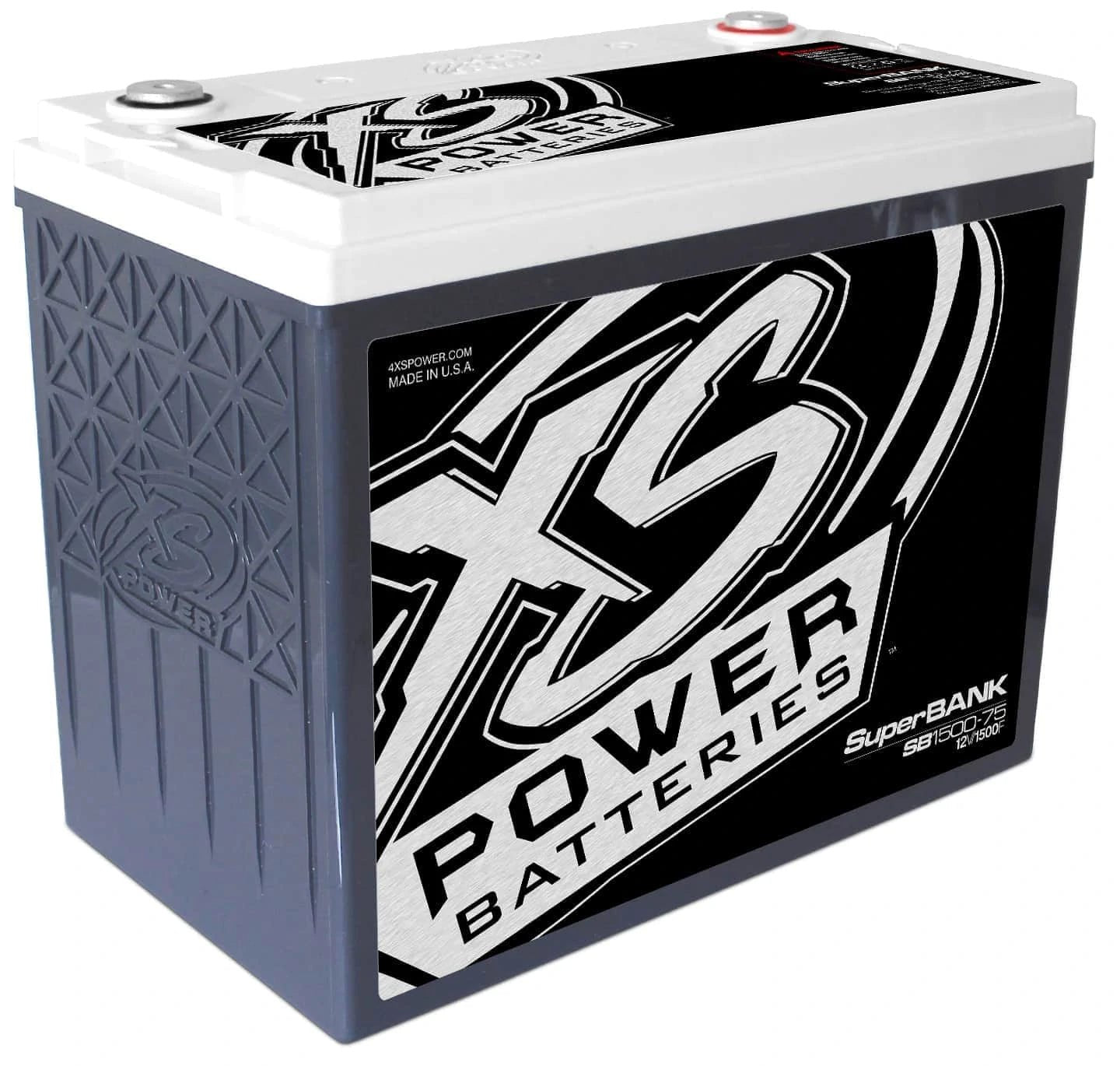

The SB1500-75 by XS Power is a 16.2 volt, Group GC12 12V SuperBank capacitor module made up of supercapacitors (aka supercaps, goldcaps, or ultracaps) with a maximum current capacity of 30000A. Watt hours are rated at 54.60Wh, total capacitance is 1500F, and rated wattage is 12000W. This battery’s polarity orientation is L.
PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
For more information, visit www.P65Warnings.ca.gov
NOTE: If using a stator or alternator to charge, 12 volt models must be charged between 13.8 and 14.0 volts. 16 volt models must be charged between 17.25 and 17.5 volts.Specifications
BCI Group Number | GC12 |
Capacitance | 1500F |
Watt-Hours | 54.6Wh |
SuperBank Voltage | 16.2VDC |
Rated Watts | 12000W |
Product Brand | XS Power |
Polarity Orientation | Left |
Operating Voltage | 12.0VDC - 16.2VDC |
Operating Temperature | >-40°F - 150°F |
Maximum Amps | 30000A |
GTIN12 | 692209053149 |
Dimensions | 10.75"H, 12.90"L, 7.20"W |
