- RMS 500 watts
- Dual 2 or 4 ohm voice coils
- Vented magnetic gap with 16 chamfered vents
- Large aluminum Faraday ring for smooth acoustic response
- Patented high-strength cast aluminum frame
- Low distortion motor construction
- High-temperature voice coil wire
- Spring-loaded terminals
- Stitched-on “XL” tinsel lead wires

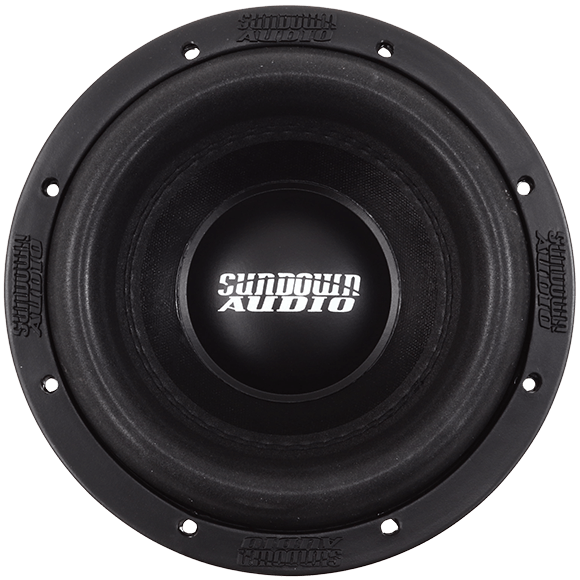

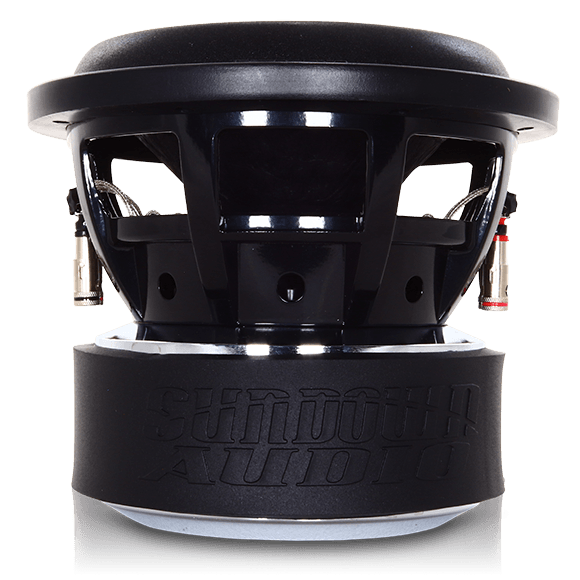

The pinnacle of low distortion ported box subwoofer technology, the SA 8-inch sub is completely custom tooled. It has a full 16mm of one-way linear excursion and mechanical capacity, exceeding double the linear limits, ensuring durability and low distortion. The
v.3 update includes a new surround with linear geometry and improved thermal performance with the addition of 16 chamfered gap vents to keep high-velocity air flowing over the voice coil.
SA V.3 8"
| RE (Ohms) |
3.36 |
6.0 |
| FS (Hz) |
38.29 |
40.0 |
| VAS (L) |
6.88 |
7.17 |
| Qes |
0.324 |
0.392 |
| Qms |
6.31 |
4.31 |
| Qts |
0.309 |
0.36 |
| Le (mH) |
2.08 |
3.32 |
| BL (NA) |
18.94 |
22.06 |
| Mms (Grams) |
144 |
126.6 |
| Cms (uM/N) |
120 |
125 |
| Sens (dB @ 1w/1m) |
82.79 |
82.71 |
| Xmax |
16mm |
16mm |
| T/S SPECS |
SAV3 8″ D2 |
SAV3 8″ D4 |
SA V.3 8"
| Sealed Enclosure |
0.3 cu ft |
| Ported Enclosure |
0.65 cu ft |
| Recommended Tuning |
35Hz |
| Recommended Port Area |
9 sq in |
| Displacement |
0.08 cu ft |
| Depth |
6.625″ |
| Outside Diameter |
8.375″ |
| Cut-Out |
7.375″ |
| Physical Dimensions |
