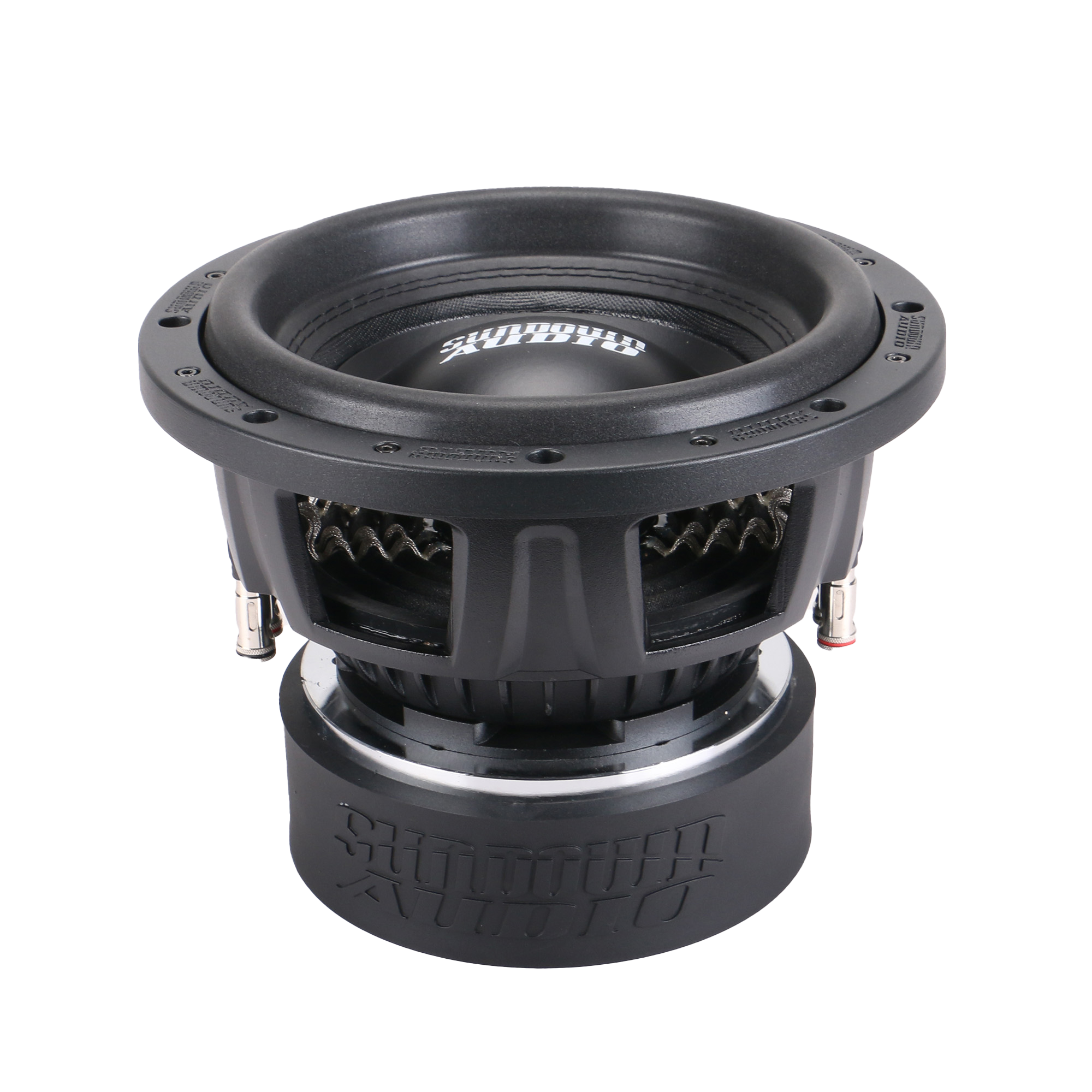

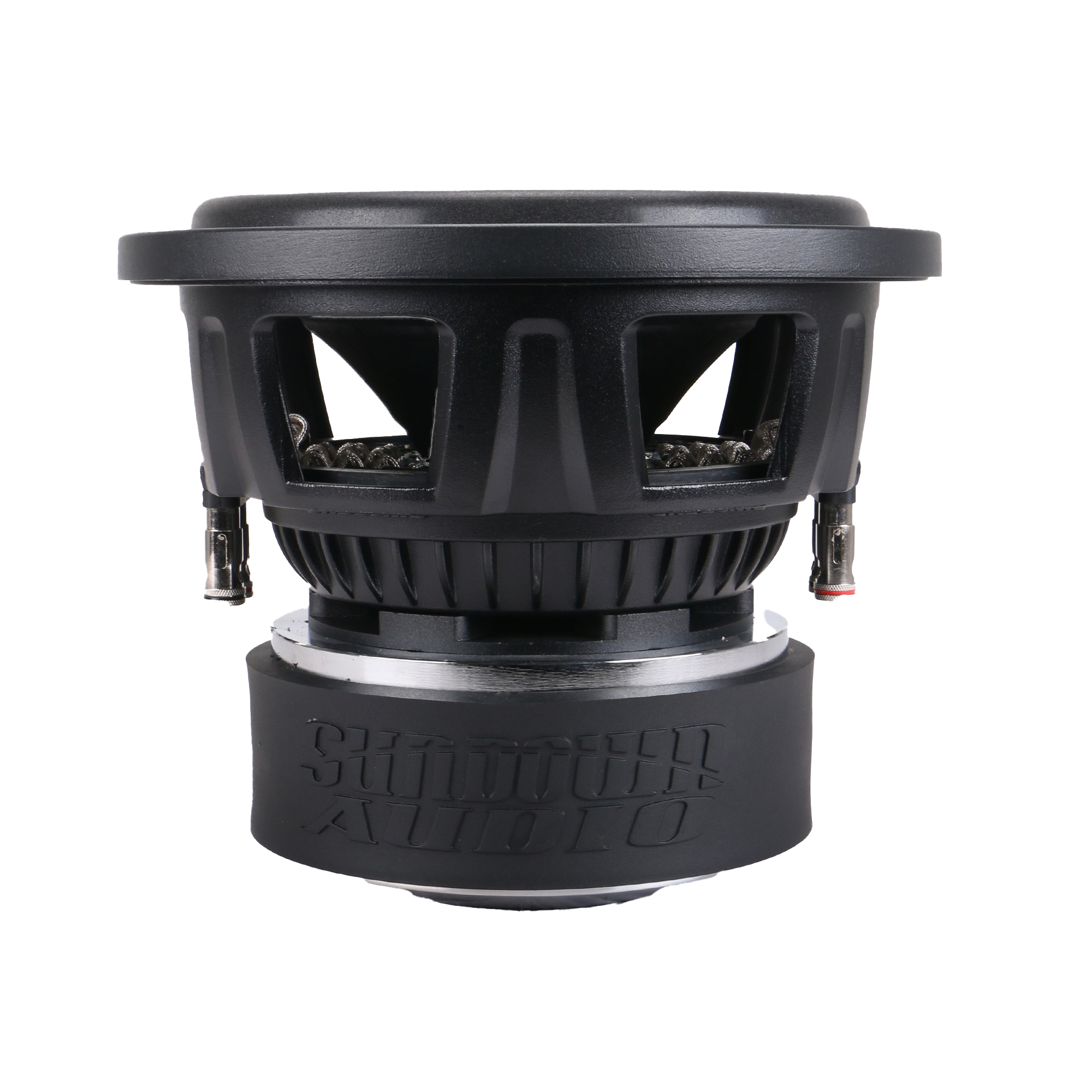

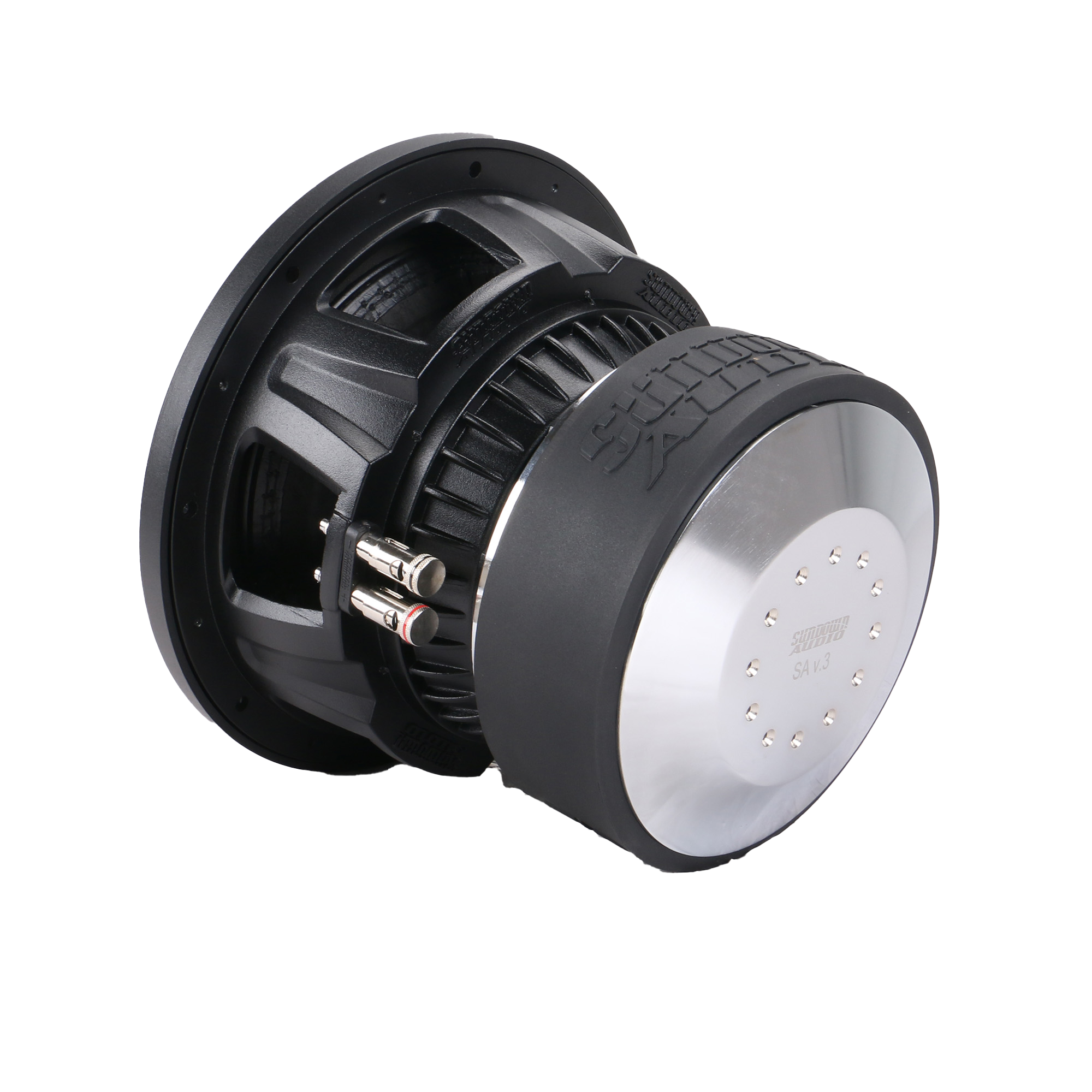

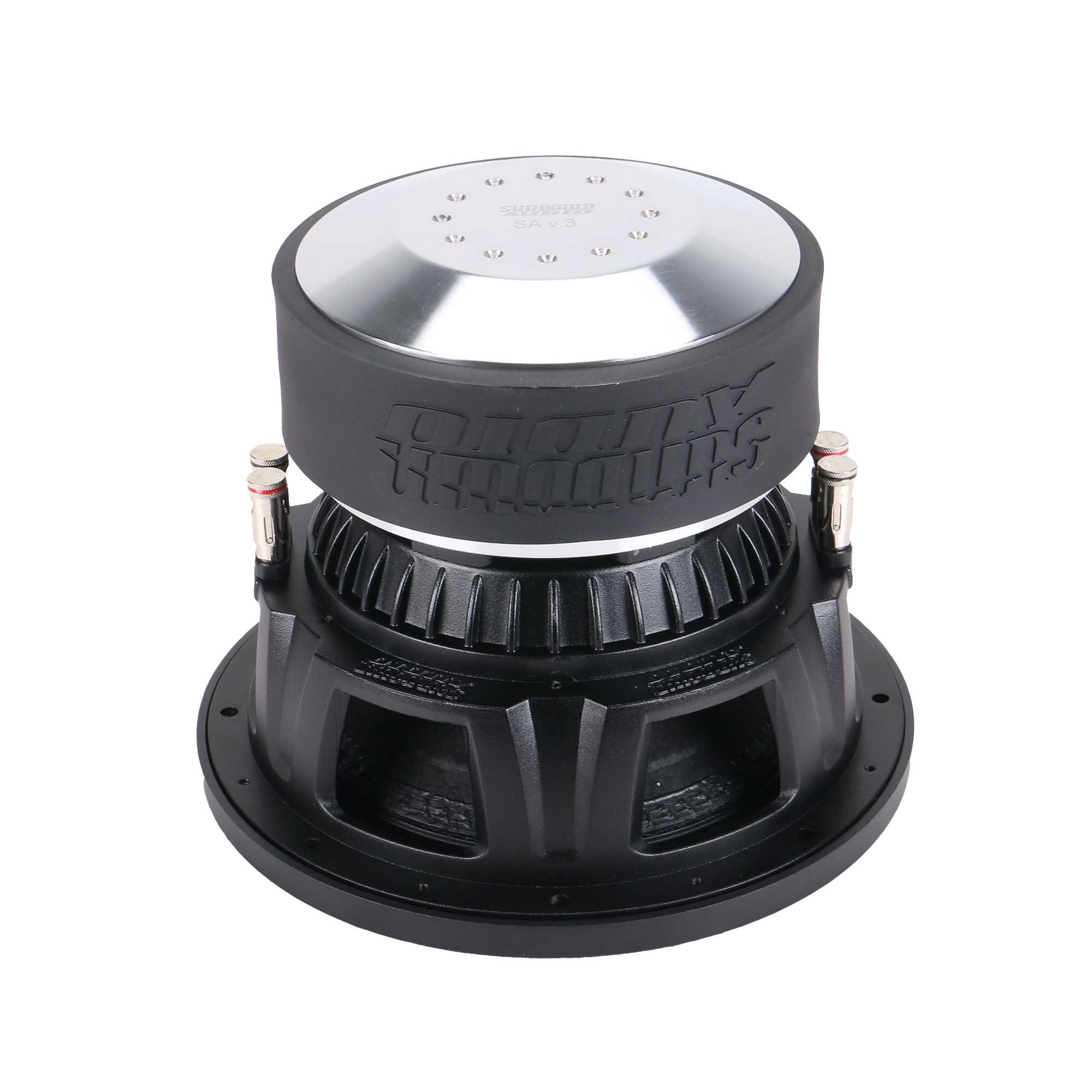

SA-Series v.3 10" Subwoofer

Sundown AudioSKU: SW-SAV310D4

Price:
Sale price$399.99
Stock:
Sold out

Description

  • RMS 1250 watts
  • Dual 2 or 4 ohm voice coils

Specifications

RE (Ohms) 3.4 6.06
FS (Hz) 36 36
VAS (L) 10.286 8.497
Qes 0.501 0.509
Qms 2.341 2.445
Qts 0.413 0.421
Le (mH) 3.517 4.456
BL (NA) 22.267 31.742
Mms (Grams) 304.447 337.651
Cms (uM/N) 57.024 47.126
Sens (dB @ 1w/1m) 82.5 82.1
Xmax 22mm 22mm
T/S SPECS SAV3 10″ D2 SAV3 10″ D4

Enclosure Specifications

Sealed Enclosure 0.5 cu ft
Ported Enclosure 1.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 15 sq in
Displacement .17 cu ft
Depth 6.92"
Outside Diameter 11″
Cut-Out 9.5″
Physical Dimensions Download

Enclosure Designs

Design specification sheet for a speaker enclosure by Bassahaulic Designs tailored for the Sundown Audio SA-Series v.2 10" 1000W Subwoofer. It features dimensions, port size, and tuning frequency details with a cautionary note about confirming the powerful motor's compatibility with 1000-watts RMS power. This 3D model showcases a subwoofer box design with an open circular cutout, ideal for the Sundown Audio SA-Series v.2 10" 1000W Subwoofer. Dimensions are marked: 16 1/2 inches in width, 13 inches in height, and 15 1/2 inches in depth. The BASSAHAULIC DESIGNS logo is displayed on the bottom left, making it suitable for handling a powerful motor. A diagram of a wooden panel with a circular cutout on the right side designed to fit the Sundown Audio SA-Series v.2 10" 1000W Subwoofer. The cutout, crafted to accommodate the subwoofer's powerful motor, has a diameter of 5 3/4 inches. The overall panel dimensions are 16 1/4 inches wide and 11 1/2 inches tall, featuring branding from Sundown Audio. A 3D diagram illustrates a wooden box featuring a circular cutout on the base, specifically crafted for the Sundown Audio SA-Series v.2 10" 1000W Subwoofer. Dimensions outlined in blue include a width of 20 inches, height of 15 1/2 inches, and depth of 14 3/4 inches, underscoring its compatibility with the robust motor and impressive performance capability. The Bassaholic Design logo is also prominently displayed.
A blueprint-style diagram of a rectangular object with dimensions labeled in inches shows outer measurements of 18 1/2 inches by 15 1/2 inches, and an inner section specifically designed to fit a Sundown Audio SA-Series v.2 10" 1000W Subwoofer. A logo in the bottom left corner reads Bassahaulio Designs, tailored for precision and power. The blueprint-style diagram highlights beige panels marked with dimensions of 16 inches by 14 inches, similar to the housing of the Sundown Audio SA-Series v.2 10" 1000W Subwoofer. The rectangular design features a logo for Bassahulto Design in the bottom left corner, showcasing its precision engineering. A 3D rendering of a wooden enclosure designed for the Sundown Audio SA-Series v.2 10" 1000W Subwoofer, featuring an open circular hole that reveals internal compartments. The enclosure showcases a light wood grain texture and casts a shadow on a light background, with the Sundown Audio logo positioned in the bottom left corner. An illustration displays the arrangement of six rectangular wooden pieces crafted for a speaker box compatible with the Sundown Audio SA-Series v.2 10" 1000W Subwoofer: two pieces measuring 20x13 1/4 for the top and bottom, two pieces measuring 15 1/2x13 for the sides, one piece measuring 16 1/4x11 1/2 for the front, and one piece measuring 13×...
.Zip File
