Resilient Sounds RS 8M 275W 4Ω 8" Speaker

Save $20.00
Resilient SoundsSKU: RS-8M-SP

Price:
Sale price$44.99 Regular price$64.99
Stock:
In stock

Description

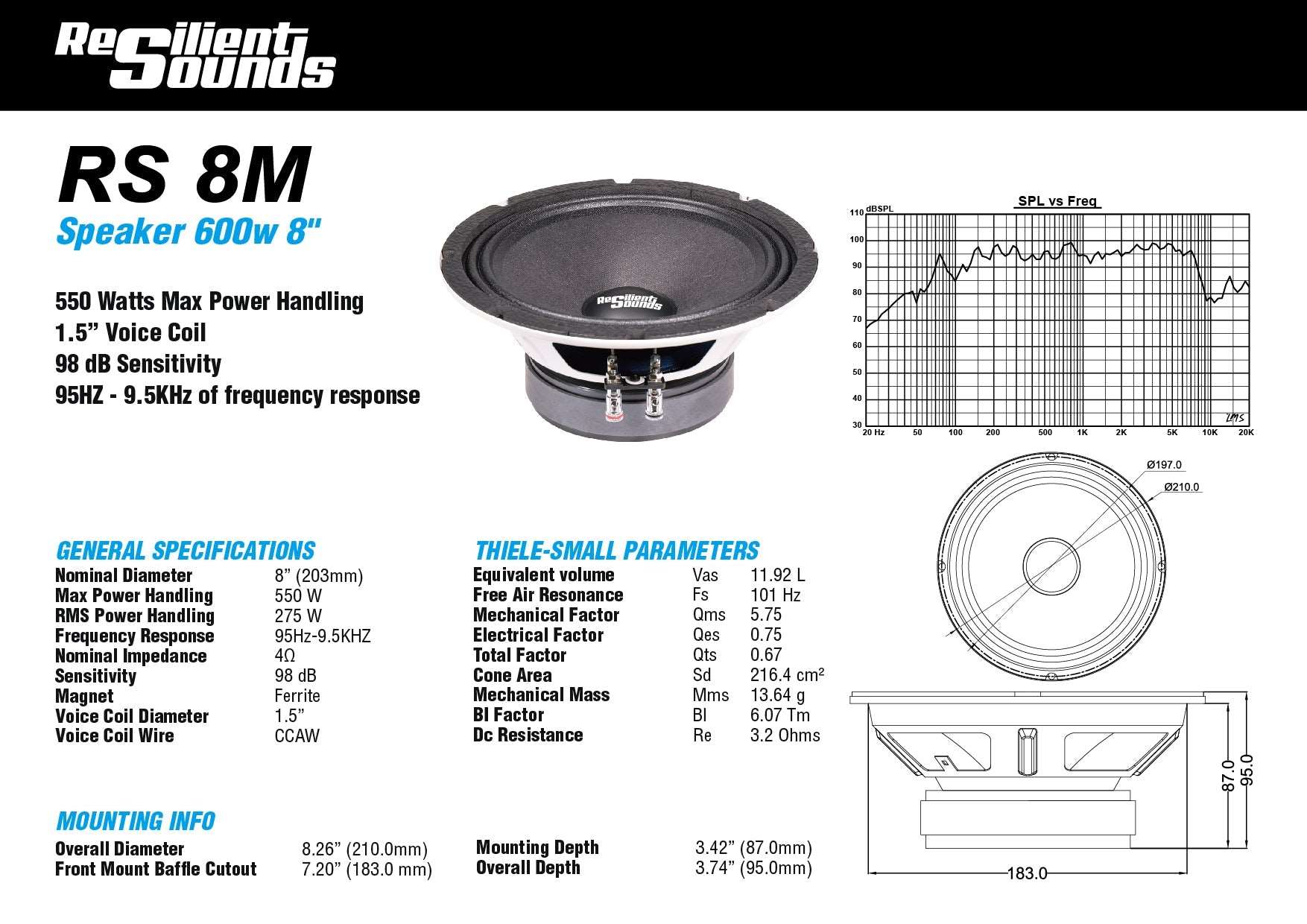

RS 8M



 550 Watts Max Power Handling



1.5" Voice Coil



98 dB Sensitivity



95HZ-9.5KHz of frequency response



GENERAL SPECIFICATIONS



Nominal Diameter          8” (203mm)

Max Power Handling      550 w

RMS Power Handling     275 w

Frequency Response      95Hz-9.5KHZ

Nominal Impedance       4ohm

Sensitivity                         98 dB

Magnet                              Ferrite

Voice Coil Diameter        1.5"

Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS



Equivalent Volume         Vas        11.92 L

Free Air Resonance        Fs           101 Hz

Mechanical Factor          Qms      5.75

Electrical Factor               Qes       0.75

Total Factor                     Qts        0.67

Cone Area                        Sd          216.4cm²

Mechanical Mass            Mms     13.64 g

BI Factor                           BI           6.07 Tm

Dc Resistance                  Re          3.2 Ohms



MOUNTING INFO



Overall Diameter                          8.26”(210mm)

Front Mount Baffle Cutout          7.2"(183mm)

Mounting Depth                           3.42"(87mm)

Overall Depth                                 3.74"(95mm)


Specifications

Product Brand Resilient Sounds
RMS Power 275W
Diameter 8"
