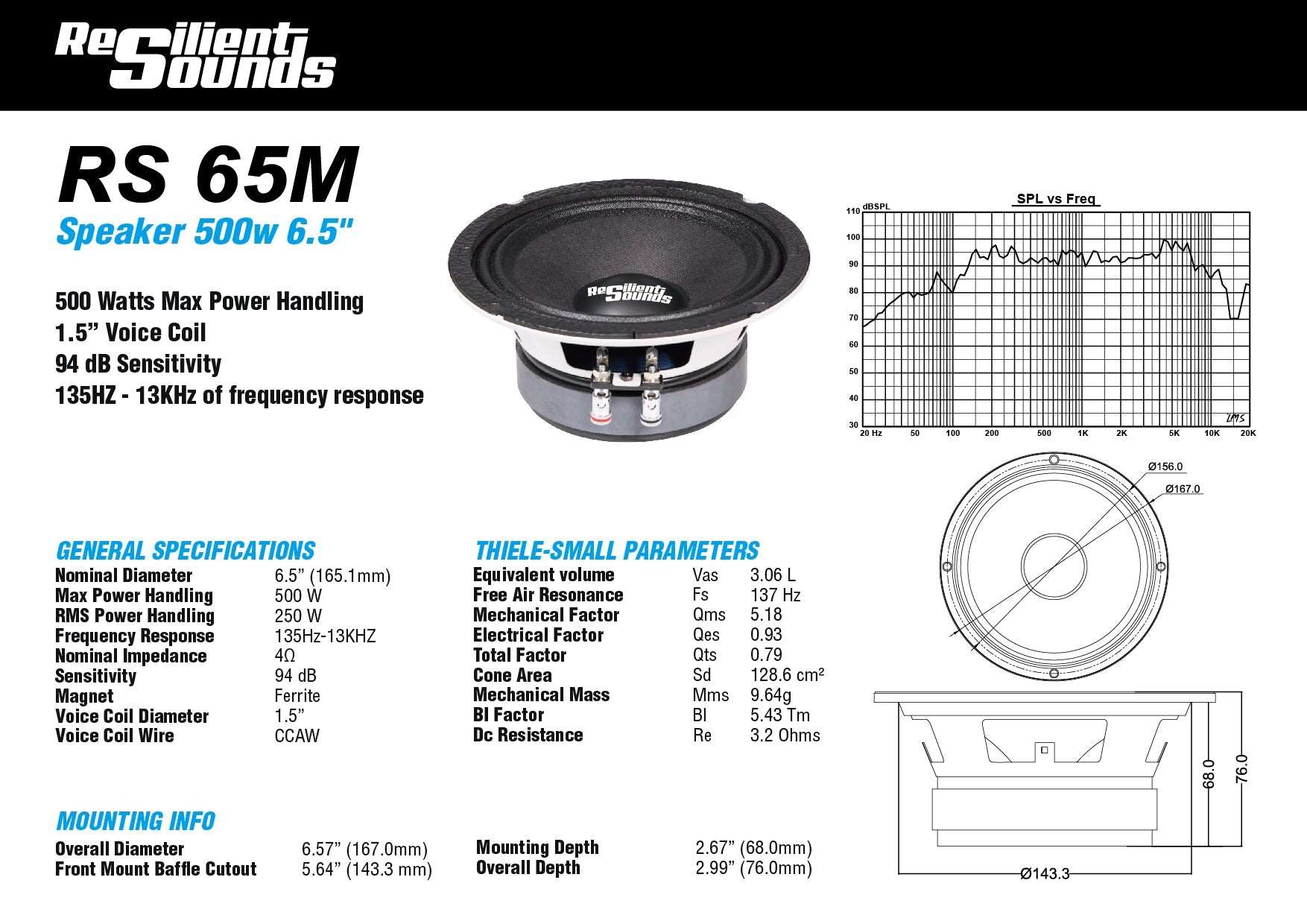

Description
RS 65M
500 Watts Max Power Handling
1.5" Voice Coil
94 dB Sensitivity
135HZ-13KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 6.5” (165.1mm)
Max Power Handling 500 w
RMS Power Handling 250 w
Frequency Response 135Hz-13KHZ
Nominal Impedance 4ohm
Sensitivity 94 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 3.06 L
Free Air Resonance Fs 137 Hz
Mechanical Factor Qms 5.18
Electrical Factor Qes 0.93
Total Factor Qts 0.79
Cone Area Sd 128.6cm²
Mechanical Mass Mms 9.64 g
BI Factor BI 5.43 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 6.57”(167mm)
Front Mount Baffle Cutout 5.64"(143mm)
Mounting Depth 2.67"(68mm)
Overall Depth 2.99"(76mm)
Specifications
| Product Brand | Resilient Sounds |
| RMS Power | 250W |
| Diameter | 6.5" |
