Description

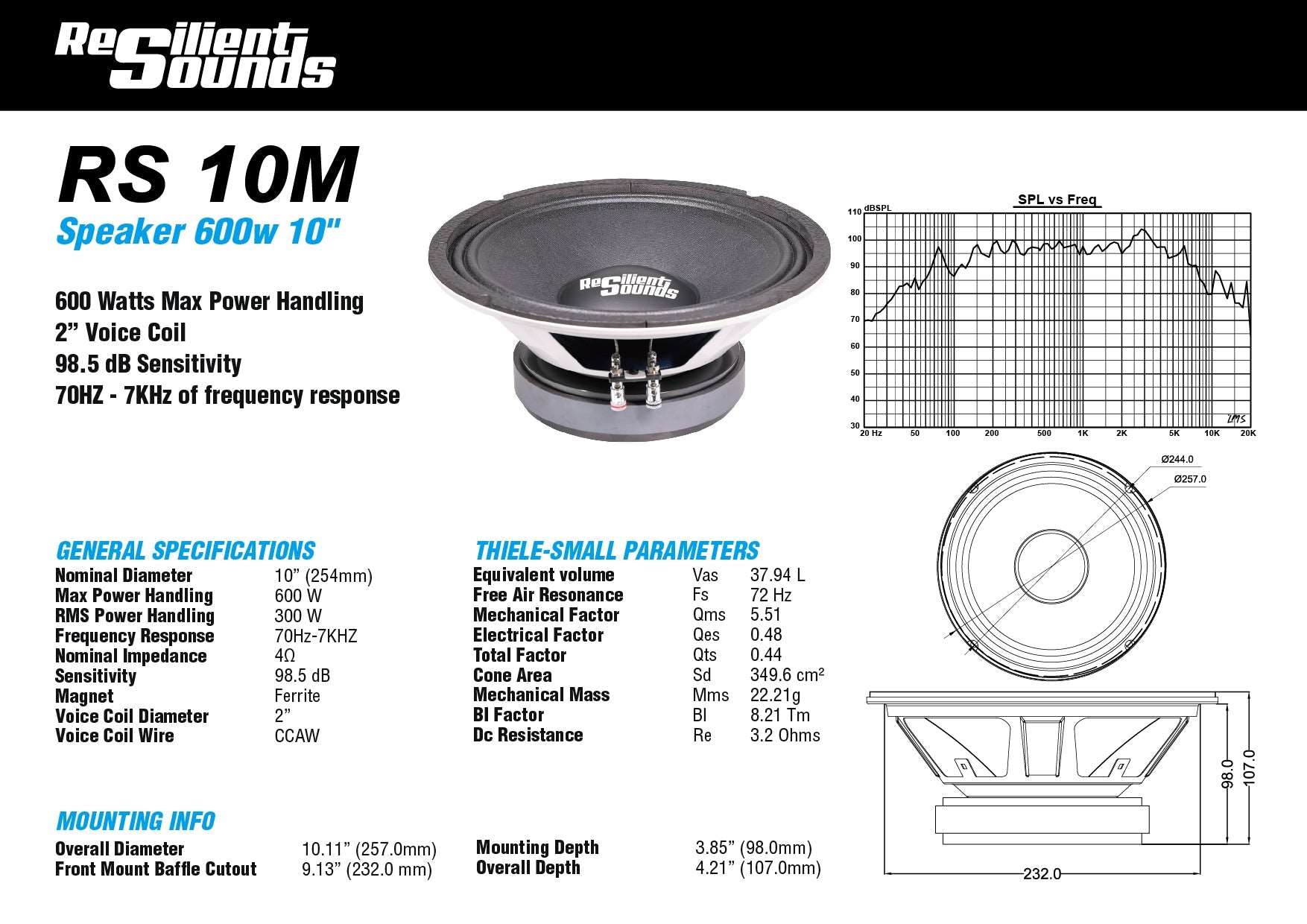

RS 10M
600 Watts Max Power Handling
2" Voice Coil
98.5 dB Sensitivity
70HZ-7KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 10” (254mm)
Max Power Handling 600 w
RMS Power Handling 300 w
Frequency Response 70Hz-7KHZ
Nominal Impedance 4ohm
Sensitivity 98.5 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 37.94 L
Free Air Resonance Fs 72 Hz
Mechanical Factor Qms 5.51
Electrical Factor Qes 0.48
Total Factor Qts 0.44
Cone Area Sd 349.6cm²
Mechanical Mass Mms 22.21 g
BI Factor BI 8.21 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 10.11”(257mm)
Front Mount Baffle Cutout 9.13"(232mm)
Mounting Depth 3.85"(98mm)
Overall Depth 4.21"(107mm)

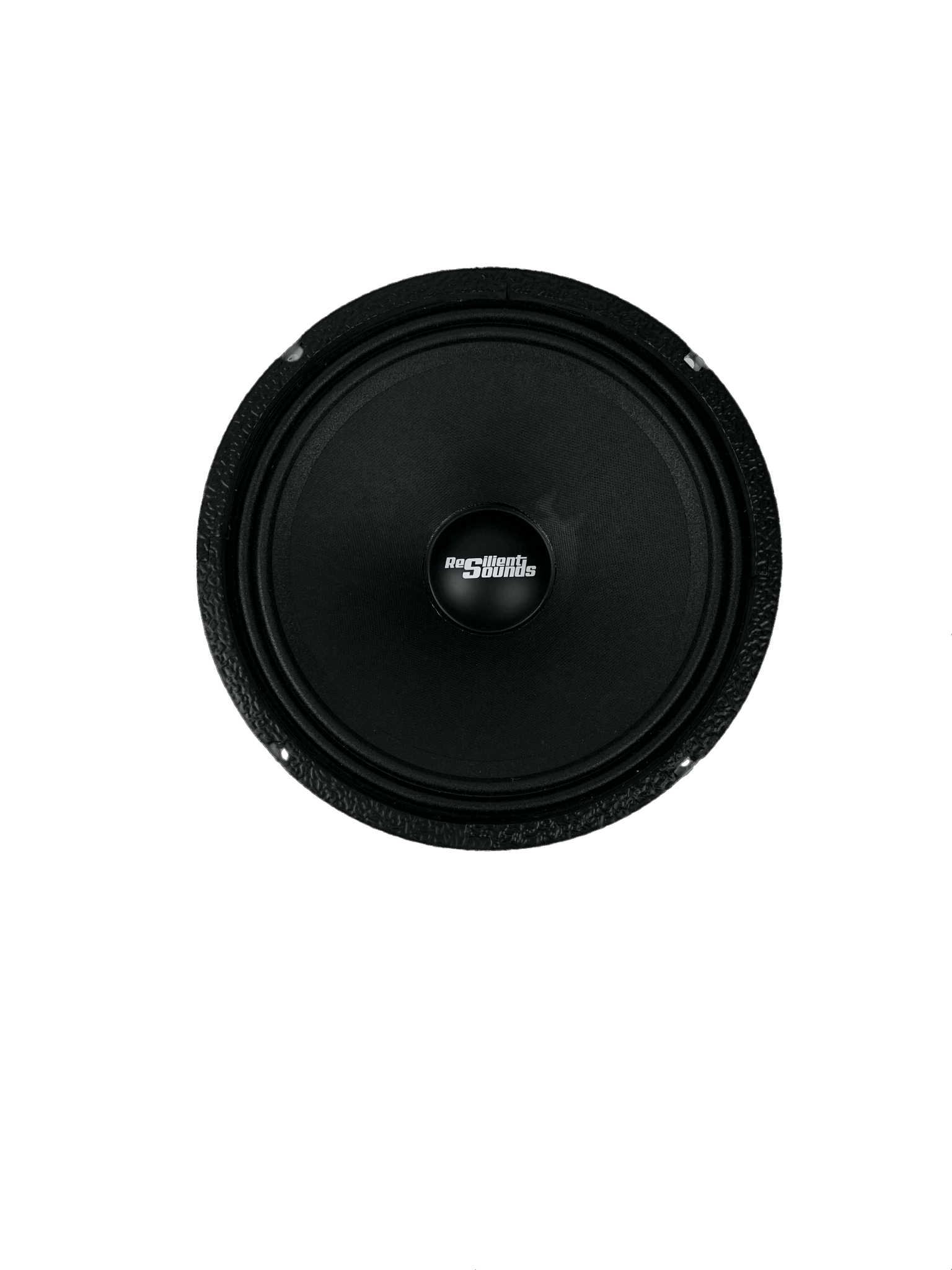

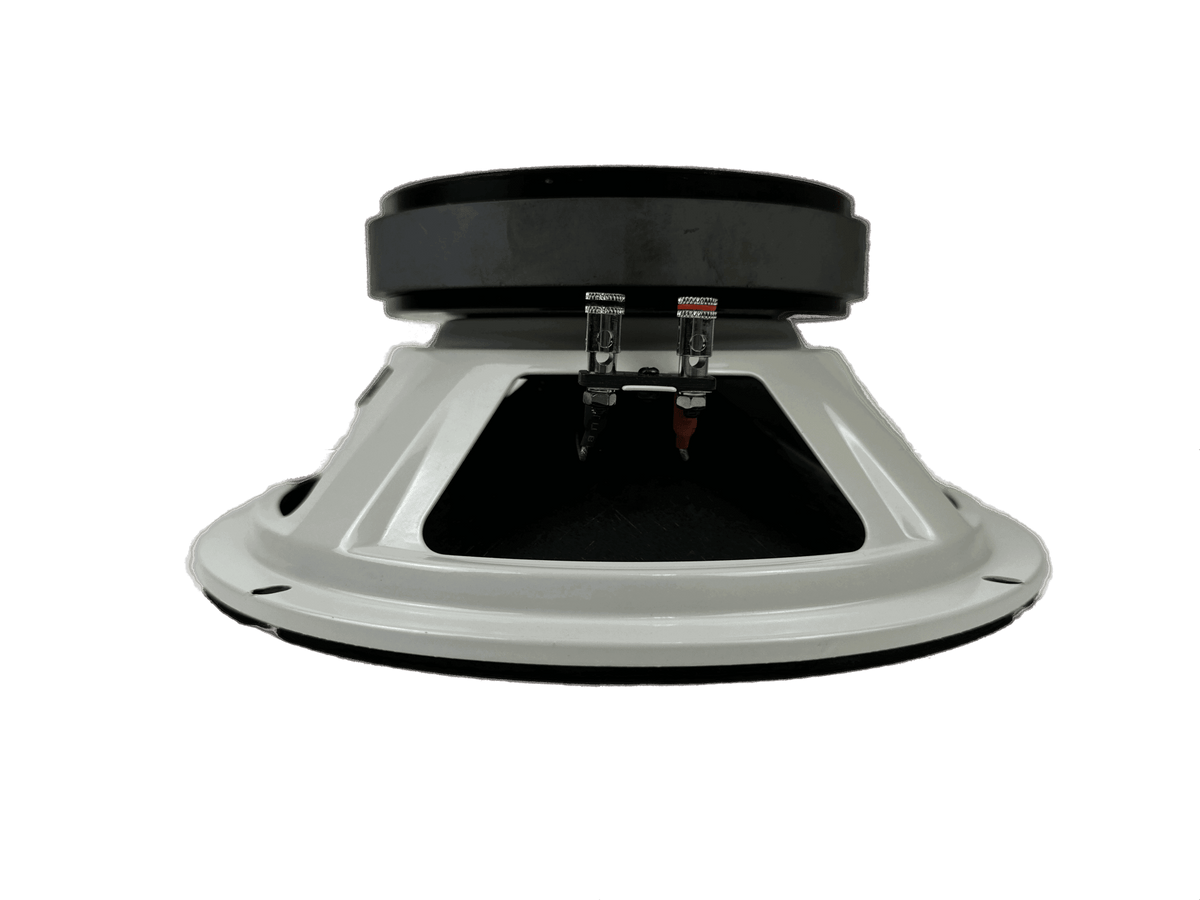

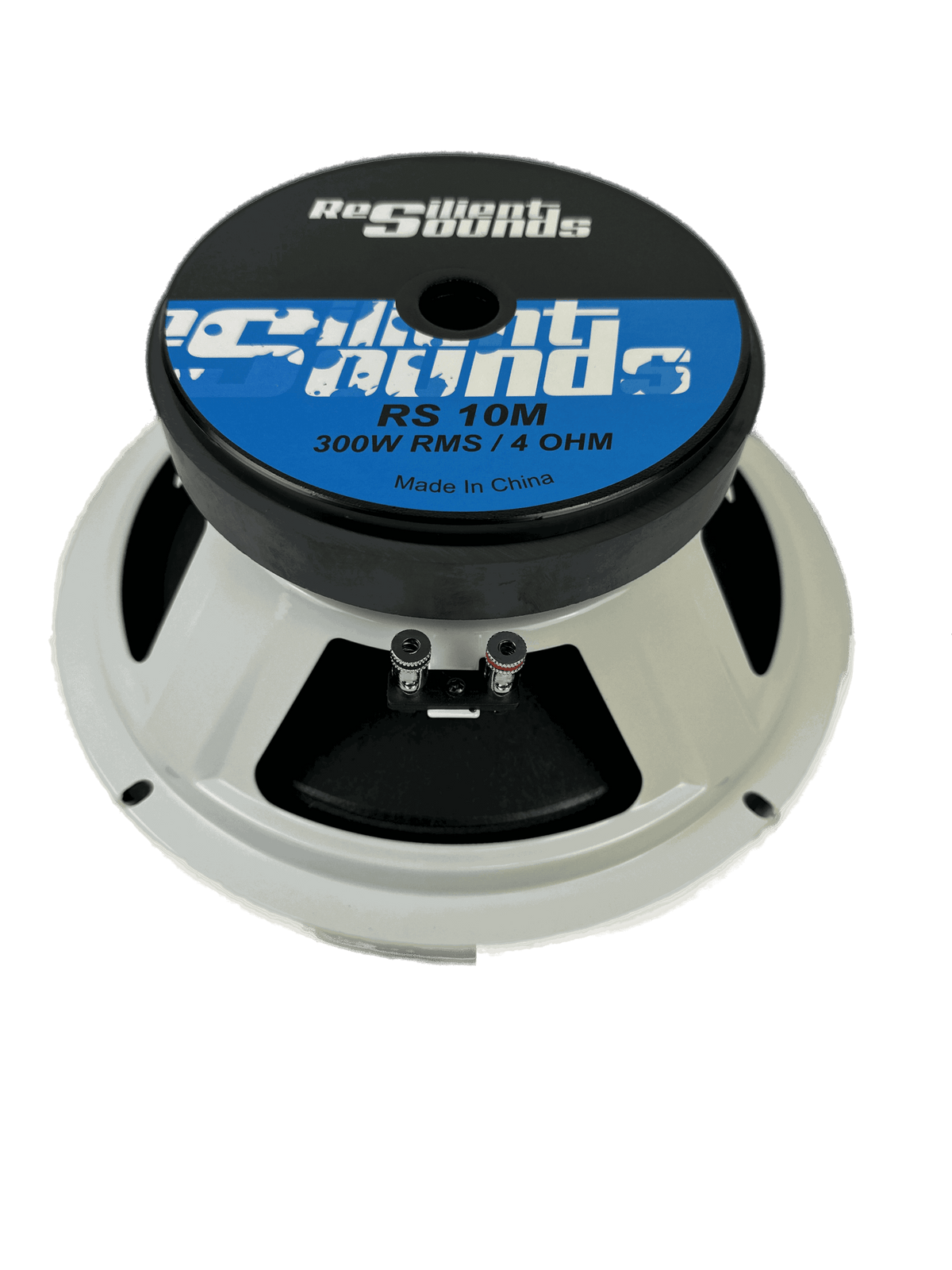

Technical Specifications — Resilient Sounds RS 10M 300W 4Ω 10" Speaker
| Parameter | Value | Unit |
|---|---|---|
| Fs (Resonant Frequency) | 38.9 | Hz |
| Qts (Total Q) | 0.44 | — |
| Vas (Compliance Volume) | 281.4 | L |
| Xmax (Linear Excursion) | 12.7 | mm |
| RMS Power | 300W | — |
Specifications
| Rated Watts | 1000 |
| Product Brand | Resilient Sounds |
| RMS Power | 300W |
| Diameter | 10" |
