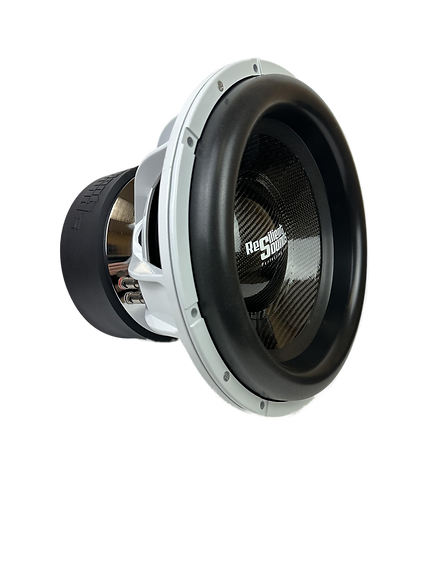

Description
• 13% larger motor
• 20% longer 3” 8 layer coil
• BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)

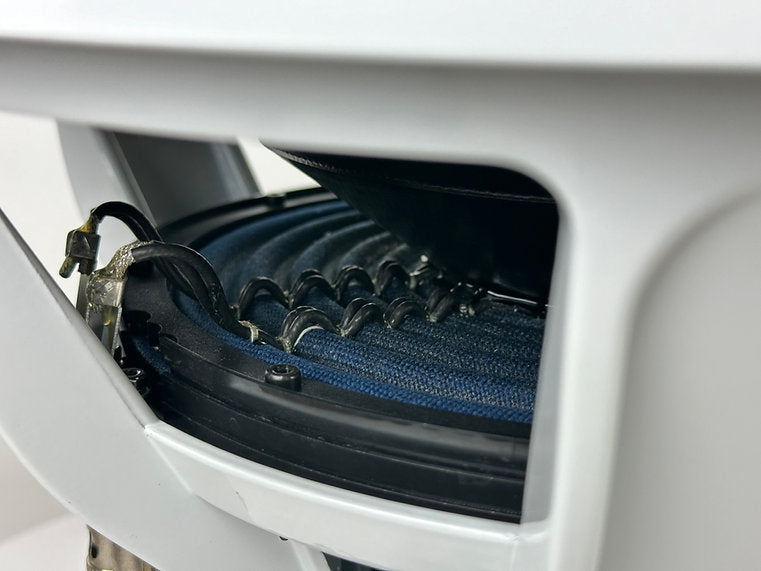

• 10” spider pack with insulated dual leads.

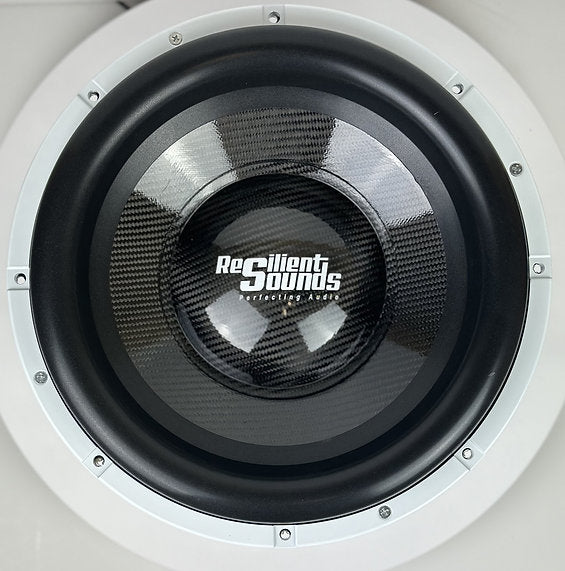

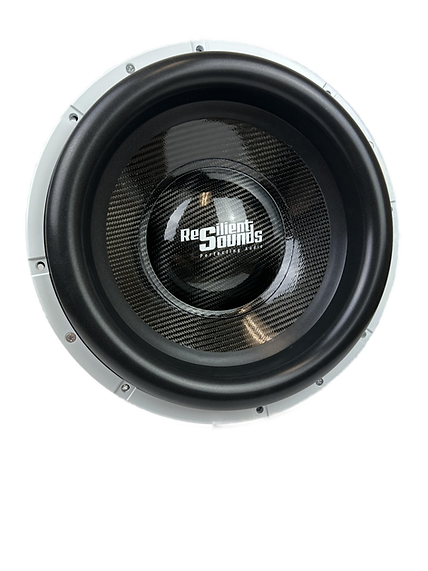

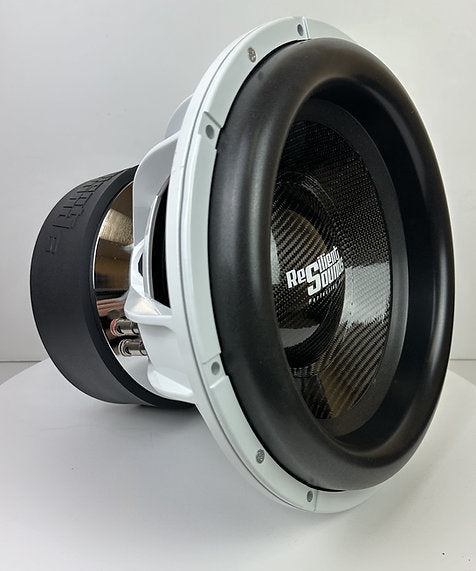

• Carbon fiber cones and dust caps will come standard with the platinum line.

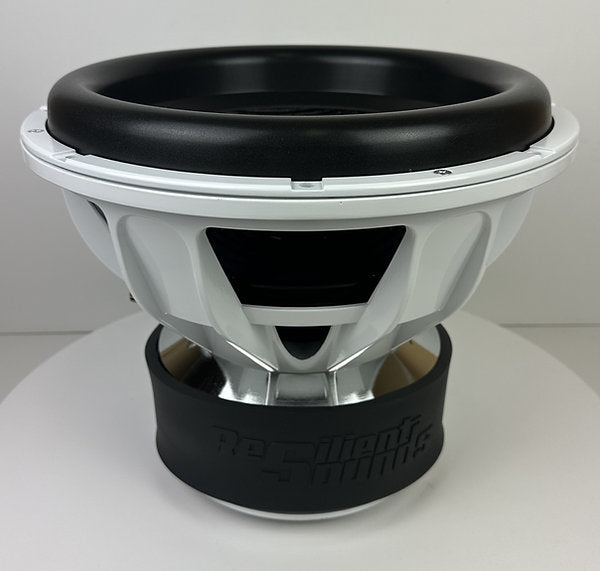

• New high roll tooled surrounds.

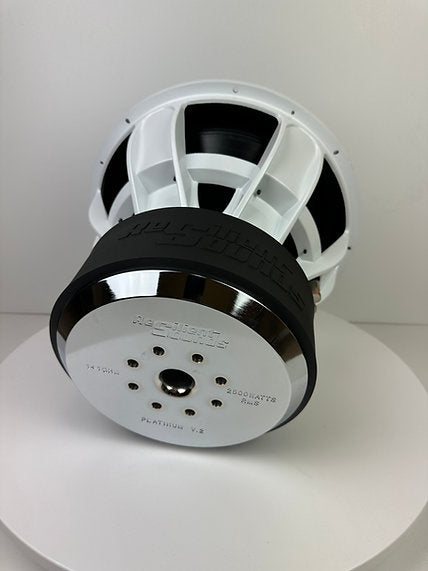

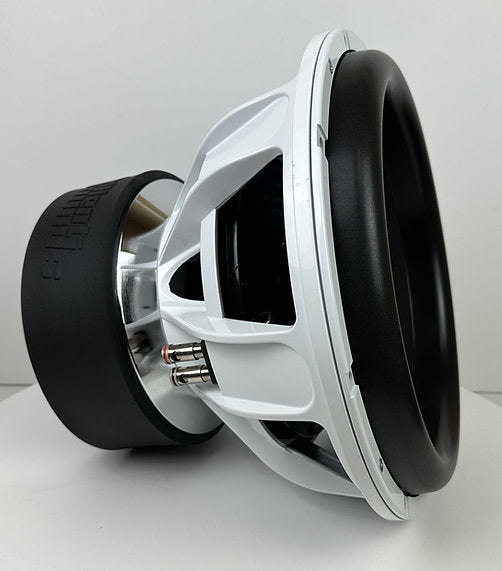

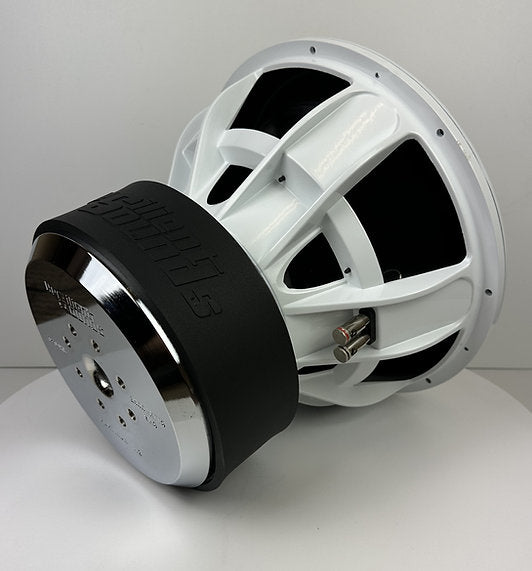

• Cast aluminum frame
• conservative rated at 2,500RMS/5,000Watts
• XMAX 35MM

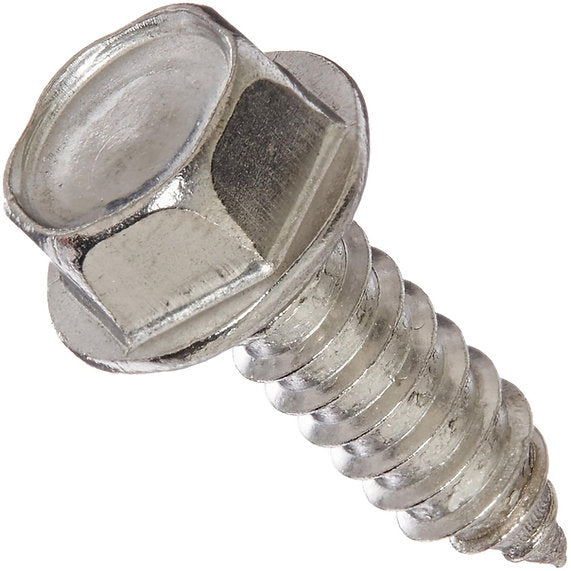

•For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.
BOX SPECS
| CUBIC FT | 2.5-3.5 CUBIC FT PER SUBWOOFER |
| TUNING | 28-33HERTZ |
|
PORT AREA |
12-16 SQ INCHES OF PORT AREA PER CUBIC FT |
| MOUNTING DEPTH | 11.25 INCHES |
| CUTOUT |
14.2363 INCHES |
| DISPLACEMENT | 0.28 CUBIC FT |
Specifications
