Description
• 13% larger motor

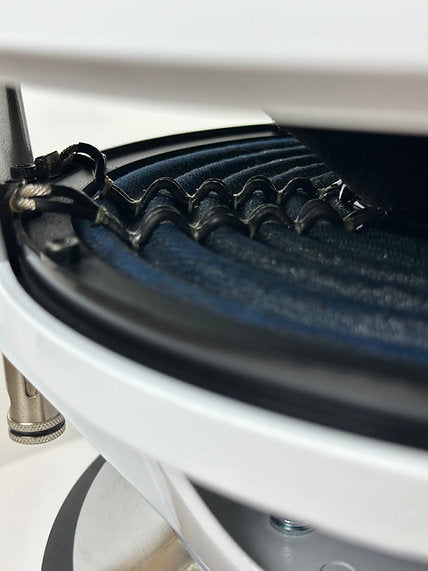

• 20% longer 3” 8 layer coil
• BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)
• 10” spider pack with insulated dual leads.
• Carbon fiber cones and dust caps will come standard with the platinum line.
• New high roll tooled surrounds.
• Cast aluminum frame
• conservative rated at 2,500RMS/5,000Watts
• XMAX 35MM

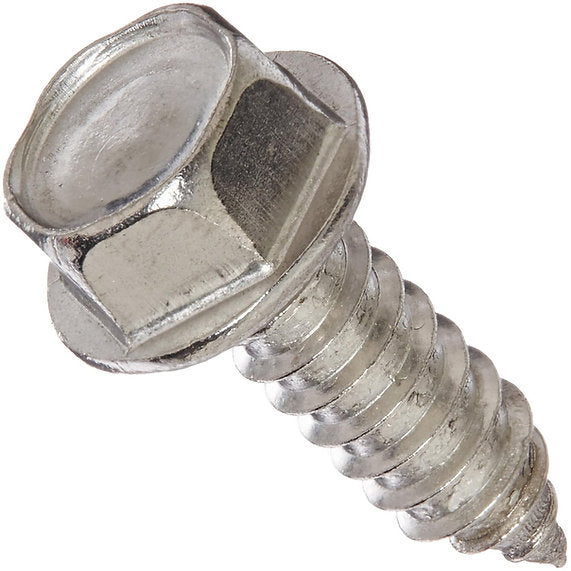

•For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.
BOX SPECS
| CUBIC FT | 2.00-3.00 CUBIC FT PER SUBWOOFER |
| TUNING | 28-33HERTZ |
|
PORT AREA |
12-16 SQ INCHES OF PORT AREA PER CUBIC FT |
| MOUNTING DEPTH | 10.25 INCHES |
| CUTOUT |
11.175 INCHES |
| DISPLACEMENT | 0.25 CUBIC FT |
Specifications
