Description
• XL TRIPLE STACKED MOTOR
• 20% longer 3” 8 layer coil
• BL^2/RE increased by as much as 50% (plat 12V1 vs Plat 12V2)
• 8.5” spider pack with insulated dual leads.
• Carbon fiber cones and dust caps will come standard with the platinum line.
• New high roll tooled surrounds.
• Cast aluminum frame
• conservative rated at 2,500RMS/5,000Watts
• XMAX 35MM

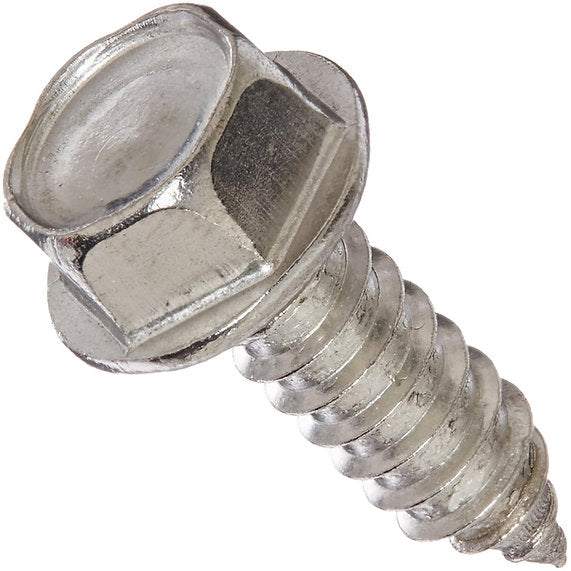

•For mounting Resilient Sounds V2 models with trim rings, we recommend a hex head screw(Last picture) that avoids flaring to prevent cracking the trim ring.
BOX SPECS
| CUBIC FT | 1.5-2.25 CUBIC FT PER SUBWOOFER |
| TUNING | 28-33HERTZ |
|
PORT AREA |
12-16 SQ INCHES OF PORT AREA PER CUBIC FT |
| MOUNTING DEPTH | 9.125 INCHES |
| CUTOUT |
9 7/16 INCHES |
| DISPLACEMENT | 0.22 CUBIC FT |
Specifications
