Description

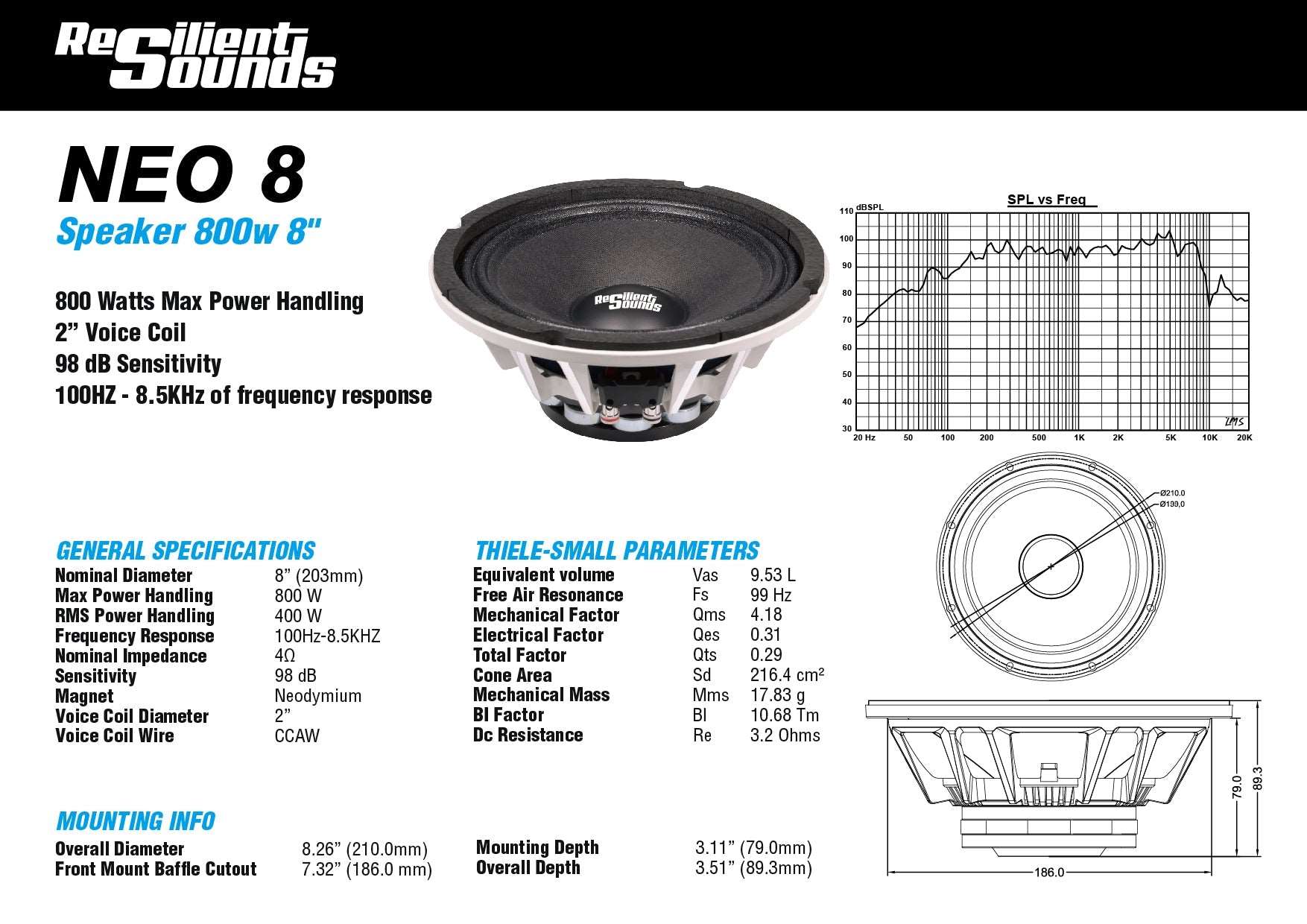

Neo 8
800 Watts Max Power Handling
2" Voice Coil
98 dB Sensitivity
100HZ-8.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 8" (203mm)
Max Power Handling 800 w
RMS Power Handling 400 w
Frequency Response 100Hz-8.5KHZ
Nominal Impedance 4ohm
Sensitivity 98dB
Magnet Neodymium
Voice Coil Diameter 2"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 9.53 L
Free Air Resonance Fs 99 Hz
Mechanical Factor Qms 4.18
Electrical Factor Qes 0.31
Total Factor Qts 0.29
Cone Area Sd 216.4cm²
Mechanical Mass Mms 17.83 g
BI Factor BI 10.68 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 8.26”(210mm)
Front Mount Baffle Cutout 7.32"(186mm)
Mounting Depth 3.11"(79mm)
Overall Depth 3.51"(89.3mm)
Specifications
| Product Brand | Resilient Sounds |
| RMS Power | 400W |
| Diameter | 8" |
