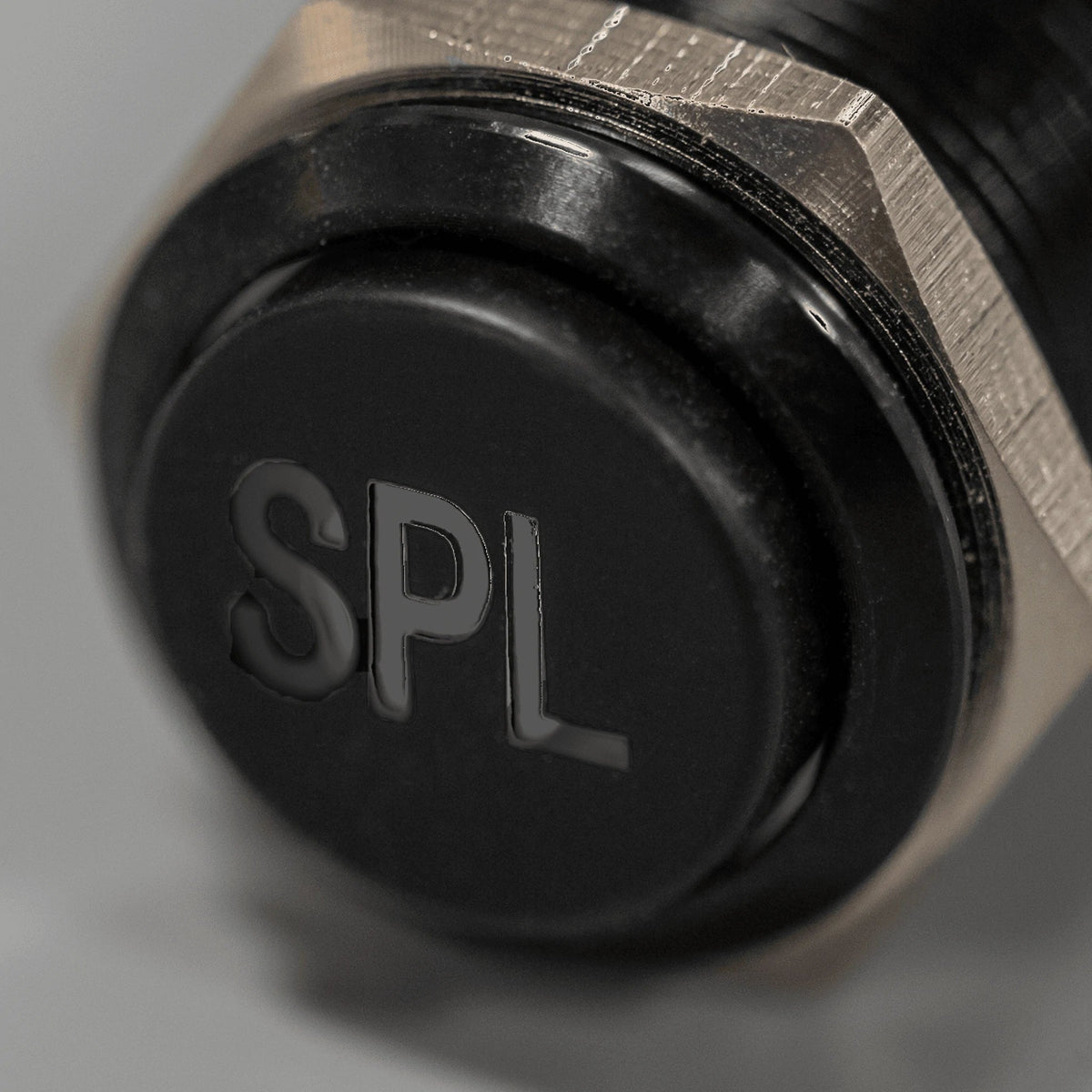

A close-up image showcases the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT by Sparked Innovations. The switch features the letters SPL embossed on its black aluminum surface. Encircled by a metallic ring, it suggests an IP67 waterproof design suitable for 12VDC accessory machinery. The photo beautifully highlights the detailed texture of the button.

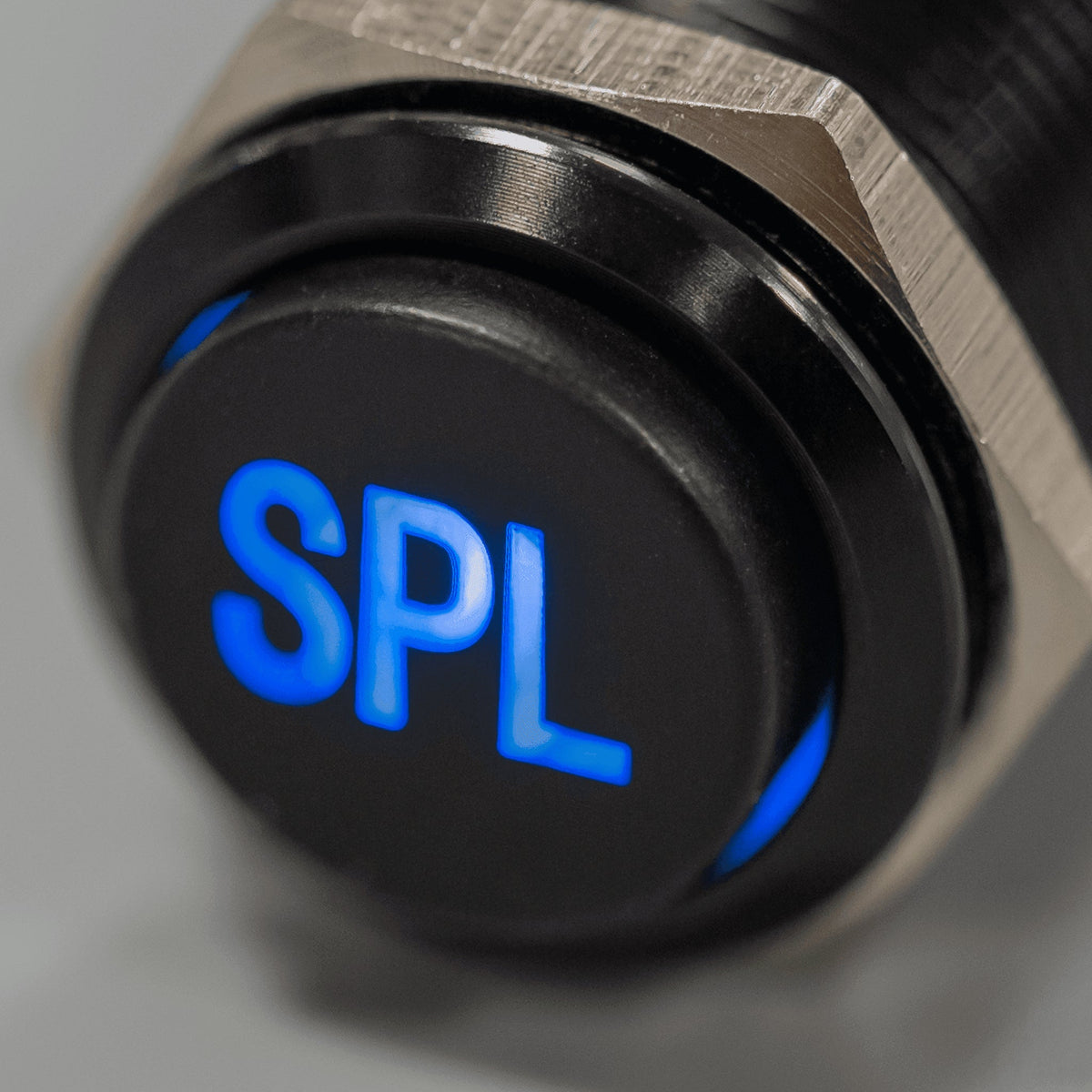

Close-up of the Sparked Innovations Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, showcasing blue illuminated SPL letters on its surface. Encased in a sleek metallic ring, this switch boasts a modern, tech-oriented design and serves as an IP67 waterproof switch for 12VDC accessory applications.

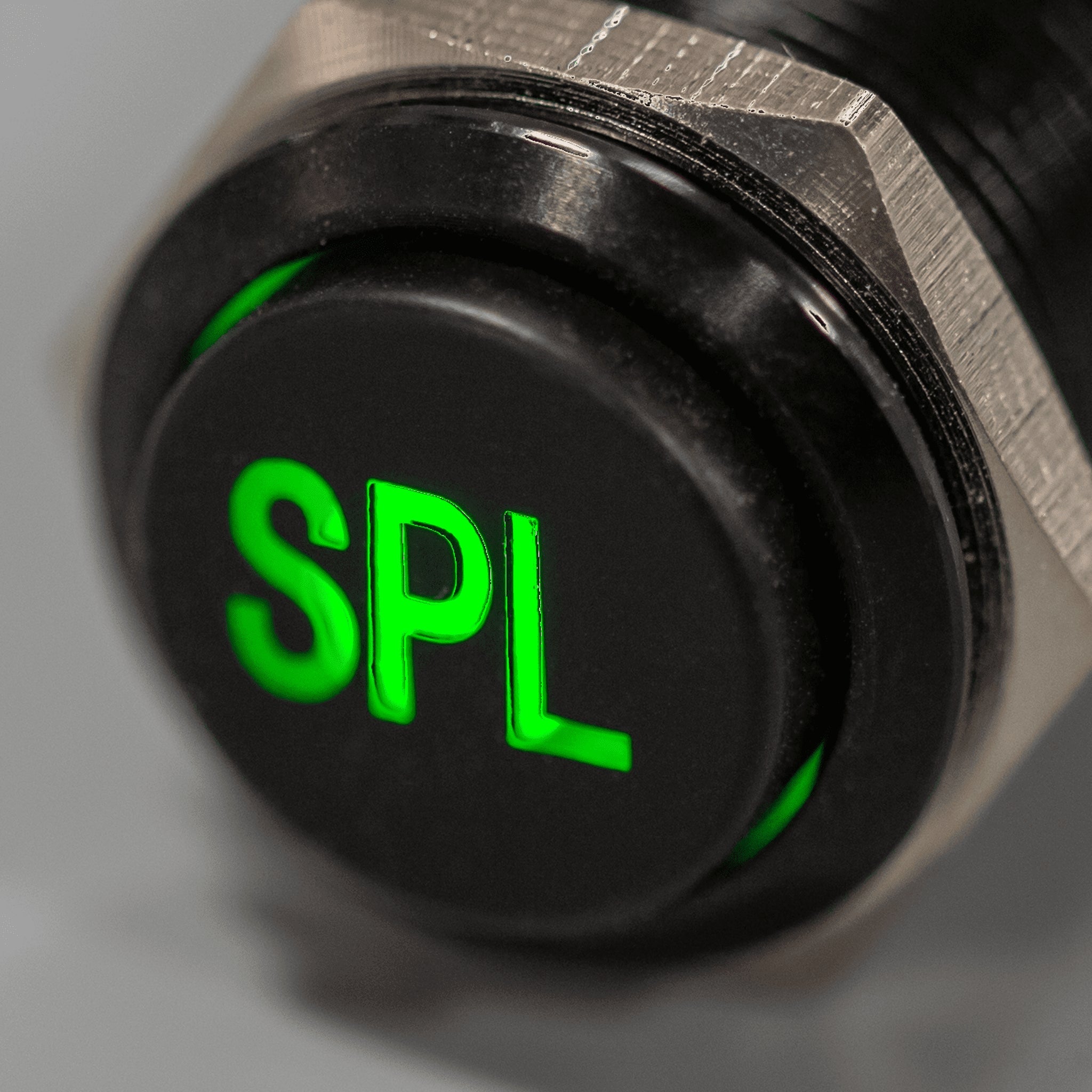

A close-up captures a black latching pushbutton switch from Sparked Innovations, featuring the label "SPL" in striking green text. This 12V accessory switch, known as the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, is framed in a sleek aluminum ring with an IP67 waterproof rating. The out-of-focus background enhances the prominence of this robust button.

Roll over image to zoom in Click on image to zoom

Latching Black SPL Plain Font 12V Pushbutton Switch SPDT

Name: Latching Black SPL Plain Font 12V Pushbutton Switch SPDT
Availability: InStock

Sparked InnovationsSKU: BK-PLAIN-SPL-BL

Color: Blue

Variant

Price:

$4.99

Stock:

Available

Quantity:

{"id":6857827483741,"title":"Latching Black SPL Plain Font 12V Pushbutton Switch SPDT","handle":"latching-black-spl-plain-font-12v-pushbutton-switch-spdt","description":"\u003cdiv\u003e\n\u003cp\u003eUniversal black aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory. Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.\u003c\/p\u003e\n\u003cdiv class=\"block-content\"\u003e\n\u003cp\u003eBlack universal aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory.\u003c\/p\u003e\n\u003cp\u003eIlluminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.\u003c\/p\u003e\n\u003cp\u003eIP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.\u003c\/p\u003e\n\u003c\/div\u003e\n\n    \u003cdiv id=\"more-content\" style=\"display:none;\"\u003e\n\n\u003ch3\u003eSpecifications\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eMounting diameter = 16mm\u003c\/li\u003e\n\u003cli\u003eHead diameter = 18mm\u003c\/li\u003e\n\u003cli\u003eMounting depth = 35mm\u003c\/li\u003e\n\u003cli\u003eLED operating voltage = 12v DC, range = 9~16v\u003c\/li\u003e\n\u003cli\u003eMax switch rating = 3A\/250v AC\u003c\/li\u003e\n\u003cli\u003eContacts = 1NO, 1NC\u003c\/li\u003e\n\u003cli\u003eLED life = 40,000+ hrs.\u003c\/li\u003e\n\u003c\/ul\u003e\n    \u003c\/div\u003e\n\n    \u003ca id=\"toggle-link\" onclick=\"var content = document.getElementById('more-content'); var link = document.getElementById('toggle-link'); if(content.style.display === 'none') {content.style.display = 'block'; link.innerHTML = 'Read Less';} else {content.style.display = 'none'; link.innerHTML = 'Read More';}\"\u003eRead More\u003c\/a\u003e\n\u003c\/div\u003e\n","published_at":"2022-07-04T10:53:02-04:00","created_at":"2022-07-04T10:53:02-04:00","vendor":"Sparked Innovations","type":"","tags":["12V","12V Switch","12VDC","alt text generated","Black","Black Switch","Blue","blue light","blue switch","Green","Green Light","Green Switch","Illuminated Switch","Illuminated Switches","Installation accessories","Latching","Latching Push Button SPDT Switch","Latching Push Button SPDT Switches","Latching Push Button Switches","Latching Pushbutton Switch","Latching Pushbutton Switches","Latching Switch","Metal Push Button Latching SPDT Switches","Metal Push Button Latching Switch","Metal Push Button Latching Switches","Metal Push Button Switch","Metal Push Button Switches","Metal Switch","Metal Switches","Power and Distribution","Push Button Switch","Push Button Switches","pushbutton switch","Ring","SPDT","SPDT Push Button Switch","SPDT Push Button Switches","SPDT Pushbutton Switch","SPDT Pushbutton Switches","SPDT Switch","SPDT Switches","Special Illuminated LED Switches","Switch","Switches"],"price":499,"price_min":499,"price_max":499,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":40265952821341,"title":"Blue","option1":"Blue","option2":null,"option3":null,"sku":"BK-PLAIN-SPL-BL","requires_shipping":true,"taxable":true,"featured_image":{"id":30916804182109,"product_id":6857827483741,"position":2,"created_at":"2022-07-04T10:53:02-04:00","updated_at":"2022-07-04T10:53:02-04:00","alt":"Close-up of the Sparked Innovations Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, showcasing blue illuminated SPL letters on its surface. Encased in a sleek metallic ring, this switch boasts a modern, tech-oriented design and serves as an IP67 waterproof switch for 12VDC accessory applications.","width":2048,"height":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Blue-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382","variant_ids":[40265952821341]},"available":true,"name":"Latching Black SPL Plain Font 12V Pushbutton Switch SPDT - Blue","public_title":"Blue","options":["Blue"],"price":499,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Close-up of the Sparked Innovations Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, showcasing blue illuminated SPL letters on its surface. Encased in a sleek metallic ring, this switch boasts a modern, tech-oriented design and serves as an IP67 waterproof switch for 12VDC accessory applications.","id":23198508056669,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Blue-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40265952854109,"title":"Green","option1":"Green","option2":null,"option3":null,"sku":"BK-PLAIN-SPL-GN","requires_shipping":true,"taxable":true,"featured_image":{"id":30916804214877,"product_id":6857827483741,"position":3,"created_at":"2022-07-04T10:53:02-04:00","updated_at":"2022-07-04T10:53:02-04:00","alt":"A close-up captures a black latching pushbutton switch from Sparked Innovations, featuring the label \"SPL\" in striking green text. This 12V accessory switch, known as the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, is framed in a sleek aluminum ring with an IP67 waterproof rating. The out-of-focus background enhances the prominence of this robust button.","width":2048,"height":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Green-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382","variant_ids":[40265952854109]},"available":true,"name":"Latching Black SPL Plain Font 12V Pushbutton Switch SPDT - Green","public_title":"Green","options":["Green"],"price":499,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"A close-up captures a black latching pushbutton switch from Sparked Innovations, featuring the label \"SPL\" in striking green text. This 12V accessory switch, known as the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, is framed in a sleek aluminum ring with an IP67 waterproof rating. The out-of-focus background enhances the prominence of this robust button.","id":23198508089437,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Green-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-SPL-switch-1.png?v=1656946382","\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Blue-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382","\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Green-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382"],"featured_image":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-SPL-switch-1.png?v=1656946382","options":["Color"],"media":[{"alt":"A close-up image showcases the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT by Sparked Innovations. The switch features the letters SPL embossed on its black aluminum surface. Encircled by a metallic ring, it suggests an IP67 waterproof design suitable for 12VDC accessory machinery. The photo beautifully highlights the detailed texture of the button.","id":23198508023901,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-SPL-switch-1.png?v=1656946382"},"aspect_ratio":1.0,"height":2048,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-SPL-switch-1.png?v=1656946382","width":2048},{"alt":"Close-up of the Sparked Innovations Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, showcasing blue illuminated SPL letters on its surface. Encased in a sleek metallic ring, this switch boasts a modern, tech-oriented design and serves as an IP67 waterproof switch for 12VDC accessory applications.","id":23198508056669,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Blue-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382"},"aspect_ratio":1.0,"height":2048,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Blue-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382","width":2048},{"alt":"A close-up captures a black latching pushbutton switch from Sparked Innovations, featuring the label \"SPL\" in striking green text. This 12V accessory switch, known as the Latching Black SPL Plain Font 12V Pushbutton Switch SPDT, is framed in a sleek aluminum ring with an IP67 waterproof rating. The out-of-focus background enhances the prominence of this robust button.","id":23198508089437,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2048,"width":2048,"src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Green-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382"},"aspect_ratio":1.0,"height":2048,"media_type":"image","src":"\/\/sparkedinnovations.com\/cdn\/shop\/products\/Black-Green-LED-SPL-switch-sound-pressure-level-Plain-1.png?v=1656946382","width":2048}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cp\u003eUniversal black aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory. Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.\u003c\/p\u003e\n\u003cdiv class=\"block-content\"\u003e\n\u003cp\u003eBlack universal aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory.\u003c\/p\u003e\n\u003cp\u003eIlluminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.\u003c\/p\u003e\n\u003cp\u003eIP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.\u003c\/p\u003e\n\u003c\/div\u003e\n\n    \u003cdiv id=\"more-content\" style=\"display:none;\"\u003e\n\n\u003ch3\u003eSpecifications\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003eMounting diameter = 16mm\u003c\/li\u003e\n\u003cli\u003eHead diameter = 18mm\u003c\/li\u003e\n\u003cli\u003eMounting depth = 35mm\u003c\/li\u003e\n\u003cli\u003eLED operating voltage = 12v DC, range = 9~16v\u003c\/li\u003e\n\u003cli\u003eMax switch rating = 3A\/250v AC\u003c\/li\u003e\n\u003cli\u003eContacts = 1NO, 1NC\u003c\/li\u003e\n\u003cli\u003eLED life = 40,000+ hrs.\u003c\/li\u003e\n\u003c\/ul\u003e\n    \u003c\/div\u003e\n\n    \u003ca id=\"toggle-link\" onclick=\"var content = document.getElementById('more-content'); var link = document.getElementById('toggle-link'); if(content.style.display === 'none') {content.style.display = 'block'; link.innerHTML = 'Read Less';} else {content.style.display = 'none'; link.innerHTML = 'Read More';}\"\u003eRead More\u003c\/a\u003e\n\u003c\/div\u003e\n"}

Share this product

Universal black aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory. Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.

Black universal aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory.

Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.

IP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.

LED Lifespan	40,000+ hours
Color	Blue Green Purple Red White
Waterproof Rating	IP67
Symbol	SPL
Switch Type	Pushbutton
Switch Contact Type	1NC, 1NO
Product Brand	Sparked Innovations
Overall Diameter	18mm
Mounting Hole Diameter	16mm
Mounting Depth	35mm
Maximum Switch Rating	3A/250VAC
LED Operating Voltage	12VDC

Latching Black SPL Plain Font 12V Pushbutton Switch SPDT
