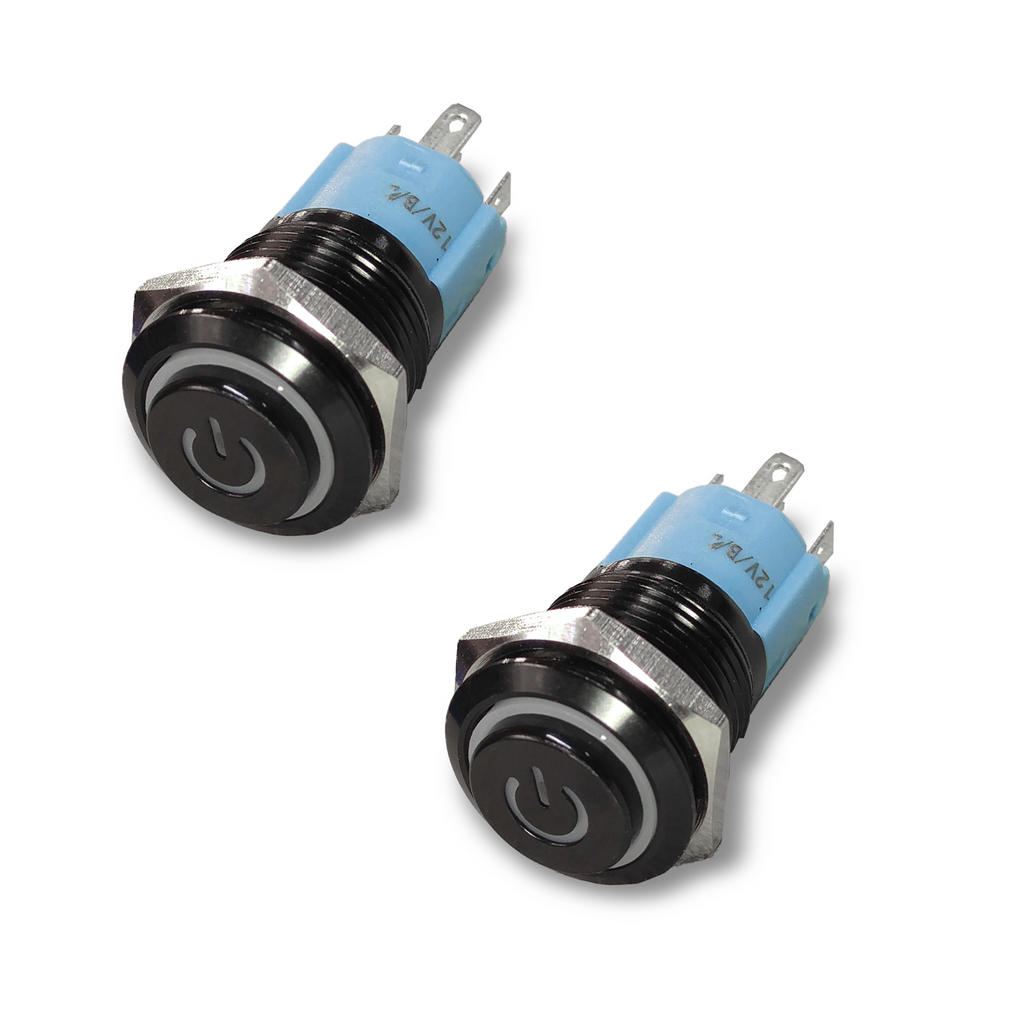

12VDC latching illuminated pushbutton switch with black finish for switching ON-OFF a variety of electronic devices from car audio amplifiers to LED lights in automotive, home, or PC gaming applications. Its IP67 waterproof rating makes it suitable for marine and exterior environments.
Universal latching push button switch with a black finish. Use it to switch anything from amplifiers to LED lights to in-home projects like gaming PCs

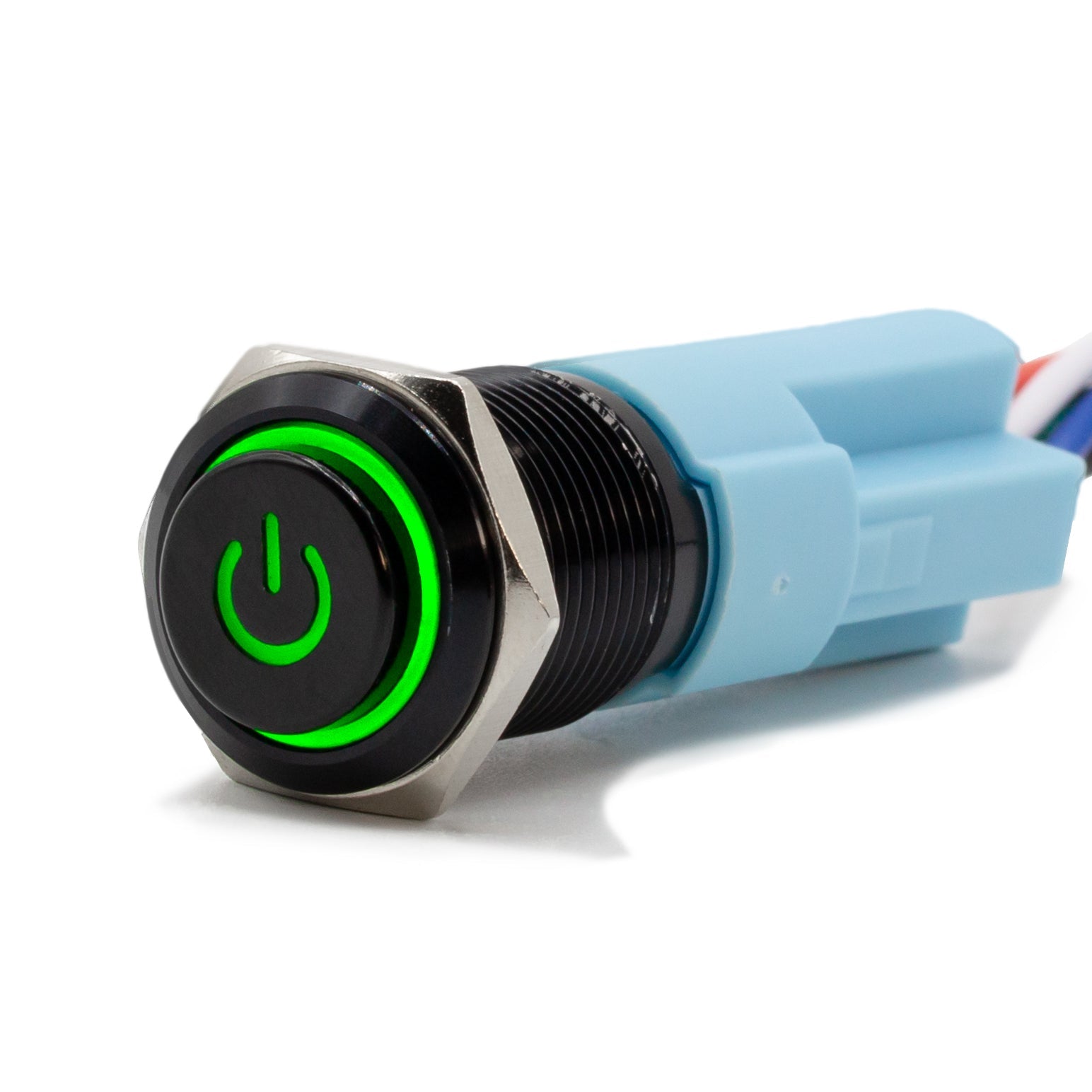

Illuminates power symbol and ring around the button head when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.
IP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.
- Mounting diameter = 16mm
- Head diameter = 18mm
- Mounting depth = 35mm
- LED operating voltage = 12v DC, range = 9~16v
- Max switch rating = 3A/250v AC
- Contacts = 1NO, 1NC
- LED life = 40,000+ hrs.
|Blue Green Purple Red White
|Switch Contact Type
|Mounting Hole Diameter
|Maximum Switch Rating
|LED Operating Voltage
