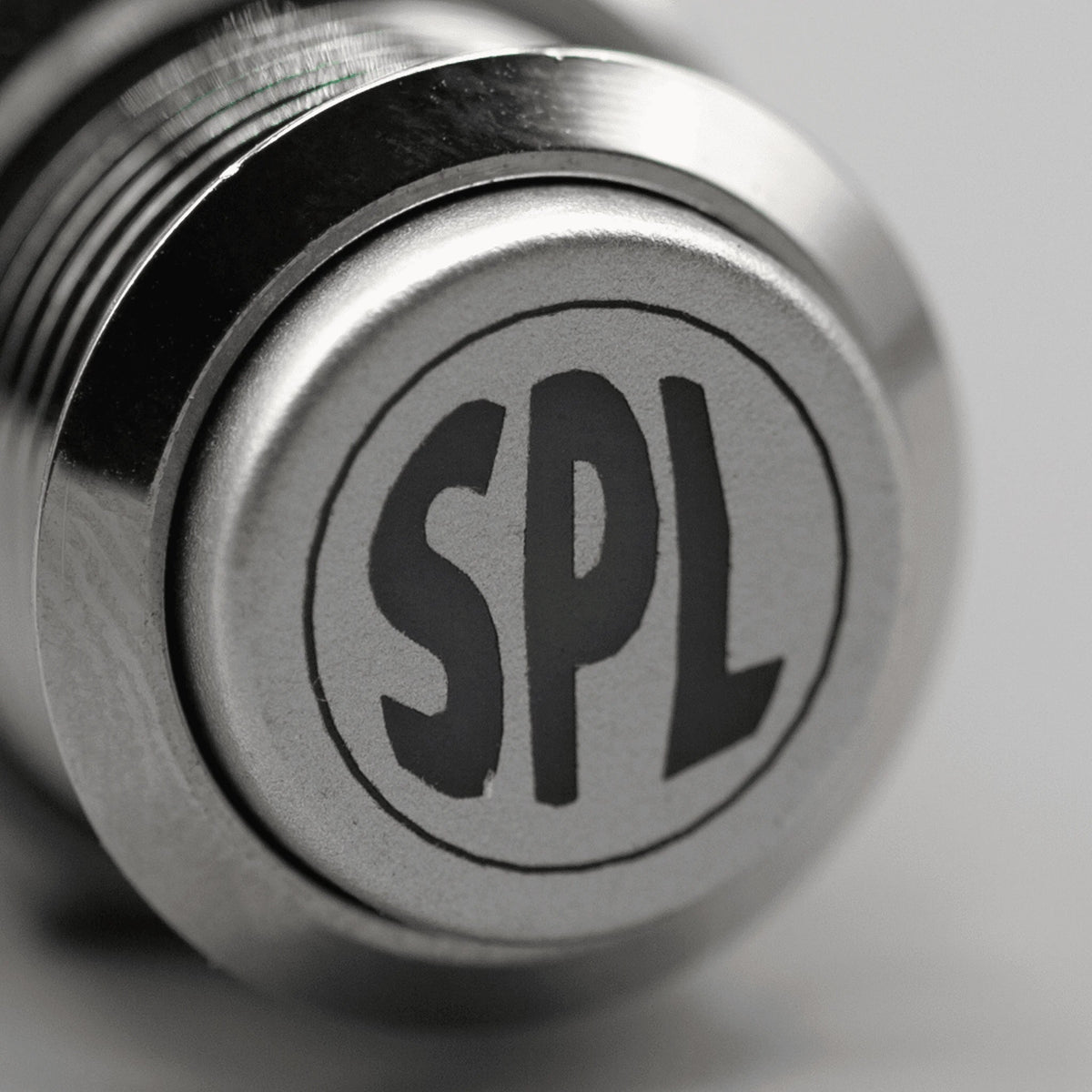

Latching Aluminum SPL 12V Pushbutton Switch SPDT

Sparked InnovationsSKU: A16-11SPL-BL

Color: Blue
Price:
Sale price$9.00 USD
Stock:
In stock

Description

Universal aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory. Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.

Universal aluminum latching push button switch. Use it to turn on lights, amplifiers, actuators, compressors, gauge pods, or any other 12VDC accessory.

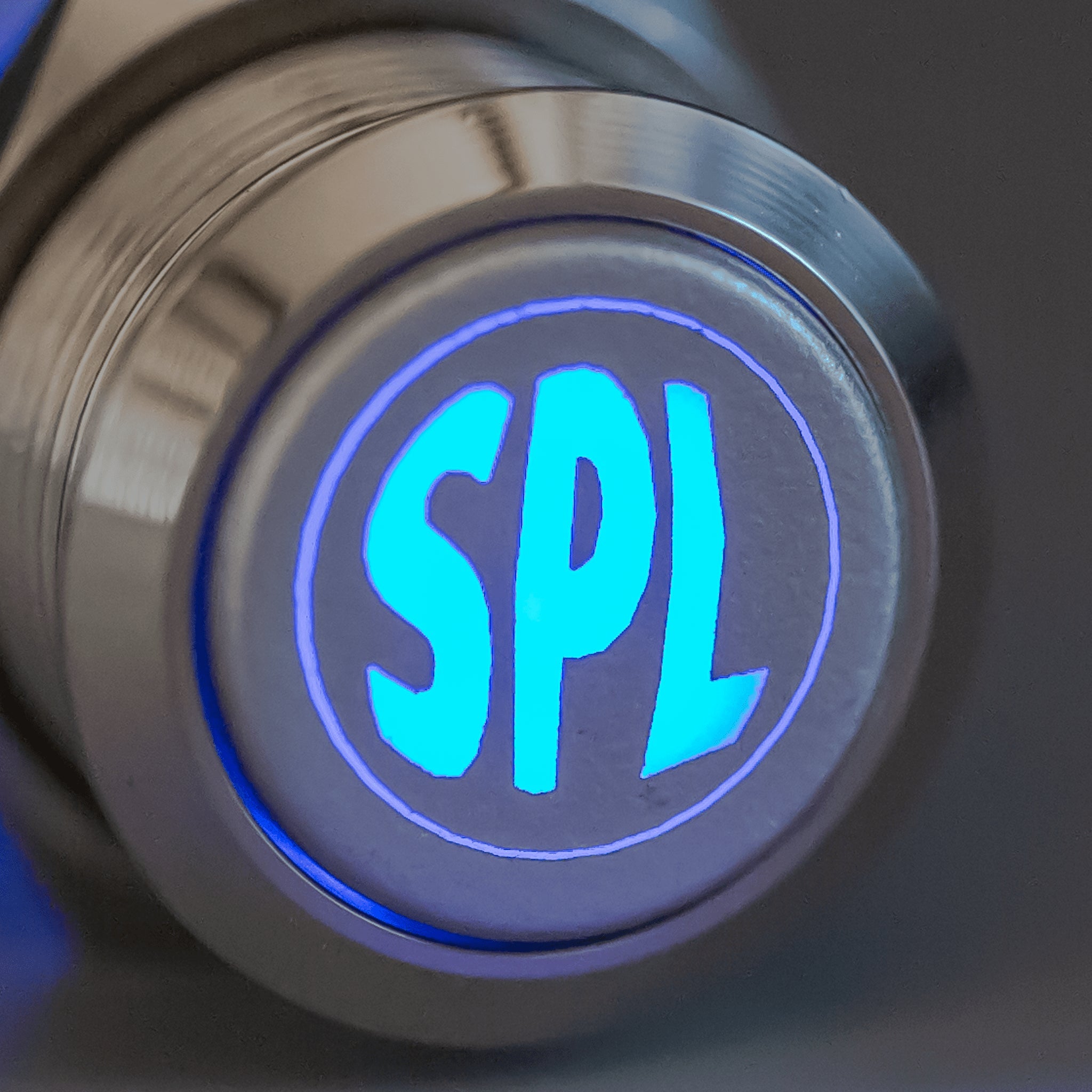

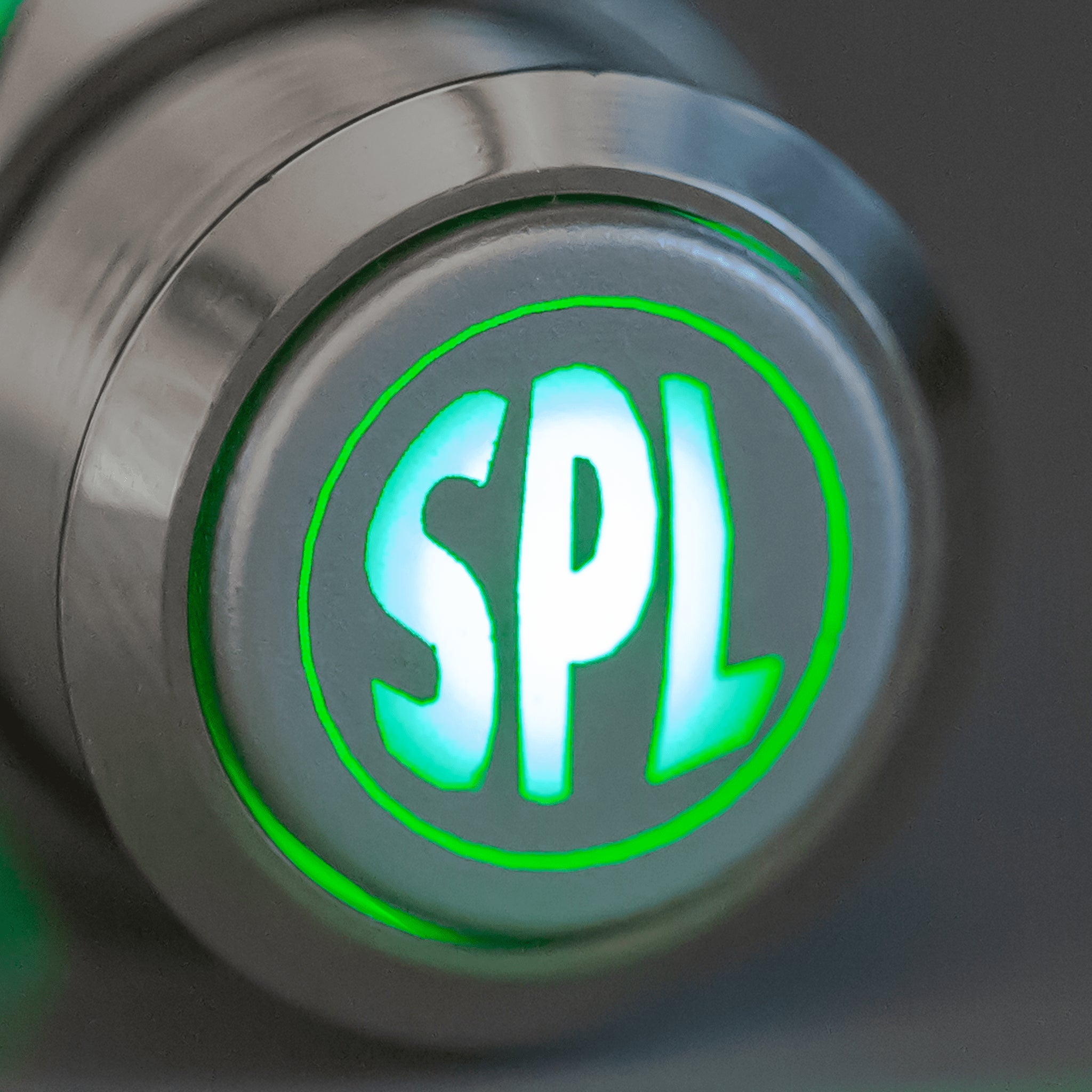

Illuminates SPL letters when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.

IP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.

Specifications

  • Mounting diameter = 16mm
  • Head diameter = 18mm
  • Mounting depth = 35mm
  • LED operating voltage = 12v DC, range = 9~16v
  • Max switch rating = 3A/250v AC

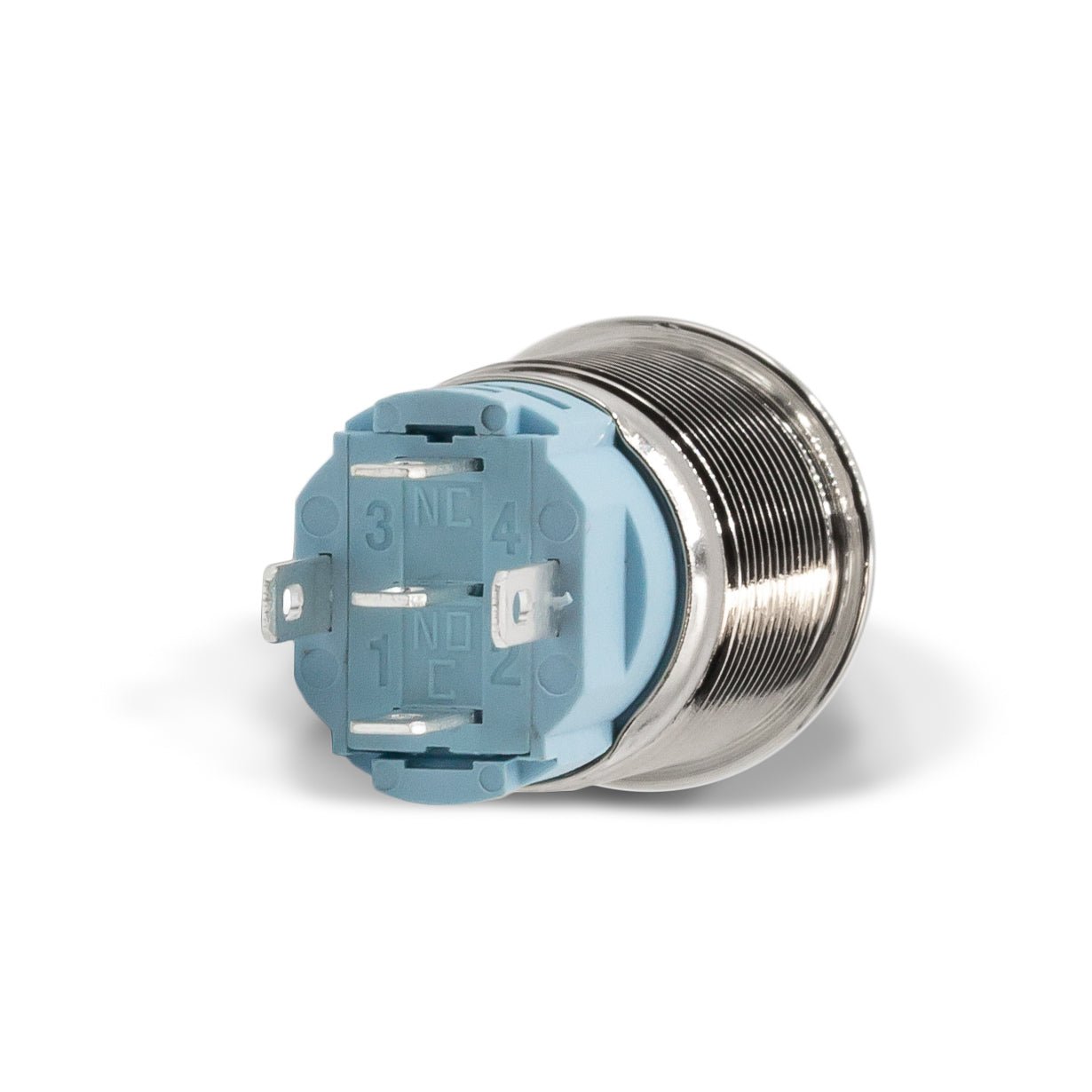

  • Contacts = 1NO, 1NC
  • LED life = 40,000+ hrs.

Specifications

LED Lifespan 40,000+ hours
Color Blue   Green   Purple   Red   White
Waterproof Rating IP67
Symbol SPL
Switch Type Pushbutton
Switch Contact Type 1NC, 1NO
Product Brand Sparked Innovations
Overall Diameter 18mm
Mounting Hole Diameter 16mm
Mounting Depth 35mm
Maximum Switch Rating 3A/250VAC
LED Operating Voltage 12VDC
