Description

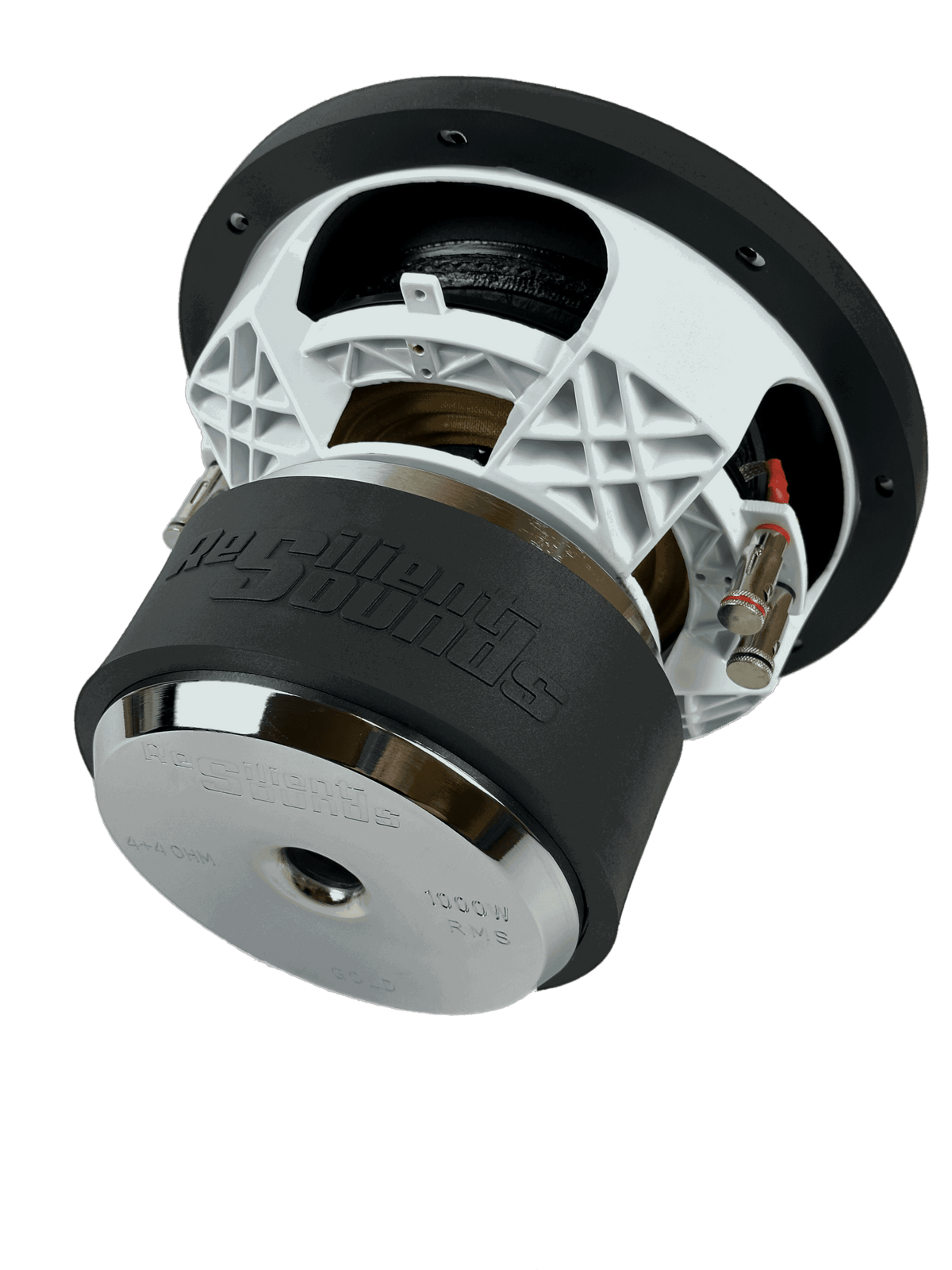

The RS Gold Series is geared towards audio fanatics searching for a low distortion and high performance driver without breaking your budget!
Rated 1,000RMS
2.5 inch Voice Coil

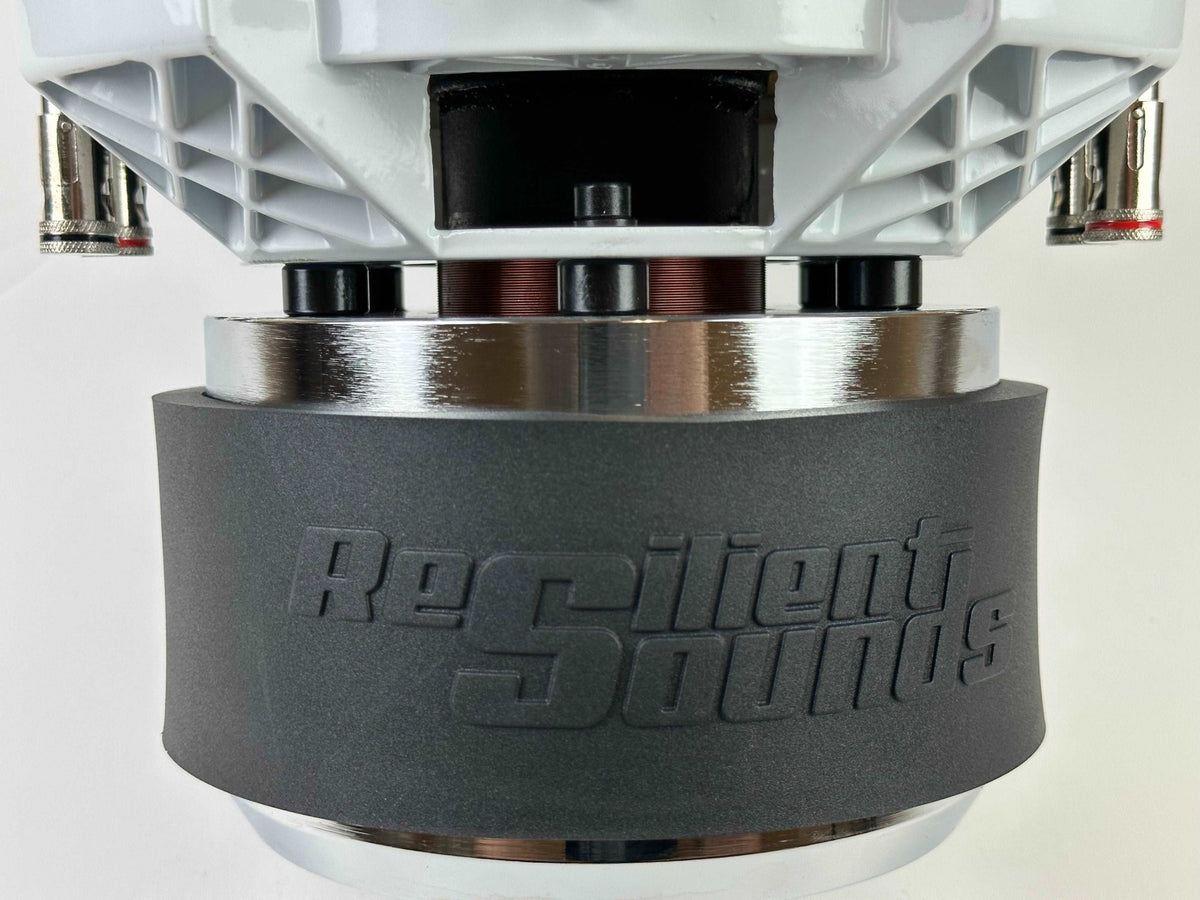

Spacers for adding cooling, and more throw.
Shortening Ring.
FEA optimized triple stack motor
SPECS
SPL: 82.7 dB
FMS: 38.9 Hz
BL: 32.4
Res: 131.5
Re: 8.0
Qms: 5.27
Qes: 0.48
Qts: 0.44
Rms: 11.9
Cms: 0.07
Mms: 256.5 gr
Nref: 0.12%
VAS: 9.9 L
Rp: 82.9
Lp: 68. mH
Cp: 304.7 uF
Le: 6.45 mH
Technical Specifications — Resilient Sounds RS GOLD 10 1000W 10" Subwoofer
| Parameter | Value | Unit |
|---|---|---|
| Fs (Resonant Frequency) | 38.9 | Hz |
| Qts (Total Q) | 0.44 | — |
| Vas (Compliance Volume) | 281.4 | L |
| Xmax (Linear Excursion) | 12.7 | mm |
| RMS Power | 1000W | — |
Specifications
| Rated Watts | 1000 |
| Product Brand | Resilient Sounds |

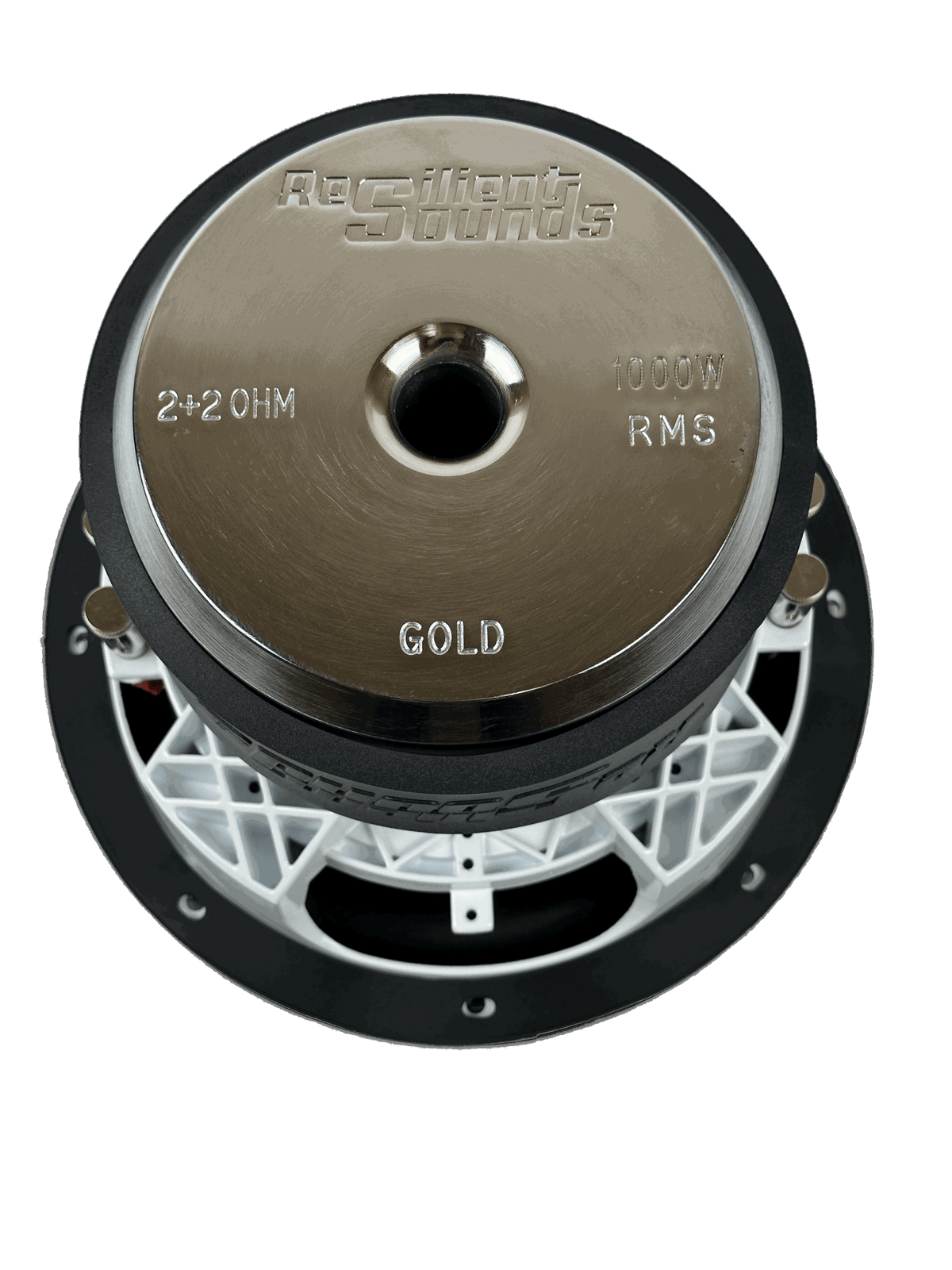

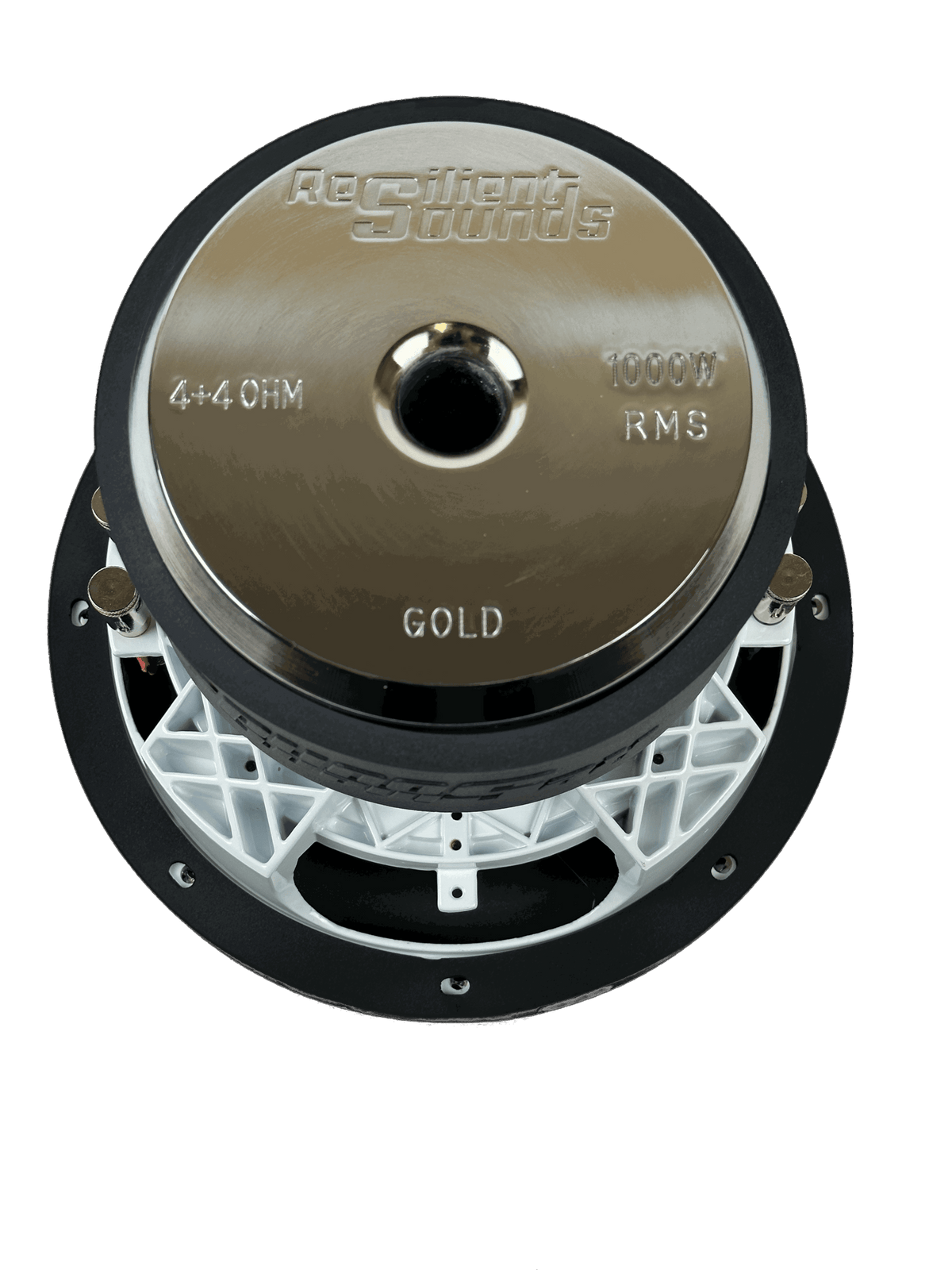

| Coil | Dual 4 Ohm (D4) Dual 2 Ohm (D2) |
| RMS Power | 1000W |
| Diameter | 10" |
