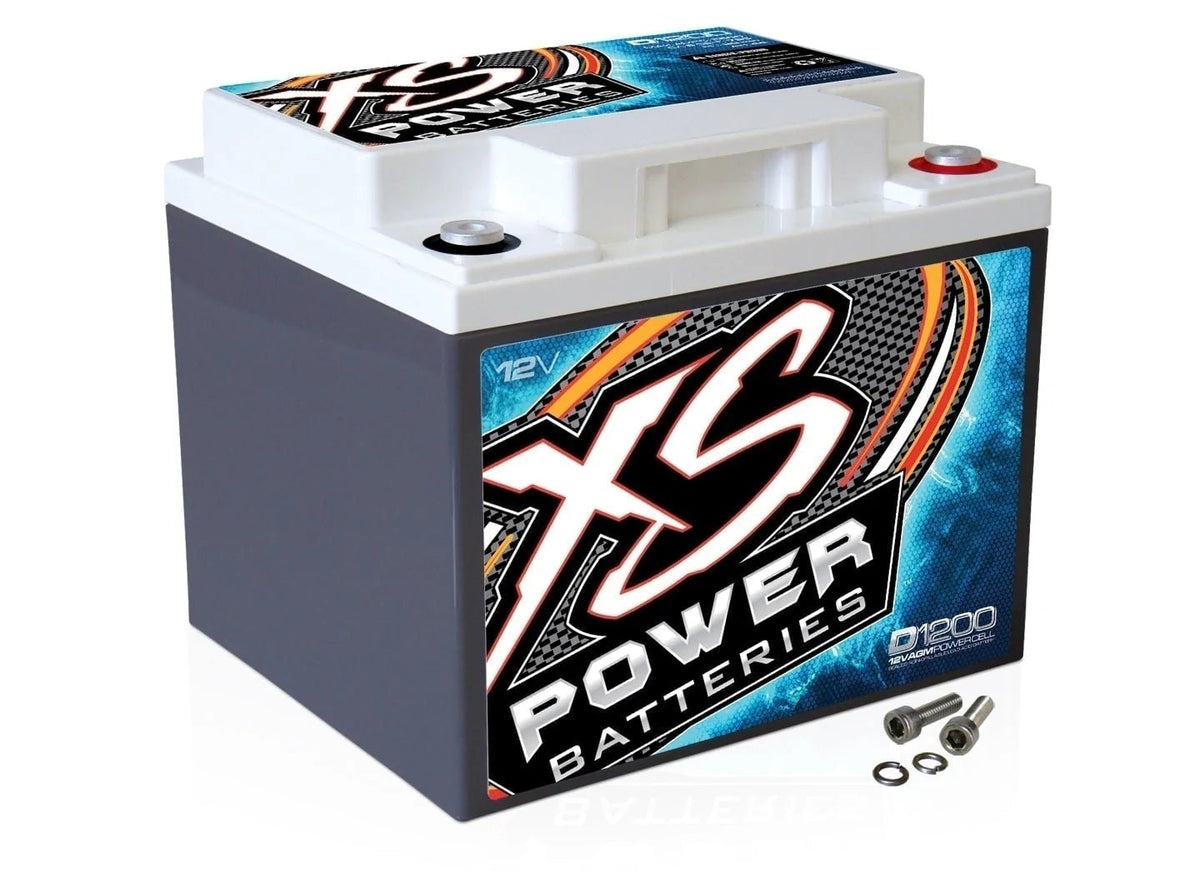

D1200 XS Power 12VDC AGM Car Audio Vehicle Battery 2600A 44Ah

A search for the "XS Power D1200," a "compact trunk battery for car audio," or a "secondary AGM for 1500W–3000W systems" leads to the same requirement: high-density power in a constrained footprint. The D1200 is a 12VDC AGM cell built on a compact 6.54"W × 6.69"H × 7.80"L case that is smaller than standard BCI group envelopes on every axis. This is not an under-hood replacement for a factory battery; it is a purpose-built secondary power source for custom racks, trunk installations, and cabin-mounted battery boxes where physical volume is the binding constraint.

Compact Technical Floor

The D1200 delivers 2600A of maximum current, 44Ah (C20) capacity, and an 80-minute reserve at 25A discharge. While 650 Cold Cranking Amps (0°F) and 725 Cranking Amps (32°F) allow the D1200 to serve as a stand-alone starting battery in small-displacement project vehicles, its primary engineering intent is the secondary-position reservoir. The 80-minute reserve defines how long the amplifier rack can draw its rated current during engine-off use before system voltage drops into sag territory. This compact cell ensures that even space-limited builds have a genuine power reservoir rather than a passive electrical load.

The 1500W / 3000W Dual-Disclosure

The D1200 is rated at 1500W as a primary source and 3000W as a secondary source. In a single-battery 12V architecture, 1500W RMS is the ceiling for consistent delivery without alternator assistance. In the more common two-battery configuration — a D-series primary under-hood paired with a D1200 in the trunk — the 3000W secondary rating is the critical metric. This reflects the battery's ability to deliver 3000W of instantaneous musical peak when paralleled with the primary battery. Systems running a 3000W peak-musical rack in vehicles with no under-hood room for a second battery should treat the D1200 as the defined trunk-side support.

Fitment: Right Polarity, Compact Case, Cable-Run Planning

The D1200 features a Right polarity (R) post orientation, a detail that dictates the cable-run geometry. In a trunk-mounted application, the positive terminal's position relative to the vehicle walls determines the termination of the main power cable; mis-specifying polarity can lead to excessive cable length or complex re-routing of the ground path. At 6.54"W × 6.69"H × 7.80"L, the case is significantly smaller than a standard Group 34 on every axis, fitting inside most aftermarket battery boxes and under-seat enclosures that a full-size unit would exceed. Before ordering, confirm the positive post aligns with your planned cable entry.

Who Should Use the D1200

The D1200 is specified for builds adding a secondary or trunk-mounted battery to a 1500W–3000W audio system where a full-size Group 34 will not fit. It is the correct choice for two-battery strategies, custom-fab trunk racks, and powersports applications where physical space is a hard requirement. Daily drivers seeking a primary under-hood upgrade should instead spec the BCI-group-matched D3400. Sparked Builds provides the documented fitment and pairing data to ensure your secondary power is integrated correctly. Build it at Sparked Builds.
